TXC/ER Equipamento de Erros de Radiação em Medidas de Temperatura para TSTCC

9.6.- TRANSFERÊNCIA DE CALOR

RADIATION ERRORS IN TEMPERATURE MEASUREMENT MODULE FOR TSTCC - TXC/ER

SISTEMAS INOVADORES

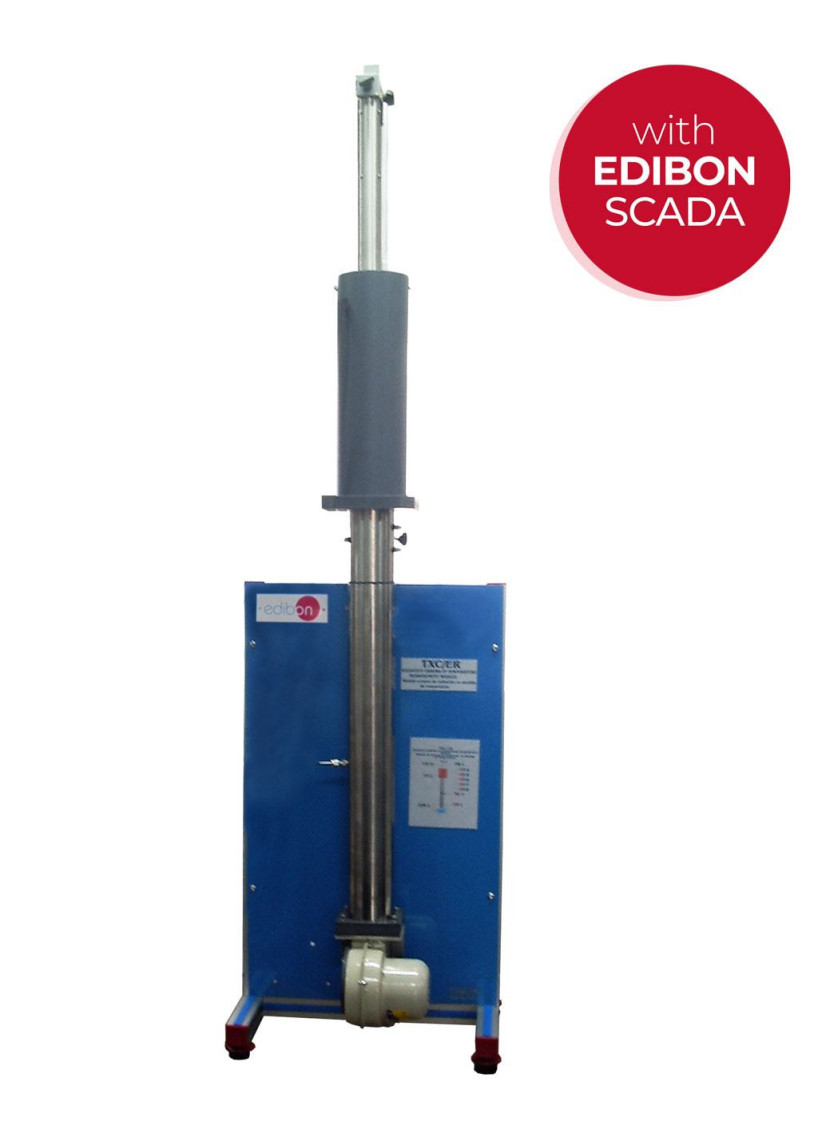

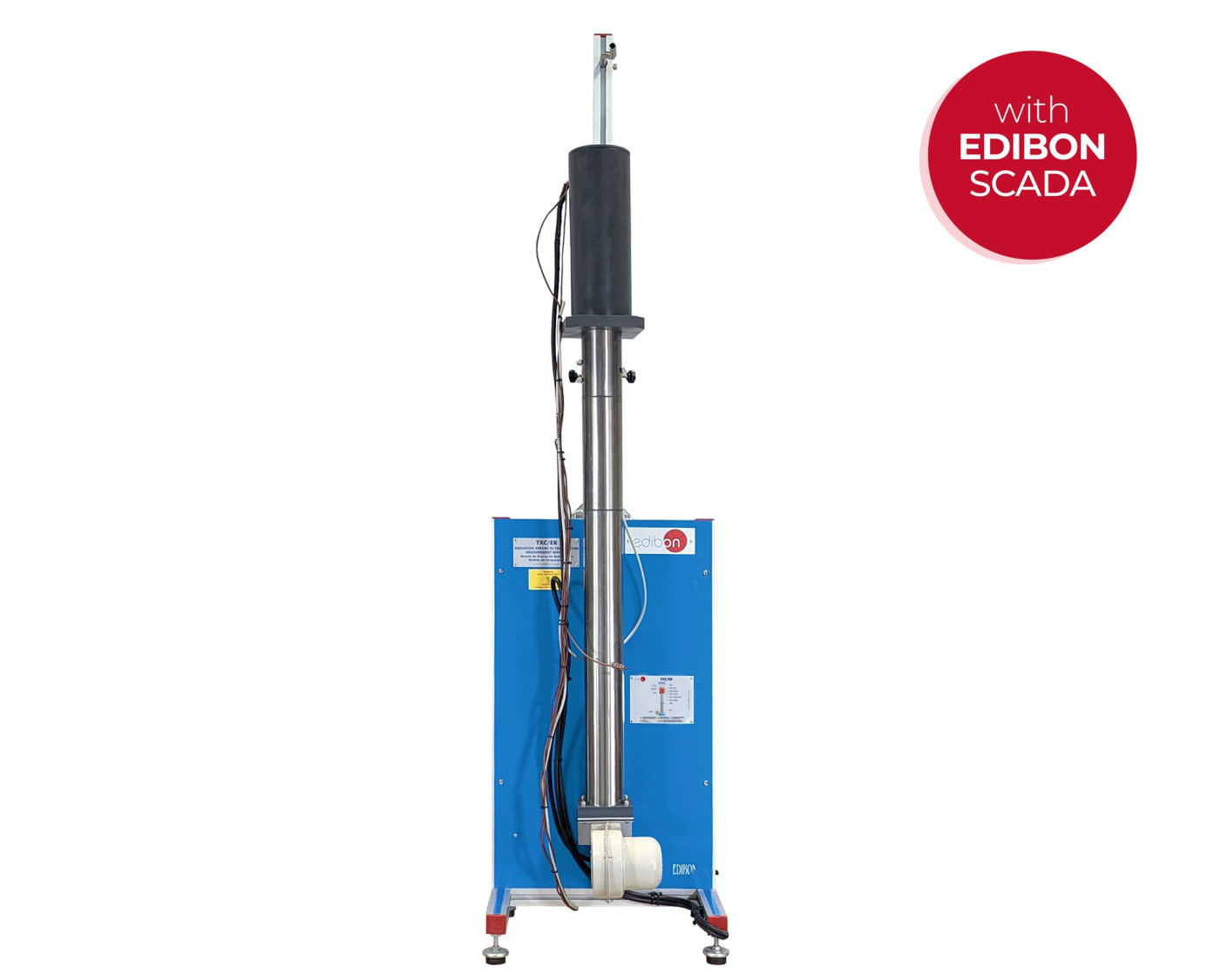

TXC/ER. Bench-top unit to demonstrate how temperature measurements can be influenced by sources of thermal radiation.
