TXC/CL Equipamento de Condução de Calor Linear para TSTCC

9.6.- TRANSFERÊNCIA DE CALOR
LINEAR HEAT CONDUCTION MODULE FOR TSTCC - TXC/CL

SISTEMAS INOVADORES

The Linear Heat Conduction Unit for TSTCC, "TXC/CL", allows the study of the principles of linear heat conduction and enables the measurement of the thermal conductivity of different solid conductors and insulators.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
FSS

Sistema de Simulação de Falhas
PLC

Controle de Processos Industriais por CLP
PLCHMI

Controle e Monitoramento local/remoto IIoT com HMI
ELK

Kit de Desenvolvimento de Software EDIBON, Desenvolvido por NI LabVIEW ™
ECR

Sistema Modular Industrial EDIBON com NI CompactRIO
ESN

EDIBON SCADA-Net
ECL

Educação a Distância EDIBON

LABORATÓRIOS

11PTC
 Laboratório para o Centro de Formação Petrolífera
9TV
 Laboratório de Termodinâmica e Termotecnia para o Ensino Técnico e Vocacional
9HE
 Laboratório de Termodinâmica e Termotecnia para o Ensino Superior

NOTÍCIAS RELACIONADAS

Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and thermotechnology are fundamental fields of engineering that play a critical role across various industries, from energy generation to climate control. Understanding these foundational concepts is essential not only for engineers but also for fostering technological innovations...
Ler mais
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
We are excited to celebrate the publication of the article by Prof. Dr. Nina Penkova titled "Performance of Diffusion Absorption Refrigerators with Variable Input Power" The study explores how absorption refrigerators, which utilize waste or solar energy for heating and cooling, can operate...
Ler mais
Setting up at Béjaia University
Setting up at Béjaia University
We have traveled to the Béjaia University to install several of our equipment in the areas of Electrical Engineering and Heat Transfer.
Ler mais
Installation at University of Sebha
Installation at University of Sebha
Today, we can announce the setting up of a complete installation, including the Linear Heat Conduction Module TXC/CL, TXC/CC, TTEC, MINI-EEE, EEU/20KN or EBVR, among others, at the University of Sebha, in Libya. We are confident that this new equipment will allow students to test empirically the...
Ler mais

Descrição Geral

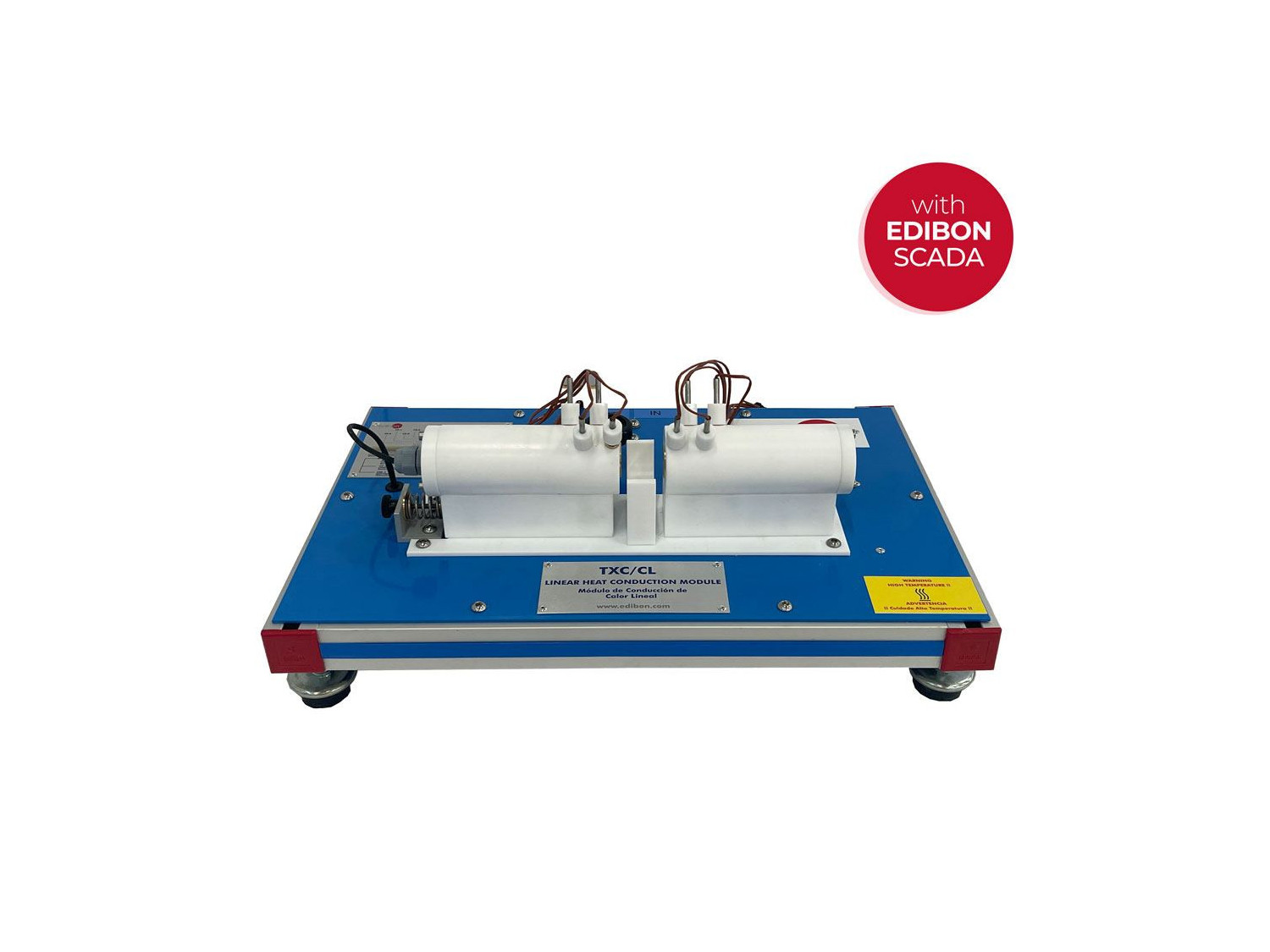

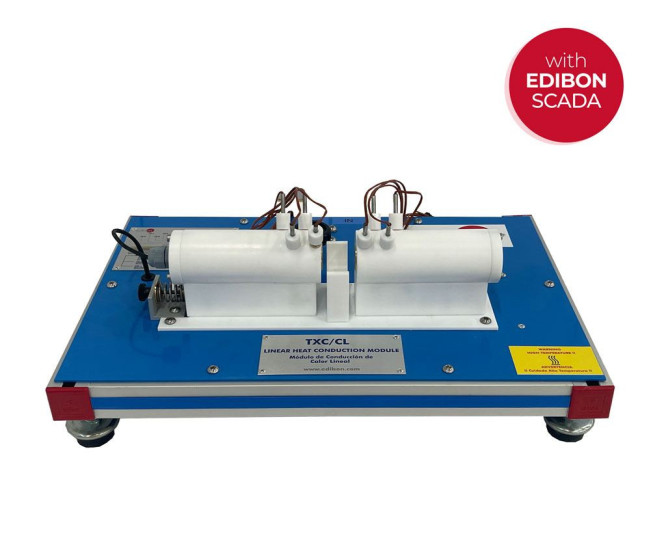

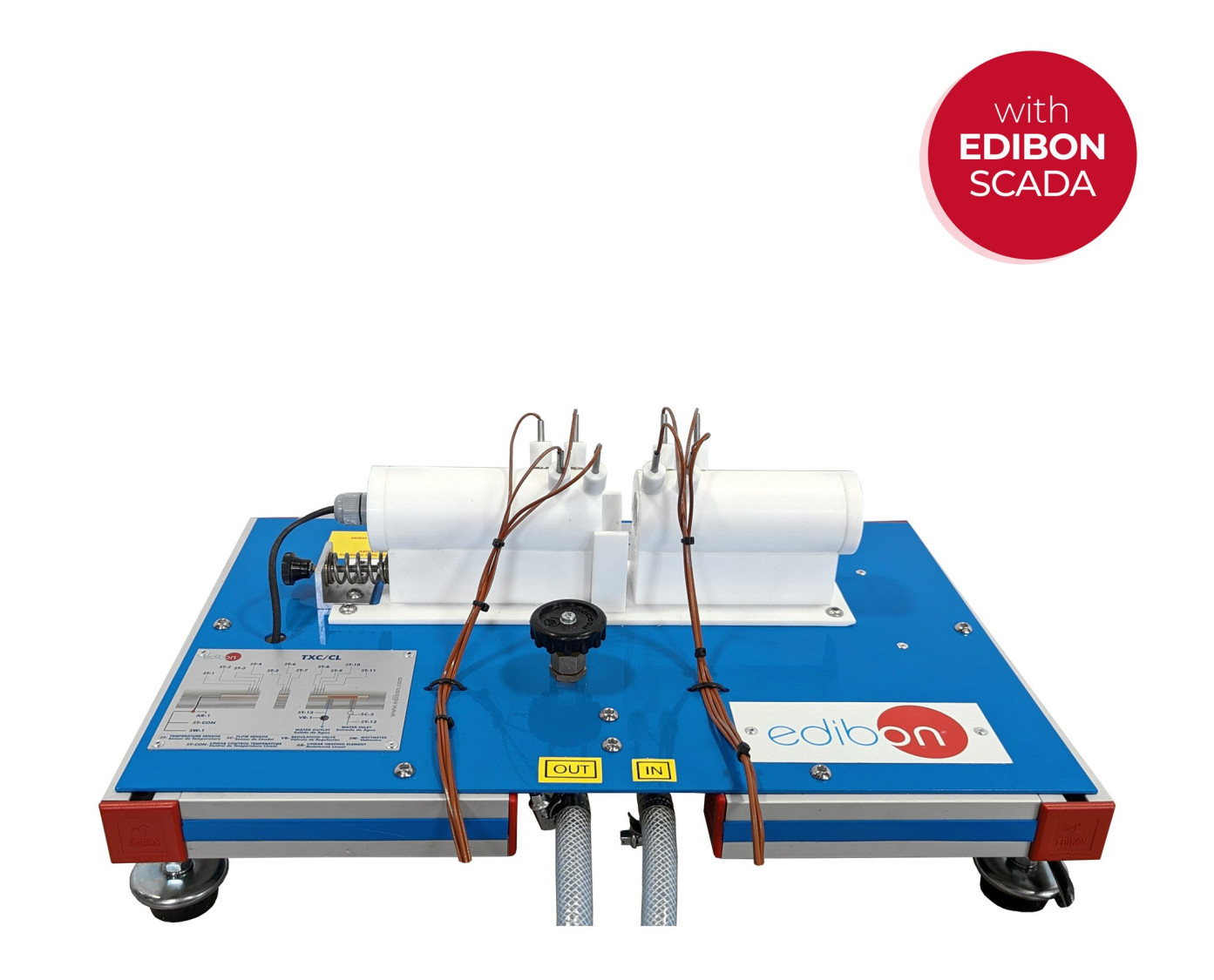

The Linear Heat Conduction Unit for TSTCC, "TXC/CL", allows the study of the principles of linear heat conduction and enables the measurement of the thermal conductivity of different solid conductors and insulators.
