RYC-I Equipamento de Controlo e Regulação PID da Luminosidade

2.4.1.- INSTRUMENTAÇÃO E CONTROLE 6.1.1.1.- FUNDAMENTOS TEÓRICO-PRÁTICOS 10.1.- FUNDAMENTOS TEÓRICO - PRÁTICOS 14.2.2.- INSTRUMENTAÇÃO E CONTROLE
LUMINOSITY CONTROL MODULE - RYC-I

SISTEMAS INOVADORES

The PID Control and Regulation of Light Intensity Unit, "RYC-I", designed by EDIBON, enables the practical study of automatic control systems through the regulation of light intensity and the analysis of three different types of light sensors.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
EMAK

EDIBON Matlab Kit

LABORATÓRIOS

6TV
 Laboratório de Mecatrónica e Automação para o Ensino Técnico e Vocacional
6HE
 Laboratório de Mecatrónica e Automação para o Ensino Superior
2TV
 Laboratório de Electrónica para o Ensino Técnico e Profissional
2HE
 Laboratório de Electrónica para o Ensino Superior
11PTC
 Laboratório para o Centro de Formação Petrolífera

NOTÍCIAS RELACIONADAS

The future of Process Control: Innovation, training, and the industry 4.0 revolution
The future of Process Control: Innovation, training, and the industry 4.0 revolution
Automation and process control have been fundamental pillars in the evolution of both industry and scientific research. With the advent of Industry 4.0, the integration of new technologies has driven an unprecedented transformation in the way industrial and research systems operate, optimize...
Ler mais
What is Process Control, and Why is It Essential in Modern Industry?
What is Process Control, and Why is It Essential in Modern Industry?
Today, automation and efficiency are key factors in industrial and scientific development. Process control plays a crucial role in this context by enabling the monitoring, regulation, and optimization of industrial systems and processes, ensuring they operate efficiently, safely, and consistently.
Ler mais
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Ler mais
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
On October 19th, the Course on Instrumentation, Regulation and Control in Laboratories, taught by our engineers in these facilities, using EDIBON units, was completed and aimed at learning the control of the conditions of a laboratory process. The attendants, (12 laboratory technicians and...
Ler mais

Descrição Geral

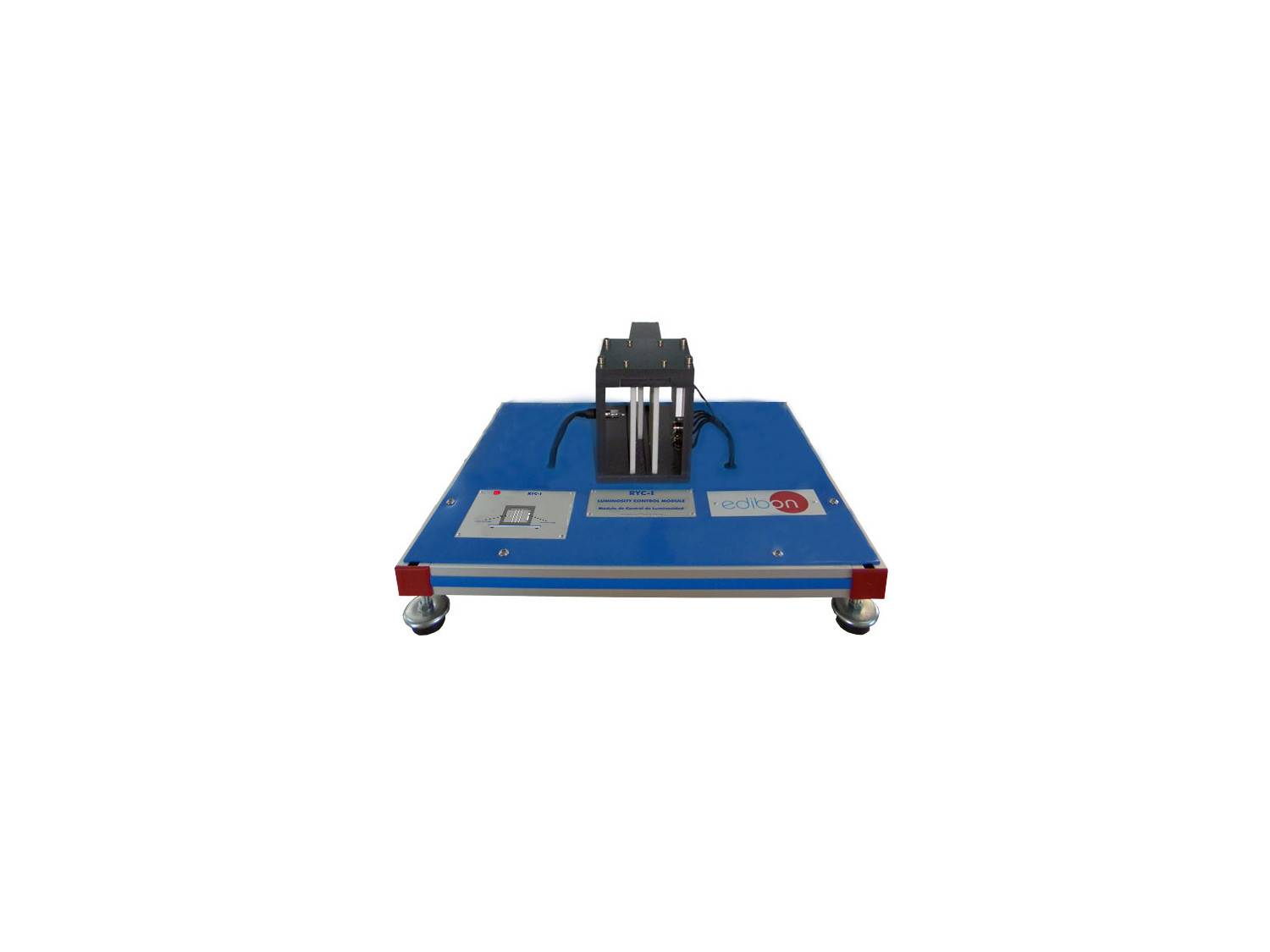

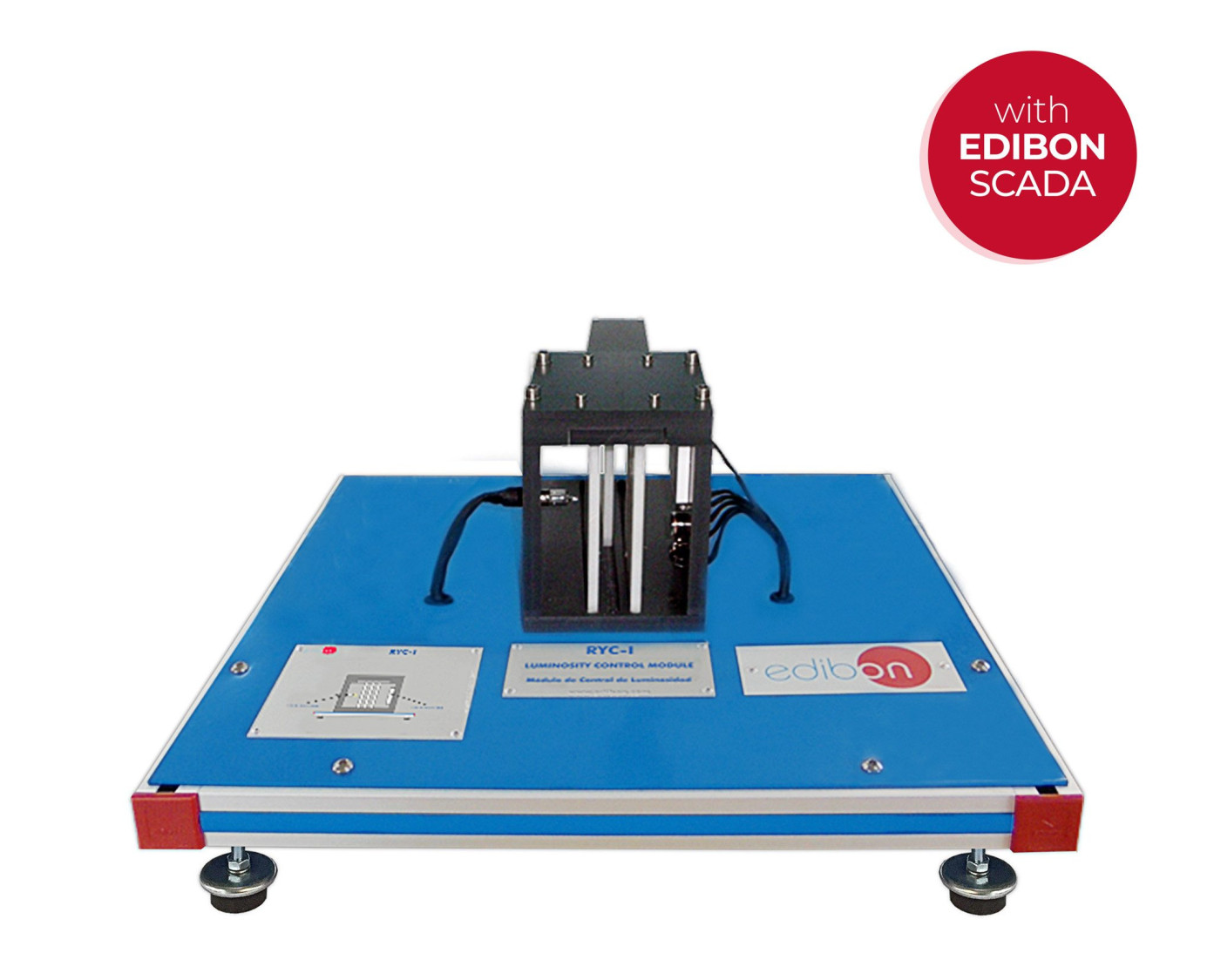

The PID Control and Regulation of Light Intensity Unit, "RYC-I", designed by EDIBON, enables the practical study of automatic control systems through the regulation of light intensity and the analysis of three different types of light sensors.
