RYC-TAR Equipamento de Controlo e Regulação PID da Temperatura de um Caudal de Ar

2.4.1.- INSTRUMENTAÇÃO E CONTROLE 6.1.1.1.- FUNDAMENTOS TEÓRICO-PRÁTICOS 10.1.- FUNDAMENTOS TEÓRICO - PRÁTICOS 14.2.2.- INSTRUMENTAÇÃO E CONTROLE
AIR FLOW TEMPERATURE CONTROL MODULE - RYC-TAR

SISTEMAS INOVADORES

The PID Temperature Control and Regulation of Air Flow Unit, "RYC-TAR", designed by EDIBON, enables the practical study of automatic control systems through the precise regulation of the temperature of an air stream at different points in the system.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
EMAK

EDIBON Matlab Kit

LABORATÓRIOS

6TV
 Laboratório de Mecatrónica e Automação para o Ensino Técnico e Vocacional
6HE
 Laboratório de Mecatrónica e Automação para o Ensino Superior
2TV
 Laboratório de Electrónica para o Ensino Técnico e Profissional
2HE
 Laboratório de Electrónica para o Ensino Superior
11PTC
 Laboratório para o Centro de Formação Petrolífera

NOTÍCIAS RELACIONADAS

The future of Process Control: Innovation, training, and the industry 4.0 revolution
The future of Process Control: Innovation, training, and the industry 4.0 revolution
Automation and process control have been fundamental pillars in the evolution of both industry and scientific research. With the advent of Industry 4.0, the integration of new technologies has driven an unprecedented transformation in the way industrial and research systems operate, optimize...
Ler mais
What is Process Control, and Why is It Essential in Modern Industry?
What is Process Control, and Why is It Essential in Modern Industry?
Today, automation and efficiency are key factors in industrial and scientific development. Process control plays a crucial role in this context by enabling the monitoring, regulation, and optimization of industrial systems and processes, ensuring they operate efficiently, safely, and consistently.
Ler mais
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Ler mais
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
On October 19th, the Course on Instrumentation, Regulation and Control in Laboratories, taught by our engineers in these facilities, using EDIBON units, was completed and aimed at learning the control of the conditions of a laboratory process. The attendants, (12 laboratory technicians and...
Ler mais

Descrição Geral

The PID Temperature Control and Regulation of Air Flow Unit, "RYC-TAR", designed by EDIBON, enables the practical study of automatic control systems through the precise regulation of the temperature of an air stream at different points in the system.

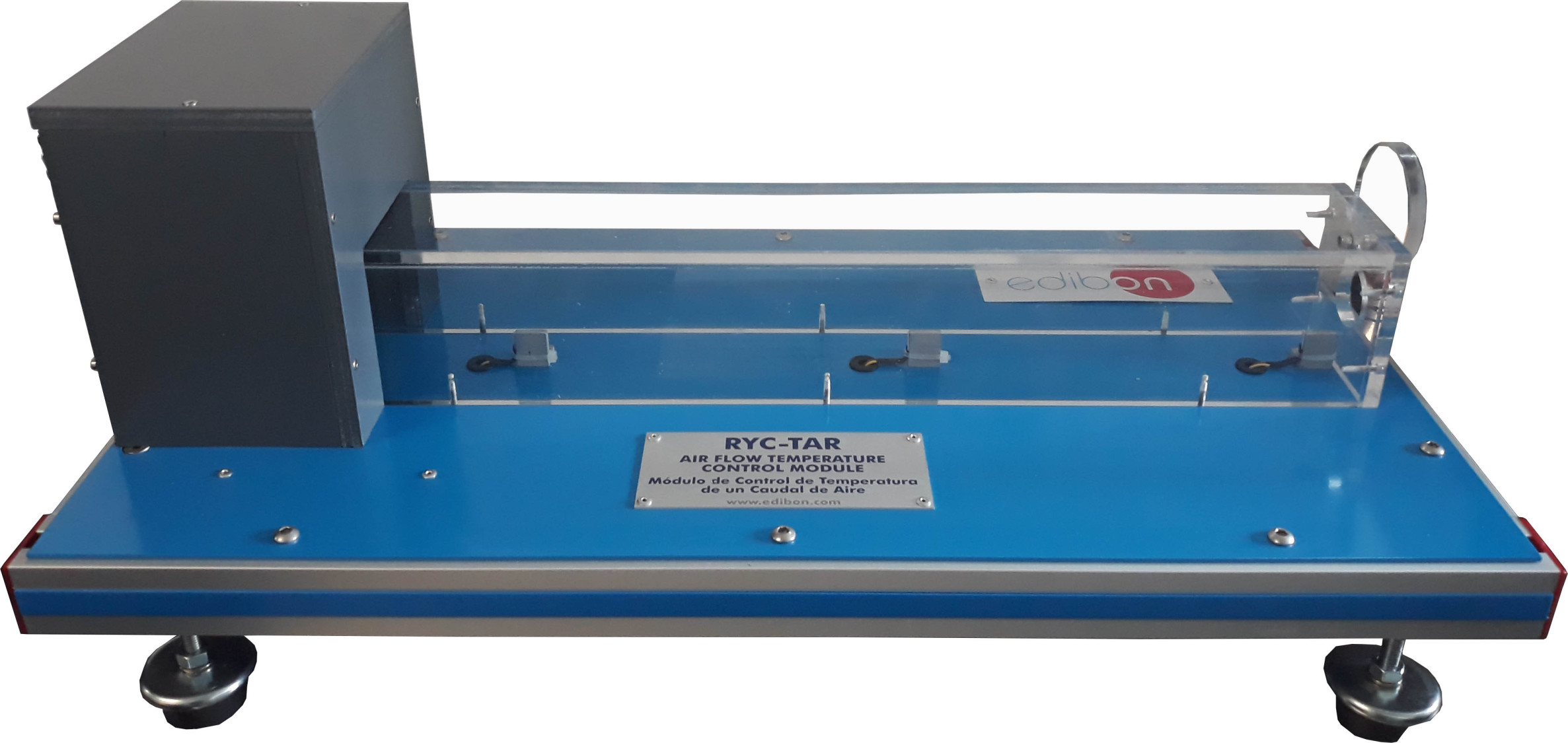

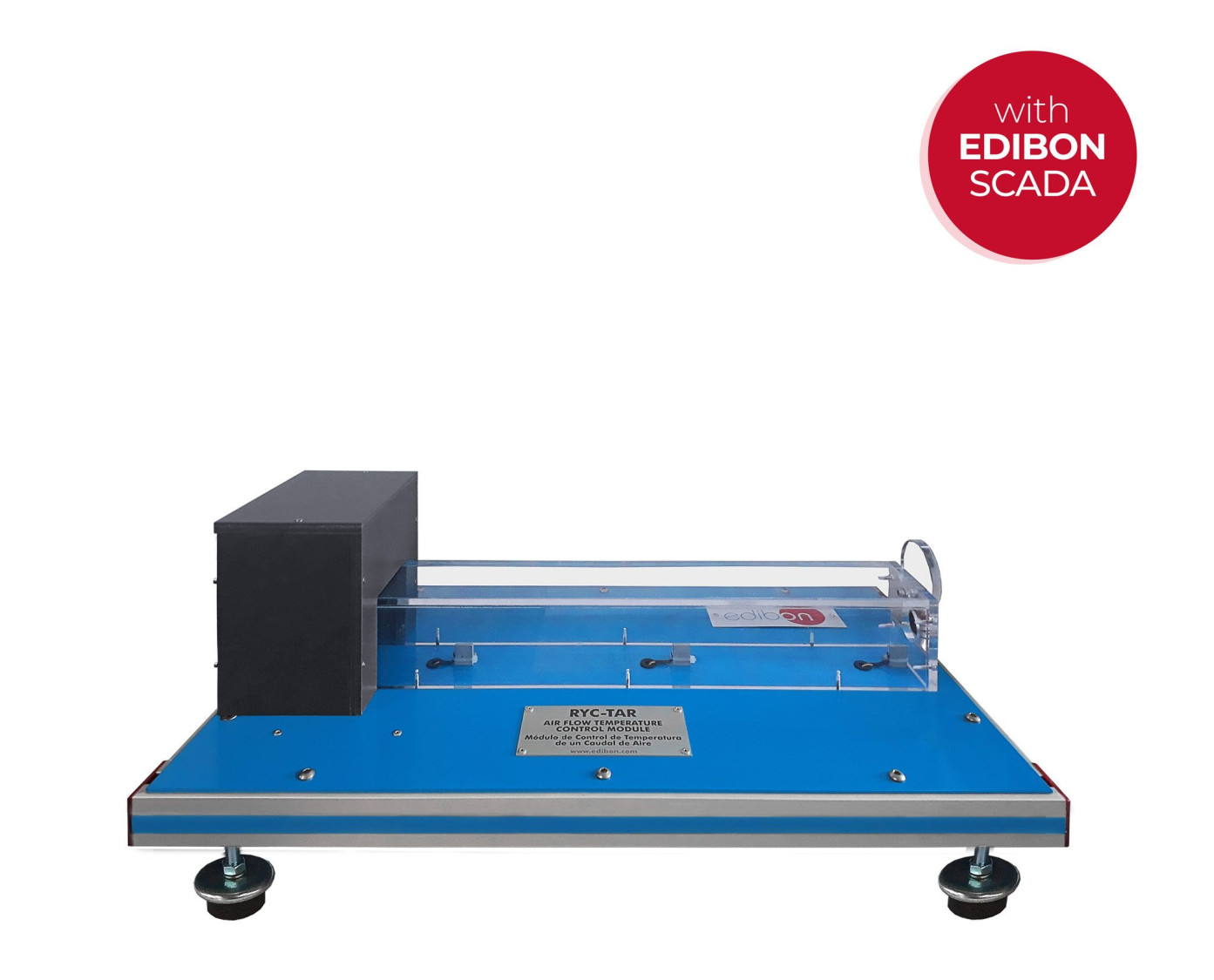

This unit allows students and technicians to understand and apply PID control theory in a real-world environment, observing how the air temperature responds to different control settings. It consists of a base with the physical components of the system, including temperature sensors at different positions, an axial fan, and a heater, as well as an interface box that integrates the power supply, signal conditioning, and required connections to the control system.

It is used in conjunction with the base unit "RYC" to carry out complete PID control practices, regulating the power of the axial fan to maintain the desired temperature at three different points along the airflow.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Characterization of the Air Flow Temperature Control Module (RYC-TAR).
  2. Air Flow Temperature Control Module (RYC-TAR) with a PID control.

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

  1. Many students view results simultaneously.To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc. in real time.
  3. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  4. This unit can be used for doing applied research.
  5. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  6. Control of the RYC-TAR unit process through the control interface box without the computer.
  7. Visualization of all the sensors values used in the RYC-TAR unit process.
  8. Several other exercises can be done and designed by the user.

ELEMENTOS NECESSÁRIOS

Qualidade

Serviço pós-venda

Solicitar informação
