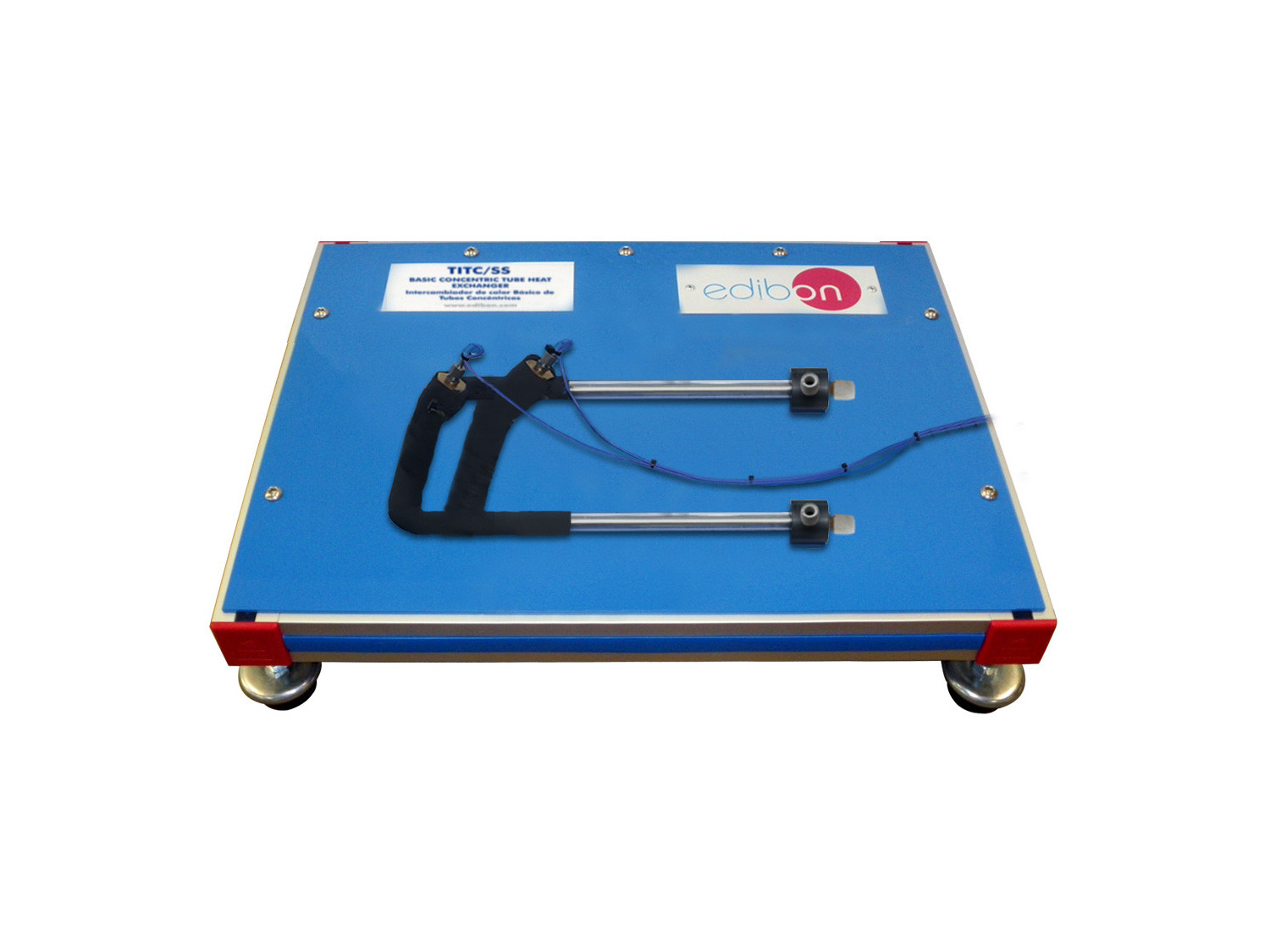

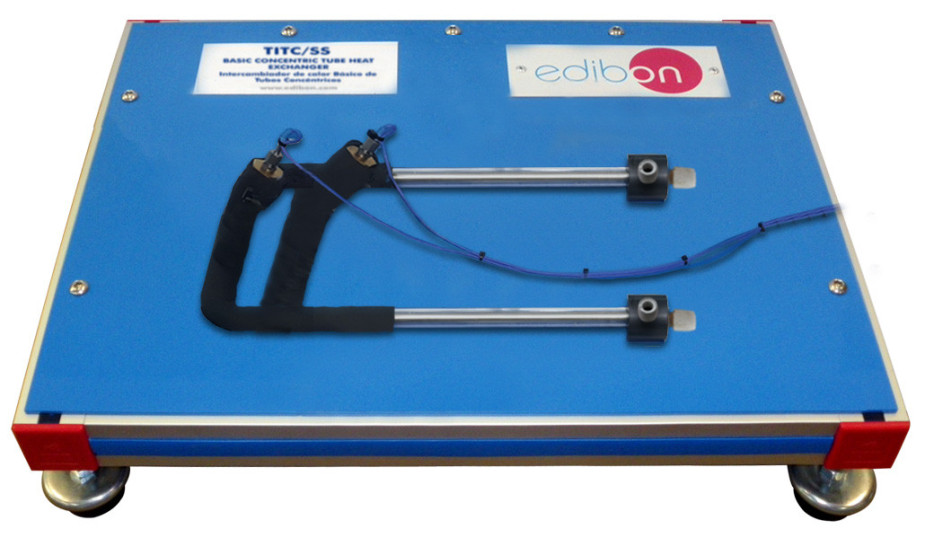

TITC/SS Trocador de Calor Básico de Tubos Concêntricos

9.7.- TROCADORES DE CALOR

BASIC CONCENTRIC TUBE HEAT EXCHANGER - TITC/SS

Catálogo

Especificações de Concurso

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

Global energy balance in the heat exchanger and the study of losses.
Exchanger effectiveness determination. NTU Method.
Study of the heat transfer under counter-current and co-current flow conditions.
Flow influence on the heat transfer. Reynolds number calculation.
Study of the pressure drop in the exchanger.

Additional practical possibilities:

Control system: Temperature sensors calibration.
Control system: Flow sensors calibration.
Study of the hysteresis of the flow sensor.

ELEMENTOS NECESSÁRIOS
