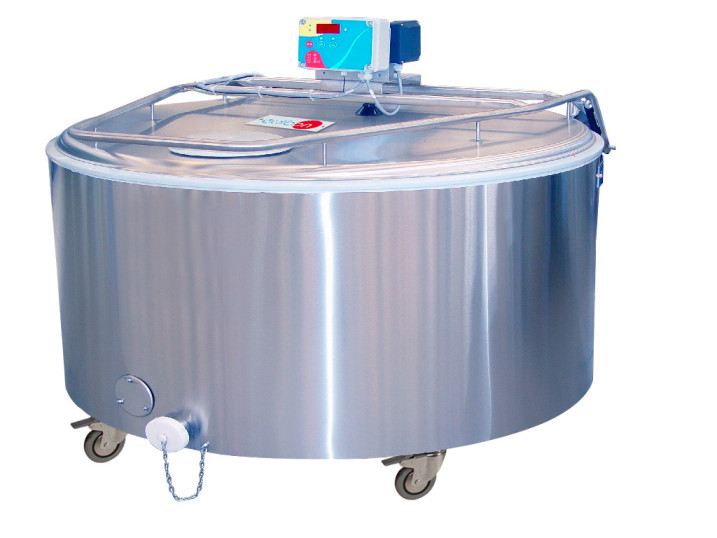

TFDC Tanque Frigorífico Didático, Controlado por Computador (PC)
SISTEMAS INOVADORES
The Computer Controlled Teaching Frigorific Tank, "TFDC", designed by EDIBON, allows to analyze the operation of a cold tank and to study the influence of the temperature in the preservation of liquid food.
LABORATÓRIOS
NOTÍCIAS RELACIONADAS
Descrição Geral

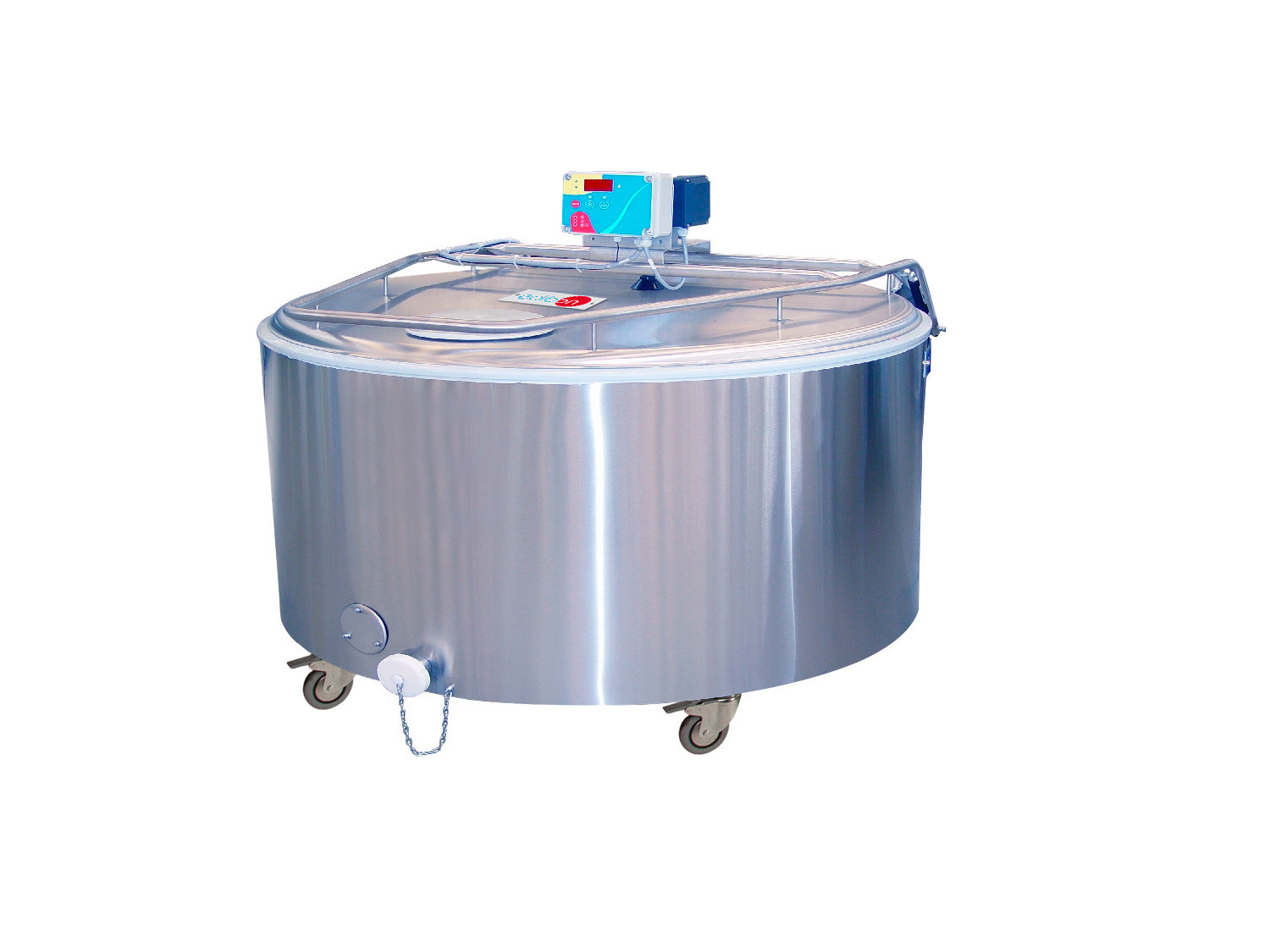

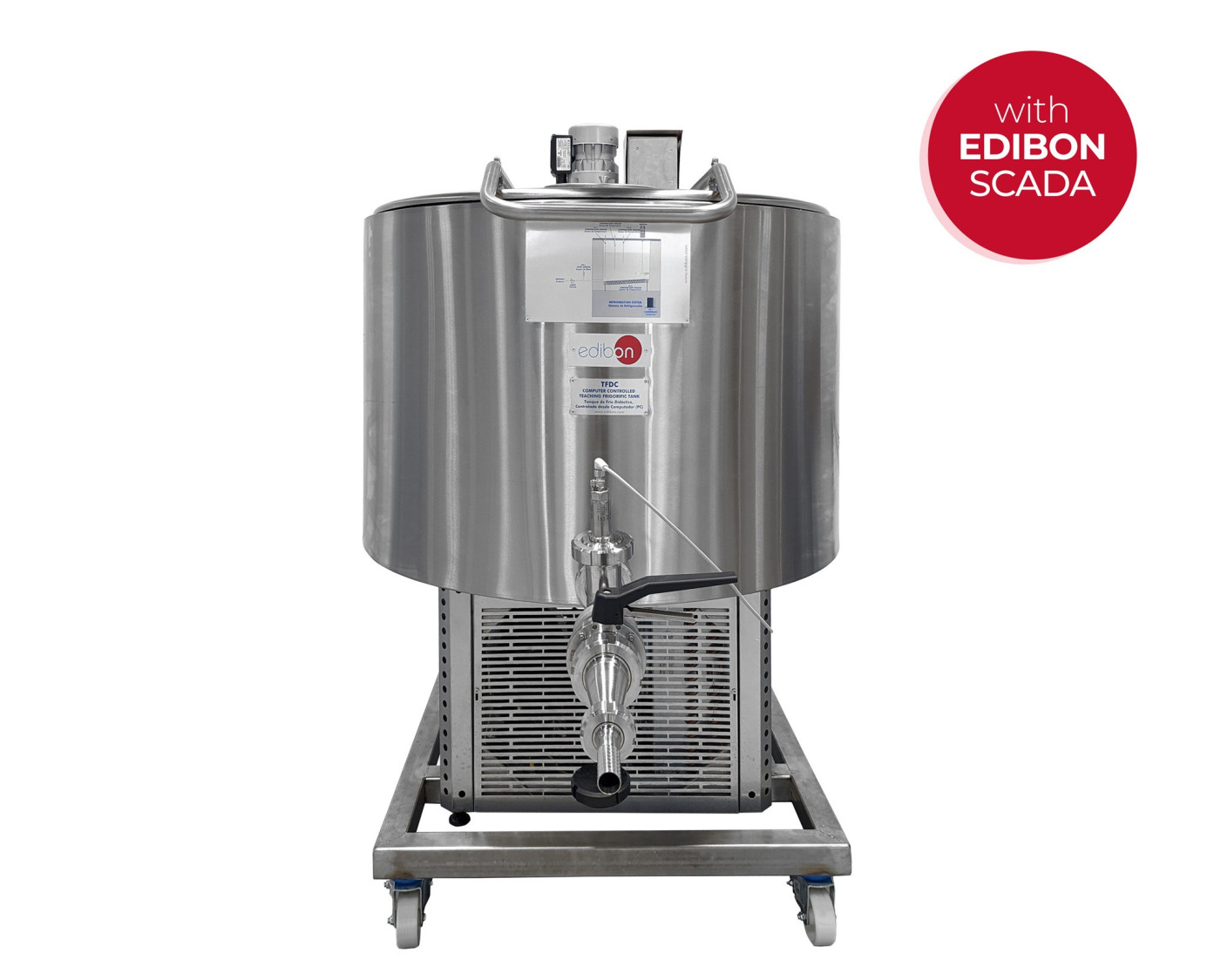

The Computer Controlled Teaching Frigorific Tank, "TFDC", is a food grade stainless steel tank with a refrigeration cycle to maintain the liquid product at the desired temperature. It is effectively insulated with injected polyurethane.
The unit has a refrigeration cycle with refrigerant regulated by an expansion valve that guarantees maximum performance and minimum consumption.

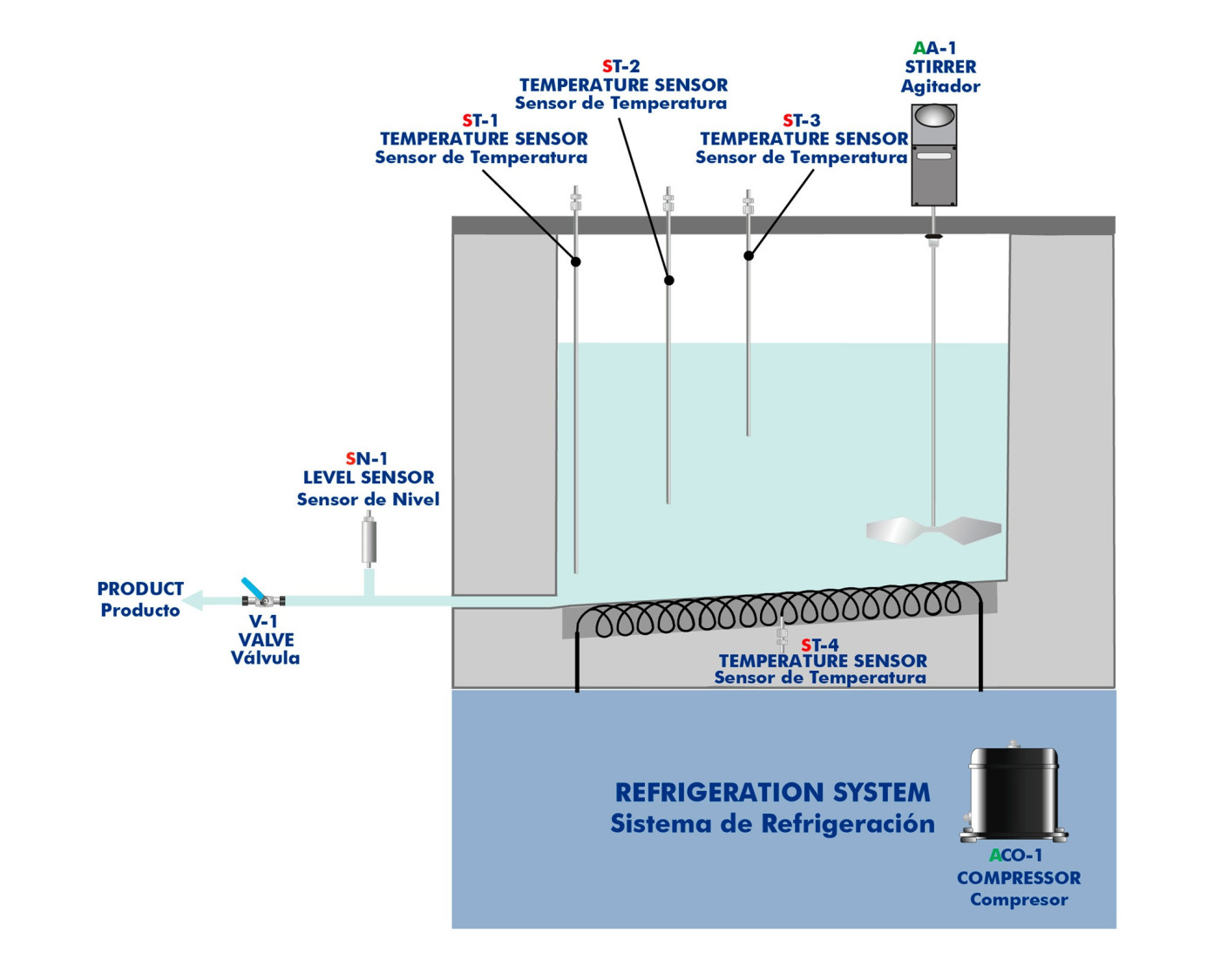

This unit includes all the necessary instruments and sensors to control and measure the most representative parameters.
EXERCÍCIOS E PRÁTICAS GUIADAS
EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL
- Influence of the temperature on the preservation of liquid foods.
- Influence of temperature on the properties of liquid foods.
- Influence of cold on milk microorganisms (requires laboratory material).
- Observation of a refrigeration system of a cooling tank.
- Energy balance
- Influence of milk properties on temperature exchange.
- Sensors calibration.
EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE
- Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
- Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc. in real time.

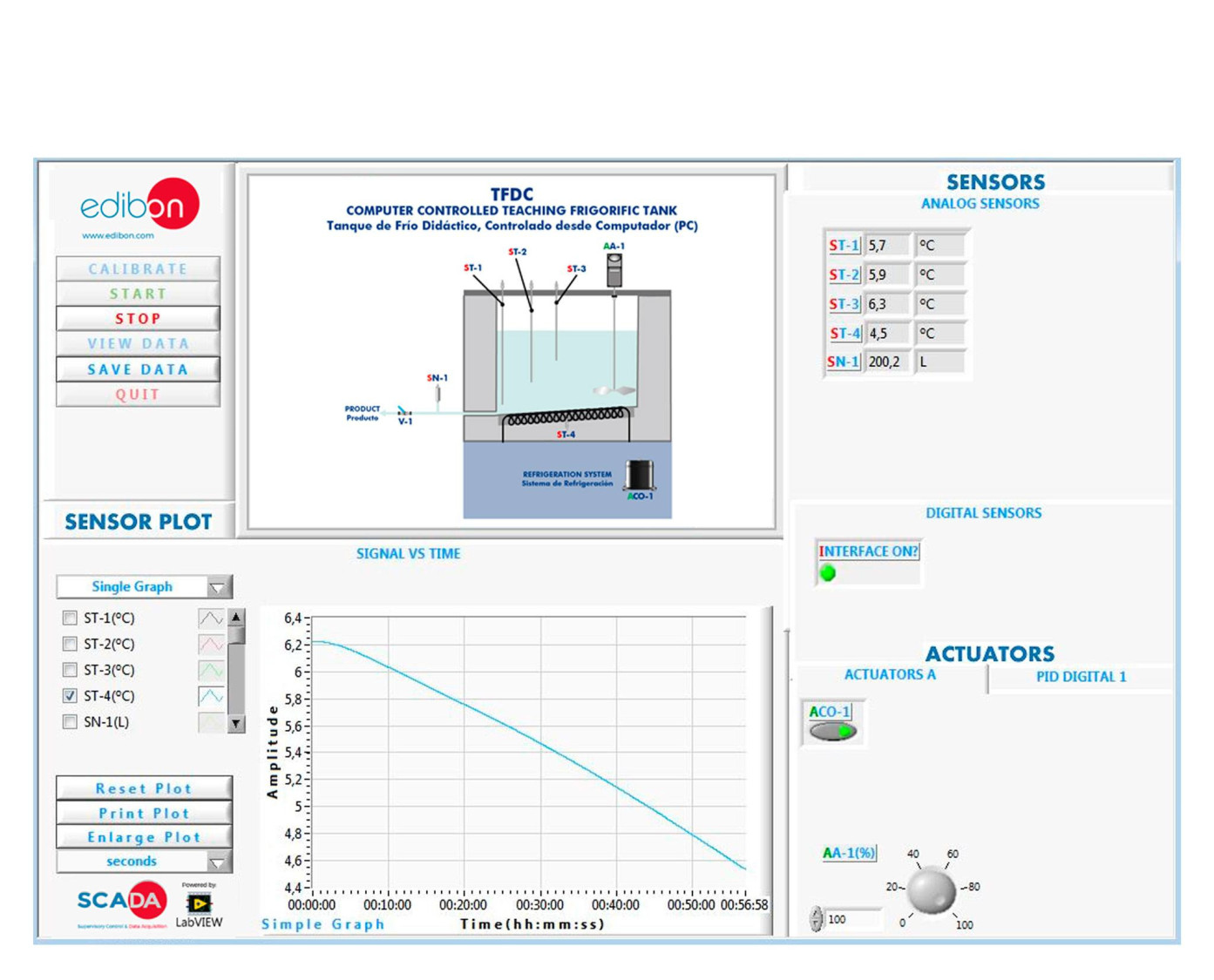

- The Computer Control System with SCADA and PID Control allow a real industrial simulation.
- This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
- This unit can be used for doing applied research.
- This unit can be used for giving training courses to Industries even to other Technical Education Institutions.

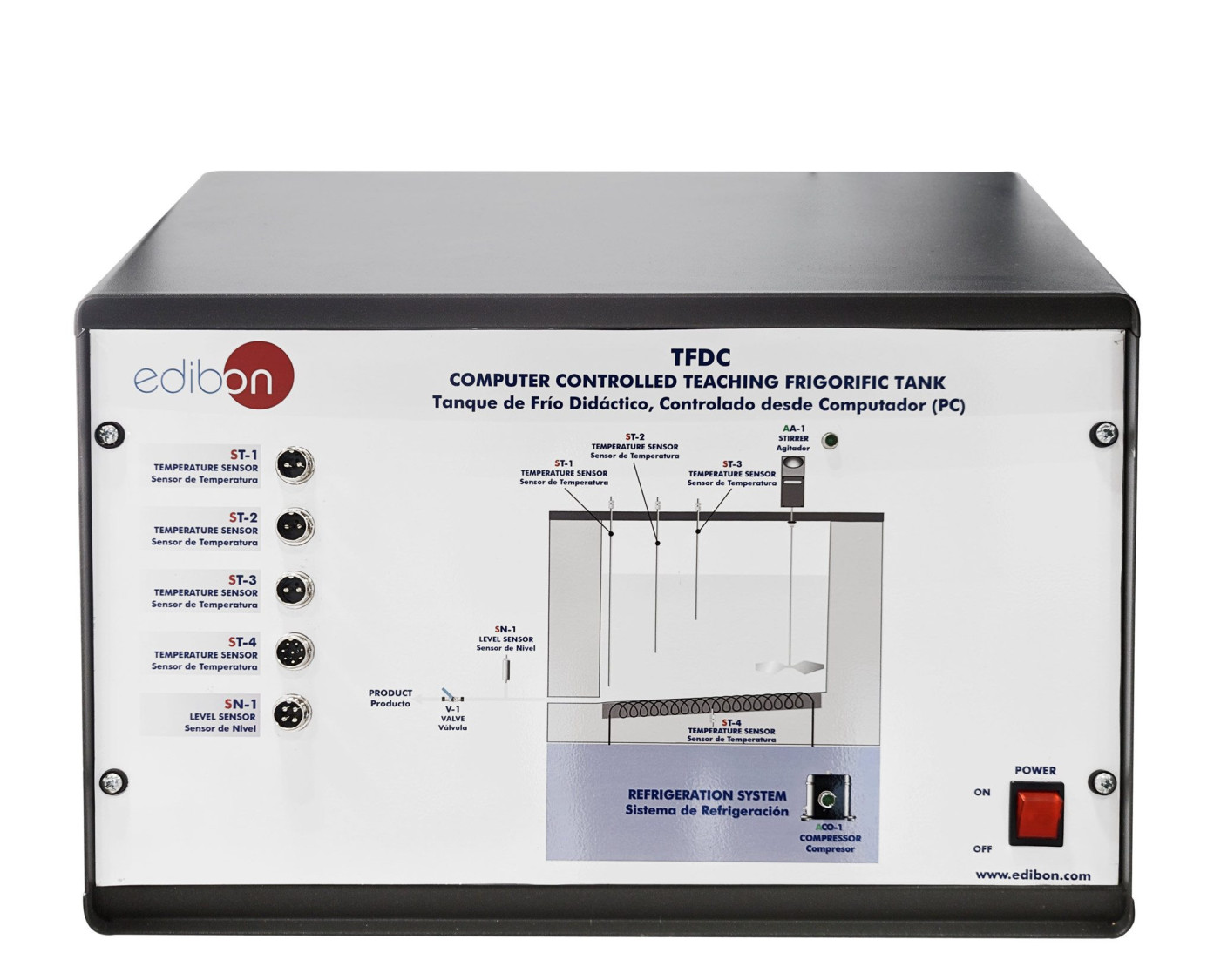

- Control of the TFDC unit process through the control interface box without the computer.
- Visualization of all the sensors values used in the TFDC unit process.
- By using PLC-PI additional 19 more exercises can be done.
- Several other exercises can be done and designed by the user.
EQUIPAMENTOS COMPLEMENTARES

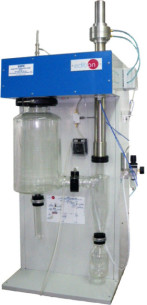

Secador por Spray, Controlado por Computador(PC)

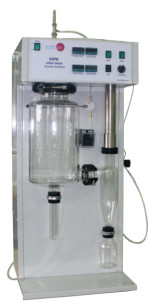

Secador Spray

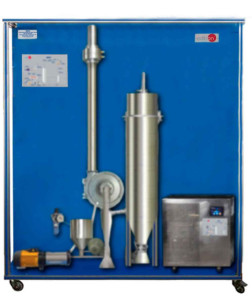

Equipamento de Secagem e Resfriamento por Pulverização, Controlado por Computador (PC)

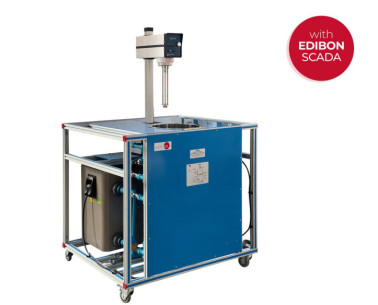

Recipiente de Processamento Multiuso, Controlado por Computador (PC)

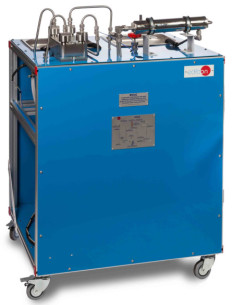

Equipamento de Osmose Reversa/Ultrafiltragem, Controlado por Computador (PC)
Filtro-Prensa de Placas e Molduras, Controlado por Computador (PC)
Equipamento de Hidrogenação, Controlado por Computador (PC)

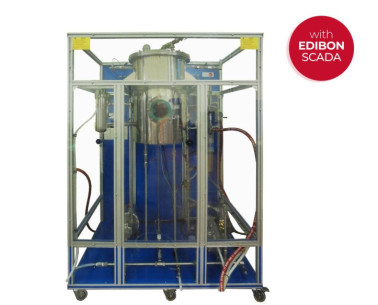

Equipamento de Desodorização, Controlado por Computador (PC)

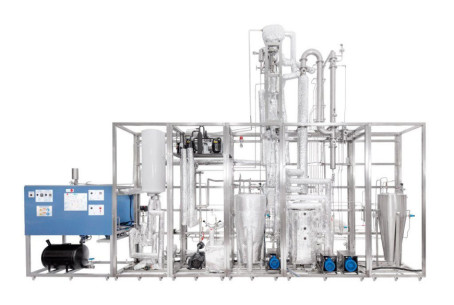

Equipamento de Desodorização Avançada, Controlado por Computador (PC)

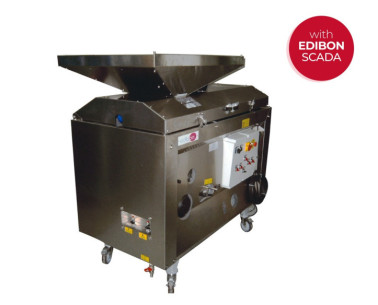

Planta de Produção de Azeite em Ciclo Contínuo, Controlada por Computador (PC)
