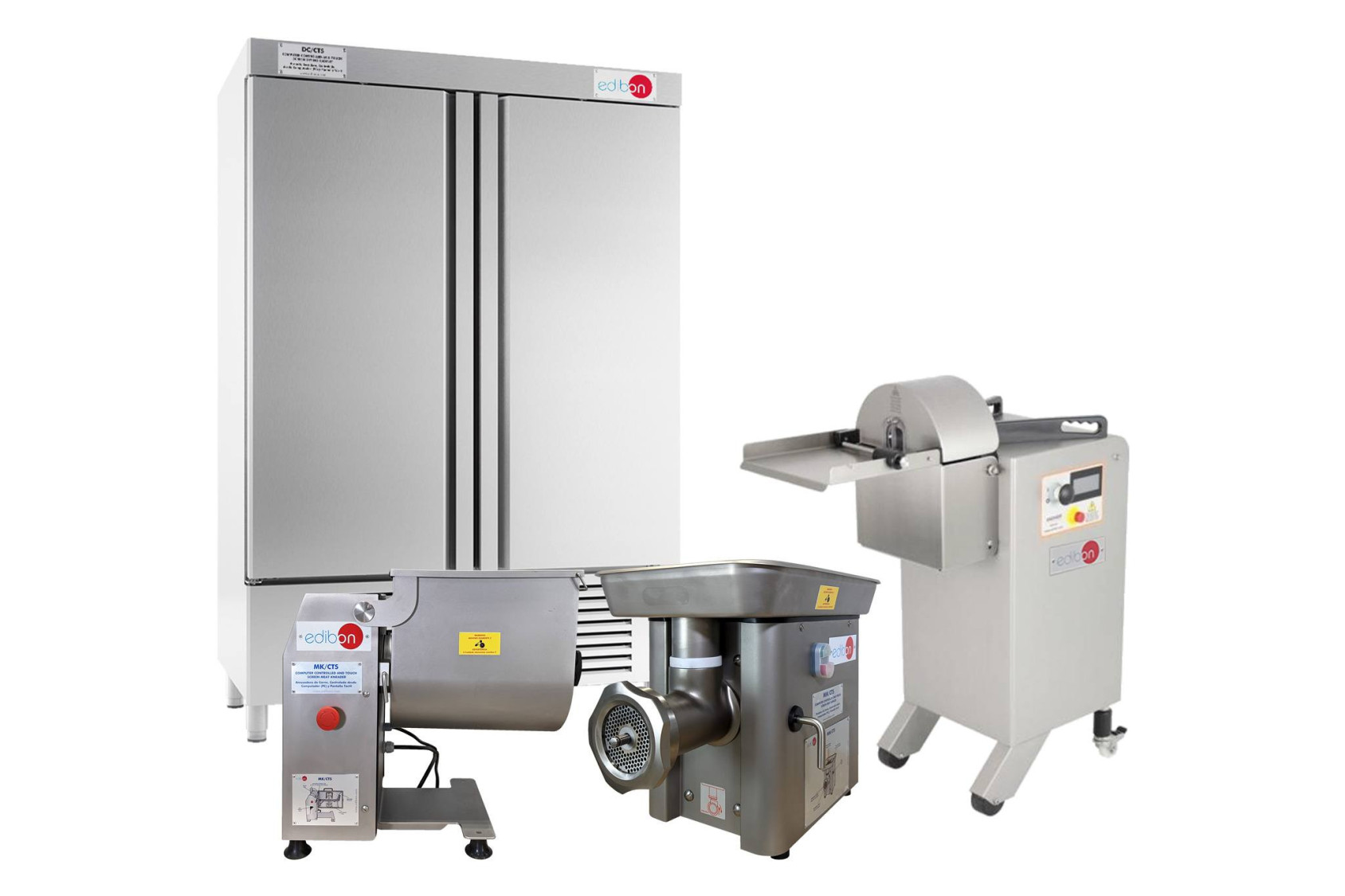

CA00/CUPS Planta Piloto de Produção de Embutidos e Curados

PILOT PLANT FOR THE PRODUCTION OF CURED PIECES AND SAUSAGES - CA00/CUPS

Planta Piloto de Produção de Embutidos e Curados

PILOT PLANT FOR THE PRODUCTION OF CURED PIECES AND SAUSAGES - CA00/CUPS

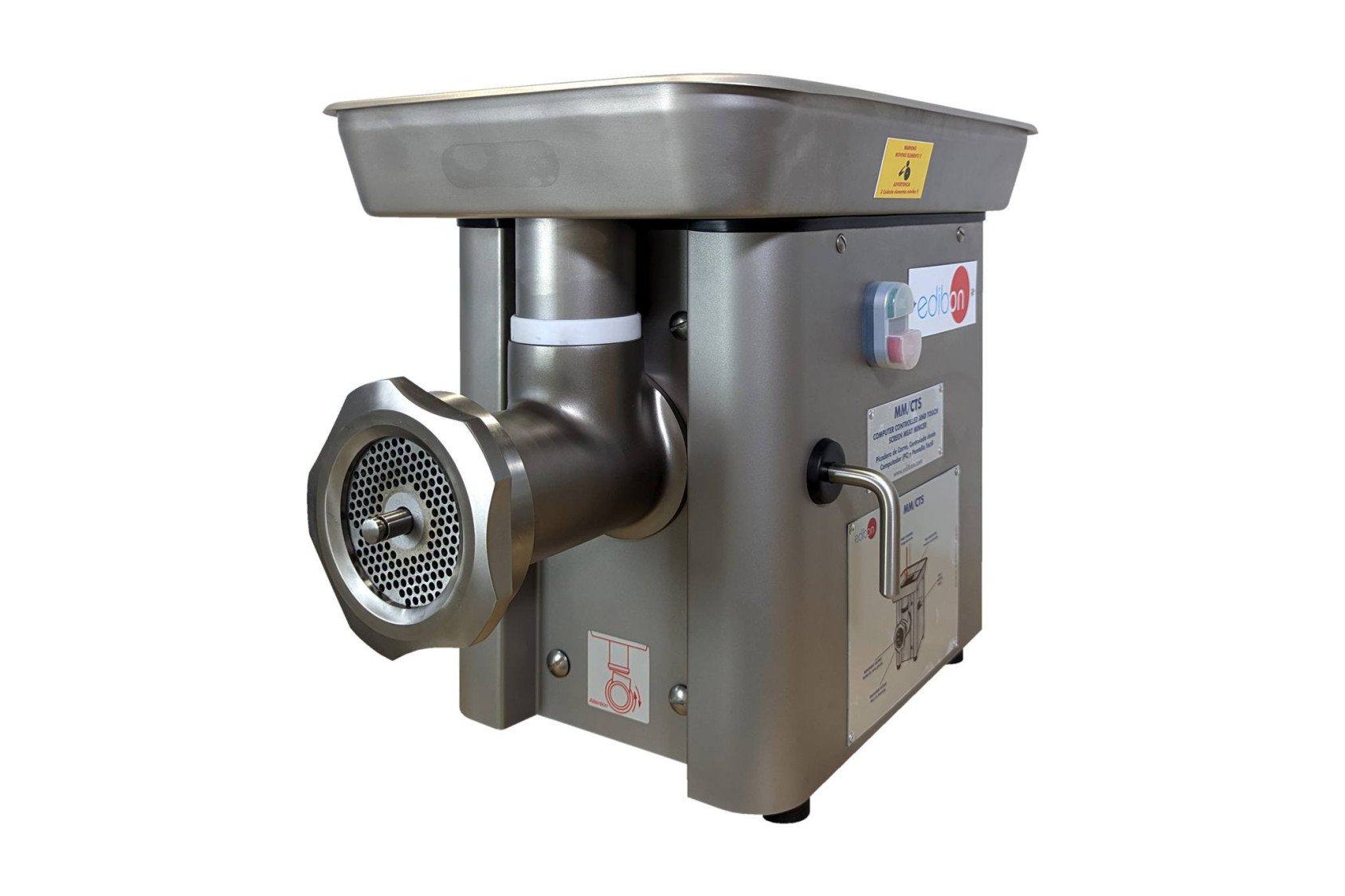

MM/CTS: Picador de Carne, Controlado por Computador (PC) e Tela Sensível ao Toque

PILOT PLANT FOR THE PRODUCTION OF CURED PIECES AND SAUSAGES - CA00/CUPS

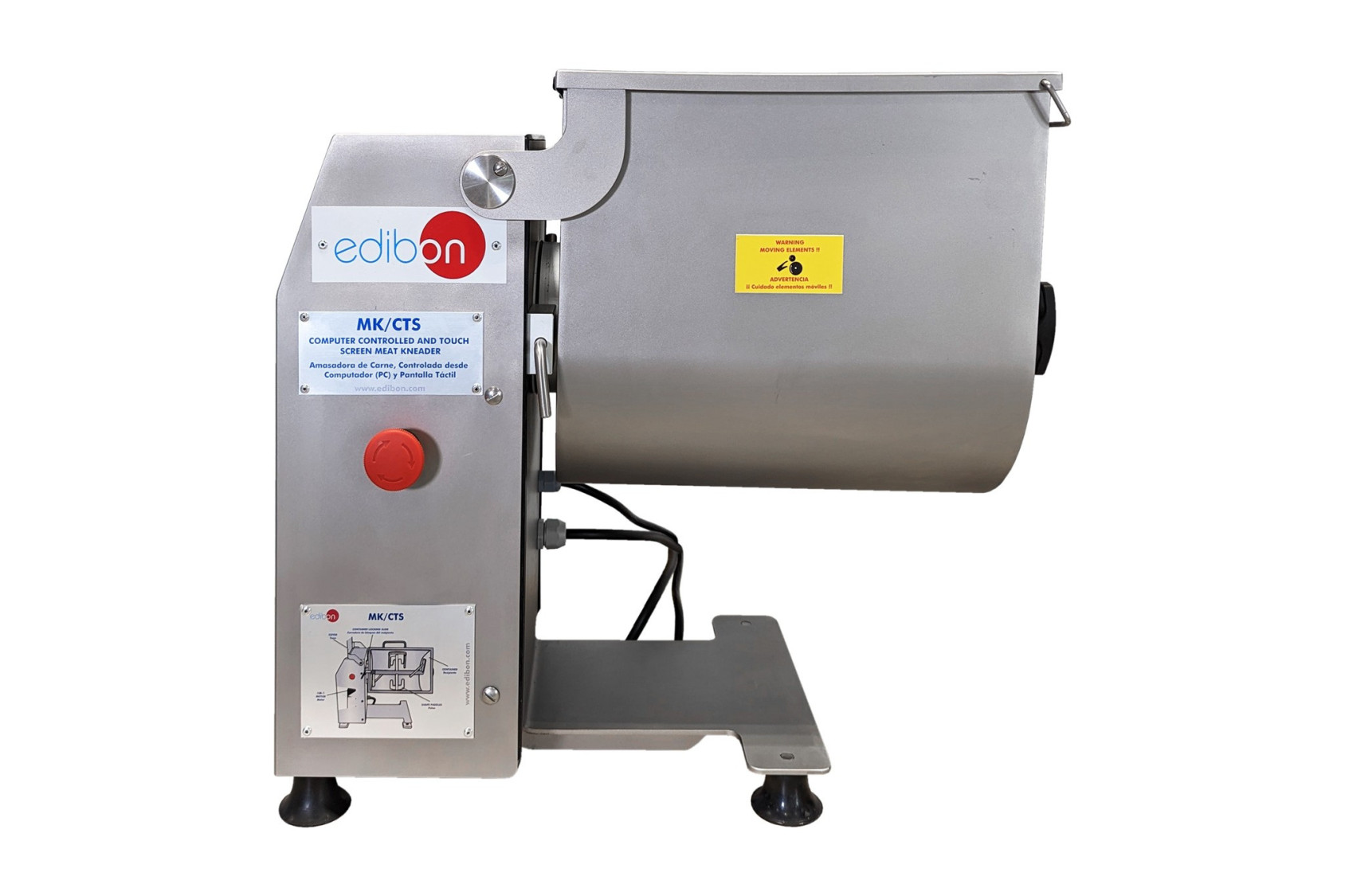

MK/CTS: Amassadeira de Carne, Controlada por Computador (PC) e Tela Sensível ao Toque

PILOT PLANT FOR THE PRODUCTION OF CURED PIECES AND SAUSAGES - CA00/CUPS

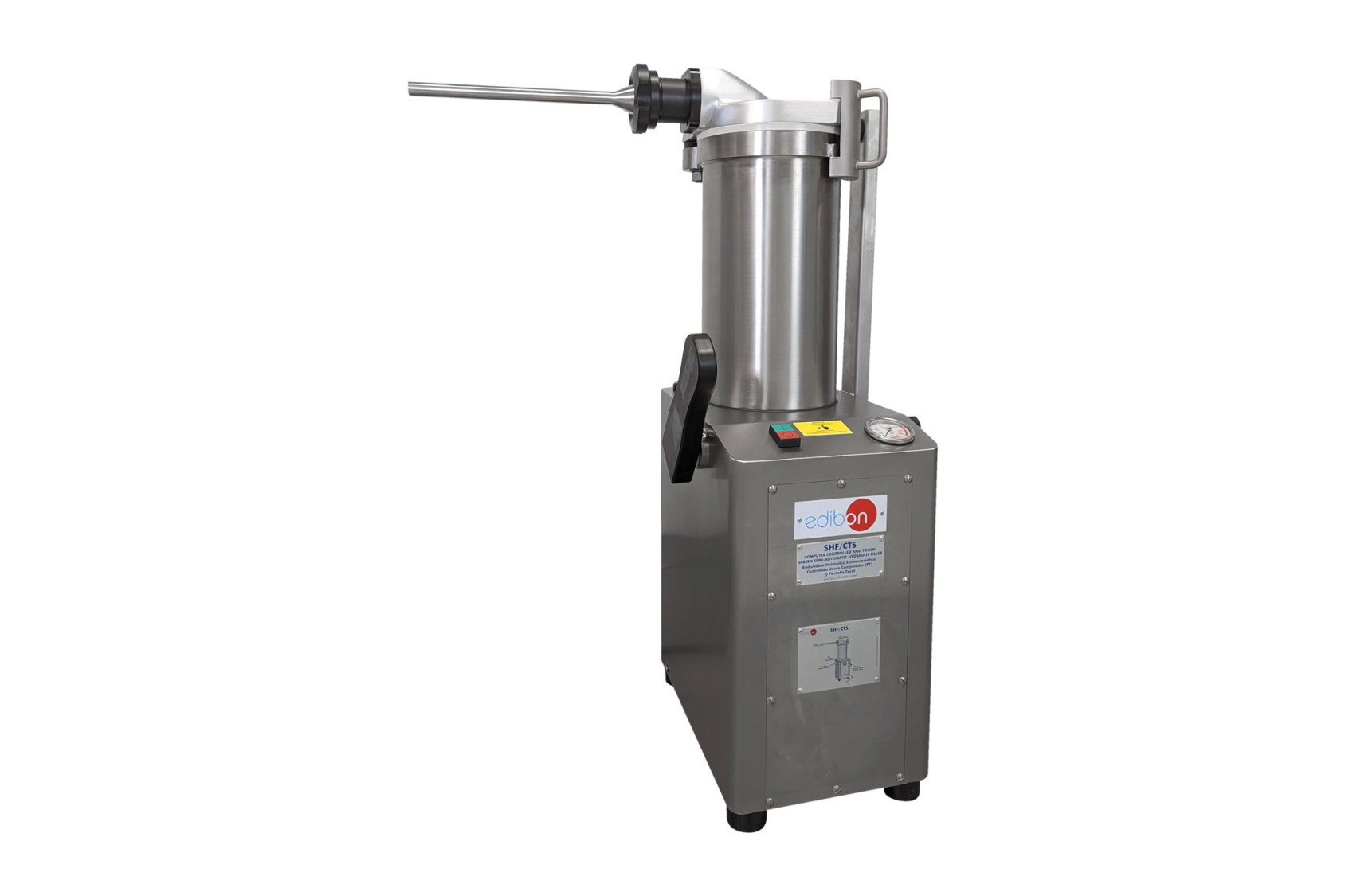

SHF/CTS: Embutidora Hidráulica Semiautomática, Controlada por Computador (PC) e Tela Sensível ao Toque

PILOT PLANT FOR THE PRODUCTION OF CURED PIECES AND SAUSAGES - CA00/CUPS

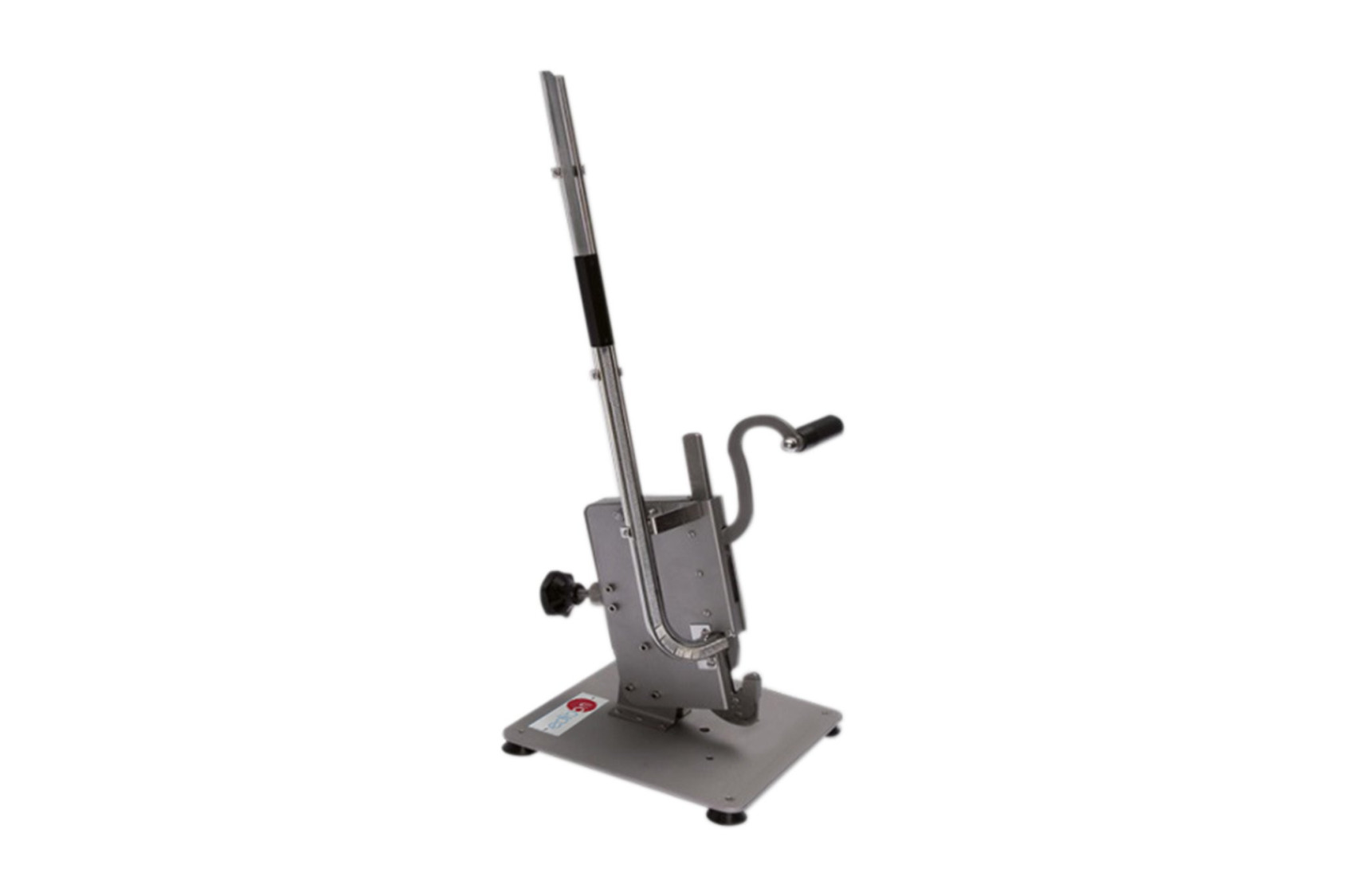

MSS: Grampeador Manual para Embutidos

PILOT PLANT FOR THE PRODUCTION OF CURED PIECES AND SAUSAGES - CA00/CUPS

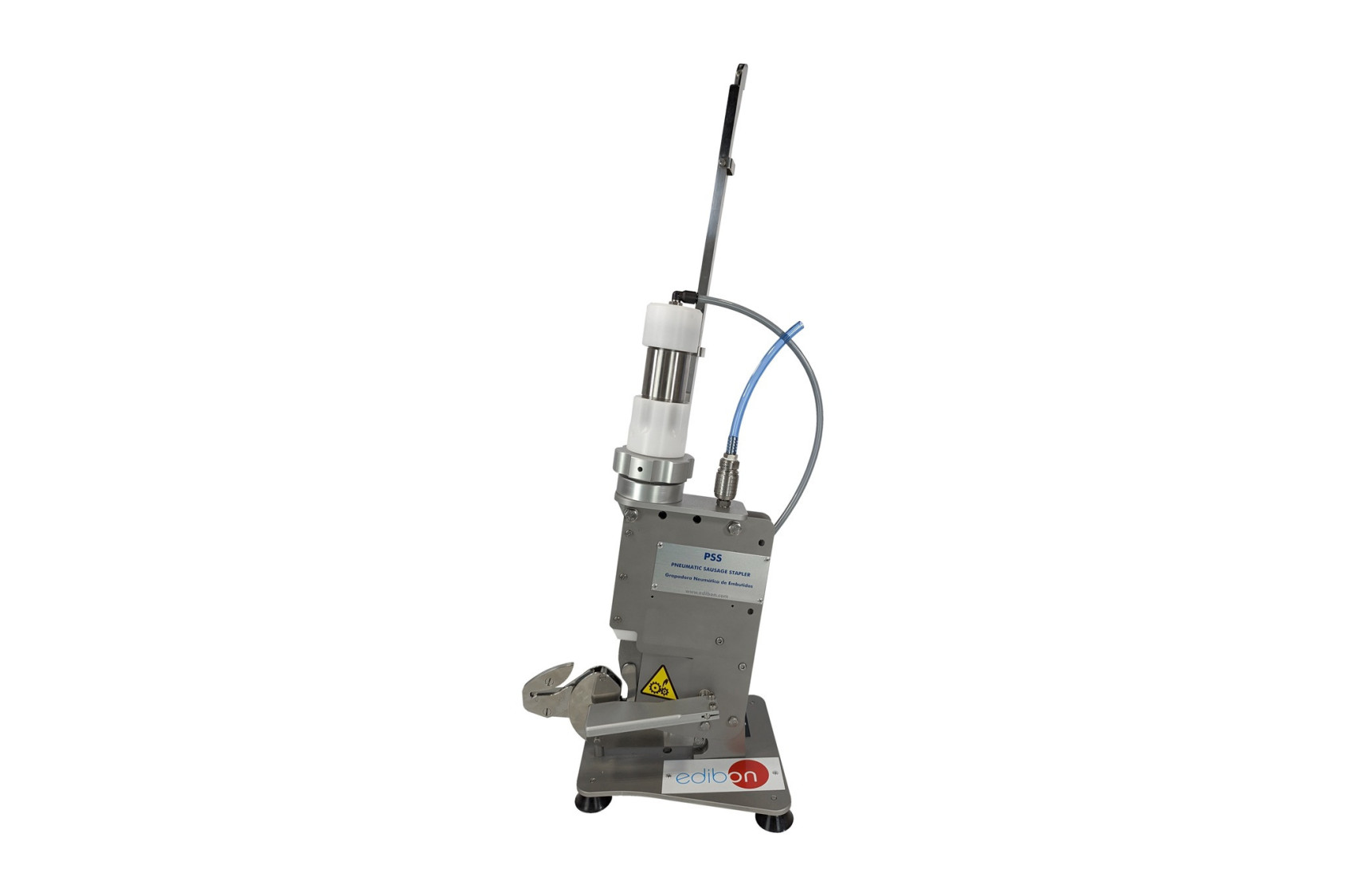

PSS: Grampeador Pneumático de Embutidos

PILOT PLANT FOR THE PRODUCTION OF CURED PIECES AND SAUSAGES - CA00/CUPS

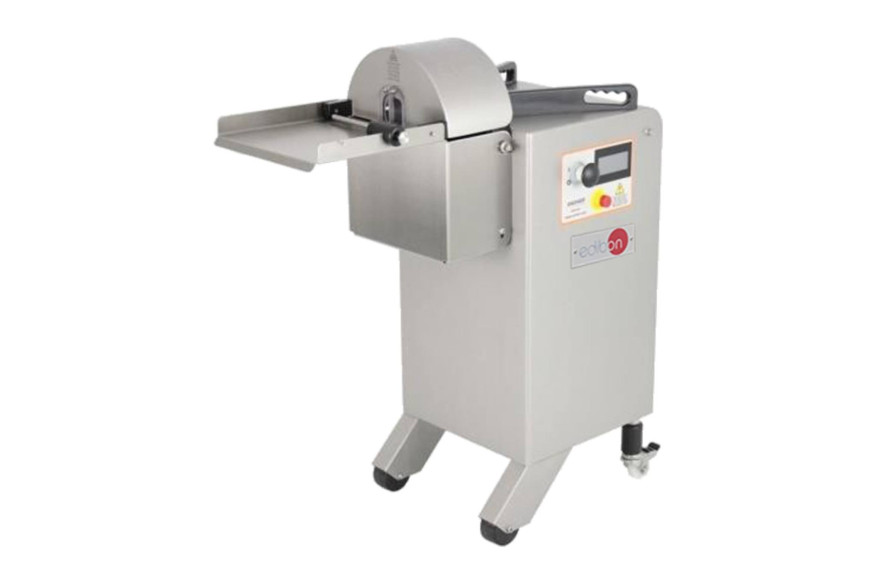

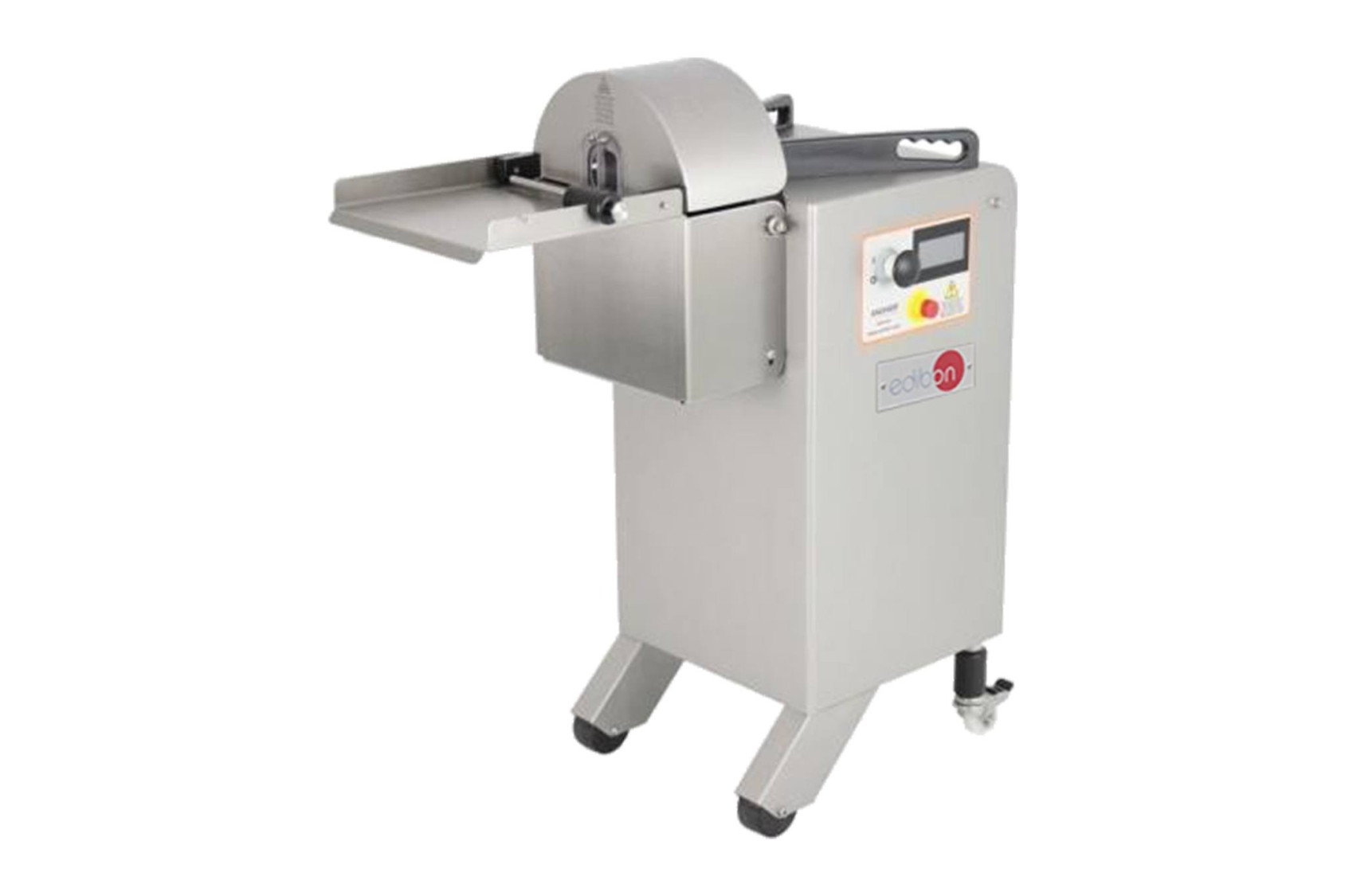

SST/CTS: Atadora Semiautomática de Embutidos, Controlada por Computador (PC) e Tela Sensível ao Toque

PILOT PLANT FOR THE PRODUCTION OF CURED PIECES AND SAUSAGES - CA00/CUPS

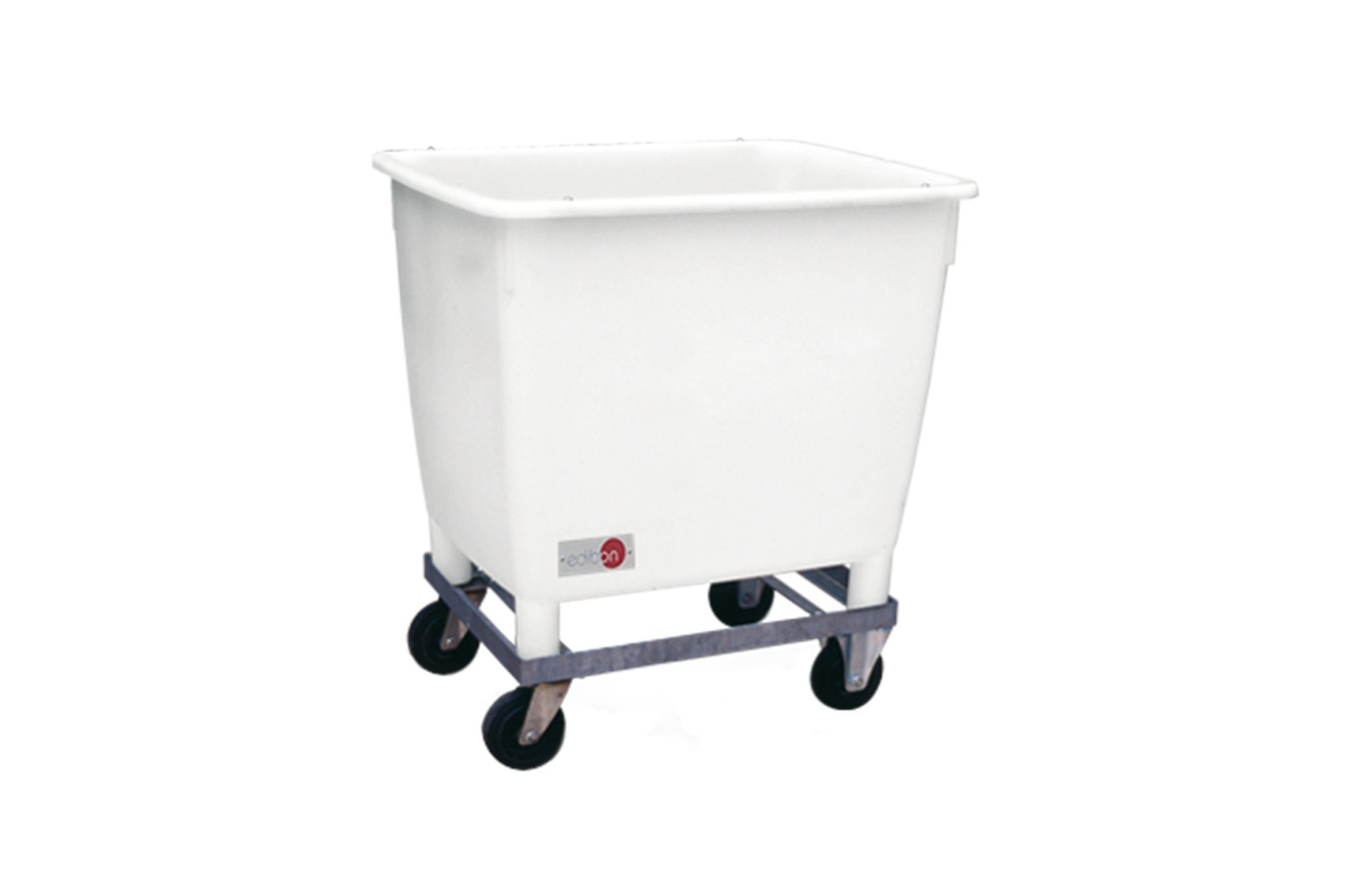

ST: Tanque de Salga

PILOT PLANT FOR THE PRODUCTION OF CURED PIECES AND SAUSAGES - CA00/CUPS

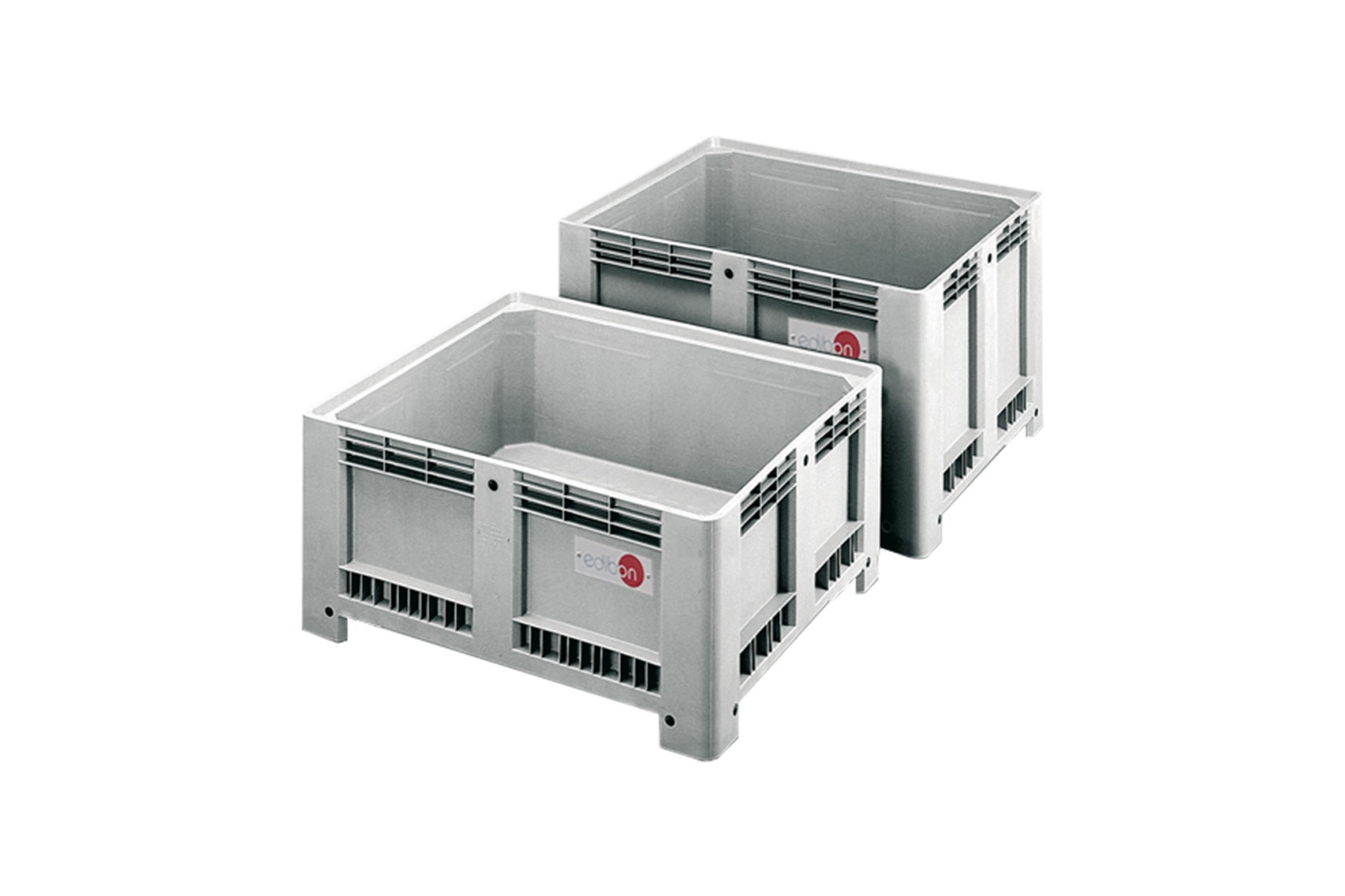

MT: Bandeja de Marinada

PILOT PLANT FOR THE PRODUCTION OF CURED PIECES AND SAUSAGES - CA00/CUPS

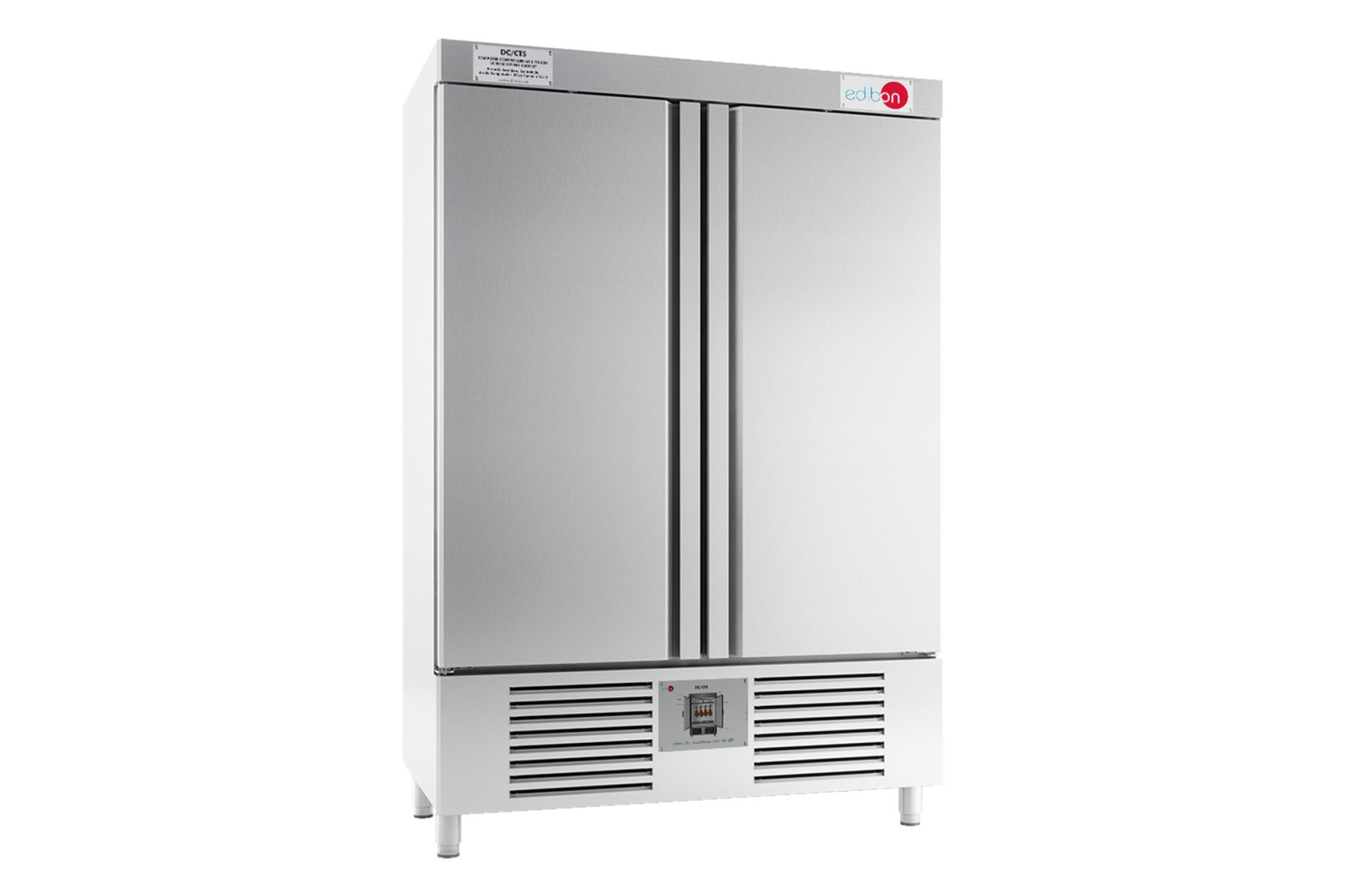

DC/CTS: Armario Secadero, Controlado desde Computador (PC) y Pantalla Táctil

PILOT PLANT FOR THE PRODUCTION OF CURED PIECES AND SAUSAGES - CA00/CUPS
PILOT PLANT FOR THE PRODUCTION OF CURED PIECES AND SAUSAGES - CA00/CUPS
PILOT PLANT FOR THE PRODUCTION OF CURED PIECES AND SAUSAGES - CA00/CUPS
PILOT PLANT FOR THE PRODUCTION OF CURED PIECES AND SAUSAGES - CA00/CUPS
PILOT PLANT FOR THE PRODUCTION OF CURED PIECES AND SAUSAGES - CA00/CUPS
PILOT PLANT FOR THE PRODUCTION OF CURED PIECES AND SAUSAGES - CA00/CUPS
PILOT PLANT FOR THE PRODUCTION OF CURED PIECES AND SAUSAGES - CA00/CUPS
PILOT PLANT FOR THE PRODUCTION OF CURED PIECES AND SAUSAGES - CA00/CUPS
PILOT PLANT FOR THE PRODUCTION OF CURED PIECES AND SAUSAGES - CA00/CUPS
PILOT PLANT FOR THE PRODUCTION OF CURED PIECES AND SAUSAGES - CA00/CUPS

SISTEMAS INOVADORES

A Pilot Plant para a Produção de Cured Pieces e Sausages, 'CA00/CUPS', projetada pela EDIBON, nos permite obter produtos cured a partir de carne não tratada.

Ver descrição geral

NOTÍCIAS RELACIONADAS

Descrição Geral

CA00/CUPS. Planta piloto para a produção de peças curadas e enchidos: Com esta planta piloto, concebida pela EDIBON, podemos obter produtos curados a partir de carne não tratada, seguindo o seguinte processo:

  • Primeiramente, a carne, que foi pesada e liberada de partes indesejadas, é introduzida em um moedor para obter carne moída e levada a um misturador onde a carne é misturada com vários aditivos (sal, especiarias, conservantes, etc.).
  • O próximo passo é a embutição da carne já amassada, para o qual é utilizada uma embutidora que facilita a introdução do produto na tripa, seja natural ou artificial.
  • Em seguida, a tripa é amarrada e fixada para selar o embutido, produzindo assim um produto fresco.
  • Por último, por meio de uma cabine de secagem onde são controladas as condições de umidade e temperatura, obtemos um produto com as propriedades desejadas.
  • Esta planta piloto também permite a produção de peças inteiras curadas submetidas a um processo prévio de salga ou marinada. Para isso, são fornecidos tanques adequados para o tratamento da carne salgada ou marinada.
  • Também é possível produzir lombo de porco curado. O último passo é armazenar as peças curadas ou salgadas por um período de tempo suficiente nas condições indicadas para cada produto.

Para esta planta piloto, as peças produzidas podem ser embaladas a vácuo para garantir uma maior durabilidade e higiene.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Study of the mincing process of raw meat.
  2. Study of the kneading of minced meat and the additives used.
  3. Study of the sausage making process in a conventional sausage maker.
  4. Study of the influence of the speed of operation on the sausage making process.
  5. Study of the sausage tying process.
  6. Study of the stapling process using a manual stapler.
  7. Study of the stapling process of sausages using a pneumatic stapler.
  8. Influence of the type of casing on the quality of the stapling.
  9. Study of the vacuum packaging process.
  10. Study of the salting process for meat cuts.
  11. Study of the marinating process for meat cuts.
  12. Study of the maturing process of meat products.
  13. Influence of the humidity and temperature in the process of maturation.
  14. Determination of the optimum kneading time for different types of meat mixture.
  15. Evaluation of the influence of the direction of rotation on product homogenisation.
  16. Comparison of kneading behaviour with different types of products.
  17. Influence of rotation speed on production capacity in meat mincing.
  18. Effect of speed on product texture in meat mincing.
  19. Study of the differences between traditional sausage and vacuum-packed sausage.

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

  1. Comparative study of meat mincing depending on the type of meat used.
  2. Study of weight evolution during the drying process.
  3. Evaluation of the tightness of the stapling.
  4. Sensor calibration.
