MEC Equipamento para Estudo de Sobremarcha

7.2.2.- ENGRENAGENS, DIFERENCIAIS E TRANSMISSÕES
OVERDRIVE UNIT - MEC

SISTEMAS INOVADORES

The Overdrive Unit, "MEC", includes a set of epicyclical gears that represent an application of a simple epicyclic arrangement of the type used in a motor vehicle overdrive.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
MSAC

Sistema Modular de Aquisição e Controle

LABORATÓRIOS

7TV
 Laboratório Mecânico, Automóvel e de Materiais para o Ensino Técnico e Vocacional
7HE
 Laboratório de Mecânica, Automóvel e Materiais para o Ensino Superior

Descrição Geral

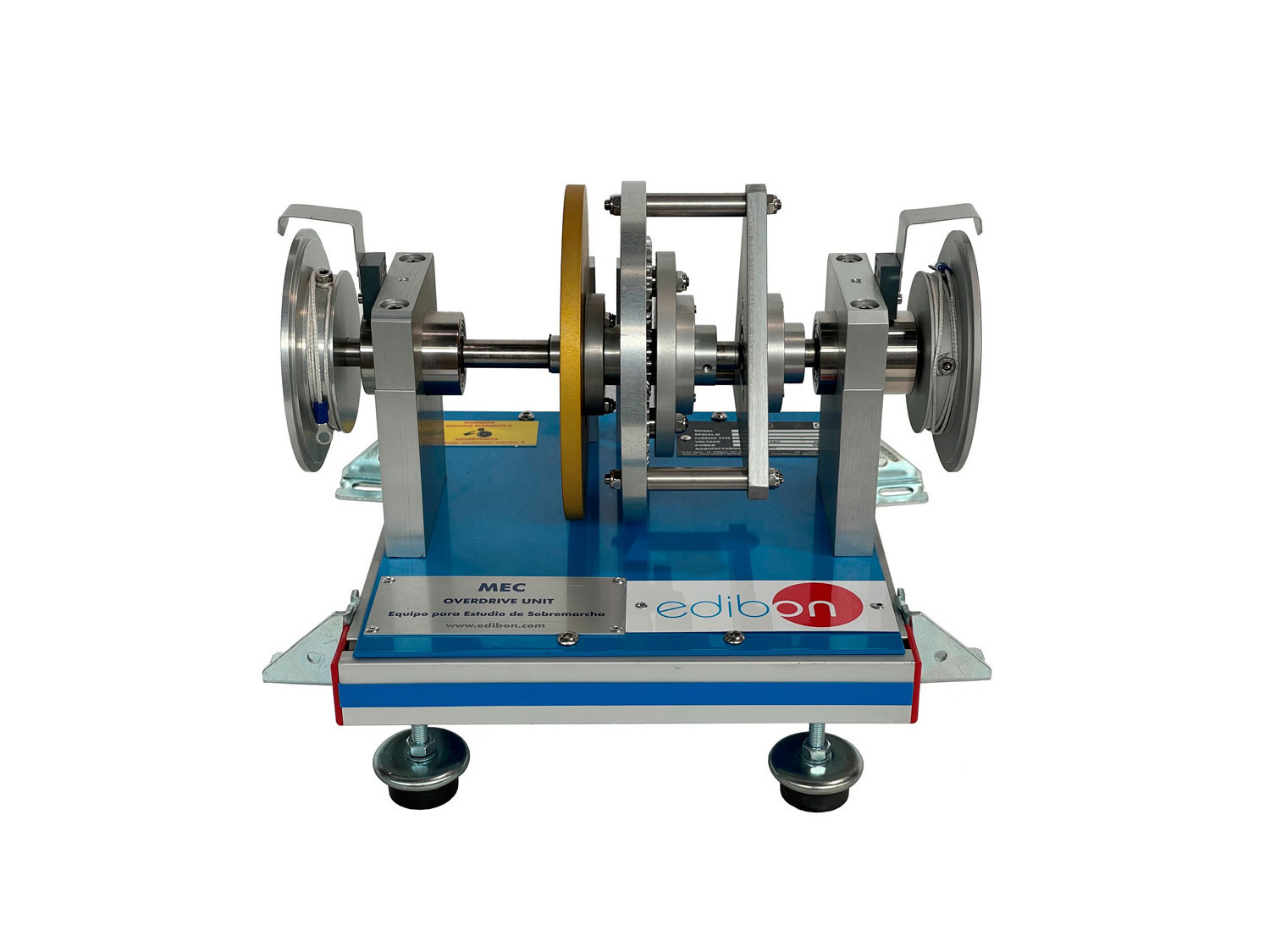

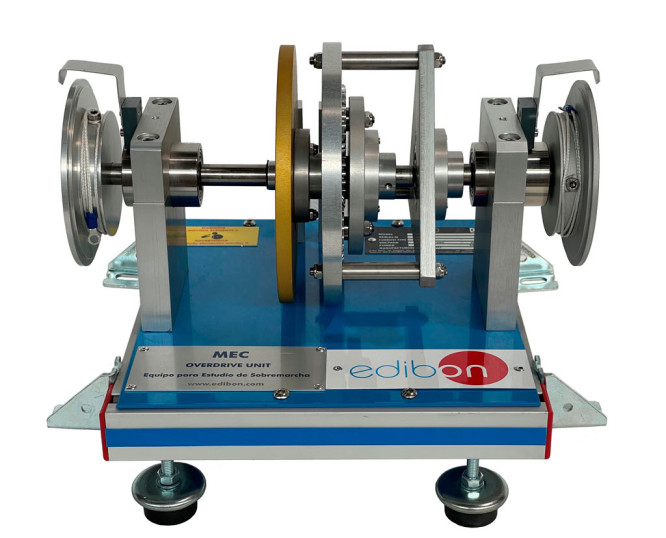

The Overdrive Unit, "MEC", includes a set of epicyclical gears that represent an application of a simple epicyclic arrangement of the type used in a motor vehicle overdrive.

Simple epicyclic set consists of:

  • Sun gear that rotates together with the input shaft.
  • Planet gears whose carrier can rotate.
  • Ring gear that rotates together with the output shaft.

In the "MEC" unit the power reaches the epicyclic gear through the central sun gear, that is to say, the input shaft is joined to the central sun pinion and the output power is obtained at the output shaft because it is joined to the ring.

This unit allows the student to study the reduction ratios of overdrive, as well as torque conversion.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. To study the overdrive speed.
  2. To demonstrate the operation of an epicyclic gears system to obtain the overdrive speed.
  3. To determine the angular displacement at the input and output and to compare it with the overdrive reduction ratio calculated.
  4. To determine the minimum effort required at the input to raise a load at the output in an overdrive reduction ratio.
  5. Power transmission: checking the ratio between input torque and output torque for an overdrive reduction ratio.
