MTE1 Equipamento de Transmissão Epicicloidal (1 elemento)

7.2.2.- ENGRENAGENS, DIFERENCIAIS E TRANSMISSÕES
EPICYCLIC GEAR UNIT (1 ELEMENT) - MTE1

SISTEMAS INOVADORES

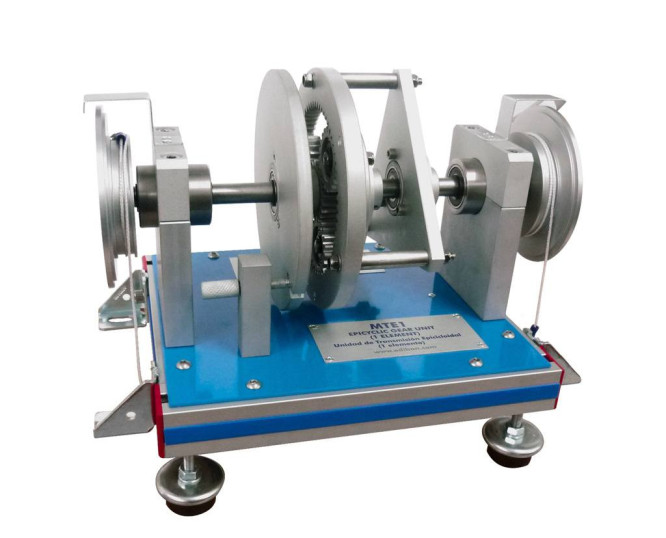

The Epicyclic Gear Unit (1 element), "MTE1", designed by EDIBON, includes a set of epicyclic gears that allows the student to study different reduction ratios (direct drive and overdrive), as well as torque conversion.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
MSAC

Sistema Modular de Aquisição e Controle

LABORATÓRIOS

7TV
 Laboratório Mecânico, Automóvel e de Materiais para o Ensino Técnico e Vocacional
7HE
 Laboratório de Mecânica, Automóvel e Materiais para o Ensino Superior

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais

Descrição Geral

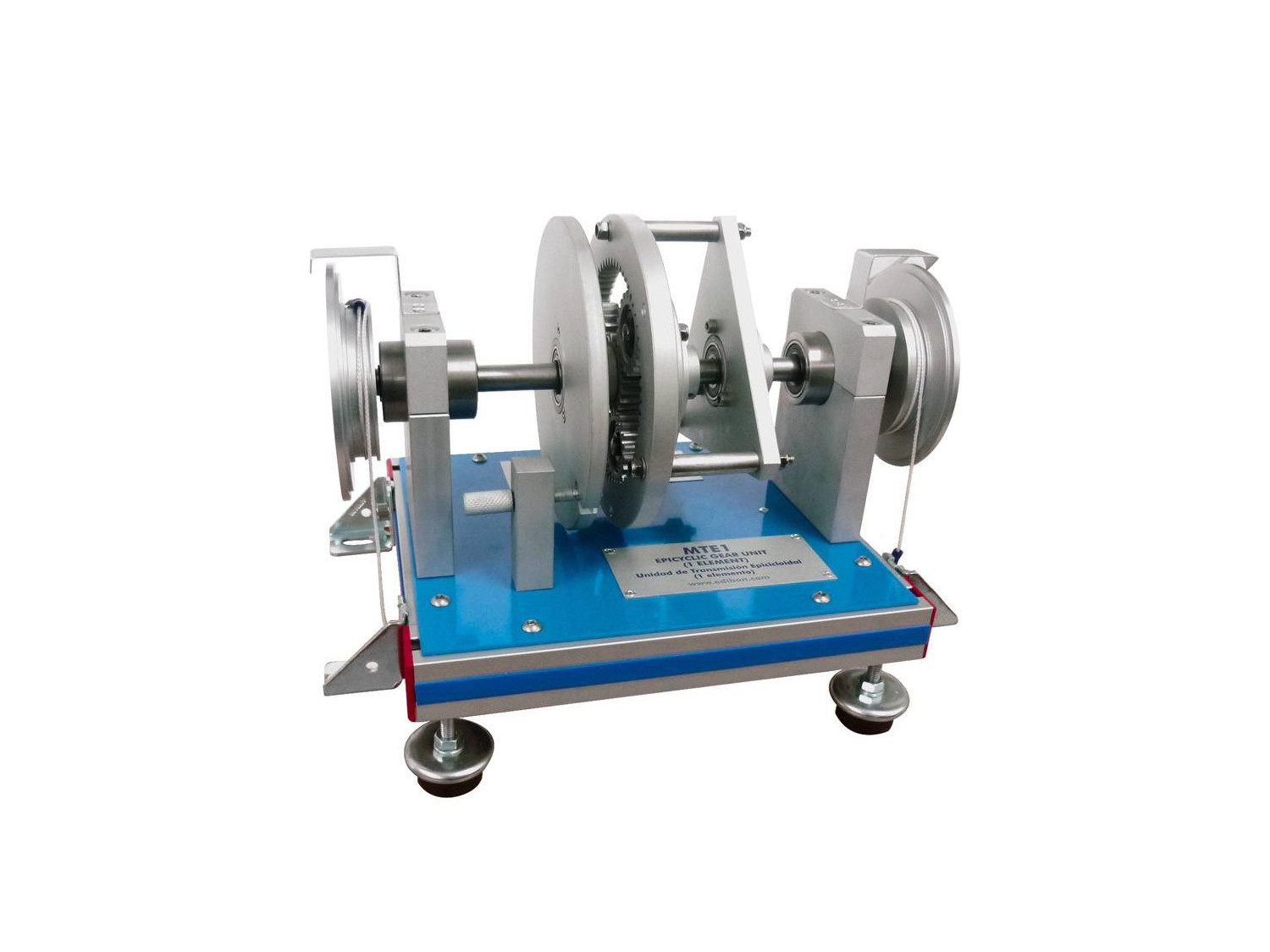

The Epicyclic Gear Unit (1 element), "MTE1", includes a set of epicyclic gears that allows the student to study different reduction ratios (direct drive and overdrive), as well as torque conversion.

A simple epicyclic gears set consists of:

  • Sun gear that rotates together with the input shaft.
  • Planet gears whose carrier can rotate.
  • Ring gear that rotates together with the output shaft.

One of the three elements will provide motion to the system, it will be called driving element. Other element will be kept static, by braking it, and the third element will act as driven element.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. To demonstrate the operation of an epicyclic gears system.
  2. To determine and verify the speed and torque ratio between the input and output shafts.
  3. To study the mechanical advantage and efficiency of an epicyclic system.
  4. To determine the angular displacement at the input and output and to compare with the ratio calculated.
  5. To determine the minimum effort required at the input to raise a load at the output.
  6. Selection of gears:
  • Overdrive.
  • Direct drive.
  1. Power transmission: checking the relation between input torque and output torque.
