EDSC Equipamento Didático para Envasamento de Sólidos, Controlado por Computador (PC)

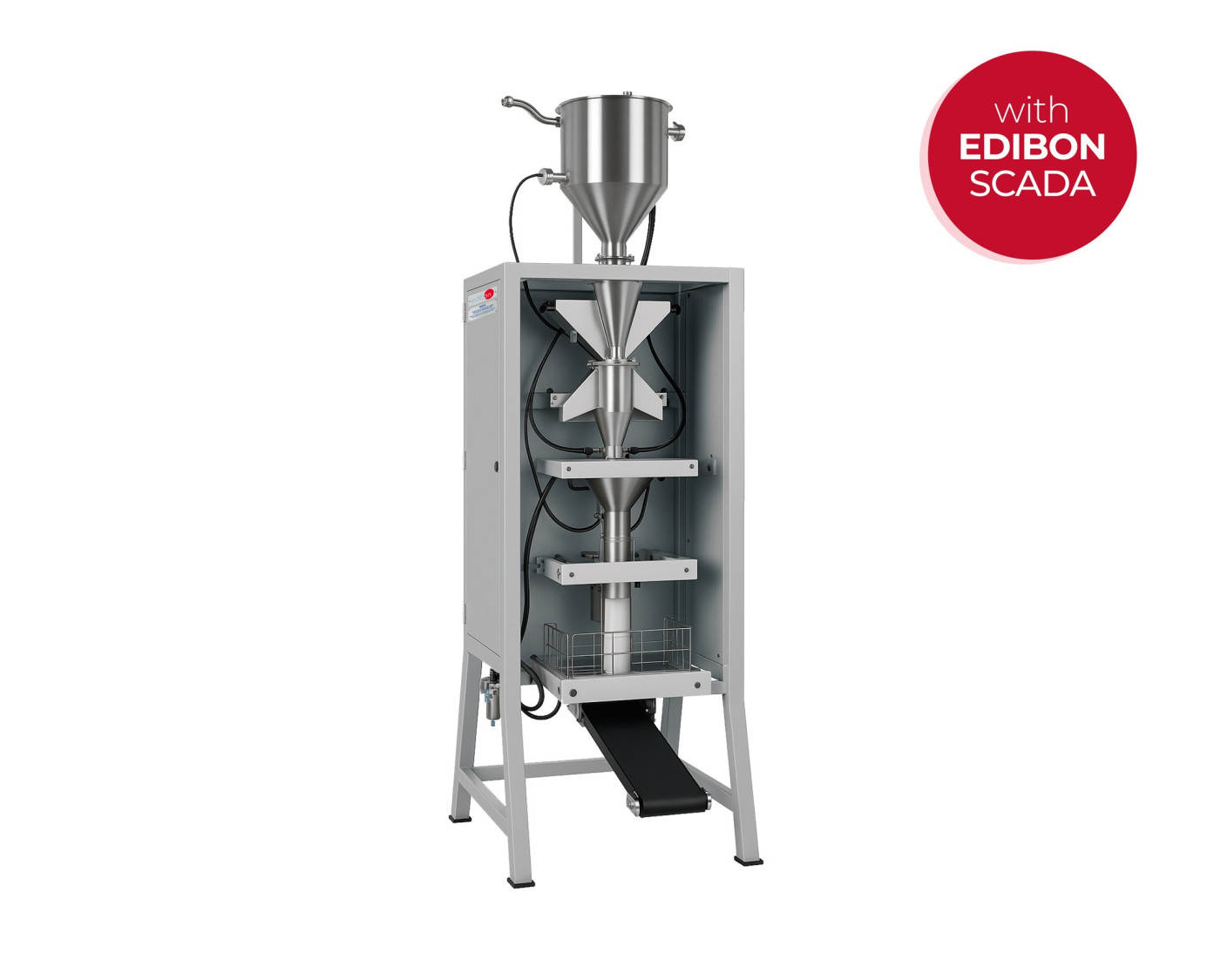

The Computer Controlled Solids Packaging Teaching Unit, "EDSC", designed by EDIBON, has been conceived for the complete study of the dosing, filling, and sealing process of solid products. Its design allows reproducing, at laboratory scale, the industrial operations of automatic packaging, offering a didactic and research tool focused on the analysis of dosing precision, filling efficiency, and process variable control.

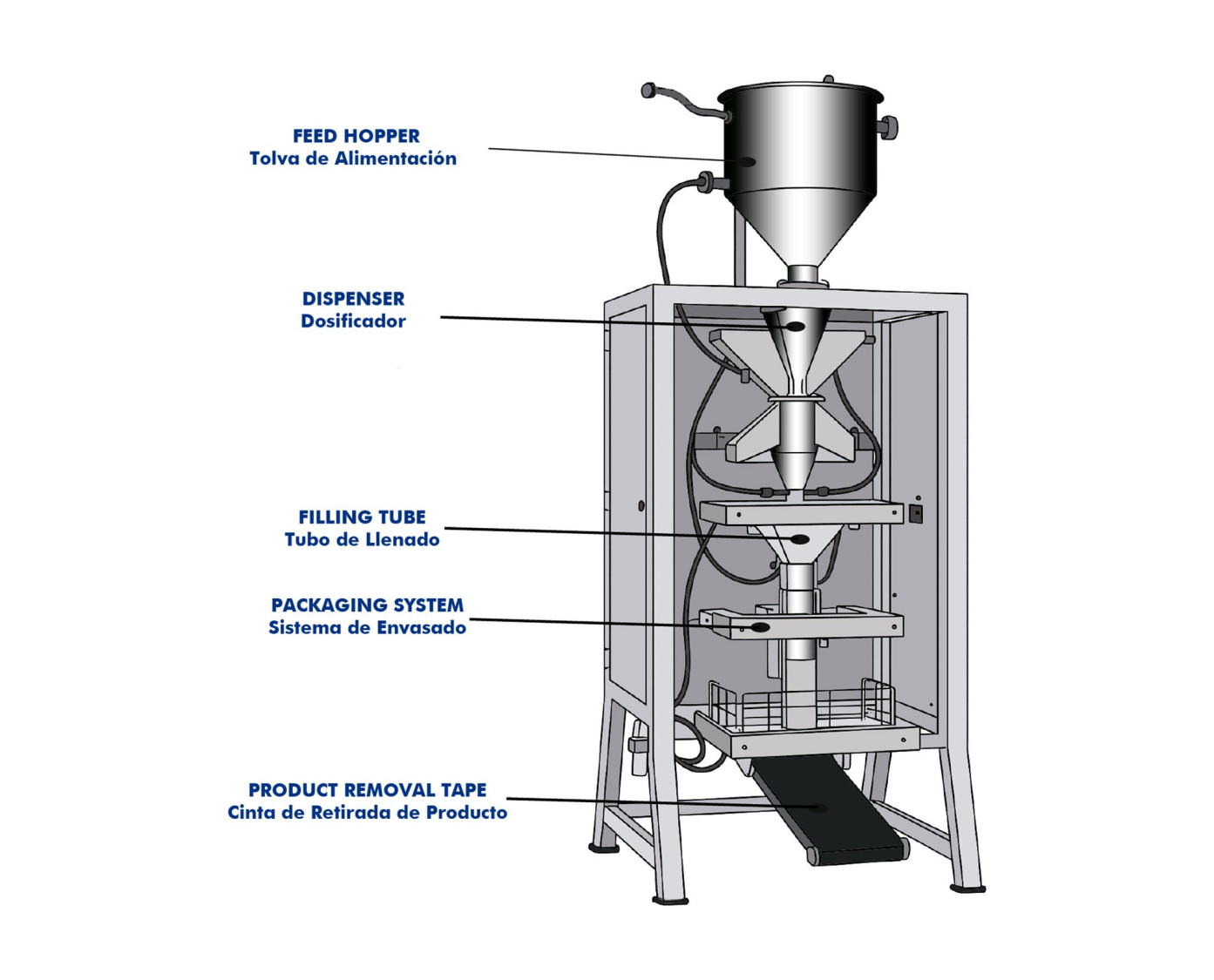

The process begins with the storage of the solid product in a feed hopper located above the dosing system. From this hopper, the material is transferred to the doser. The dosing system allows adjusting the quantity of product to be supplied.

Once the programmed quantity has been dosed, the product is introduced into the corresponding package through a filling funnel or tube. The unit includes level, weight, and container-presence sensors that ensure the correct operating sequence and allow the study of the interaction between control system signals. The closing or sealing of the container is carried out using the appropriate method according to the type of package.

All process phases feeding, dosing, filling, and sealing are controlled. Through the associated software, it is possible to visualize the main variables, record data, and analyze the system’s performance under different operating conditions. Thanks to this, the unit allows the study of the operating principles of solid dosing systems and all related variables.

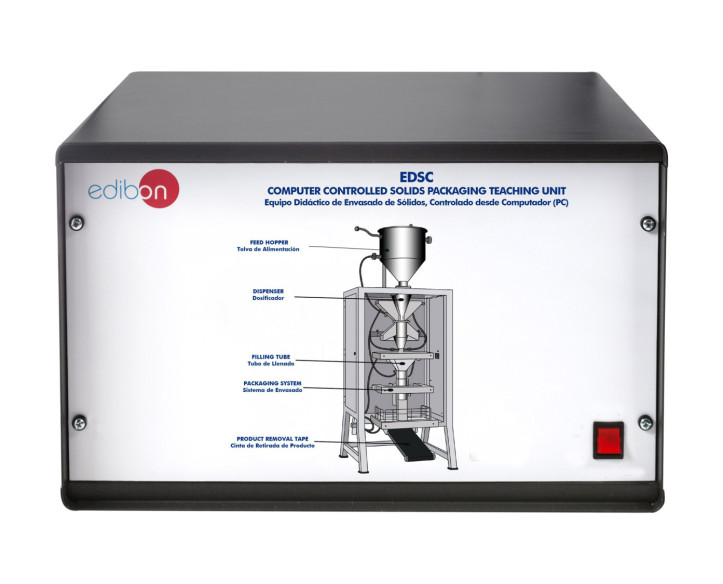

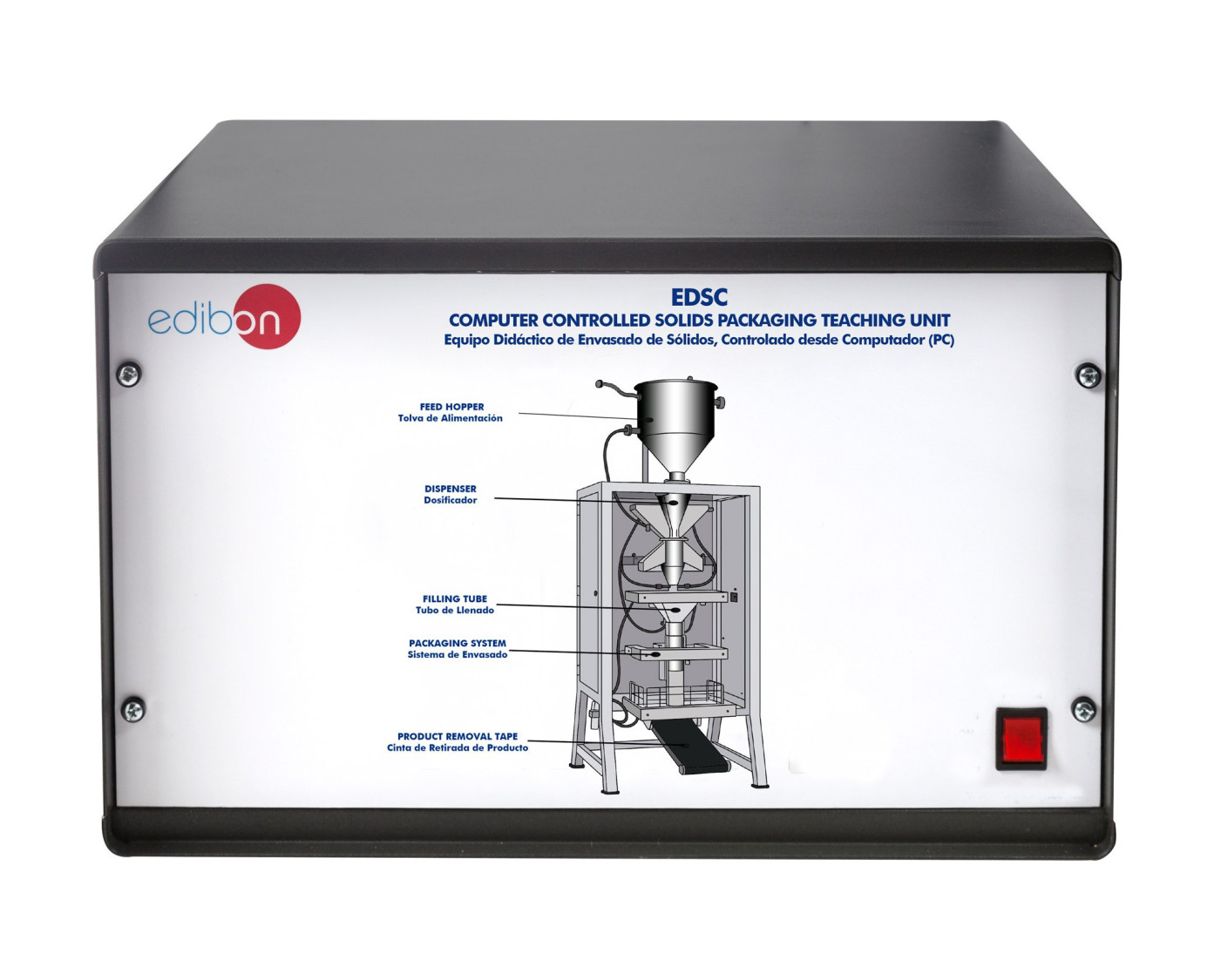

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.
