FME18 Demonstração de Sistemas de Medições de Vazão

8.1.2.- MEDIÇÃO
FLOW METER DEMONSTRATION - FME18

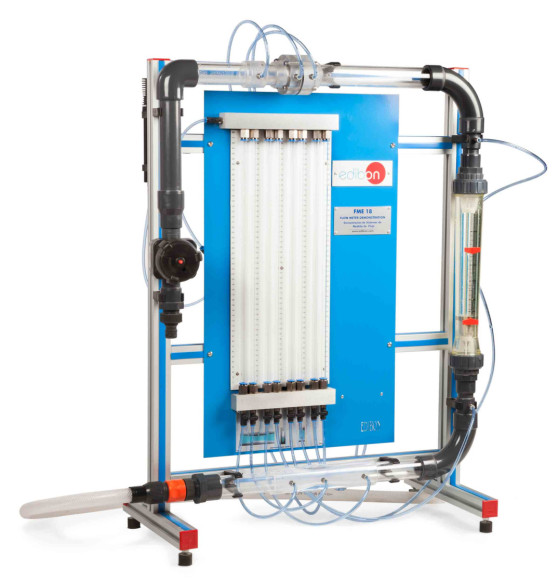

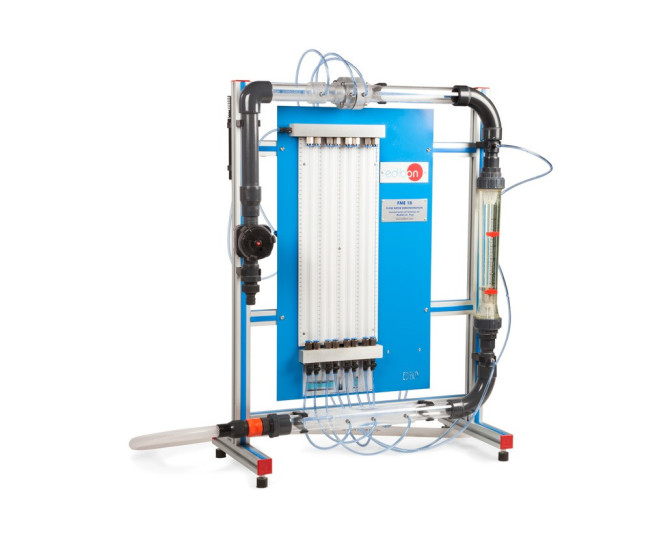

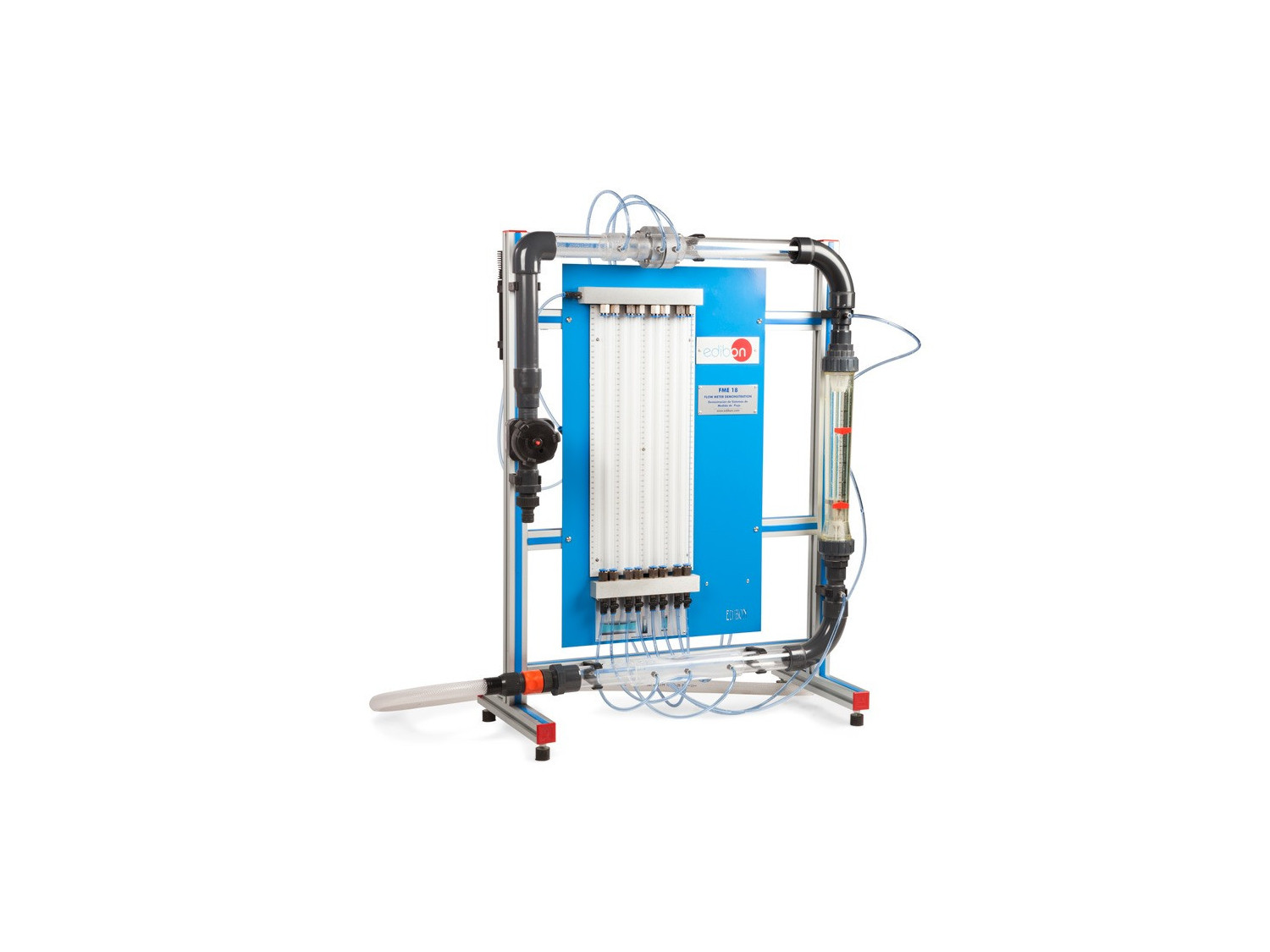

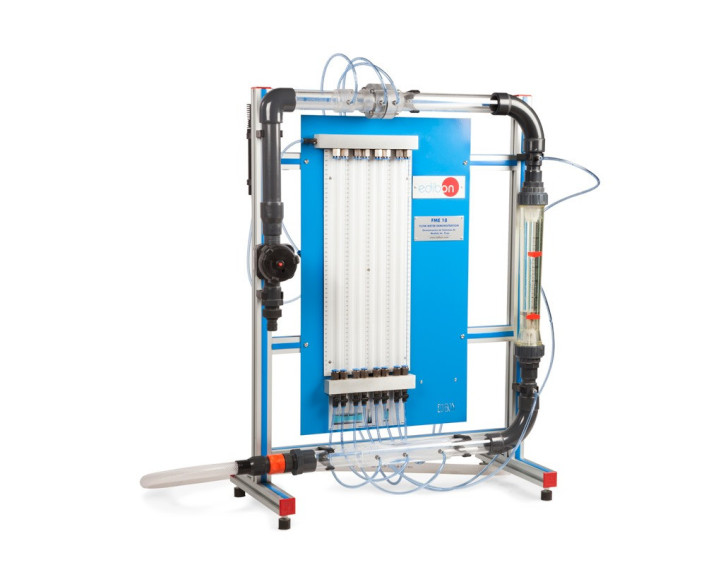

Complete FME18 Unit

FLOW METER DEMONSTRATION - FME18

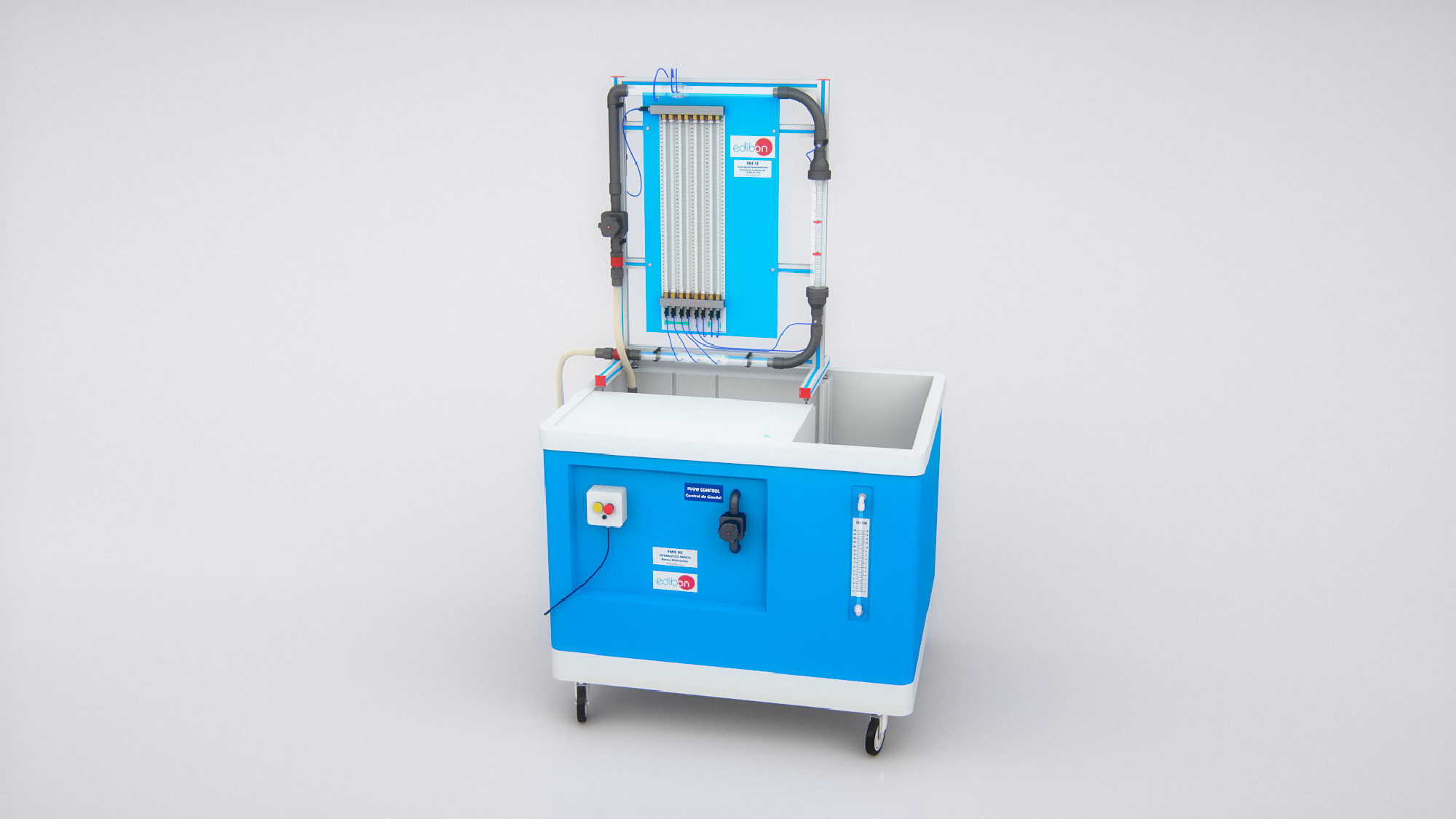

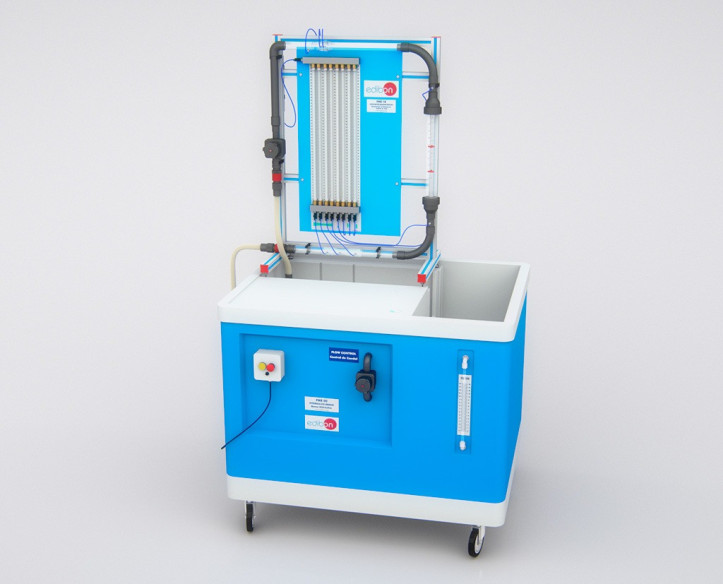

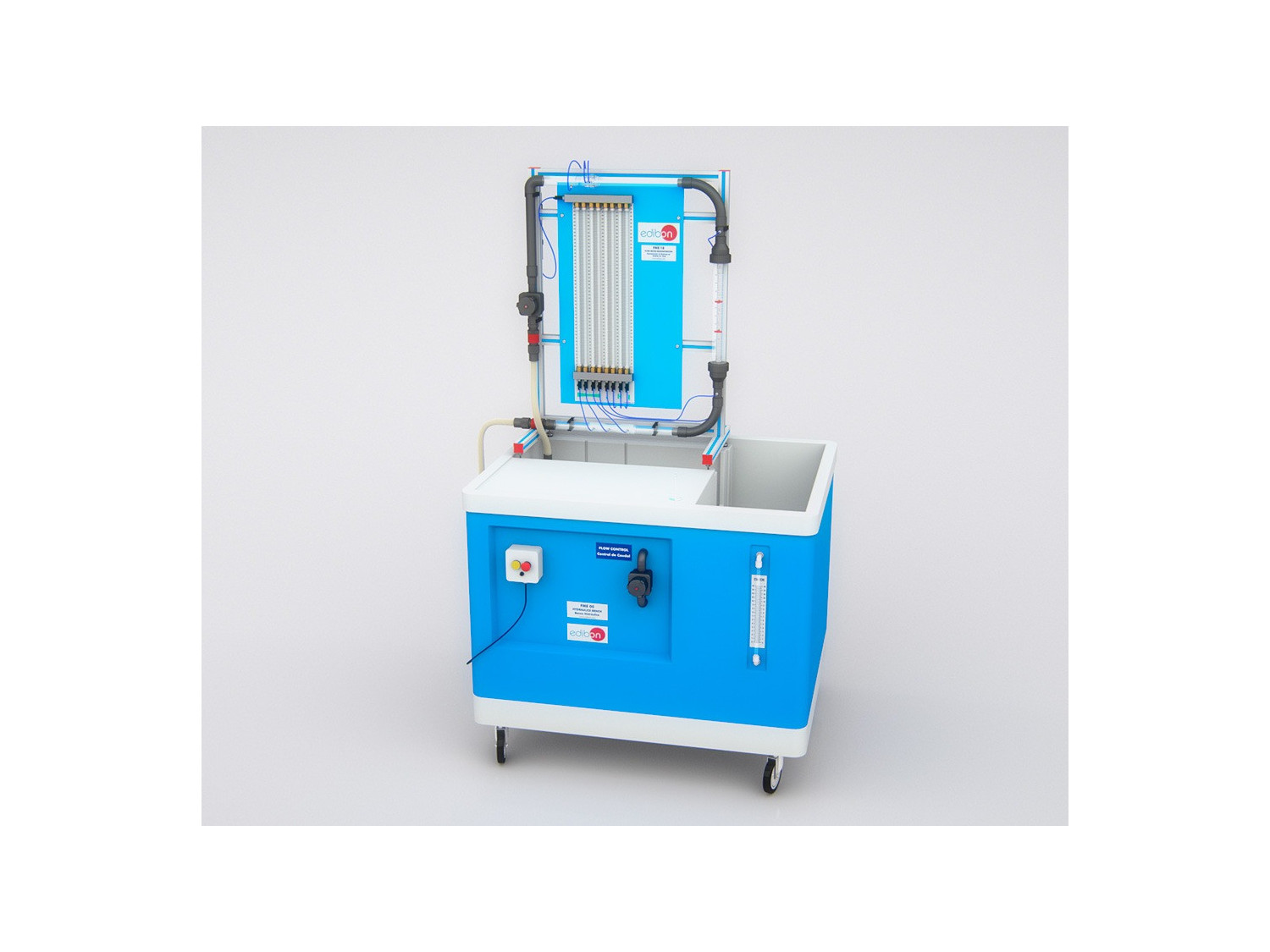

FME18 Unit with service unit FME00

FLOW METER DEMONSTRATION - FME18
FLOW METER DEMONSTRATION - FME18

SISTEMAS INOVADORES

The Flow Meter Demonstration, "FME18", designed by EDIBON, consists of a Venturi meter, a flowmeter and an orifice plate, installed in a series configuration to permit a direct comparison.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
MSAC

Sistema Modular de Aquisição e Controle

LABORATÓRIOS

8TV
 Laboratório de Mecânica dos Fluidos para o Ensino Técnico e Vocacional
8HE
 Laboratório de Mecânica dos Fluidos para o Ensino Superior

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
Setting up at Faculté des Sciences at the Université d’Etat d’Haiti
Setting up at Faculté des Sciences at the Université d’Etat d’Haiti
We want to present our new installation in the Faculté des Sciences at the Université d’Etat d’Haiti, specifically in the Fluid Mechanics Department. There, we have installed many of our equipment, among which are: AFT, CF80/5 (with CFAS, CFFS, CFPLR, CFPR, CFRM, CFSDL, CFTP, CFTS, CFVD, CFVEN,...
Ler mais
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Ler mais

Descrição Geral

The Flow Meter Demonstration, "FME18", designed by EDIBON, consists of a Venturi meter, a flowmeter and an orifice plate, installed in a series configuration to permit a direct comparison.

Several pressure taps are connected to a panel of eight tubes.

The flow control valve allows the variation of the flow rate through the circuit, and its adjustment, along with the bench control valve, allows for varying the system static pressure.

The pressure taps of the circuit are connected to an eight-bank manometer, which incorporates an air inlet valve at the top manifold which facilitates the connection to the hand pump.

This enables to adjust the levels in the manometer bank to a convenient level to suit the system static pressure.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Determination of water pressure drops when flowing through a Venturi tube.
  2. Determination of water pressure drops when flowing through an orifice plate.
  3. Determination of water pressure drops when flowing through a variable area flow meter.
  4. Comparison of pressure drops in the three elements.
  5. Flow measurement using a Venturi tube.
  6. Determination of the Cd factor in the Venturi.
  7. Flow measurement using a variable area flow meter.
  8. Flow measurement using an orifice plate.
  9. Determination of the Cd factor in the orifice plate.
  10. Comparison among the Venturi, the orifice plate and the flowmeter.
