FME30/I Fluxômetro tipo Vórtex
SISTEMAS INOVADORES

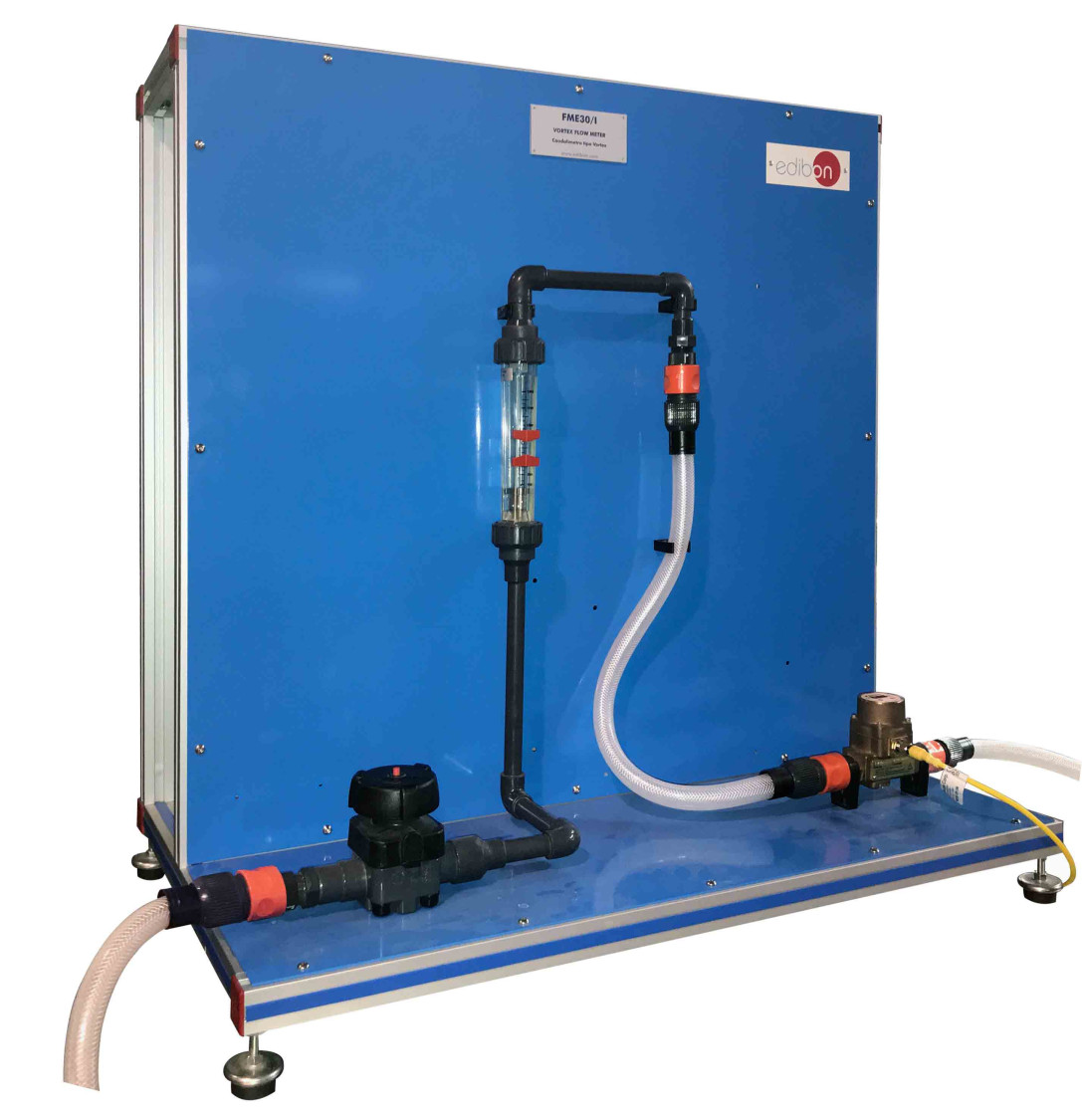

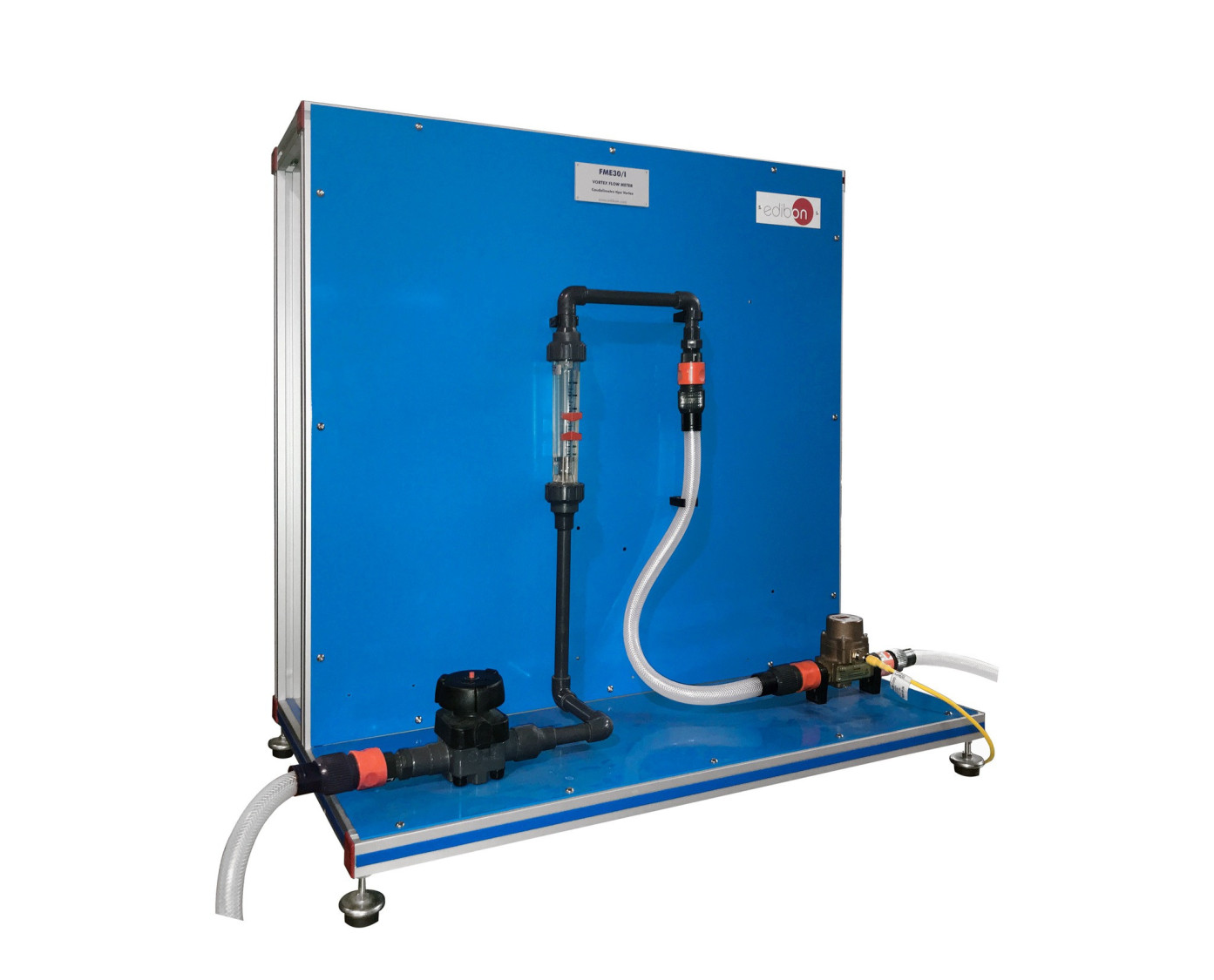

The Vortex Flowmeter, "FME30/I", designed by EDIBON, allows to perform different studies and experiments of various volumetric and mass flow measurement methods, as well as the comparison of continuous and discontinuous methods.
Expansões
NOTÍCIAS RELACIONADAS
Descrição Geral
The Vortex Flowmeter, "FME30/I", designed by EDIBON, allows to perform different studies and experiments of various volumetric and mass flow measurement methods, as well as the comparison of continuous and discontinuous methods.
This unit includes two continuous and two intermittent methods to carry out the experiments.
The continuous methods include a vortex flowmeter and a variable-area flowmeter (or rotameter).
The vortex flowmeter included is an industrial one. The operation principle consists on a liquid that collides with a bluff body and generates alternate vortices towards the body.
This creates a pressure in the body of the sensor, which contains a piezoelectronic crystal. The frequency of the sensor is proportional to the velocity. The meter has a bright LED display that indicates the flow rate in liters or gallons.
Intermittent methods include the measurement of volumetric and mass flows. A precision scale is used to measure the mass flow and compare the measurements.
The water supply may be provided either from the Hydraulics Bench (FME00) or the Basic Hydraulic Feed System (FME00/B).
EXERCÍCIOS E PRÁTICAS GUIADAS
EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL
- Study and experiments with an industrial vortex flow meter.
- Study and experiments with a variable area flow meter.
- Measurement of volumetric volume flow rate.
- Measurement of gravimetric volume flow rate.
- Comparison of methods on several volumetric and mass flow measurements.
- Flow meters calibration.
- Comparison among different flowmeters.
