AEL-TI-02 Aplicação de Transformador na Distribuição com Regulação de Motor

5.1.3.2.- TRASMISSÃO DE ENERGIA
DISTRIBUTION TRANSFORMER WITH MOTOR REGULATION APPLICATION - AEL-TI-02

SISTEMAS INOVADORES

The Distribution Transfomer with Motor Regulation Application, "AEL-TI-02", has been designed to study the distribution transformers and its importance in voltage regulation of the medium and low voltage stage of the electrical system.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

Setting up in Papua New Guinea
Setting up in Papua New Guinea

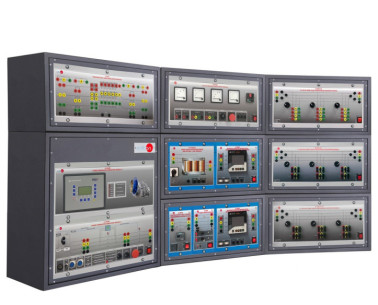

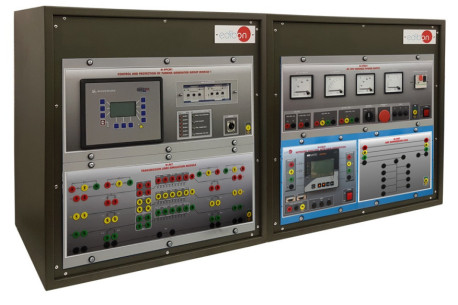

We have traveled to Oceania to make an installation in Papua New Guinea. There we have installed our Analysis of Three-phase Power Lines Application, (AEL-TI-01), our Distribution Transfomer with Motor Regulation Application (AEL-TI-02), Arc Suppression Coil Application (AEL-TI- 03), Underground...
Ler mais
Setting up at Béjaia University
Setting up at Béjaia University
We have traveled to the Béjaia University to install several of our equipment in the areas of Electrical Engineering and Heat Transfer.
Ler mais
SMART GRID. What is about?
SMART GRID. What is about?
With the new smart bidirectional meters, all protection and control devices and the wide use of Internet, the grid has become an intelligent (smart) grid.
Ler mais
NEW Renewable Energies leaflet
NEW Renewable Energies leaflet
The growing concern over pollution and climate change has exponentially increased the interest about clean energies. Computer Controlled Renewable Energies units (with SCADA), designed by EDIBON, are not only an effective learning tool to understand all energy related processes, but also a...
Ler mais

Descrição Geral

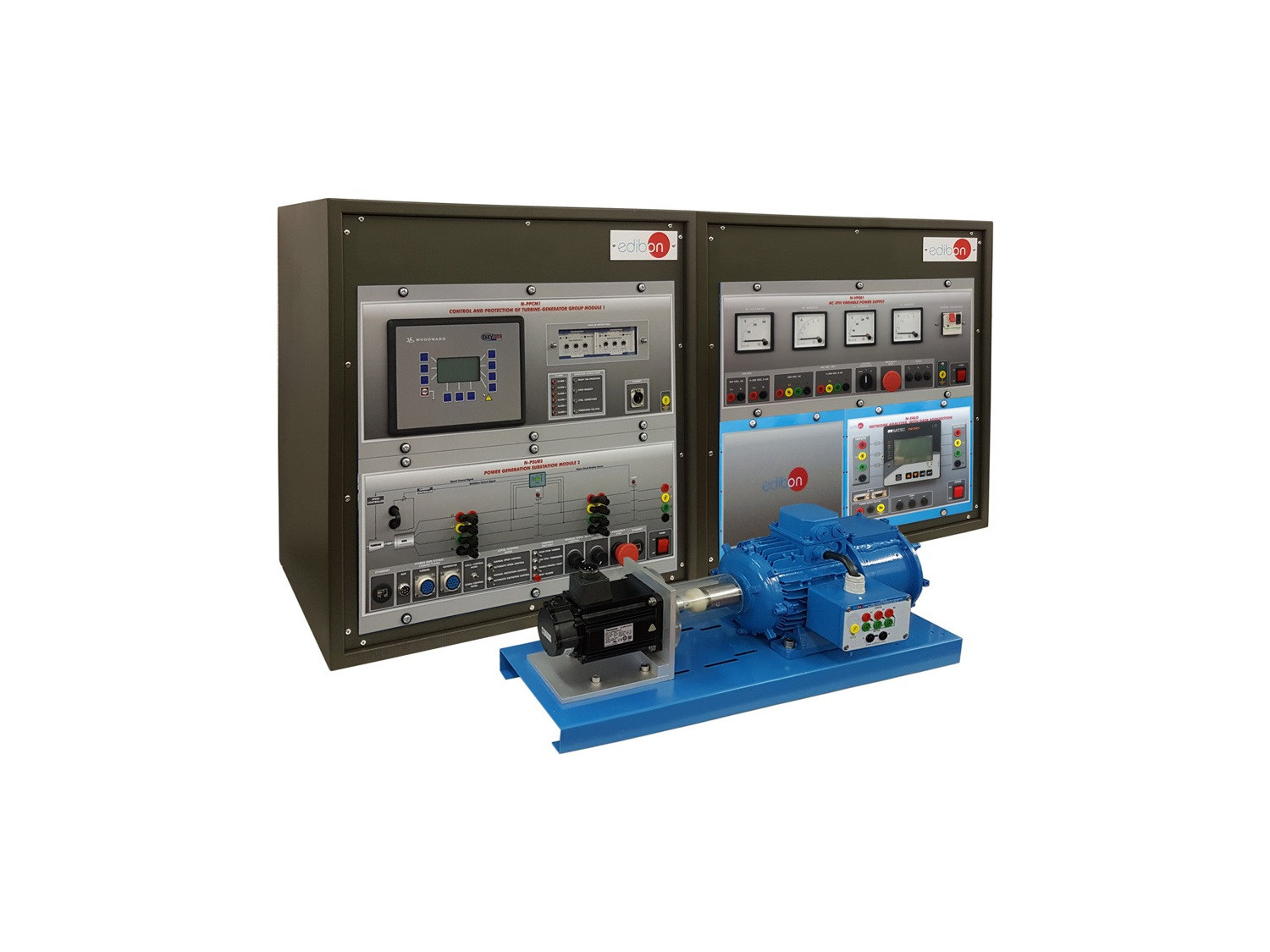

The Distribution Transfomer with Motor Regulation Application, "AEL-TI-02", has been designed to study the distribution transformers and its importance in voltage regulation of the medium and low voltage stage of the electrical system. For that, this application includes a transformer with motorized voltage regulator to keep the voltage constant against the demand changes.

In addition, this application has been designed to be combined with the rest of AEL-TI- and AEL-SST- applications in order to form a system in which the user can study concepts about generation, transmission, distribution and power consumption.

Additionaly, this application can work remotely through SCADA software AEL-TI-07/CCSOF included in the application of Transmission Application with Synchronous Generator, "AEL-TI-07".

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Drop voltage correction with three-phase transformer with motor regulation.
  2. Study of increasing voltages with step up transformer.
  3. Study of decreasing voltages with step down transformer.

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

  1. Many students view results simultaneously. To view all results in real time in the classroom it can be used a projector or an electronic whiteboard.
  2. This application is totally safe as uses mechanical, electric and electronic, and software safety devices.
  3. This application can be used for doing applied research.
  4. This application can be used for giving learning courses to industries even to other Technical Education Institutions.
  5. Several other exercises can be done and designed by the user.
