ARC SUPPRESSION COIL APPLICATION - AEL-TI-03

SISTEMAS INOVADORES

The Arc Suppression Coil Application, "AEL-TI- 03", has been designed by EDIBON to show the students how it is possible to neutralize an earth fault current with a Petersen Coil.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

Setting up in Papua New Guinea
Setting up in Papua New Guinea
We have traveled to Oceania to make an installation in Papua New Guinea. There we have installed our Analysis of Three-phase Power Lines Application, (AEL-TI-01), our Distribution Transfomer with Motor Regulation Application (AEL-TI-02), Arc Suppression Coil Application (AEL-TI- 03), Underground...
Ler mais
SMART GRID. What is about?
SMART GRID. What is about?
With the new smart bidirectional meters, all protection and control devices and the wide use of Internet, the grid has become an intelligent (smart) grid.
Ler mais
NEW Renewable Energies leaflet
NEW Renewable Energies leaflet
The growing concern over pollution and climate change has exponentially increased the interest about clean energies. Computer Controlled Renewable Energies units (with SCADA), designed by EDIBON, are not only an effective learning tool to understand all energy related processes, but also a...
Ler mais

Descrição Geral

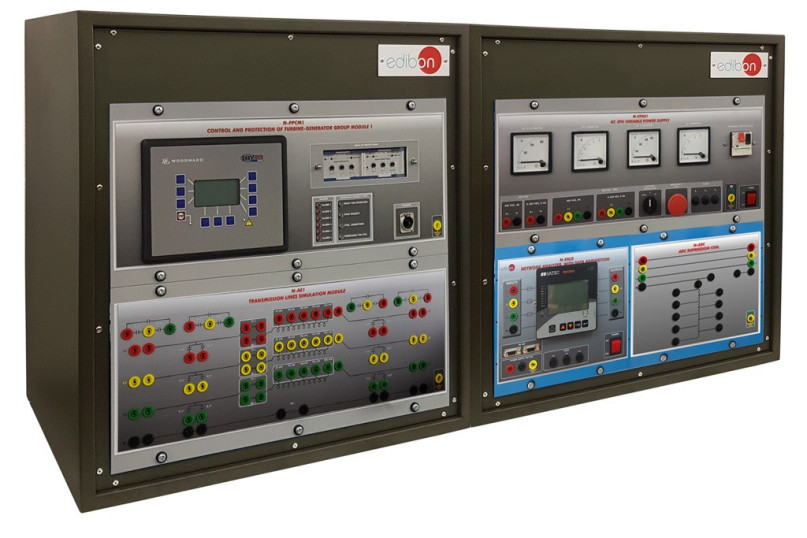

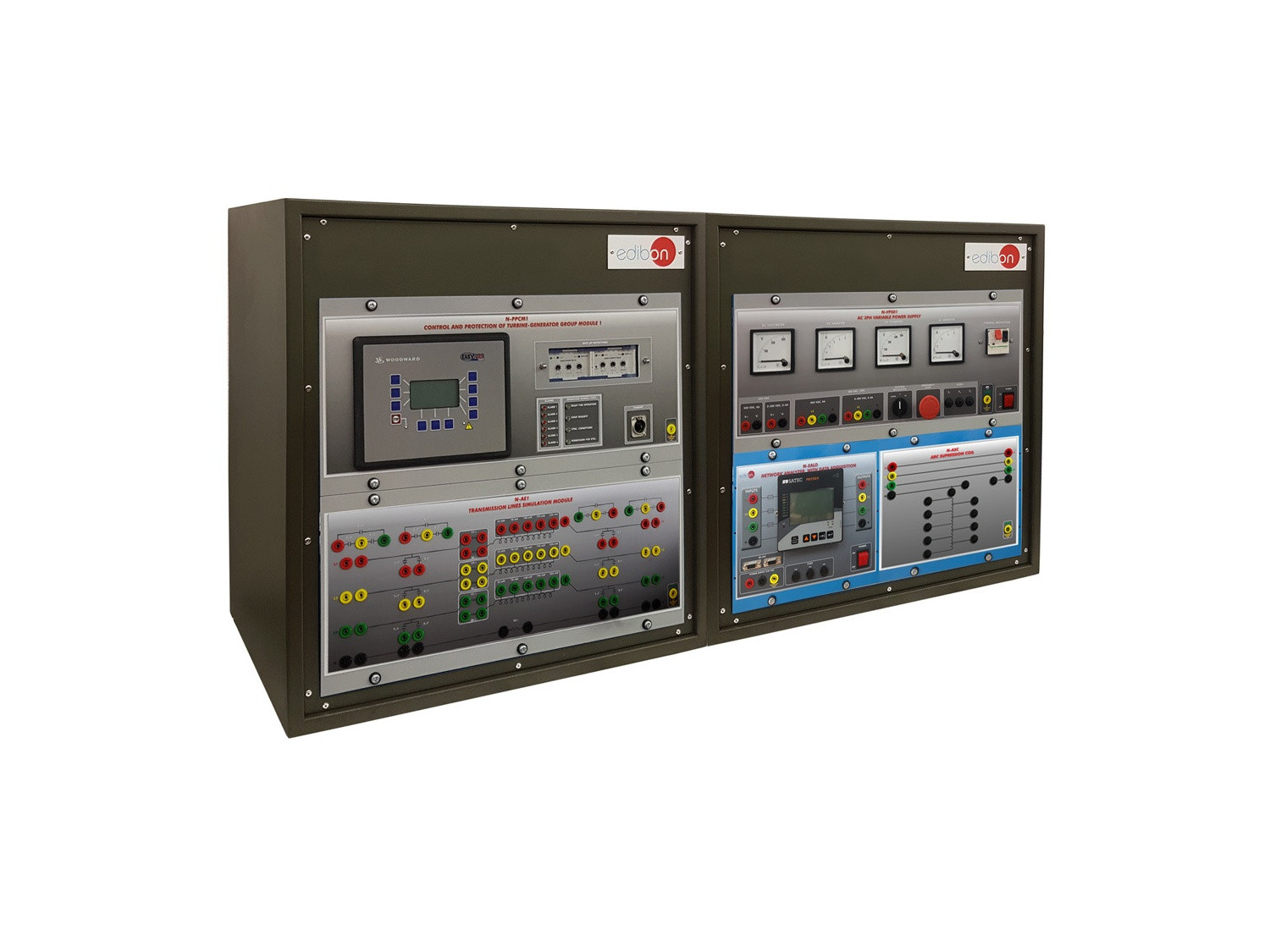

The Arc Suppression Coil Application, "AEL-TI- 03", has been designed by EDIBON to show the students how it is possible to neutralize an earth fault current with a Petersen Coil.

For this purpose, this application includes a Petersen Coil module with variable reactance so that it has resonance with the capacity of the line, previously chosen by the user.

In addition, this application has been designed to be combined with the rest of AEL-TI- and AEL-SST- applications in order to form a system in which the user can study concepts about generation, transmission, distribution and power consumption.

This application can work remotely through SCADA software AEL-TI-07/CCSOF included in the application of Transmission Application with Synchronous Generator, "AEL-TI-07".

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Earth-fault on a line with point in isolated neutral.
  2. Responses of the system against earth-fault on a line with earthed neutral.
  3. Compensation of capacitive fault current on a line with resonant neutral.
  4. Response of the system to earth-fault with earthed neutral.

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

  1. Several students can see the results at the same time. A projector or electronic whiteboard can be used to see all the results in real time in class.
  2. The Computer Control System with CCSOF allows a real simulation.
  3. This application is completely safe since it has mechanical, electrical, electronic security devices and Software.
  4. This application may be used to carry out applied research.
  5. This application may be used for teaching training to industries, even to other institutions of Technical Education.
  6. Several other exercises can be done and designed by the user.
