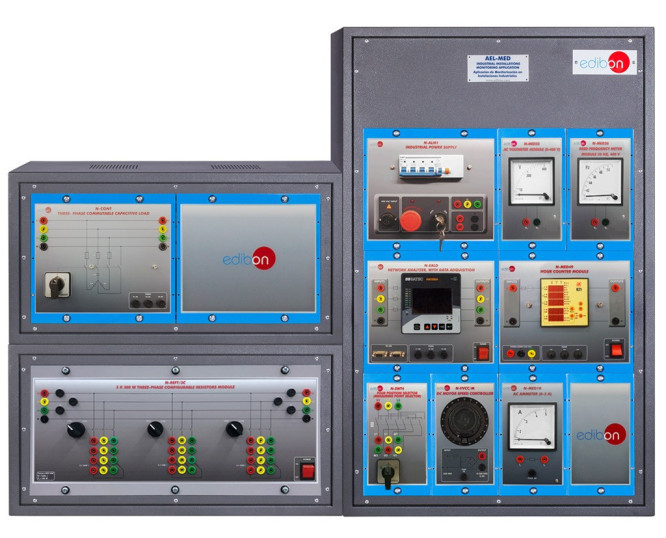

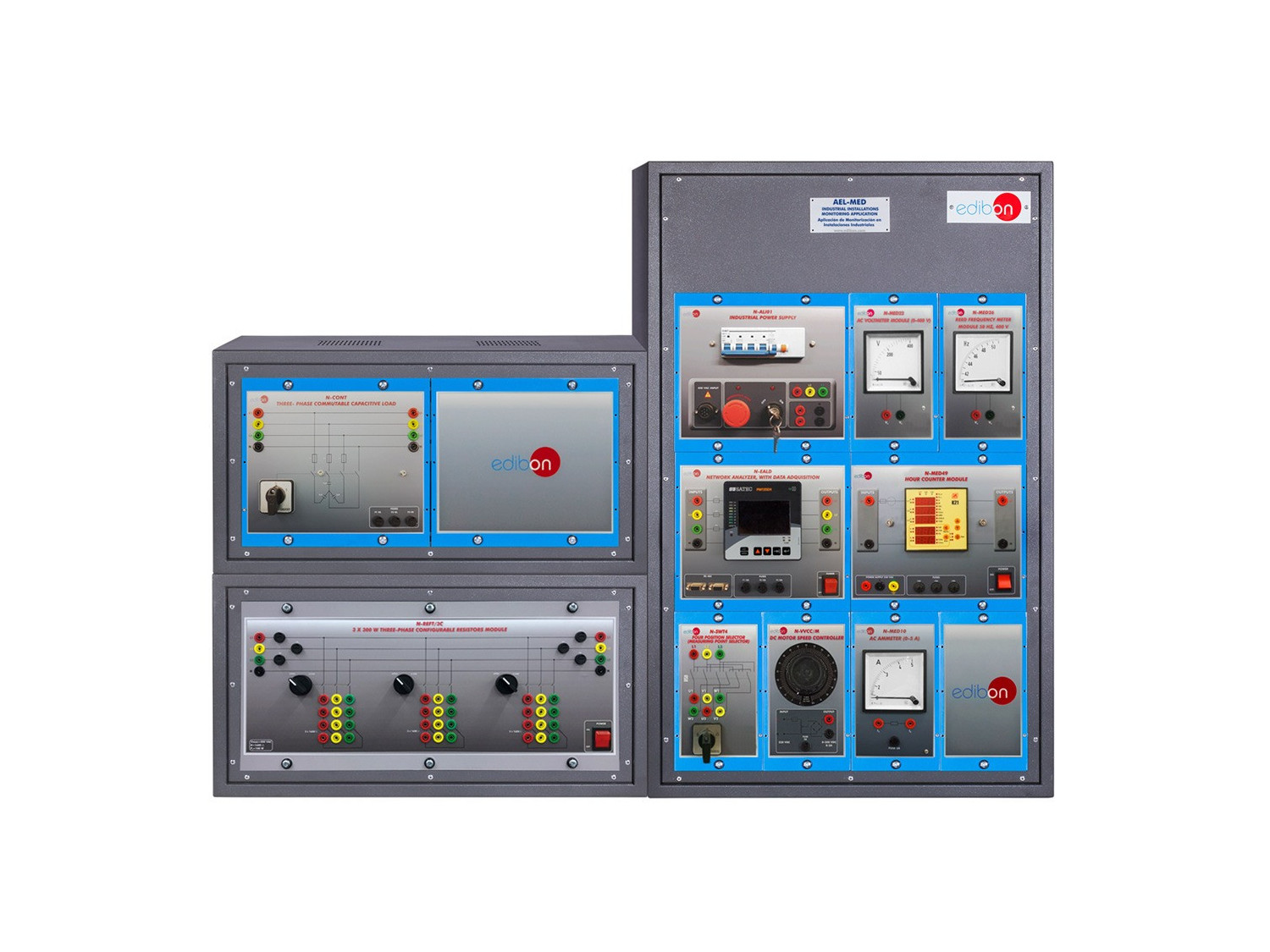

AEL-MED Aplicação de Monitoramento em Instalações Industriais

The Industrial Installations Monitoring Application, "AEL-MED", has been designed by EDIBON with the objective of introducing the consumption supervision of industrial installations. For that, the application contains the next modules: a main power supply, an alternate current voltmeter, an alternate current ammeter, a frequency meter to check the quality of the service or detect interferences, a network analyzer with active and reactive power consumption, this allow us to calculate for example the power factor in each instant, an hour counter and a four position selector to measure different points. With all of this elemnts is possible to supervise an industrial installation and announce the students the different kinds of devices used for these purposes.
