AEL-CM3 Aplicação de Operações de Controle Automático II

4.1.2.1.- ACIONAMENTOS E CONTROLE DE MANOBRAS
AUTOMATIC CONTROL OPERATIONS II APPLICATION - AEL-CM3

SISTEMAS INOVADORES

The Automatic Control Operations II Application, "AEL-CM3", has been designed by EDIBON in order to instruct the students about the most important operations of alternating current motors.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

LABORATÓRIOS

4TV
 Laboratório de Electricidade para o Ensino Técnico e Vocacional
4HE
 Laboratório de Electricidade para o Ensino Superior
11PTC
 Laboratório para o Centro de Formação Petrolífera

NOTÍCIAS RELACIONADAS

Setting up at the Uganda Petroleum Institute Kigumba (UPIK)
Setting up at the Uganda Petroleum Institute Kigumba (UPIK)
At EDIBON, we are proud to contribute to the educational development at the Uganda Petroleum Institute Kigumba (UPIK) through the installation of some of our applications.
Ler mais
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
The Importance of Hands-On Training in Electricity for Universities and Companies
The Importance of Hands-On Training in Electricity for Universities and Companies
Electricity is a form of energy resulting from the movement of electrons through a conductor. This physical phenomenon is essential for the operation of a wide variety of devices and systems we use daily, from household appliances to complex industrial systems.
Ler mais
What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
Ler mais

Descrição Geral

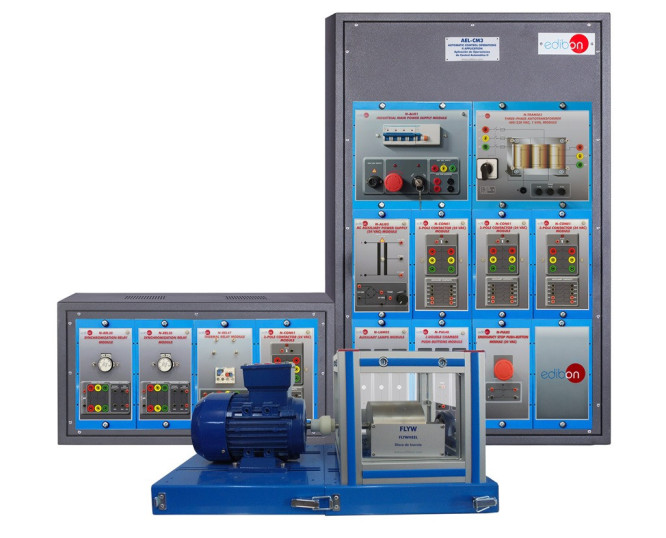

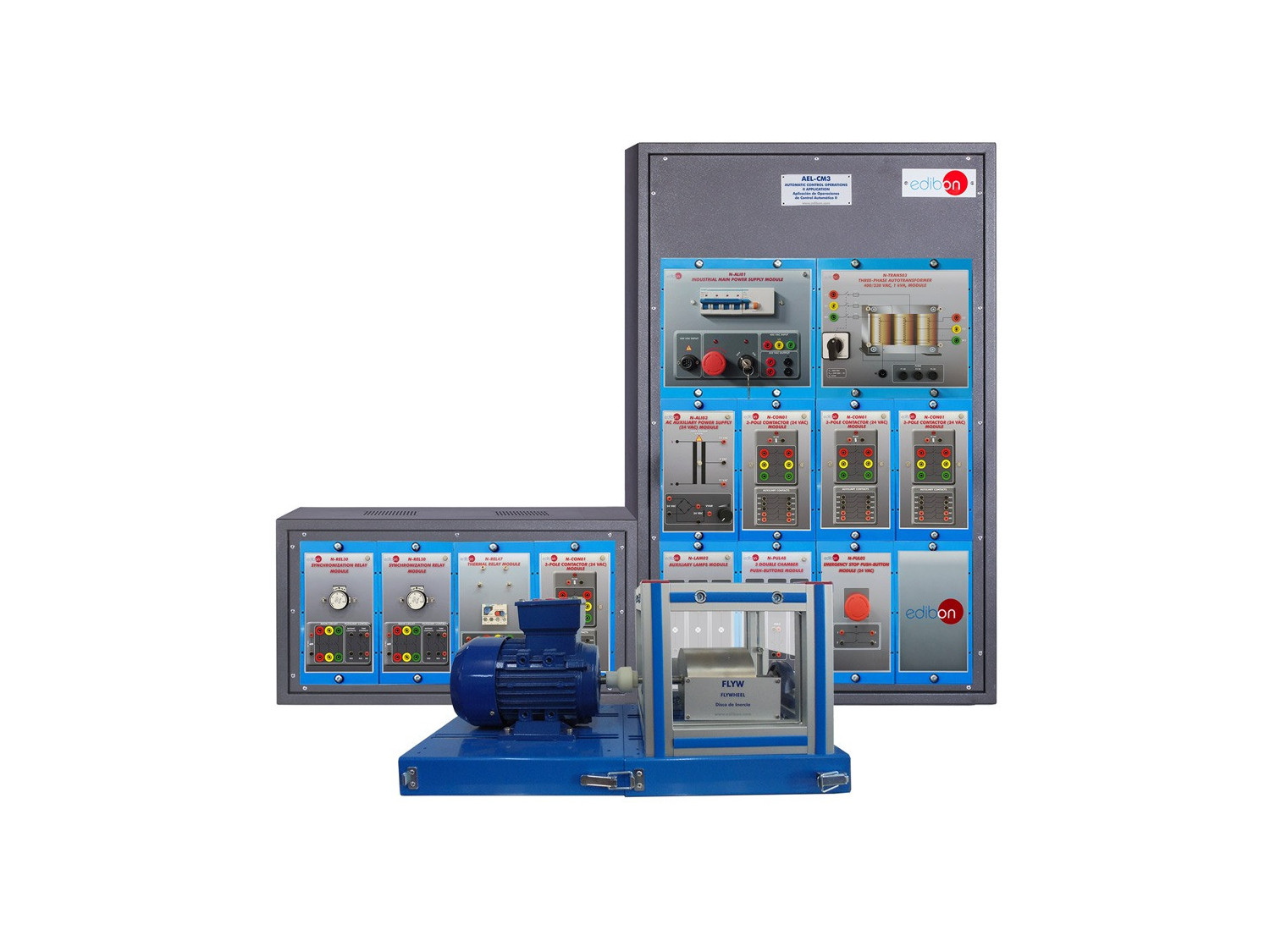

The Automatic Control Operations II Application, "AEL-CM3", has been designed by EDIBON to study automatic operations with Three- Phase Induction Motors of Squirrel Cage.

The student will learn how carry out logic wirings with several relays, timers and circuit breakers to get direct starting, star/delta start or run investment operations. With this application the student will learn how control the induction motor developing logic wirings. This application includes a flywheel to simulate different load conditions in the electrical machine. The flywheel is coupled to the motor shaft in order to produce a higher moment of inertia.

Moreover, the "AEL-CM3" will show the students to realize auxiliary wirings for emergency situations while the motor is working.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Checking the main power supply.
  2. Checking the auxiliary power supply.
  3. Checking the lamps.
  4. Study of the basic control elements of three-phase induction motor.
  5. Thermal relay operation.
  6. Manual star-delta circuit of three-phase induction motor .
  7. Automatic star-delta circuit of three-phase induction motor with timers.
  8. Manual starting and reversing operation of the induction motor.
  9. Automatic Star/Delta reversing circuit of three-phase induction motor with timers
