N-EM-SBP Sistema de Bombeamento (pressão)

6.2.2.2.- CONTROLE DE NÍVEL E FLUXO
PUMP SYSTEM (PRESSURE) - N-EM-SBP

SISTEMAS INOVADORES

"N-EM-SBP" represents a pressure system, which emulates two pumps that fills a tank.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

Descrição Geral

The "N-EM" are a series of emulators that provide the students the required hardware to emulate the most common automatic systems.

The "N-EM" modules are designed to work with the "AE-PLC" units to obtain the fundamental knowledge of PLC programing, PLC management, etc.

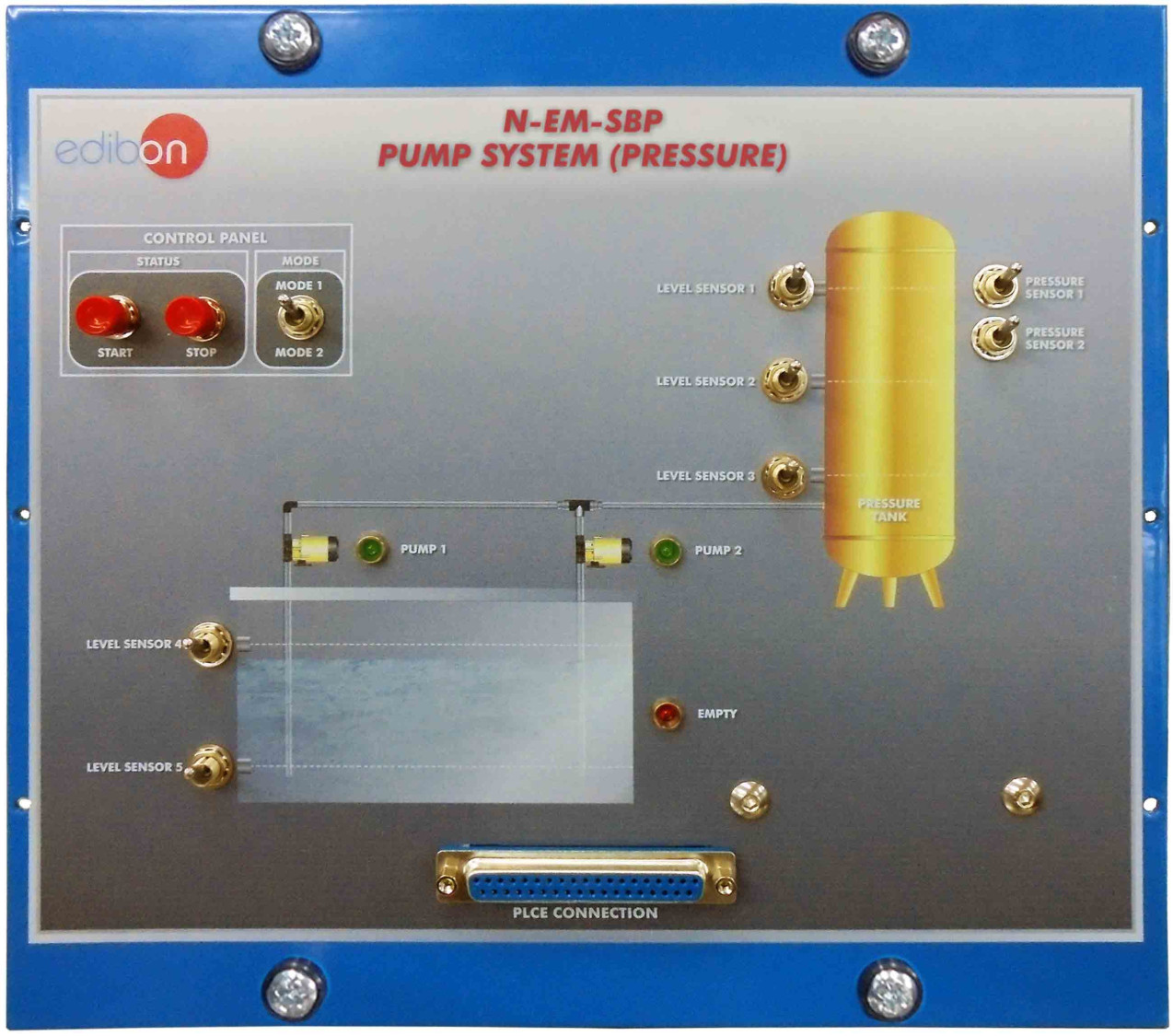

"N-EM-SBP" represents a pressure system, which emulates two pumps that fills a tank. The different switches and pushbuttons emulates the state of the three-phase contactor that control the pumps, the level sensors of the tank, the pressure sensor of the tank, etc.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

All "N-EM" modules allow to perform the following practical exercises:

  1. Temporization.
  2. Counting.
  3. Sequential counting.
  4. All the practical exercises include the diagrams and the flow charts of the example programs used.
