N-EM-PLLT Processo de Enchimento de Tanques

6.2.2.2.- CONTROLE DE NÍVEL E FLUXO
FILLING PROCESS OF TANKS - N-EM-PLLT

SISTEMAS INOVADORES

"N-EM-PLLT" represents a filling process system composed by three tanks which fill the tank where the desired product is mixed.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

Descrição Geral

The "N-EM" are a series of emulators that provide the students the required hardware to emulate the most common automatic systems.

The "N-EM" modules are designed to work with the "AE-PLC" units to obtain the fundamental knowledge of PLC programing, PLC management, etc.

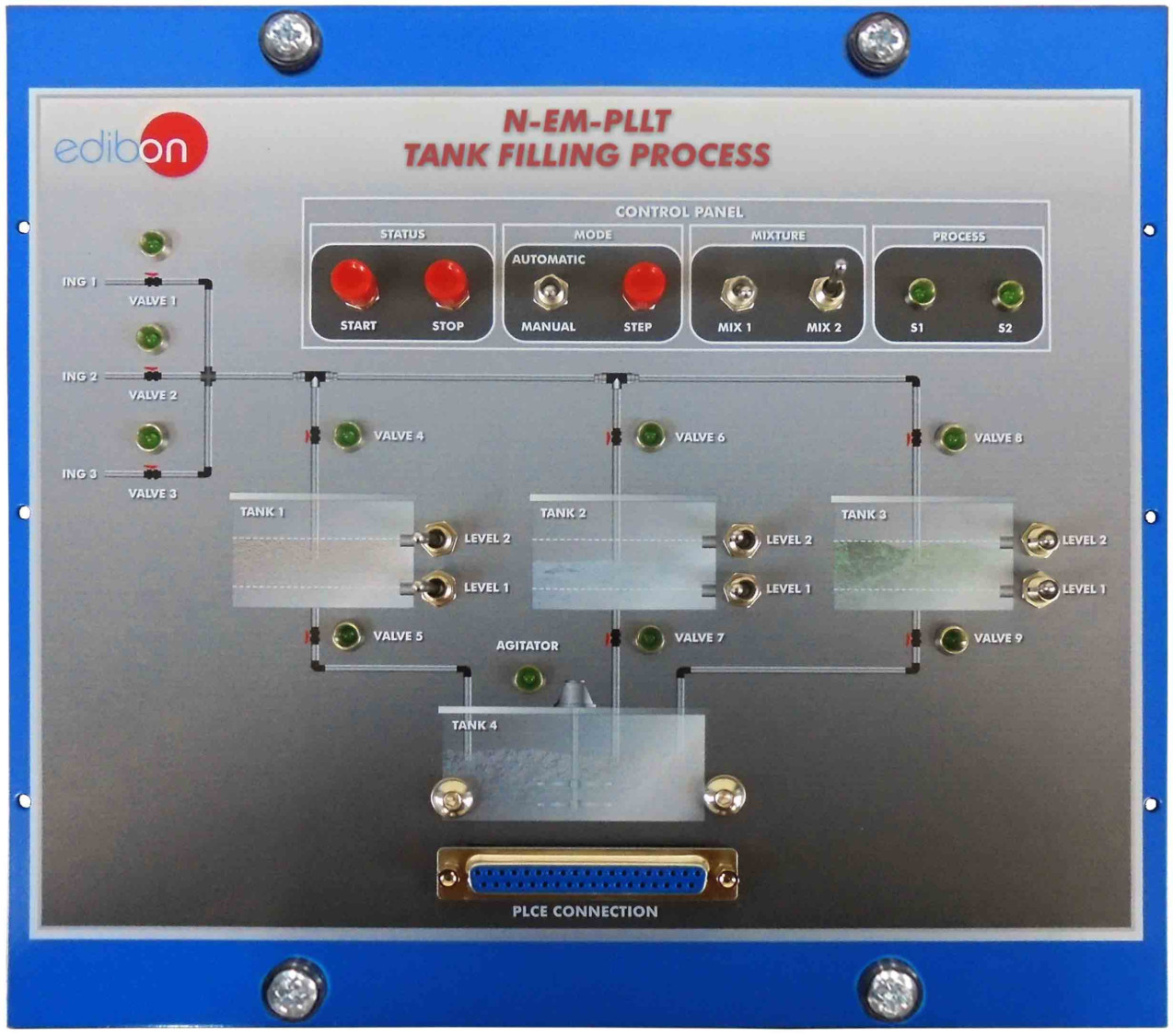

"N-EM-PLLT" represents a filling process system composed by three tanks which fill the tank where the desired product is mixed. The system allows to select the desired product by controlling the amount of liquid poured by each tank.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

All "N-EM" modules allow to perform the following practical exercises:

  1. Temporization.
  2. Counting.
  3. Sequential counting.
  4. All the practical exercises include the diagrams and the flow charts of the example programs used.
