N-M12 Módulo de Circuitos Combinacionais Básicos
SISTEMAS INOVADORES

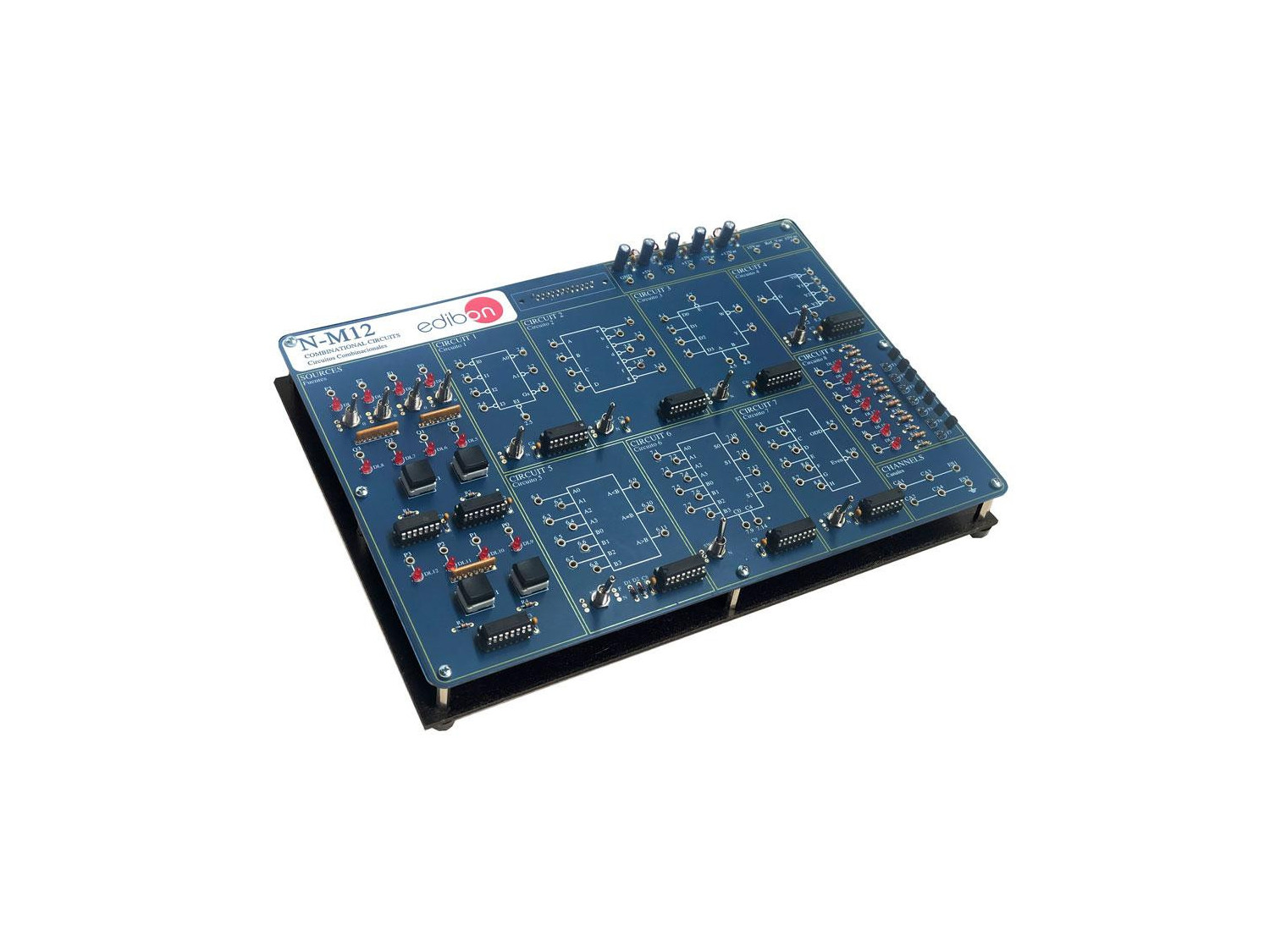

With Basic Combinational Circuits Module, "N-M12", designed by EDIBON, encoders, decoders, multiplexers, demultiplexers, digital comparators and arithmetic and logical operations can be studied.
Expansões
NOTÍCIAS RELACIONADAS
Descrição Geral
A combinational circuit is an electronic circuit in which the value of its outputs at a given instant, depends on the value of the inputs at the same instant. In other words, it is a circuit that has no memory. Combinational circuits work with numbers and with the technology with which these numbers are made (represented in binary).

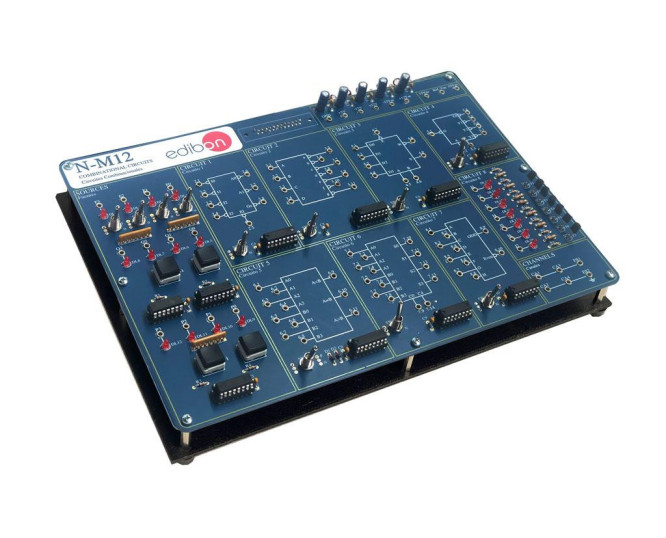

With Basic Combinational Circuits Module, "N-M12", designed by EDIBON, encoders, decoders, multiplexers, demultiplexers, digital comparators and arithmetic and logical operations can be studied.
In addition, faults can be simulated in most of the circuits under study. The student must investigate what is happening in the circuit and why it is not working properly. These faults simulations can be of several types from damage components to a hypothetical incorrect circuit assembly.
EXERCÍCIOS E PRÁTICAS GUIADAS
EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL
Encoders:
- Study of an encoder.
- Faults study in the encoder.
- Theoretical/practical exercises.
Decoders:
- Study of a decoder.
- Faults study in the decoder.
- Theoretical/practical exercises.
Multiplexers:
- Study of a multiplexer.
- Faults study in the multiplexers.
- Theoretical/practical exercises.
Demultiplexers:
- Study of a demultiplexer.
- Faults study in demultiplexers.
- Theoretical/practical exercises.
Digital Comparators:
- Study of a comparator.
- Faults study in a comparator.
- Theoretical/practical exercises.
Arithmetic and logic operations:
- Study of an adder.
- Faults study in the arithmetic and logic operations.
- Study of a parity generator.
- Faults study in the Parity generator.
- Theoretical/practical exercises.
EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE
- Several other exercises can be done and designed by the user.
EQUIPAMENTOS COMPLEMENTARES
14.2.1.6.- ELETRÔNICA DE POTÊNCIA
LIEBA
We present a flexible and modular-based system for learning basic electronics, basic electricity and circuit theory. The advantage given by this learning and teaching system is that the student establishes his own rhythm, thus rendering...
2.3.3.- ELETRÔNICA DIGITAL
N-M60
Módulo de Conversores Analógico/Digital
Most of the "information" generated in the world by various physical phenomena has a strong analogical character. This means that the information undergoes a continuous variation within certain limits determined over time. Of course, there is also...
2.3.3.- ELETRÔNICA DIGITAL
N-M61
Módulo de Conversores Digital/Analógico
Digital/analog conversion happens when you want to recover or re-obtain a digital signal that has been processed and we want to regenerate it. A signal that has been sampled, for example, a temperature signal and we need to return it to the...
14.2.1.3.- ELETRÔNICA DIGITAL
N-M10
Módulo de Sistemas Digitais e Conversores
Generally, an analog to digital converter is an electronic device that converts an analog voltage input to a digital number.digital number. The digital output can use different coding schemes, such as binary, although some non-electrical or...
14.2.1.3.- ELETRÔNICA DIGITAL
N-M11
Módulo de Fundamentos de Eletrônica Digital
Digital systems are systems for processing, treatment or transmission of information, in which such information is limited to take values in a discrete set. These signals (whose magnitude can only take one value from a discrete set of values) are...
14.2.1.3.- ELETRÔNICA DIGITAL
N-M13
Módulo de Circuitos Sequenciais Básicos
Logic gates and the circuits created with them constitute combinational logic, so called because the output only depends on the combination of the input variables present.There is a second group of logic circuits called sequential logic, so called...
14.2.1.3.- ELETRÔNICA DIGITAL
CADDA
Equipamento de Conversores A/D e D/A, Controlado por Computador (PC)
The Computer Controlled A/D and D/A Converters Unit, "CADDA", unit has been designed to help the students to learn how to perform the most common procedures and study the different circuits used to convert analog signals in a digital signals and...
14.2.1.3.- ELETRÔNICA DIGITAL
TDS
Equipamento para Estudo do Tratamento Digital do Sinal, Controlado por Computador (PC)
The Teaching Unit for the Study of Digital Signal Processing "TDS" allows to study the principles and more important concepts about digital signal processing, including study and practical exercises, among others, of:Continuous waveforms...
