MUN Mecanismo de Junta Universal

7.1.2.1.- MECANISMOS 14.1.2.1.- MECANISMOS

SISTEMAS INOVADORES

The Hooke’s Joint Mechanism, "MUN", designed by EDIBON, allows the study of a cardan joint shaft.

Ver descrição geral

Catálogo

Especificações de Concurso

LABORATÓRIOS

7TV

Laboratório Mecânico, Automóvel e de Materiais para o Ensino Técnico e Vocacional

7HE

Laboratório de Mecânica, Automóvel e Materiais para o Ensino Superior

NOTÍCIAS RELACIONADAS

Descrição Geral

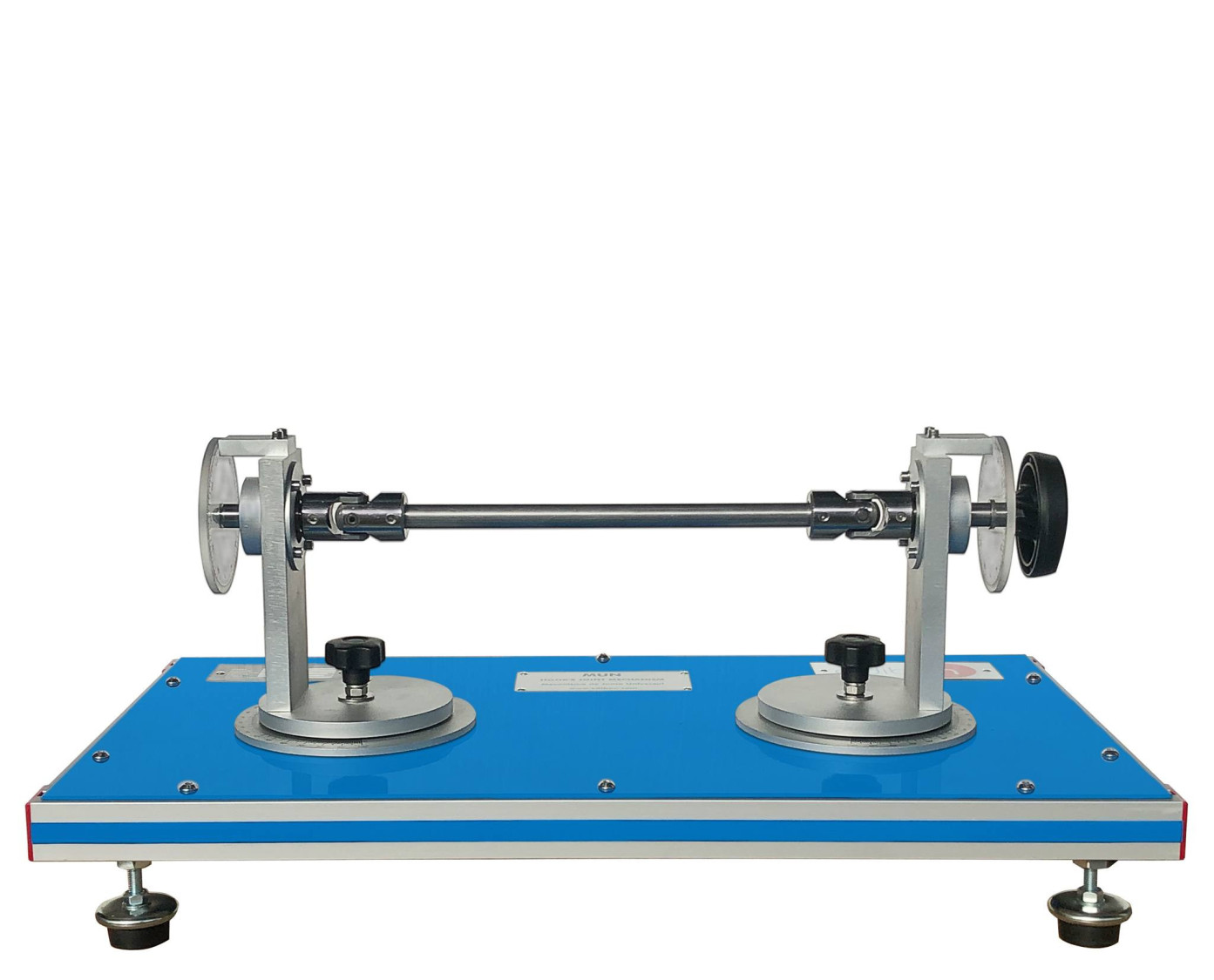

The Hooke’s Joint Mechanism, "MUN", designed by EDIBON, represents a universal coupling, also called a U-joint, Hooke joint or cardan joint. The Hooke joint is a universal mechanism that is often used to transmit rotary motion between two non-parallel but intersecting shafts.

The mechanism includes two universal couplings (cardan joints) joined by an intermediate shaft, allowing the adjustment and reading of the angle between inlet shaft and other outlet shaft by means of graduated discs fixed on the base panel.

Both couplings are mounted on two graduated discs, allowing the reading of the rotation at the input and output.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

Demonstrate the action of a single universal joint by connecting two axes that have small misalignments.
Determine graphically the relationship between the angular displacements of two shafts connected by a single universal joint with different degrees of misalignment.
Study how the universal joint arrangement and the angle of deflection affect the cardan error.
Determine graphically the relationship between the angular displacements of two shafts connected by a double universal joint with different degrees of misalignment.

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

Determination of the velocity and acceleration of the output shaft on a single Hooke´s joint by graphical differentiation.

EQUIPAMENTOS COMPLEMENTARES

Available

7.1.2.1.- MECANISMOS

MBD

Mecanismo de Biela Deslizante

The Slider Crank Mechanism, "MBD", designed by EDIBON, is an example of slider-crank mechanism.This mechanism is made of aluminum and consists of a rotary element (graduated disc), called crank, connected to a rigid bar, calledconnecting rod. When...

Available

7.1.2.1.- MECANISMOS

MYE

Mecanismo Scotch Yoke

The Scotch Yoke Mechanism, "MYE", designed by EDIBON, is an example of slider-crank mechanism for converting the linear motion of a slider into rotational motion or vice versa.It is made of aluminum and consists of a rotary element, called crank,...

MBM1

Available

7.1.2.1.- MECANISMOS

MBM1

Mecanismo de Biela e Manivela

The Slotted Link Mechanism, "MBM1", is an example of a quick-return mechanism, capable of transforming circular motion into reciprocating motion. It is made of aluminum and consists of a rotary element (graduated disk), called crank, connected to...

MBM2

Available

7.1.2.1.- MECANISMOS

MBM2

Mecanismo de Retorno Rápido de Whitworth

The Whitworth Quick Return Mechanism, "MBM2", is a mechanism able to transform circular movement into reciprocating movement. It ismade of aluminum and consists of a rotary element, called crank, with a graduated disk, connected to a rigid bar,...

Available

7.1.2.1.- MECANISMOS

MCA

Mecanismo de Quatro Barras

The Four-Bar Mechanism, "MCA", designed by EDIBON, is a bench-top unit to perform laboratory experiments.It is made of anodized aluminum and consists of two rotary elements (graduated discs) mounted on ball bearings. The discs include a scale to...

Available

7.1.2.1.- MECANISMOS

MME

Mecanismo Geneva de Parada

The Geneva Stop Mechanism, "MME", designed by EDIBON, is a mechanism that transforms continuous circular motion into intermittent motion. It is a positive drive in which the driven wheel is positively moved or locked.It is made of aluminum and...

Available

7.1.2.1.- MECANISMOS

MAC

Mecanismo de Acoplamento

The Coupling Mechanism, "MAC", represents a simple Oldham type coupling. The lateral displacement of the input and output shafts may be varied and circular scales are fitted to the input and output flanges.It consists of two outer discs made of...

Available

7.1.2.1.- MECANISMOS

MEX

Mecanismo de Came e Seguidor

The Cam and Follower Mechanism, "MEX", allows to study the cam-follower and eccentric-follower mechanisms. For that purpose, several plate cam models in different forms, one eccentric and several roller-shaped, flat-shaped, wedge-shaped and...

Available

7.1.2.1.- MECANISMOS

MBI

Mecanismo de Biela

The Crank Mechanism "MBI", is a unit designed to observe, study and record the motion of a crank and the forces involved in a simple engine mechanism. The piston is linearly displaced through a cylinder with the aid of a guide.Bearings are coupled...

Available

7.1.2.1.- MECANISMOS

MDA

Mecanismo de Direção "Ackermann"

The Ackermann Steering Mechanism, "MDA", is a bench-mounted unit designed to determine the lead angle of a steering trapezoid in an Ackermann steering mechanism, the disadvantages of incorrectly adjusted track rods and the influence of the track...

MMEL

Available

7.1.2.1.- MECANISMOS

MMEL

Mecanismo Elevador

The Winch Mechanism, "MMEL", allows to study the lifting velocity and load transmission of a winch. Efficiency and load transmission can be determined by force balance.The unit consists of a gear transmission mechanism. One gear is the input gear...

MBLU

Available

7.1.2.1.- MECANISMOS

MBLU

Equipamento de Acoplamento de Barras

The Bar Linkages Unit "MBLU" allows many experiments using different arrangements of their parts.The "MBLU" unit includes a selection of more than twenty perforated bars of different lengths and pivots or "joints" to allow students to configure...
