SERIN/CA Equipamento de Servossistemas Industriais (motores CA) Avançado, Controlado por Computador (PC)
SISTEMAS INOVADORES

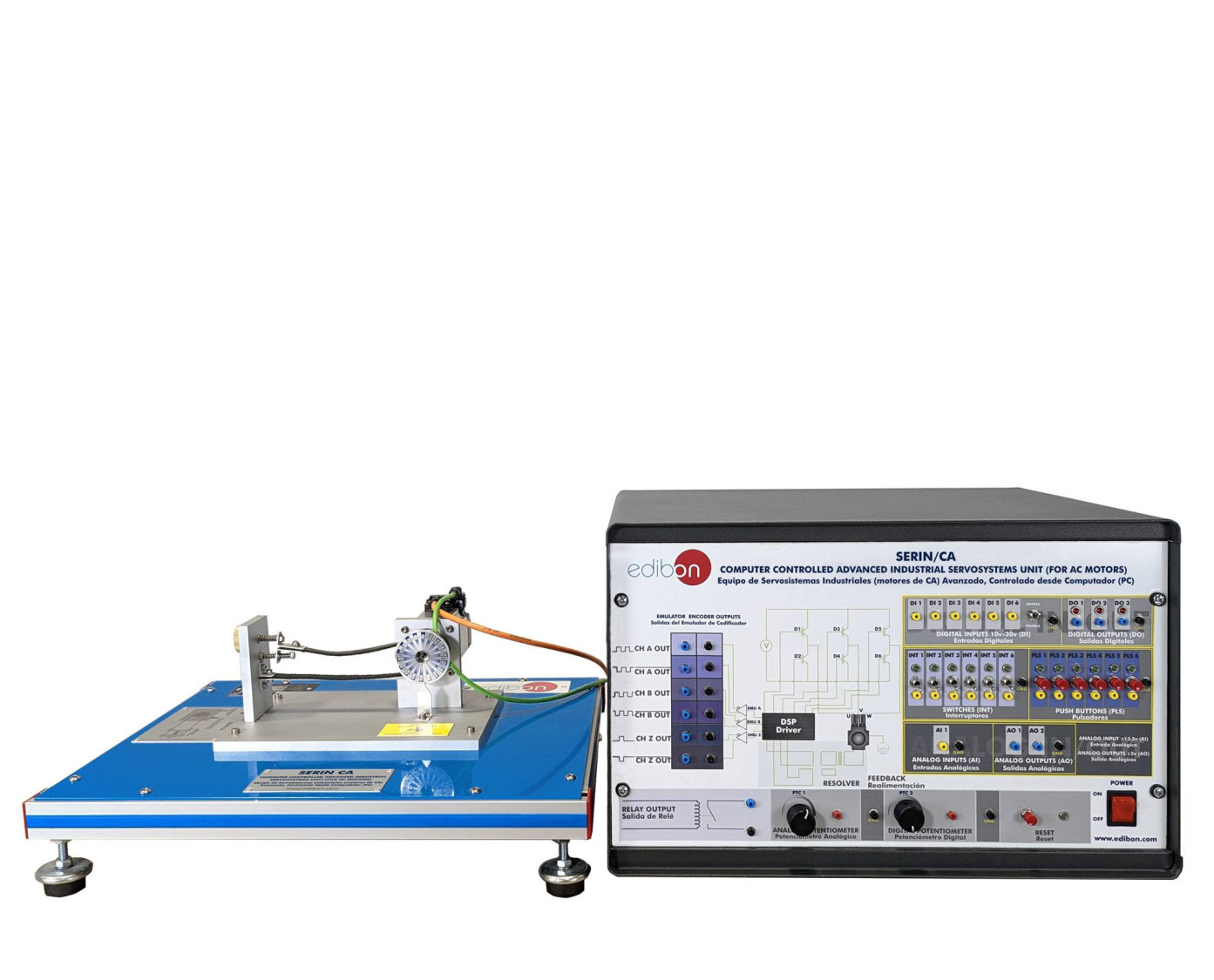

The "SERIN/CA" trainer consists on a Control Interface Box connected to a three-phase motor and to a computer (computer not included). The control interface has a resolver for three-phase motors that controls the speed, position and currentof the motor.
NOTÍCIAS RELACIONADAS
Descrição Geral
The "SERIN/CA" trainer consists on a Control Interface Box connected to a three-phase motor and to a computer (computer not included). The control interface has a resolver for three-phase motors that controls the speed, position and currentof the motor.

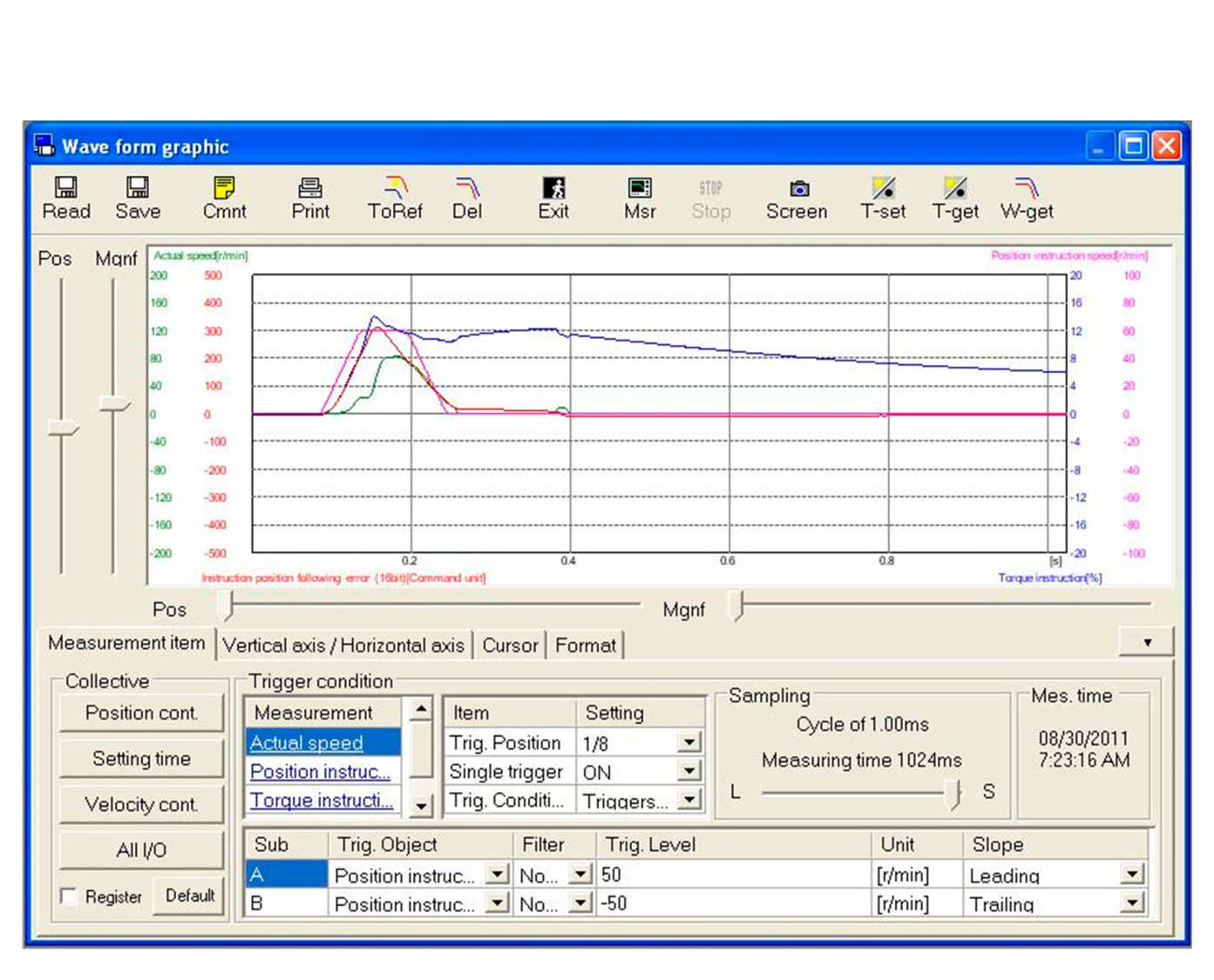

The RS232 communication between the control interface and the computer provides the "SERIN/CA" the possibility of commanding the motor from the computer and visualize the most important signals ofthe motor.
Velocity, Position and Torque Control.
It allows predefined moves and programming.
EXERCÍCIOS E PRÁTICAS GUIADAS
EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL
- Homing.
- Clutch/Control.
- Turn movement (w/correction phase).
- Registration movements.
- Dry movements.
- Stop and blockade. Transitory states.
- Stop and blockade. Influence on the filtered velocity.
- Transitory velocity study.
- Feedback gain manage.
- Modification of Feedback Parameters and Phases U, V and W.
- Use and modification of the feedback filters.
- Phase voltages U, V and W showing.
