MESH IN PIPE UNIT - AMT/P

SISTEMAS INOVADORES

The Mesh in Pipe Unit, "AMT/P", has been designed by EDIBON to enable different pipe network installations, measuring flow and pressure, and always using water as test fluid.

Ver descrição geral

NOTÍCIAS RELACIONADAS

NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Ler mais

Descrição Geral

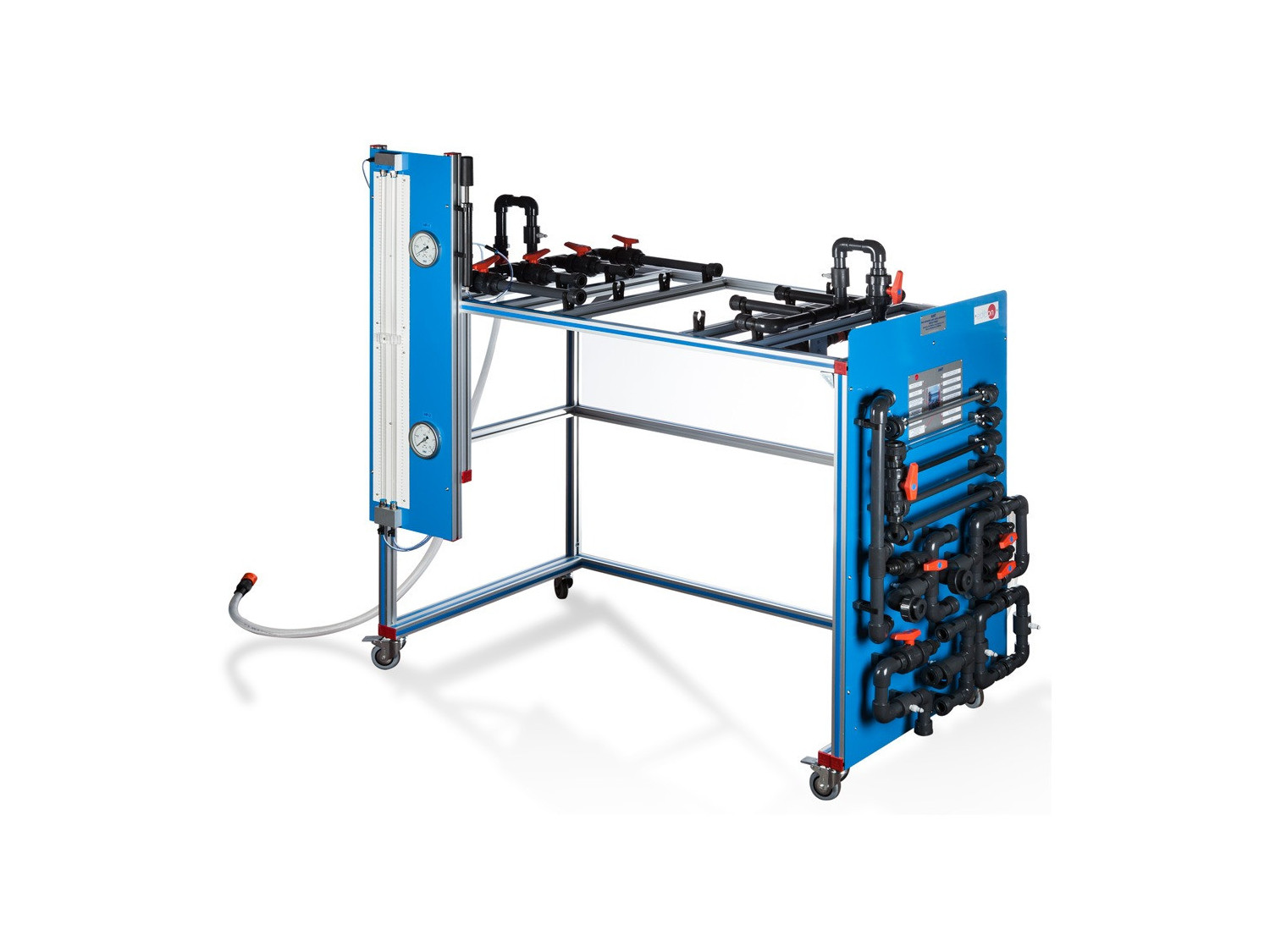

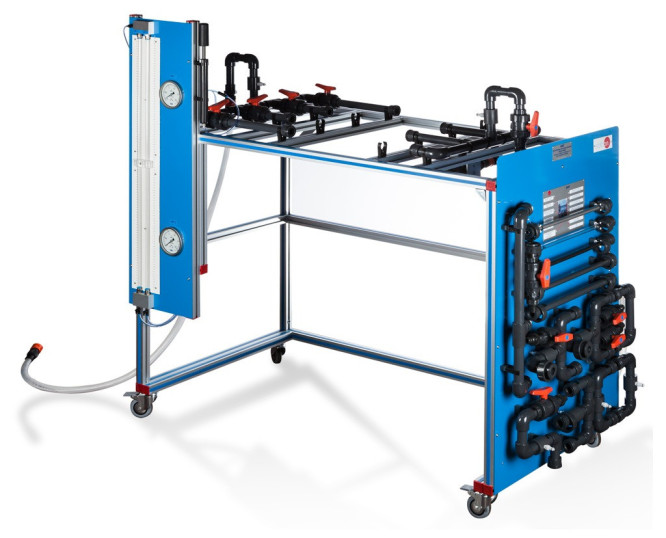

The Mesh in Pipe Unit, "AMT/P", consists of a Pipe network, a lateral panel where all the elements to test are located and a hydraulics bench, which has all the elements and accessories required for the unit to work autonomously.

The valves that some of the elements have in order to form the different circuits are On-Off valves, necessary to distribute the flow along the net.

The unit has a system of anti-blockage pressure takings, located upstream and downstream of each element that is going to be tested. All of them have a quick and easy connection to the pressure measurement devices of the unit.

This unit needs a water supply system.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Head losses in a PVC pipe.
  2. Head losses in an aluminum pipe.
  3. Head losses in a methacrylate pipe.
  4. Study of head losses in pipes of the same material.
  5. Study of head losses in function of the material.
  6. Friction coefficient in a PVC pipe.
  7. Friction coefficient in an aluminum pipe.
  8. Friction coefficient in a methacrylate pipe.
  9. Study of the friction coefficient in function of the material.
  10. Study of the friction coefficient in function of the diameter.
  11. Parallel network configuration for pipes of same material and different diameter.
  12. Parallel network configuration for pipes of different material and same diameter.
  13. Series network configuration for pipes of same material and different diameter.
  14. Series network configuration for pipes of different material and same diameter.

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

  1. Filling the manometers.
