MDB Equipamento de Deflexão em Barras Curvas

7.1.6.- MECÂNICA DE ESTRUTURAS 7.3.2.1.- ENSAIOS MECÂNICOS 14.1.6.- MECÂNICA DE ESTRUTURAS

SISTEMAS INOVADORES

The Deflection of Curved Bars Unit, "MDB", is designed to enable the student to determine experimentally the horizontal and vertical displacements at the free end of various curved bars when subject to single concentrated load.

Ver descrição geral

Catálogo

Especificações de Concurso

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

MSAC

Sistema Modular de Aquisição e Controle

LABORATÓRIOS

7TV

Laboratório Mecânico, Automóvel e de Materiais para o Ensino Técnico e Vocacional

7HE

Laboratório de Mecânica, Automóvel e Materiais para o Ensino Superior

NOTÍCIAS RELACIONADAS

Descrição Geral

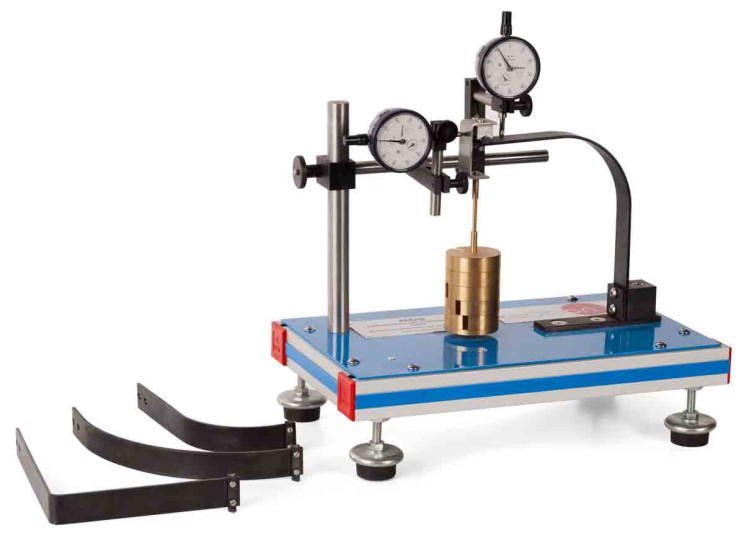

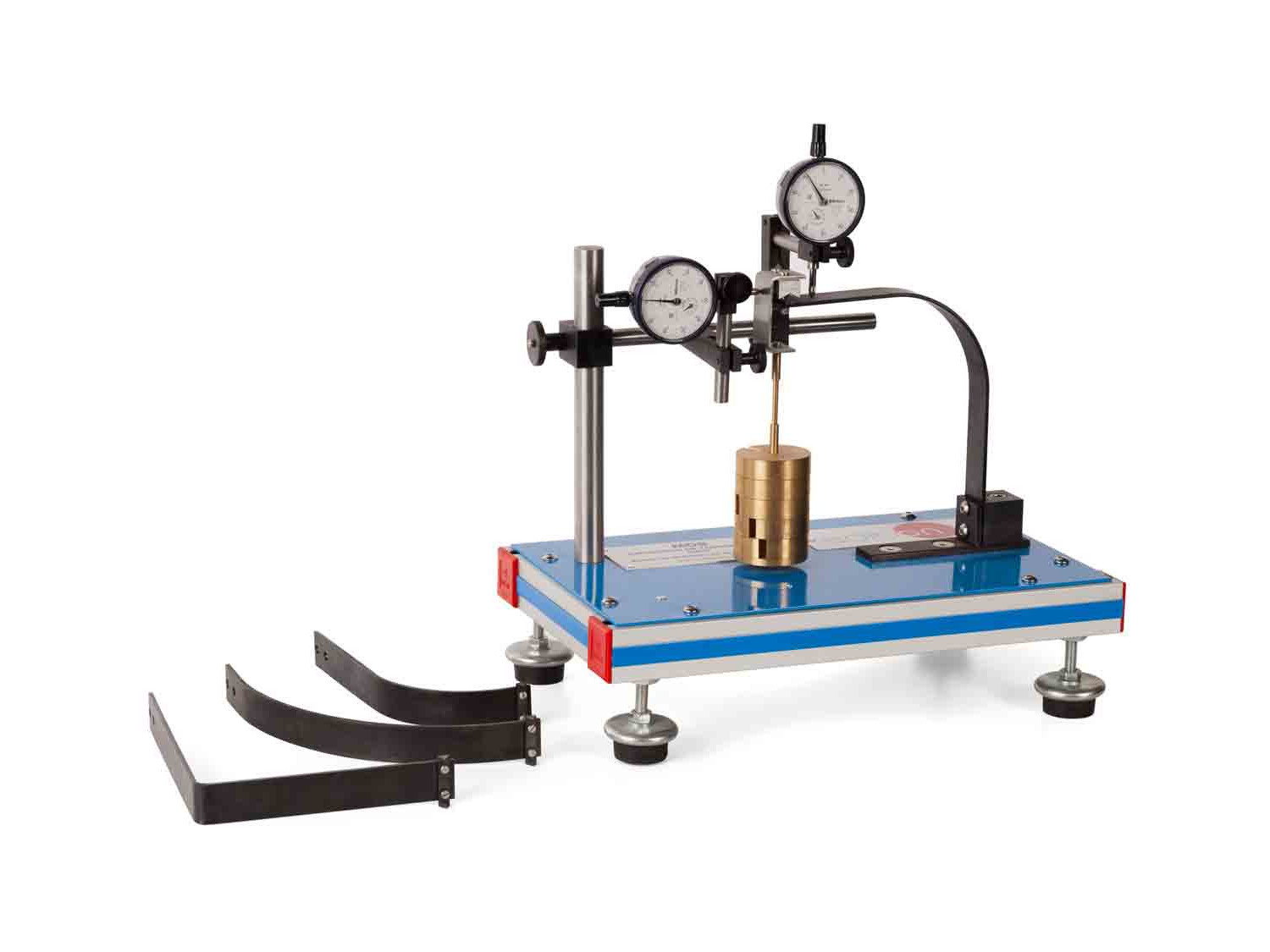

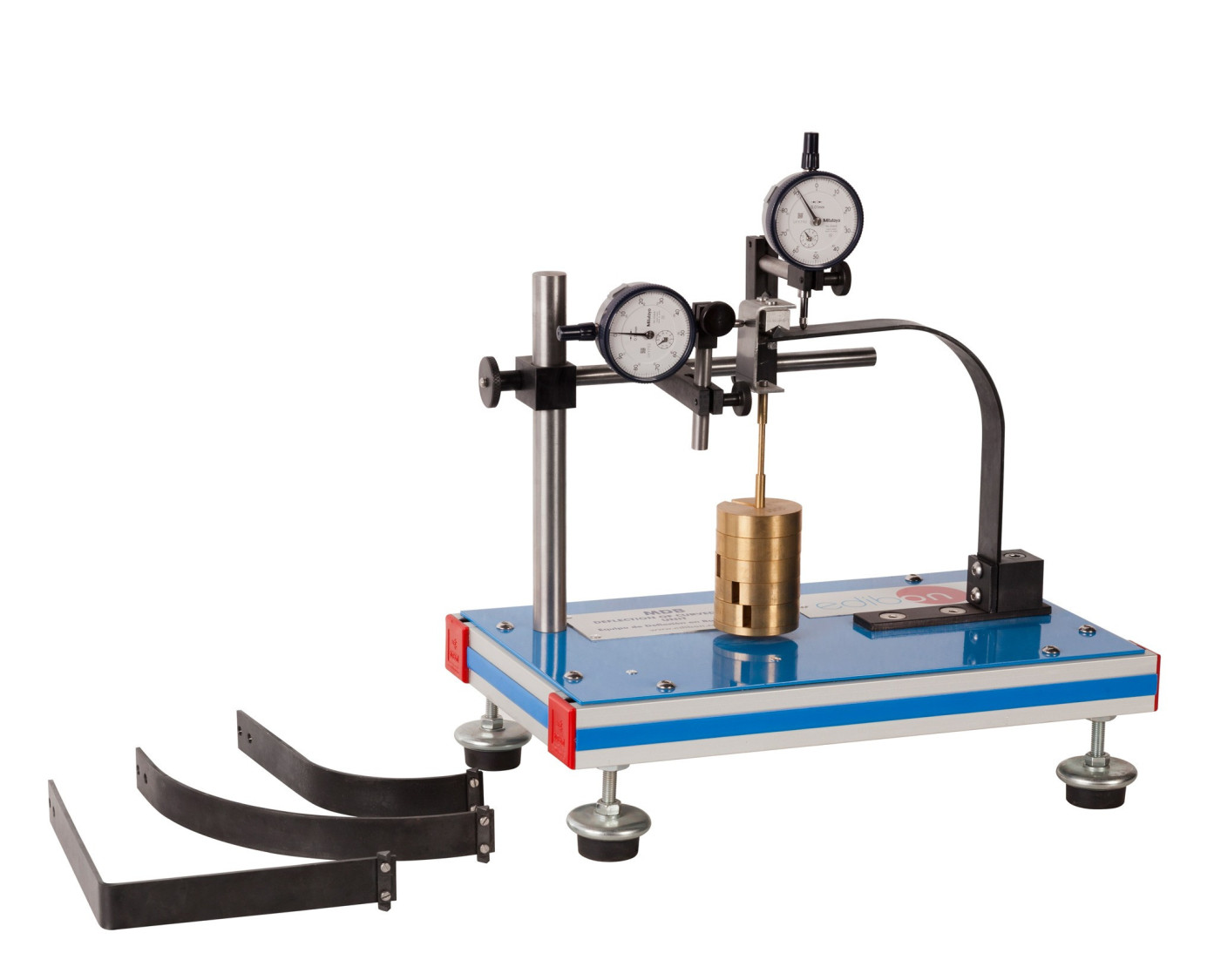

The Deflection of Curved Bars Unit "MDB" consists of a structure of aluminum and steel that allows the incorporation of different curved bars to be studied. It allows tests with curved bars of different shape.

The use of two dial gauges placed perpendicularly to each other makes it possible to determine the displacements produced in both directions, up to a maximum range of 10 mm.

The load is applied when hanging a set of weights in the application point. A set of weights in supplied with the unit.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

Study of deflection of curved bars.
Determination of the horizontal and vertical displacements at the free end of various curved bars when subject to single concentrated loads.
Study of the different types of bars geometry and for different positions.
Measurement of the horizontal and vertical displacements produced at the free end of the curved bar.
Effect of the load value in the bar response.
Effect of the bar morphological characteristics in its response to the load.
