AEL-AD9B Aplicação de Controle de Calefação Básica

4.1.1.- INSTALAÇÕES ELÉTRICAS DOMÉSTICAS
BASIC HEATING CONTROL APPLICATION - AEL-AD9B

SISTEMAS INOVADORES

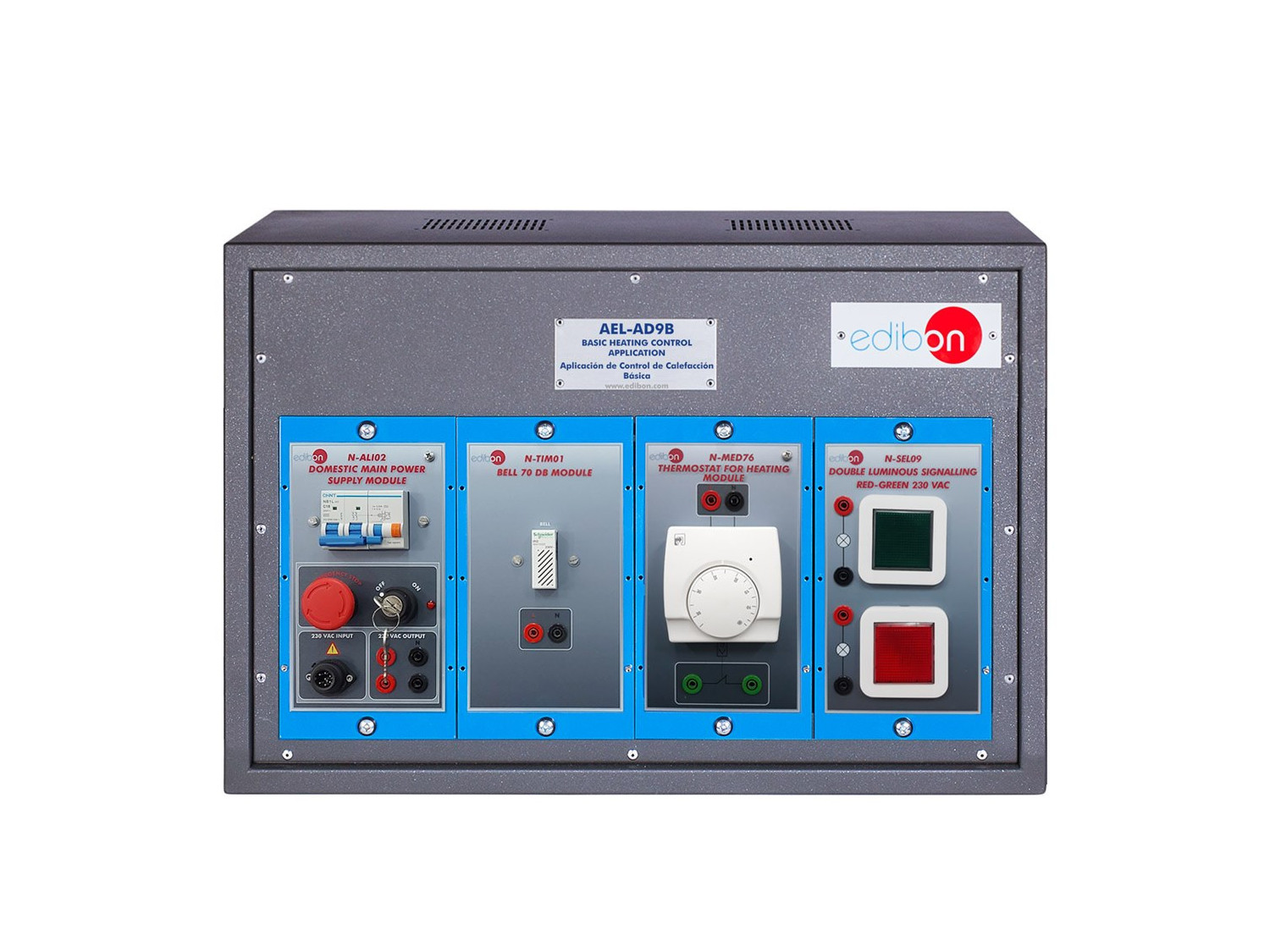

The Basic Heating Control Application," AEL-AD9B", has been designed by EDIBON to study how a heating control application works. This application allows the students understand the control logic of a thermostat.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
Ler mais

Descrição Geral

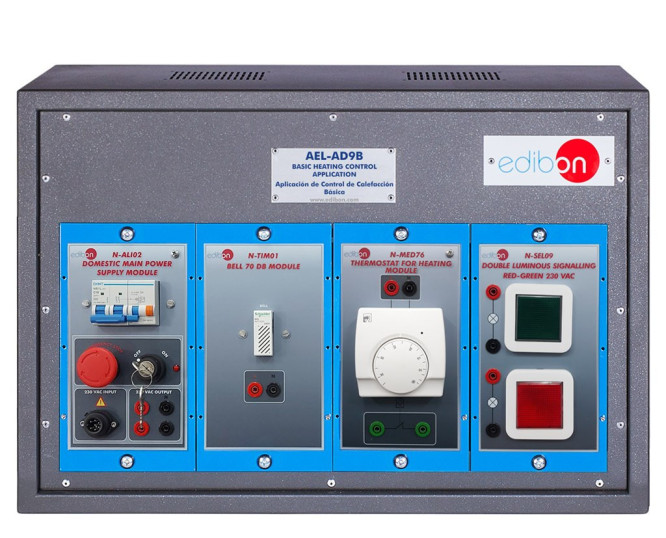

The Basic Heating Control Application," AEL-AD9B", has been designed by EDIBON to study how a heating control application works. This application allows the students understand the control logic of a thermostat. The "AEL-AD9B" includes lamps and bells in order to simulate the behavior of an air conditioning system.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Identification of the elements of the domestic main power supply.
  2. Checking the main power supply.
  3. Checking the relay and the thermostat for heating.
  4. Test with several temperatures and green light.
  5. Test with several temperatures and red light.
  6. Test with several temperatures and the bell.
  7. Test with several temperatures, red light and the bell.
  8. Test with several temperatures, green light and the bell.
