The PID Control and Regulation of a Ball and Beam System Unit, "RYC-BB", designed by EDIBON, enables the practical study of automatic control systems through a classic case: the Ball and Beam position control system.

Ver descripción general

NOTICIAS RELACIONADAS

Descripción General

The PID Control and Regulation of a Ball and Beam System Unit, "RYC-BB", designed by EDIBON, enables the practical study of automatic control systems through a classic case: the Ball and Beam position control system.

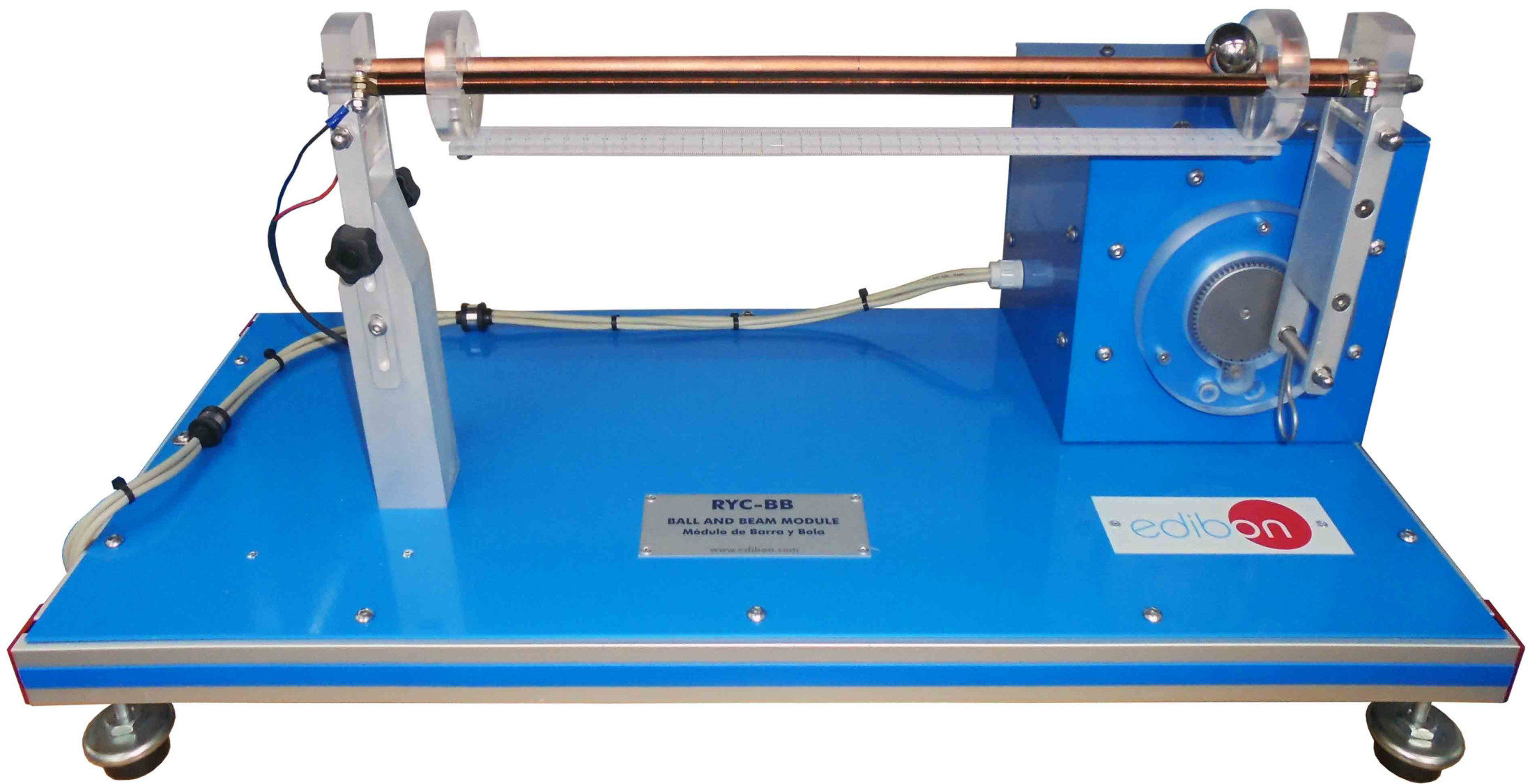

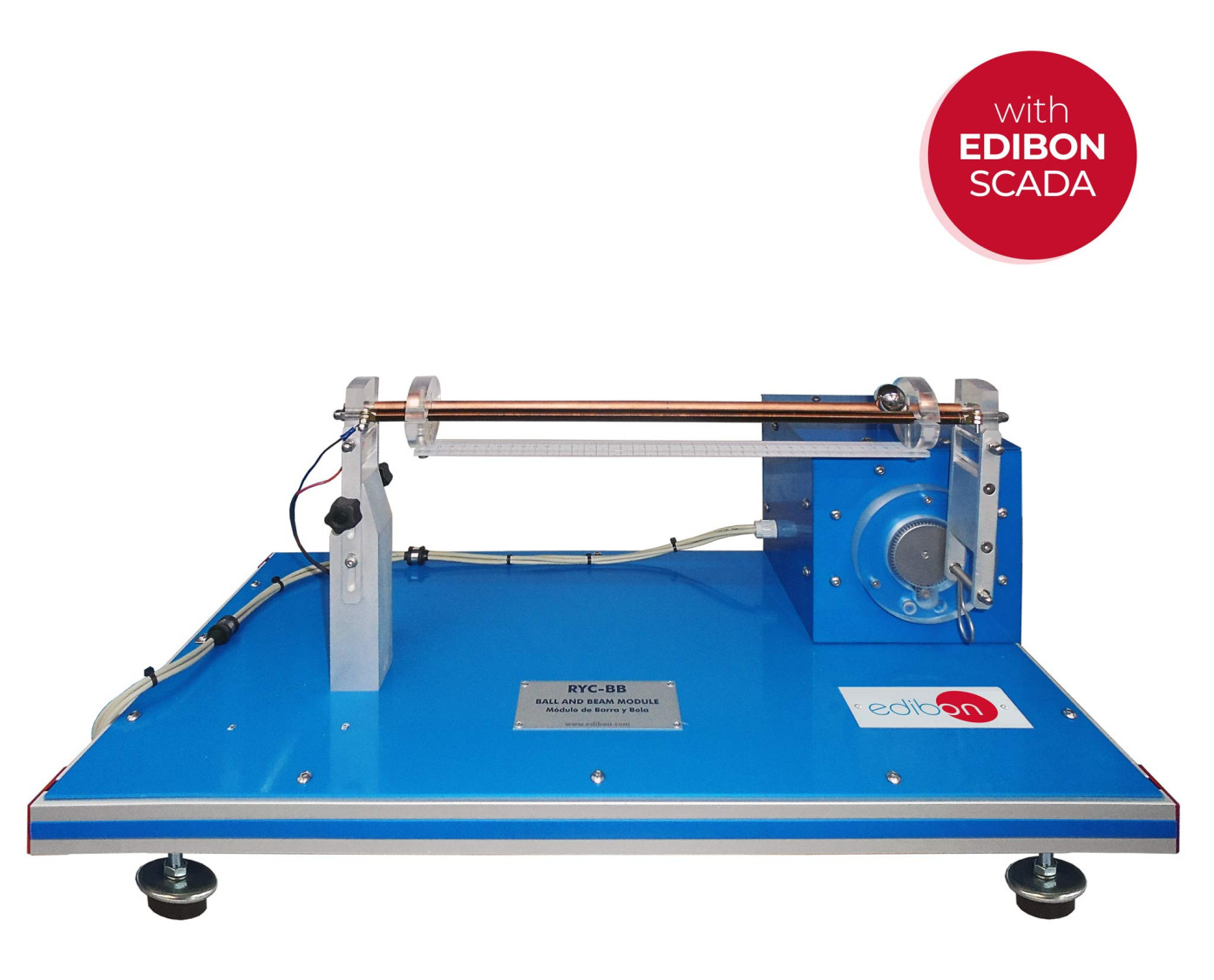

This unit allows students and technicians to understand and apply PID control theory in a real environment by precisely regulating the position of a steel ball on a horizontal beam. It consists of a base with the physical components of the system, including a motor and a coiled wire rod acting as a position sensor, and an interface box that provides the power supply, signal conditioning, and necessary connections to the control system.

It is used in conjunction with the base unit "RYC" to carry out complete control practices for regulating the position of the steel ball along the beam.

EJERCICIOS Y PRÁCTICAS GUIADAS

EJERCICIOS GUIADOS INCLUIDOS EN EL MANUAL

  1. Control de posición del motor DC con un controlador PID.
  2. Control de balancín (RYC-BB) con un compensador de cable y un controlador PID (control en cascada).

MÁS EJERCICIOS PRÁCTICOS QUE PUEDEN REALIZARSE CON ESTE EQUIPO

  1. Varios alumnos pueden visualizar simultáneamente los resultados. Visualizar todos los resultados en la clase, en tiempo real, por medio de un proyector o una pizarra electrónica.
  2. Control Abierto, Multicontrol y Control en Tiempo Real. Este equipo permite intrínsecamente y/o extrínsecamente cambiar en tiempo real el span, la ganancia, los parámetros proporcional, integral y derivativo, etc.
  3. Este equipo es totalmente seguro ya que dispone de dispositivos de seguridad mecánicos, eléctricos/electrónicos y de software.
  4. Este equipo puede usarse para realizar investigación aplicada.
  5. Este equipo puede usarse para impartir cursos de formación a Industrias, incluso a otras Instituciones de Educación Técnica.
  6. Control del proceso del equipo RYC-BB a través de la interface de control, sin el computador.
  7. Visualización de todos los valores de los sensores usados en el proceso del equipo RYC-BB.
  8. El usuario puede realizar otros ejercicios diseñados por él mismo.
