With the Francis Turbine unit, "FME28", designed by EDIBON, we study the Francis turbines commonly used when we have average flow rates and heights.

Ver descrição geral

NOTÍCIAS RELACIONADAS

Descrição Geral

With the Francis Turbine unit, "FME28", designed by EDIBON, we study the Francis turbines commonly used when we have average flow rates and heights.

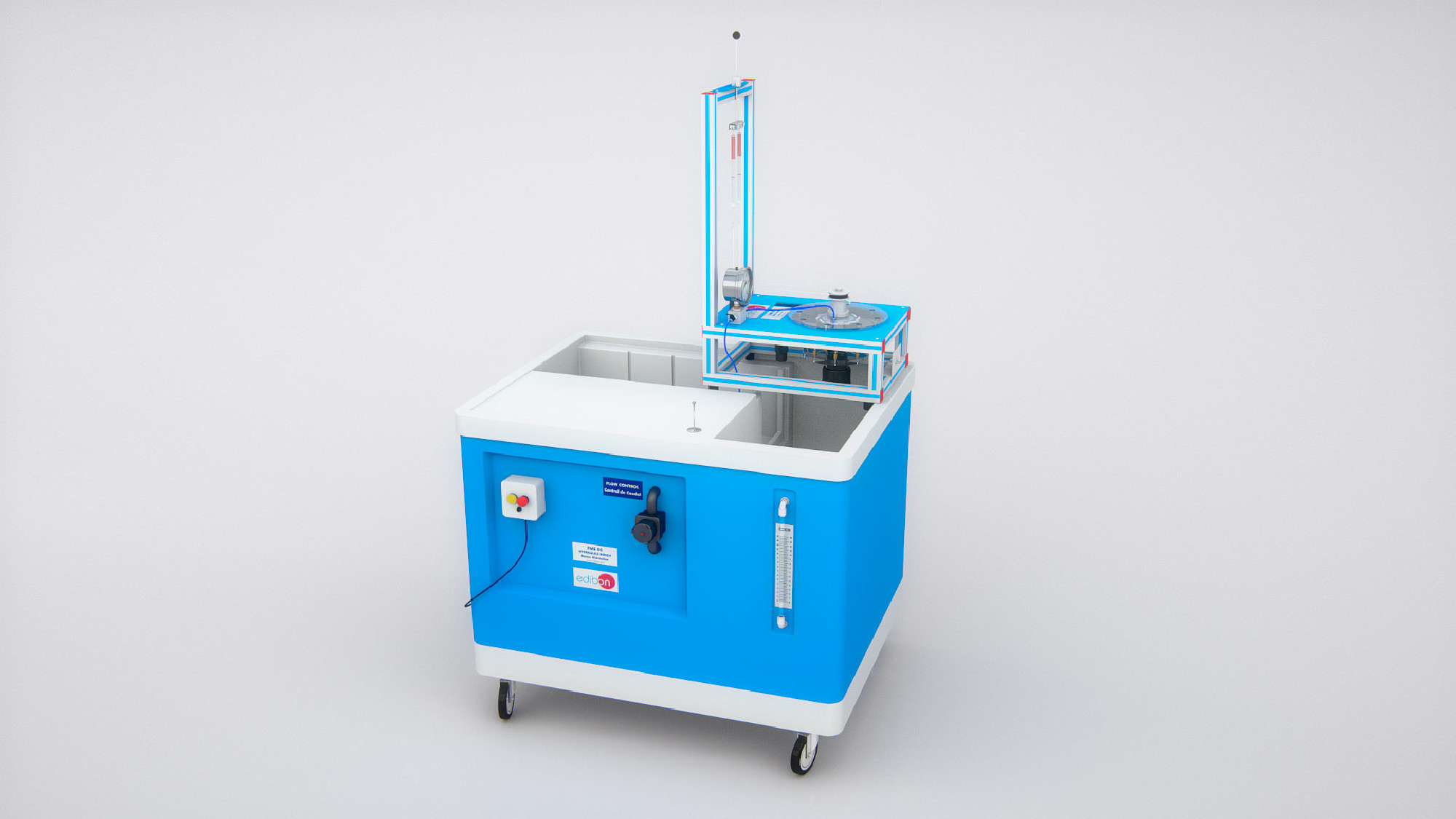

This unit consists on a miniature Francis turbine. The water inlet flow is controlled by a valve situated in the Hydraulics Bench (FME00) or Basic Hydraulic Feed System (FME00/B).

It includes a distributor with adjustable guide vanes that allow for control of the water angle of incidence in the turbine. To adjust the turbine distributor, the unit has a lever on the front of the same. It also has a braking system, connected to two dynamometers, that allows to vary the load supplied to the turbine.

The inlet pressure of the turbine is measured with a manometer situated at the turbine inlet. The feed or spiral chamber is provided with a damping cover and two tubes to avoid water overflow. Its name indicates that it is spiral-shaped and for this reason it is known as snail chamber. Thanks to its design, the water flows at a constant velocity without forming swirls. This way, there are no load losses. The turbine’s axis velocity is determined by a tachometer.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. To determine the operating characteristics of a Francis turbine at different velocities.
  2. Determination of the typical turbine curves (operating mechanical curves and operating hydraulic curves).
  3. Turbine power output versus speed and flow rate at various heads.
  4. Effect of guide vane setting on turbine performance.
  5. Adimensionalization.
