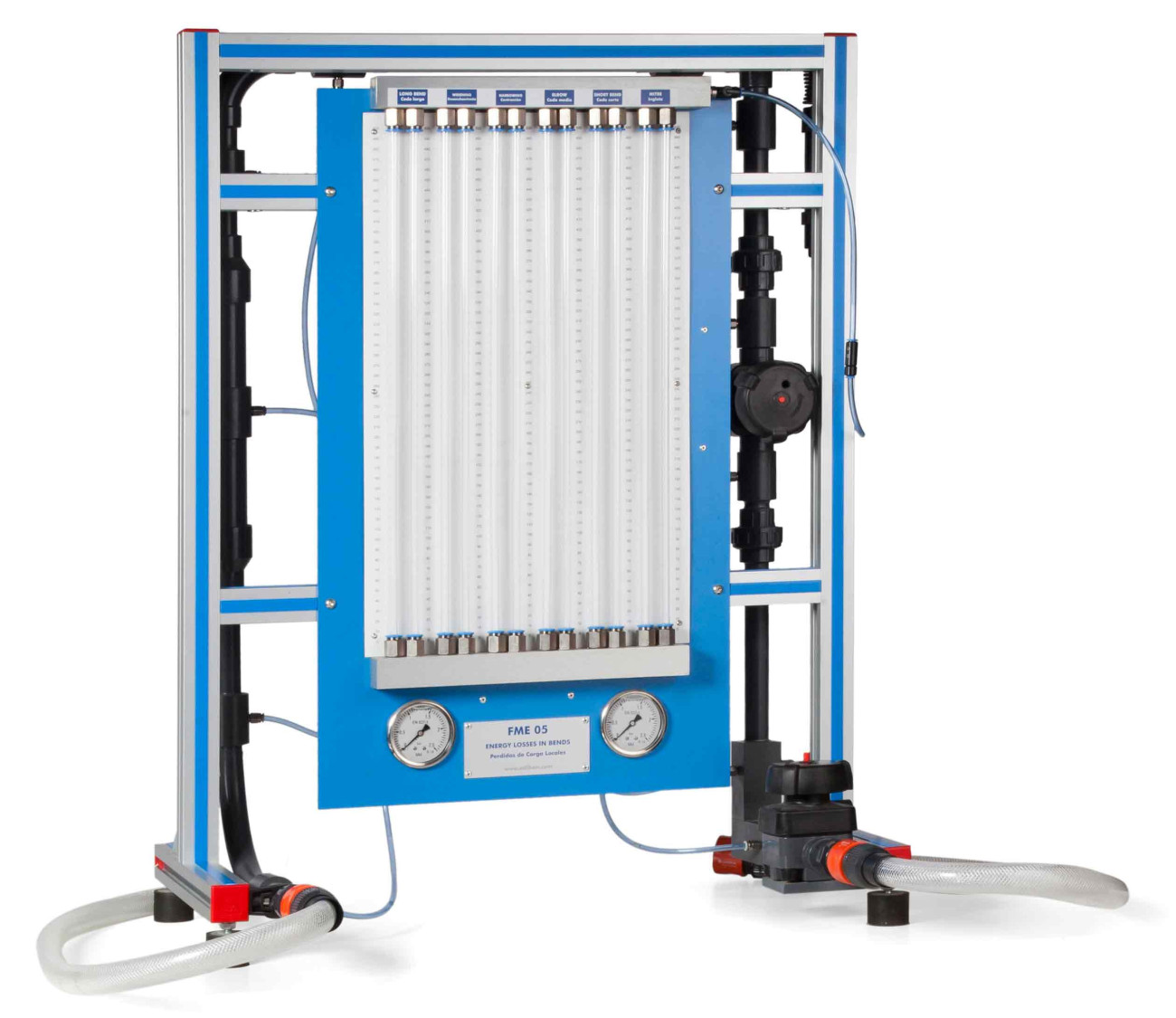

Complete FME05 Unit

ENERGY LOSSES IN BENDS - FME05

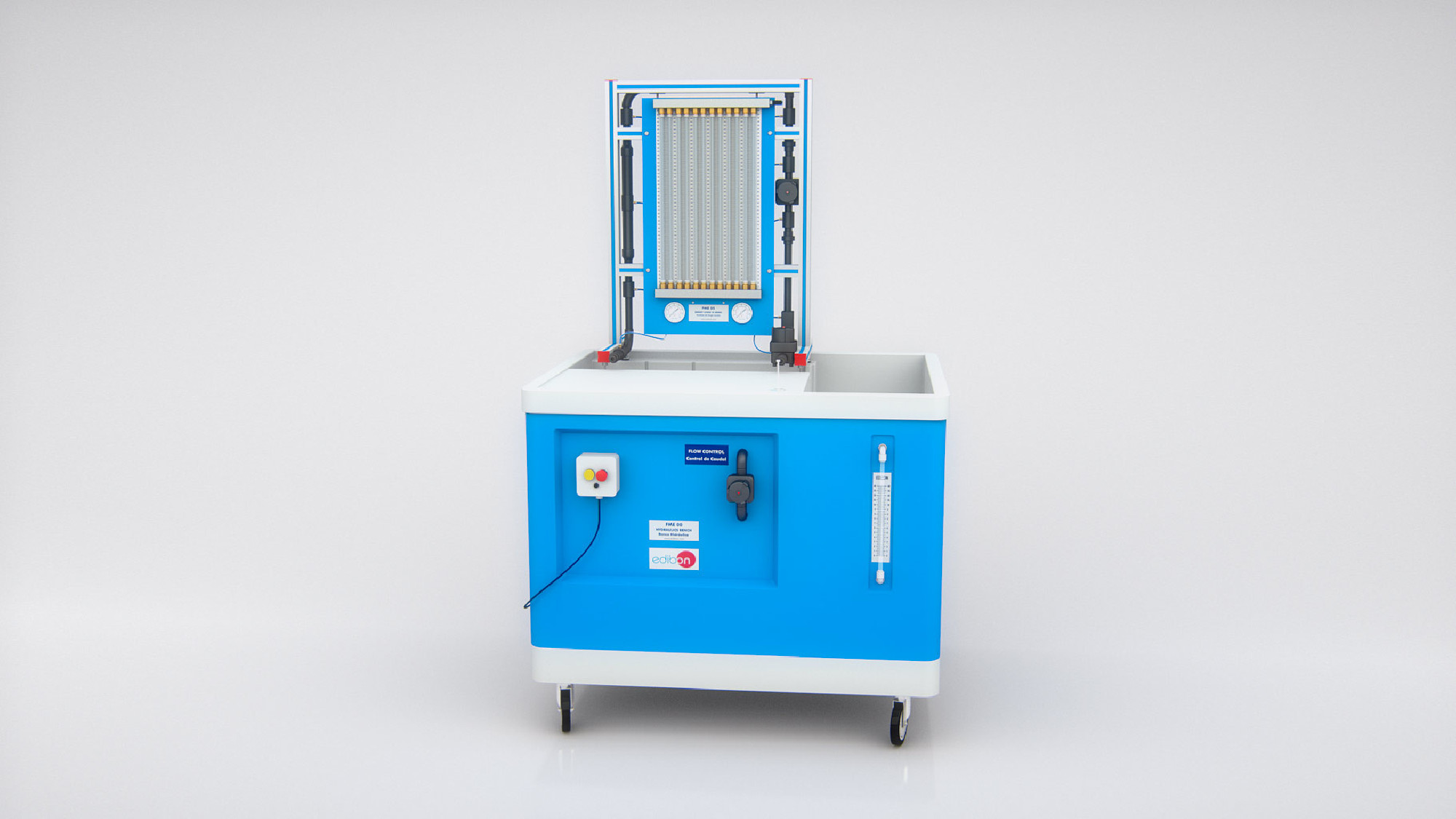

FME05 Unit with service unit FME00

ENERGY LOSSES IN BENDS - FME05
ENERGY LOSSES IN BENDS - FME05

SISTEMAS INOVADORES

The Energy Losses in Bends unit, "FME05", designed by EDIBON allows to measure and compare the head losses produced by different singular elements: bends, section changes and valves, as well as to study the influence of the flow rate on the value of such losses.

Ver descrição geral

NOTÍCIAS RELACIONADAS

Descrição Geral

The Energy Losses in Bends unit, "FME05", designed by EDIBON allows to measure and compare the head losses produced by different singular elements: bends, section changes and valves, as well as to study the influence of the flow rate on the value of such losses.

This unit can work with the Hydraulics Bench (FME00) or the Basic Hydraulic Feed System (FME00/B).

This unit consists of a hydraulic circuit with a set of elements that disrupt the normal flow of the fluid that circulates by the pipe, due to sudden section and direction variations, as well as friction.

These elements are:

  • Two 90° elbows, a short one and a middle one.
  • 90° curve or long elbow.
  • Broadening.
  • Sudden narrowing section.
  • Sudden direction change, miter type.

The unit has two manometers, Bourdon type: 0 – 2.5 bar and twelve manometric pipes of pressurized water. The system pressurization is carried out with a manual air pump.

The hydraulic circuit has pressure tappings along the whole system, which enable to measure the local load losses in the system.

This unit has two membrane valves, a valve which enables the regulation of the outlet flow, and a valve placed in series with the rest of accessories of the hydraulic circuit.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Filling of the manometric tubes.
  2. Measurement of the flow.
  3. Measurement of load losses for a short elbow of 90°.
  4. Measurement of load losses for a medium elbow of 90°.
  5. Measurement of load losses for a curve of 90°.
  6. Measurement of load losses for a broadening of 25/40.
  7. Measurement of load losses for a narrowing 40/25.
  8. Measurement of load losses for a miter type abrupt direction change.
  9. Measurement of load losses for a membrane valve.
