AEL-EMT-KIT Máquinas Elétricas Avançadas Configuráveis e Desmontáveis

ADVANCED DISSECTIBLE AND CONFIGURABLE ELECTRICAL MACHINES - AEL-EMT-KIT

SISTEMAS INOVADORES

The application of Advanced Dissectible and Configurable Electrical Machines, "AEL-EMT-KIT", is a set of configurable electrical machines designed for the study of the fundamental principles of electrical machines.

Ver descrição geral

NOTÍCIAS RELACIONADAS

Descrição Geral

The application of Advanced Dissectible and Configurable Electrical Machines, "AEL-EMT-KIT", is a set of configurable electrical machines designed for the study of the fundamental principles of electrical machines.

This application offers a unique experience, allowing students to explore key concepts in depth:

  • Disassemblable mechanical parts that facilitate the understanding of a wide variety of electric motors.
  • Ability to assemble and disassemble the windings of electric machines as well as their mechanical parts.
  • Step-by-step construction and configuration of a wide range of rotating electrical machines.
  • Performing rotating magnetic field tests with a compass.
  • Understanding the differences between DC electric motors, AC electric motors, stepper motors, reluctance motors, among others.
  • Availability of specific controllers for each type of electric machine, which allows observing its operation in detail.
  • Diagnosis of possible wiring errors with instruments such as multimeters and analog measuring devices, such as ammeters, voltmeters, frequency meters, and more.

Through this resource, students will be able to clearly visualize both machine components and their interconnection, both in electrical and mechanical terms. The application includes mechanical elements, coils and electrical connection diagrams, enabling students to create and test countless types of electrical machines. Importantly, the machines have protected rotating parts and operate at low voltages, and their characteristics are compatible with equivalent industrial models.

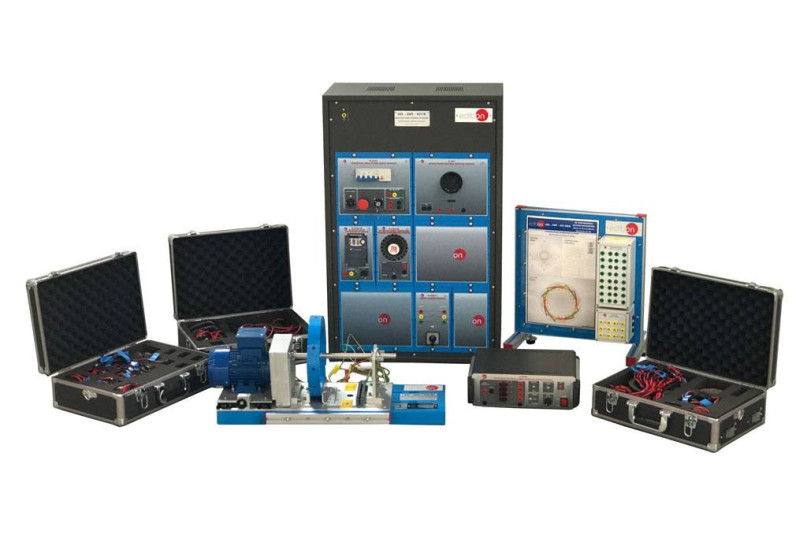

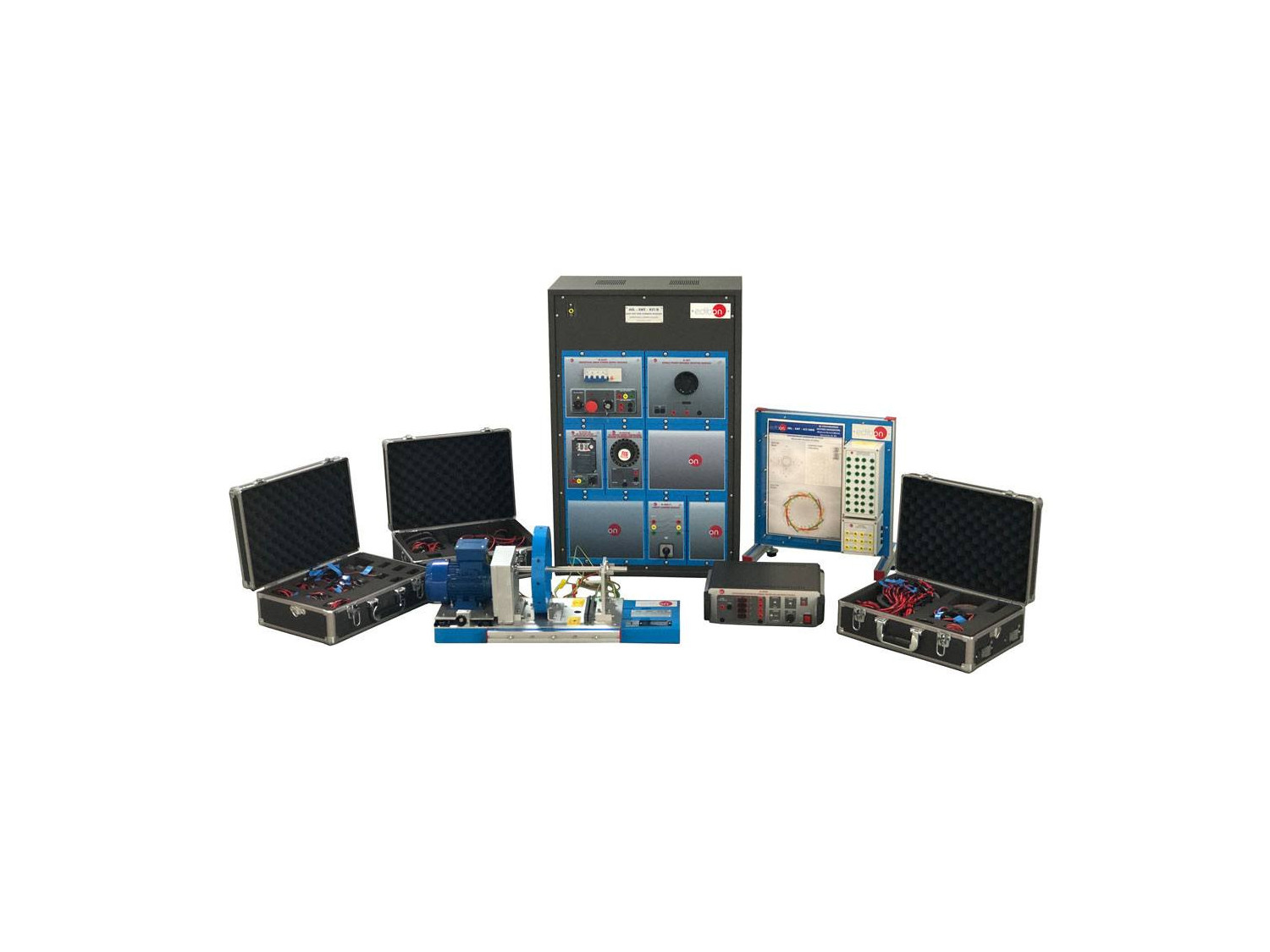

The "AEL-EMT-KIT" included following elements:

  • AEL-EMT-KIT/B. Base Unit and Common Modules.The "AEL-EMT-KIT/B" kit is the essential base unit for the construction of any rotary machine. It is the cornerstone of the "AEL-EMT-KIT" set and includes all the common elements necessary for the process.
  • AEL-EMT-KIT/AS. AC Asynchronous Induction Motors.The "AEL-EMT-KIT/AS" kit is specially designed for the study of asynchronous alternating current (AC) induction motors. This kit brings together a selection of mechanical parts that are assembled in a coordinated manner to allow the assembly and operation of different models of asynchronous induction machines. Its main objective is to provide a means for the detailed study of the operation of asynchronous induction motors, understanding their components, the distribution of the stator windings to configure the inductive poles and the possibility of testing the rotating magnetic field of these machines by using a compass.
  • AEL-EMT-KIT/DC. DC Motors/Generators. The "AEL-EMT-KIT/DC" has been meticulously designed for the study of DC motors and generators. This comprehensive kit comprises a collection of mechanical components that are intricately assembled to enable the construction and operation of various models of DC machines. The primary aim of this kit is to explore the inner workings and various components of DC generators and motors, as well as to comprehend the intricacies of independent, series, shunt, and compound electrical connections.
  • AEL-EMT-KIT/SMG. AC Synchronous Motors/Generators. The "AEL-EMT-KIT/SMG" kit has been meticulously designed for the study of synchronous machines. This kit consists of a series of mechanical parts that are precisely assembled to allow the assembly and operation of various models of synchronous machines. The main purpose of this kit is to present and demonstrate the operation of synchronous machines found in the market, breaking down their components, how the stator windings are distributed to configure the inductive poles, how the speed of these machines is controlled and how, by using a simple compass, the rotating magnetic field of these machines can be tested.
  • AEL-EMT-KIT/MPP. Stepper Motor.The "AEL-EMT-KIT/MPP" kit has been carefully designed for the study of stepper motors. This kit is composed of a series of detachable parts that are assembled together for the creation and operation of a stepper motor. The fundamental objective of this kit is to deepen the operation and the different parts that make up a stepper motor. It includes a crossshaped rotor that allows the motor shaft to rotate by means of a rotating magnetic field controlled by a controller. With the AEL-EMT-KIT/MPP, users have the opportunity to explore and understand the detailed operation of stepper motors. This kit provides the ability to build and operate a stepper motor, which facilitates the study of its operation and the interaction between its components, including the rotor and the controller.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

AEL-EMT-KIT/AS. AC Asynchronous Induction Motors:

  1. Recognition of the mechanical parts of a three-phase induction motor of squirrel cage.
  2. Construction of a three-phase induction motor of squirrel cage (2 pole), step by step.
  3. Construction of a three-phase induction motor of squirrel cage (4 pole), step by step.
  4. Measurement of the starting and running currents.
  5. Complete wiring of the stator wounds according to the electrical machines theory.

AEL-EMT-KIT/DC. DC Motors/Generators.

  1. Recognition of the mechanical parts of DC motors/generators .
  2. Construction of a DC shunt motor (with and without interpoles).
  3. Construction of a DC series motor (with and without interpoles).
  4. Construction of a DC compound motor (with and without interpoles).
  5. Construction of a DC shunt generator (with and without interpoles).
  6. Construction of a DC series generator (with and without interpoles).
  7. Construction of a DC compound generator (with and without interpoles).
  8. Construction of a DC separately excited generator (with and without interpoles).
  9. Complete wiring of all DC motors / generators according to theory.

AEL-EMT-KIT/SMG. AC Synchronous Motors / Generators.

  1. Recognition of the mechanical parts of synchronous motors/generators.
  2. Construction of a three-phase AC synchronous motor (2 pole).
  3. Construction of a three-phase AC synchronous generator (4 pole).
  4. Measurement of the current excitation.
  5. Measurement of the voltage generation in function of the speed of the generator.
  6. Measurement of the voltage generation in function of the current excitation.

AEL-EMT-KIT/MPP. Stepper Motor:

  1. Construction of a stepper motor.
  2. Speed control of the stepper motor.
