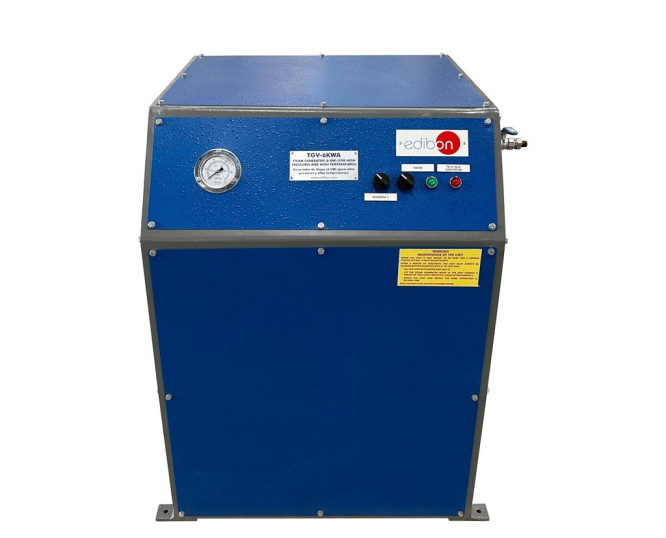

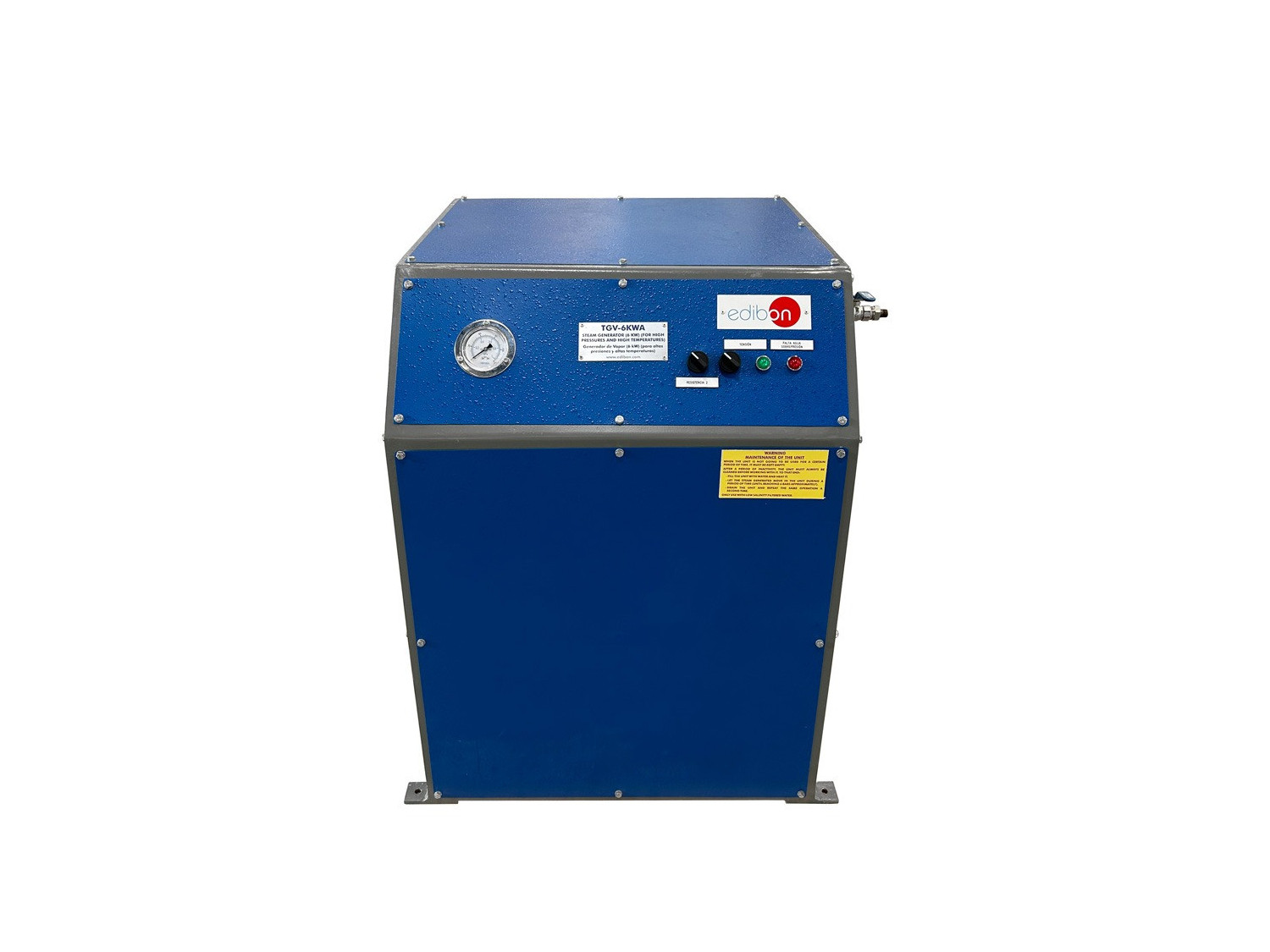

TGV-6KWA Gerador de Vapor (6 kW) (para altas pressões e altas temperaturas)

The Steam Generator (6 kW) (for high pressures and high temperatures), designed by EDIBON, is an electrical heating horizontal steam generator (with two heating elements of 6 kW each).

This type of generator produces 12 Kg.v.h of steam for a service pressure of 5 bar, being 6 bar the maximum pressure.

The maximum service temperature is 165 °C, corresponding to saturated steam to 6 bar.

It has the accessories required for a safe operation, such as safety valve, level indicator, pressure switch, level safety, etc.

The reset of any safety device due to insufficient level or excess pressure will be manual.
