TCPT Equipamento de Treinamento de Bombas Circulatórias

9.10.3.- TREINAMENTO DE INSTALAÇÕES E MANUTENÇÃO
CIRCULATING PUMPS TRAINING UNIT - TCPT

SISTEMAS INOVADORES

The Circulation Pumps Training Unit, "TCPT", is a unit of experimentation of sanitary and heating techniques that allows studying the operation of circulating pumps, both connected in series and in parallel.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

Descrição Geral

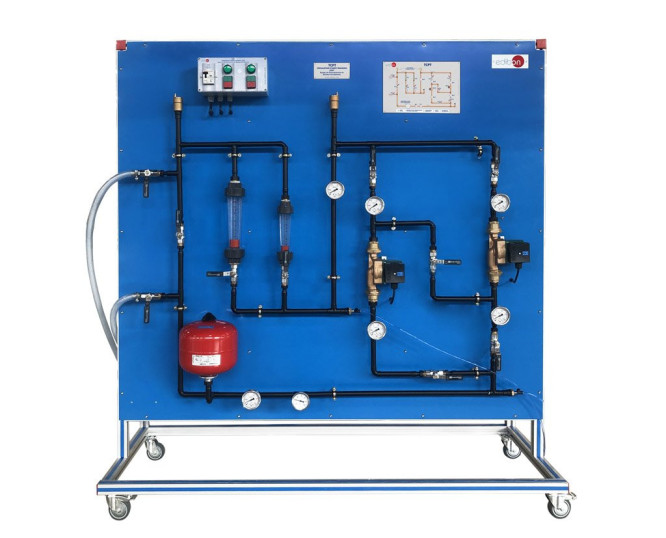

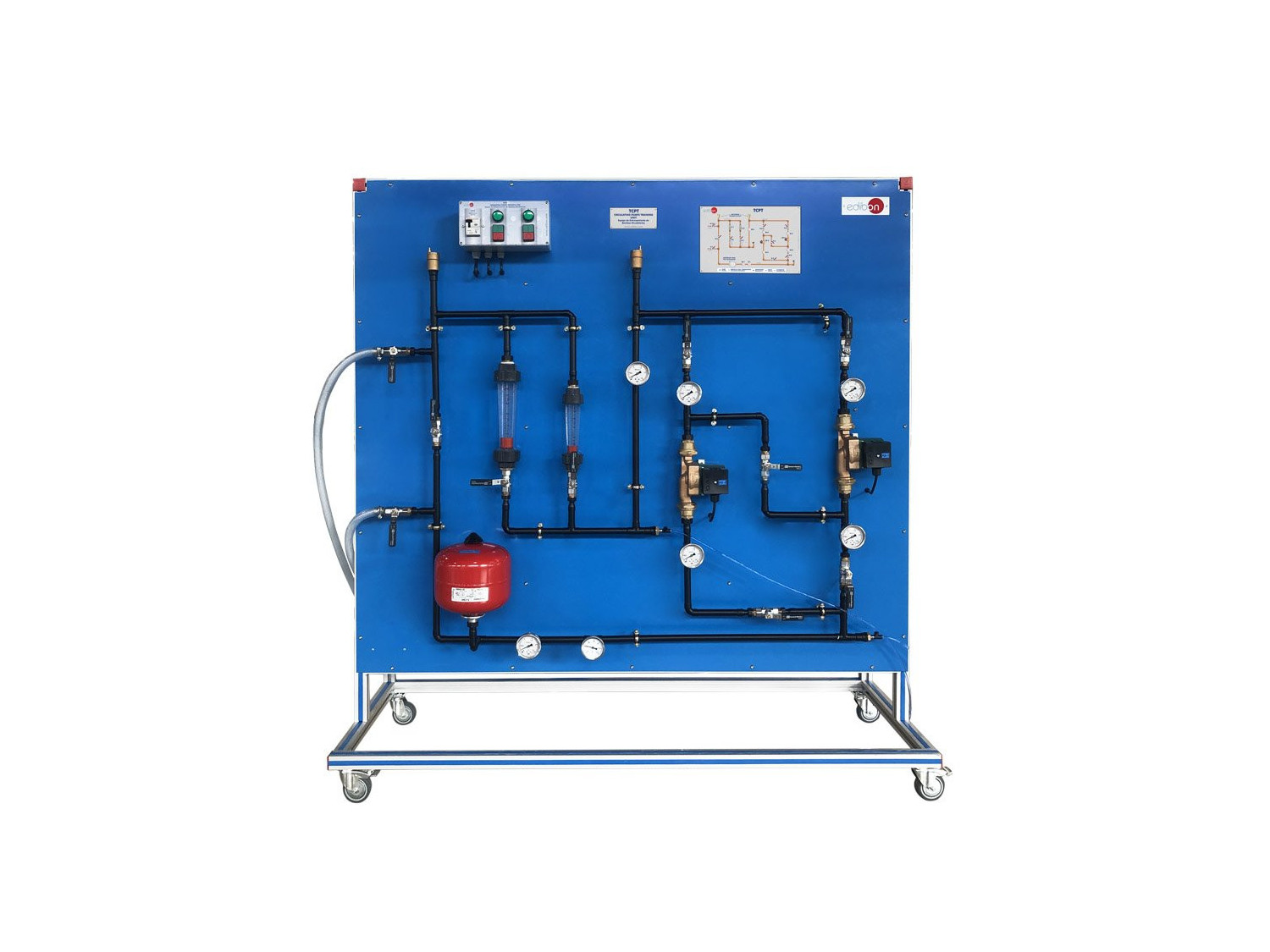

The Circulation Pumps Training Unit, "TCPT", is a unit of experimentation of sanitary and heating techniques that allows studying the operation of circulating pumps, both connected in series and in parallel.

It consists of a pipe circuit with two circulation pumps, which can work in series or in parallel depending on the arrangement of ball valves.

The unit represents a simple installation of heating that includes real elements, such as air bleeders, flowmeters of different measuring range, manometers in different representative point of the installation, bimetallic thermometer to know the working temperature and an expansion vessel that allows working in a closed circuit.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Variation of the circuit depending on the connection of the pumps in series or in parallel.
  2. Study of the characteristic curves of the service points and the pipe circuit.
  3. Representation of the characteristic curves of the pump as a function of number of revolution.
