MPO Equipamento de Pórtico

7.1.6.- MECÂNICA DE ESTRUTURAS 14.1.6.- MECÂNICA DE ESTRUTURAS

SISTEMAS INOVADORES

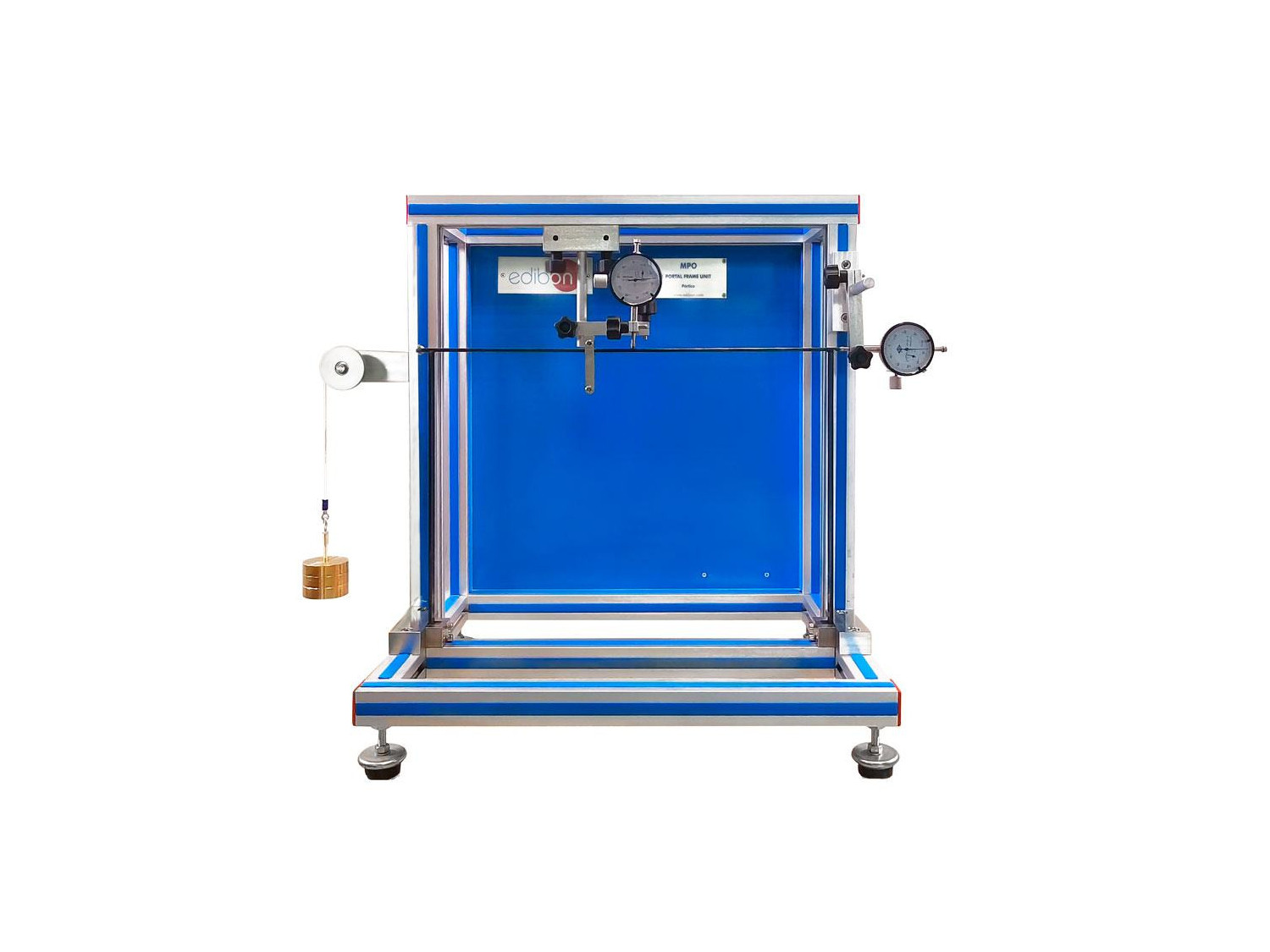

The Portal Frame Unit, "MPO", allows to perform vertical deflection and horizontal deflection measurements in a fixed rectangular portal frames.

Ver descrição geral

Catálogo

Especificações de Concurso

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

MSAC

Sistema Modular de Aquisição e Controle

LABORATÓRIOS

7TV

Laboratório Mecânico, Automóvel e de Materiais para o Ensino Técnico e Vocacional

7HE

Laboratório de Mecânica, Automóvel e Materiais para o Ensino Superior

NOTÍCIAS RELACIONADAS

Descrição Geral

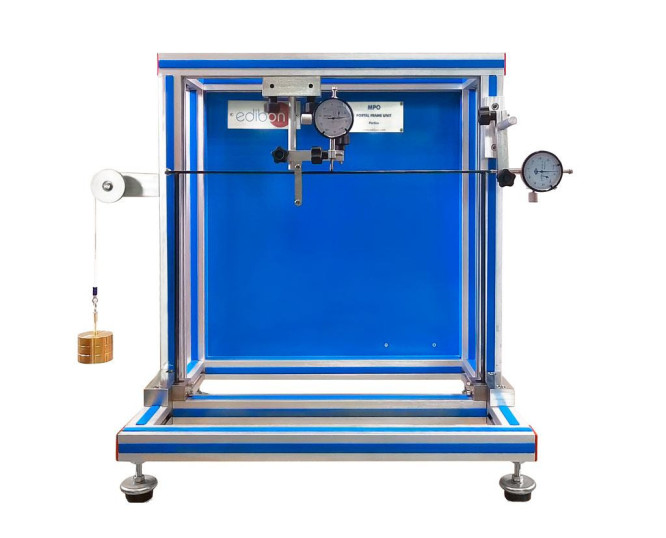

The Portal Frame Unit, "MPO", allows to perform vertical deflection and horizontal deflection measurements in a fixed rectangular portal frames.

To carry out the deflection tests, a series of loads with different weight must be applied to the rectangular portal frame. If the loads are applied on the central hook a vertical deflection will be generated, whereas if they are applied on the pulley included in the unit a horizontal deflection will be generated.

There are two dial gauges to measure the deflections generated.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

To determine the experimental value of the vertical deflection in a point subjected to a vertical load in a rectangular portal frame.
To determine the experimental value of the horizontal deflection in a point subjected to a horizontal load in a rectangular portal frame.
To determine the experimental value of the vertical and horizontal deflection in two points subjected to two loads, a horizontal load and a vertical load in a rectangular portal frame.
To compare the theoretical and experimental results.
To determine the theoretical value of the bending moments and reactions when a vertical deflection is generated.
To determine the theoretical value of the bending moments and reactions when a horizontal deflection is generated.
