DCCM Equipamento de Modelo em Corte de uma Embreagem de Múltiplos Discos

7.4.1.- MODELOS SECCIONADOS

SISTEMAS INOVADORES

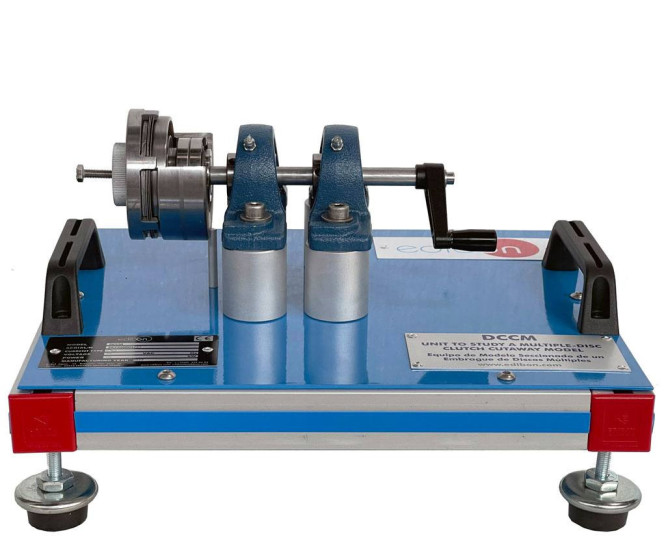

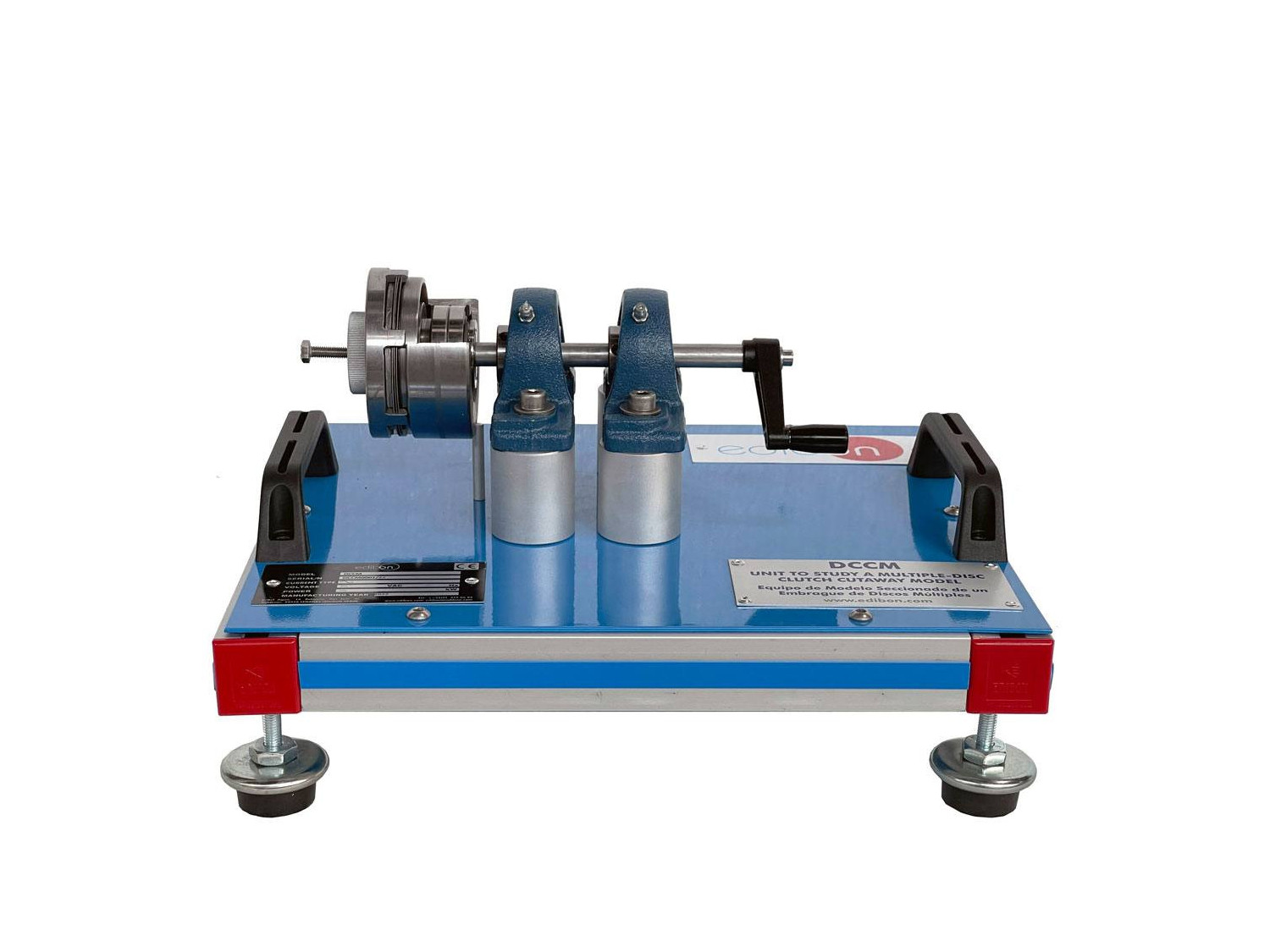

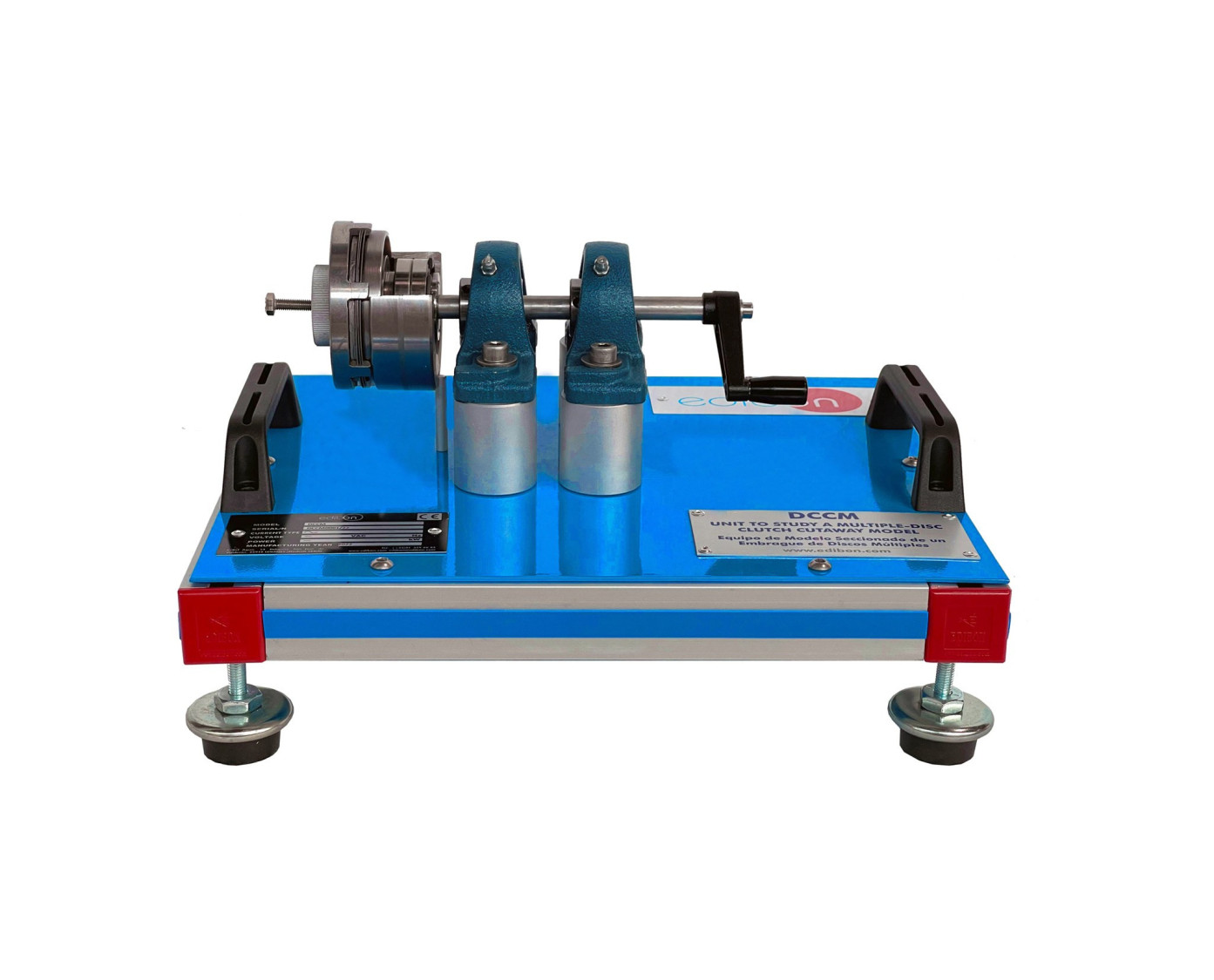

The Unit to Study a Multiple-Disc Clutch Cutaway Model, "DCCM", designed by EDIBON, allows for the study of this Multiple-disk clutch system, used to transmit higher torques in mechanical systems.

Ver descrição geral

Catálogo

Especificações de Concurso

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

MSAC

Sistema Modular de Aquisição e Controle

NOTÍCIAS RELACIONADAS

Descrição Geral

The Unit to Study a Multiple-Disc Clutch Cutaway Model, "DCCM", designed by EDIBON, allows for the study of this Multiple-disk clutch system, used to transmit higher torques in mechanical systems.

This type of clutch is widely used in chain tractor steering, motorcycles, and high-performance transmission systems, where an efficient and adjustable power transmission is required.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

Identify the components of a multiple-disk clutch.
Study of the operation of a multiple-disk clutch.
Fault analysis and maintenance of a multiple-disk clutch.
