PEIF Equipamento de Estudo do Índice de Filtrabilidade

FILTERABILITY INDEX UNIT - PEIF

SISTEMAS INOVADORES

This unit utilises a bed of granular material, normally sand, which can be chosen by the student to suit his own purposes. The measurements taken with this unit enable a filterability index to be calculated which has significance in deep bed filter performance.

Ver descrição geral

NOTÍCIAS RELACIONADAS

Descrição Geral

This unit utilises a bed of granular material, normally sand, which can be chosen by the student to suit his own purposes.The measurements taken with this unit enable a filterability index to be calculated which has significance in deep bed filter performance.

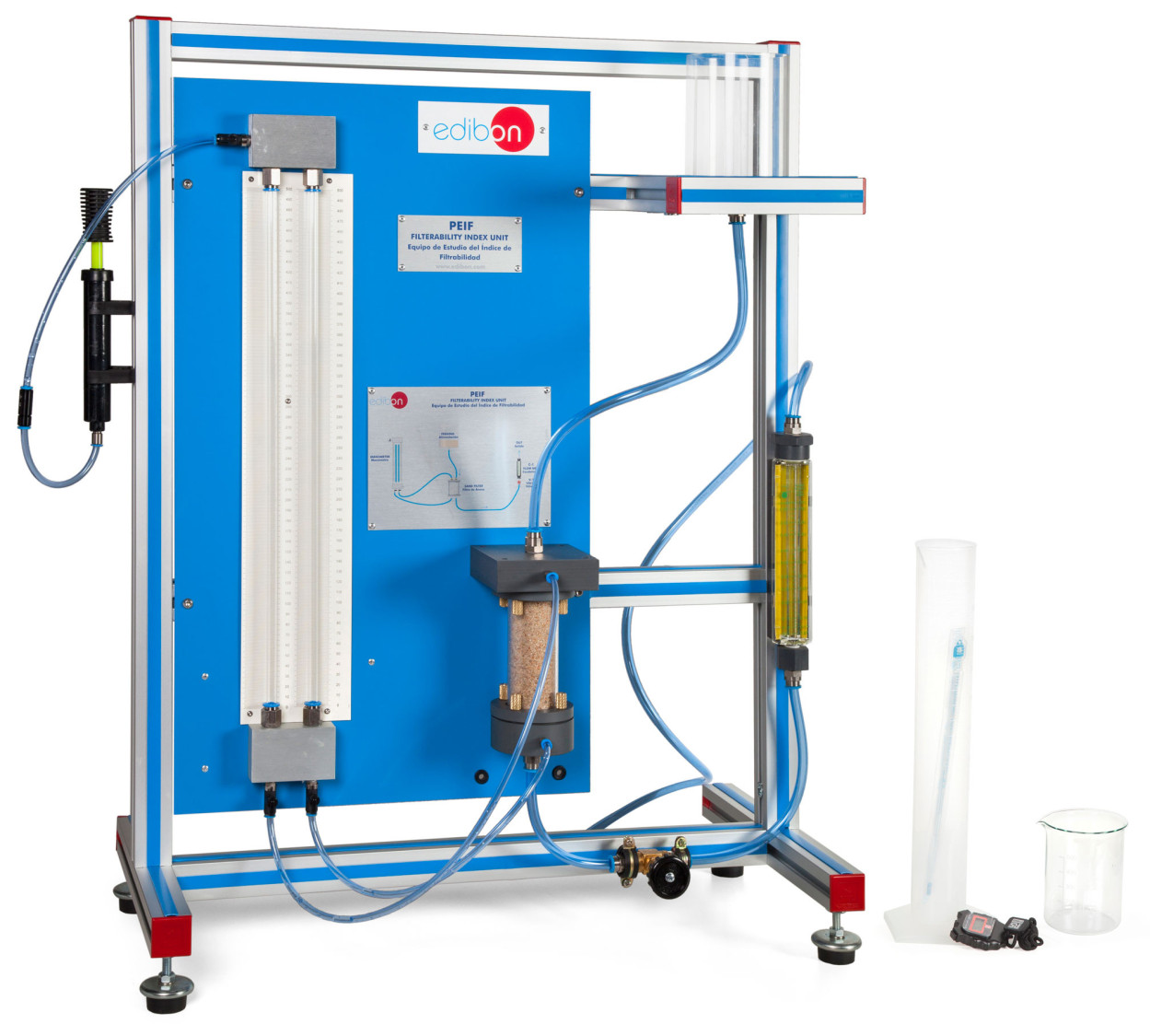

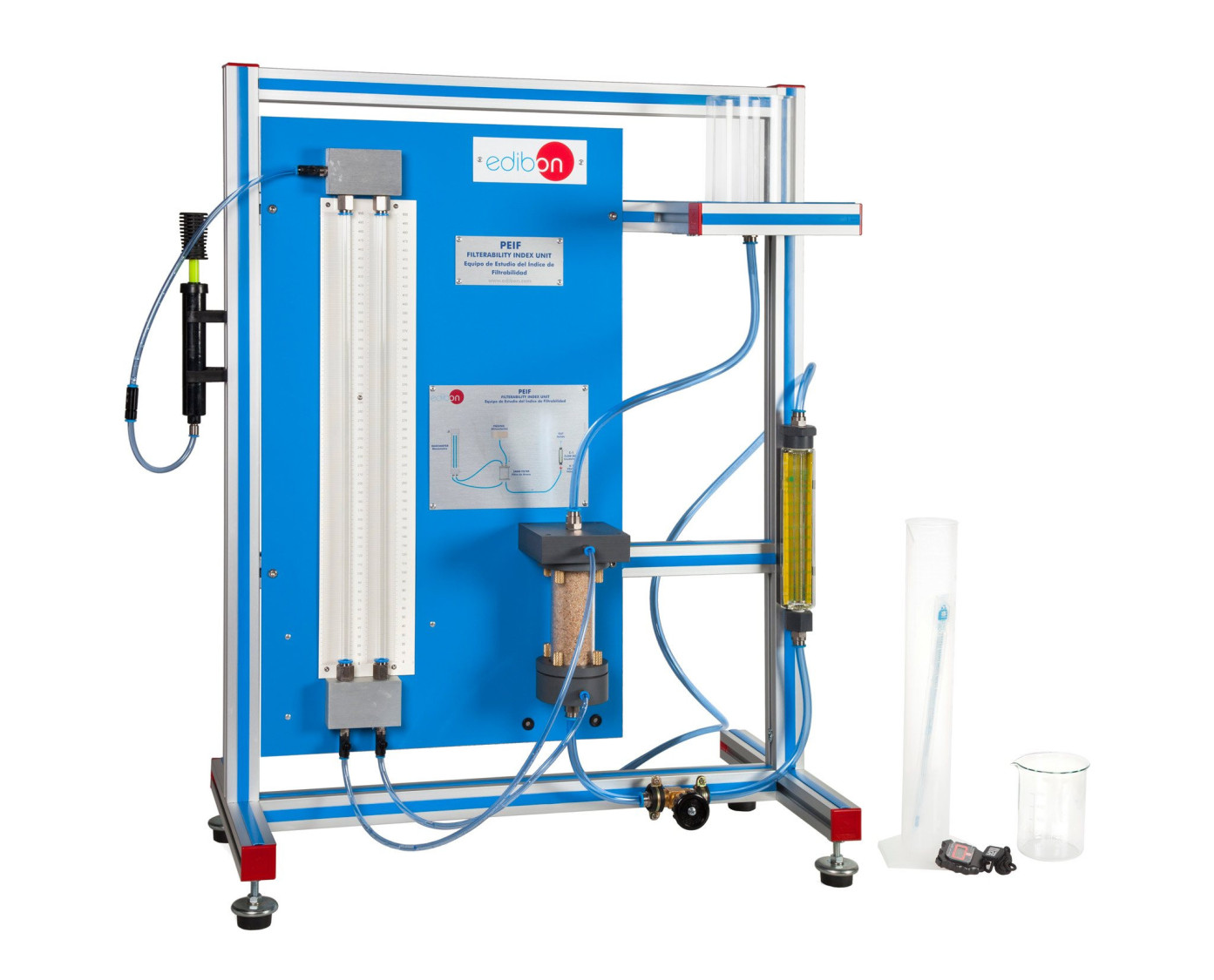

The "PEIF", unit is a bench-top unit composed of a feeding tank, where the initial solution of water with solids in suspension is placed. During the normal operation, the tank is communicated with the sand filter upper part, through of a pipe.

The filter lower part is communicated with the flowmeter. A regulation valve located at the flowmeter allows to change the flow which passes through the filter.

The fluid pressure is obtained by means of the gravity, because the feeding tank is placed in high. The pressure is measured by a manometer.

The filter cartridge is easily removable, so it allows to study the difference between different media, both in compositions and in mesh.

This unit, in addition to students teaching and training, also can be used in routine control at water purification works, or at water treatment works which employ tertiary filtration.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Study of the filtration operation principles.
  2. Study of Darcy equation.
  3. Deep bed filtration of suspensions with different beds.
  4. Calculation of Filterability Index.
  5. Sand filter cleaning.
