MDUC Equipamento de Diagnóstico de Máquinas, Controlado por Computador (PC)

7.4.3.- TREINAMENTO DE INSTALAÇÕES E MANUTENÇÃO
COMPUTER CONTROLLED MACHINE DIAGNOSIS UNIT - MDUC

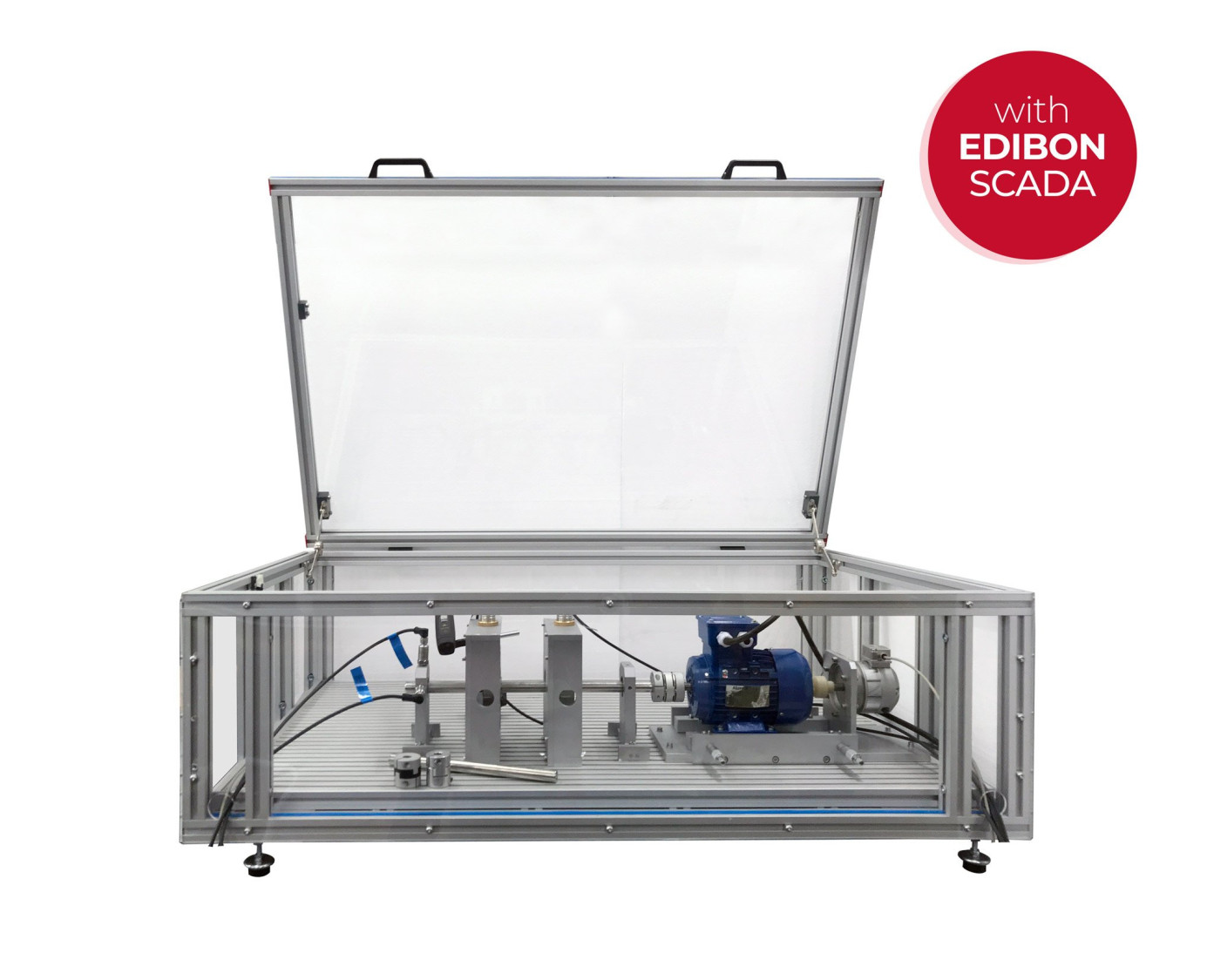

Unit: MDUC. Computer Controlled Machine Diagnosis Unit

COMPUTER CONTROLLED MACHINE DIAGNOSIS UNIT - MDUC

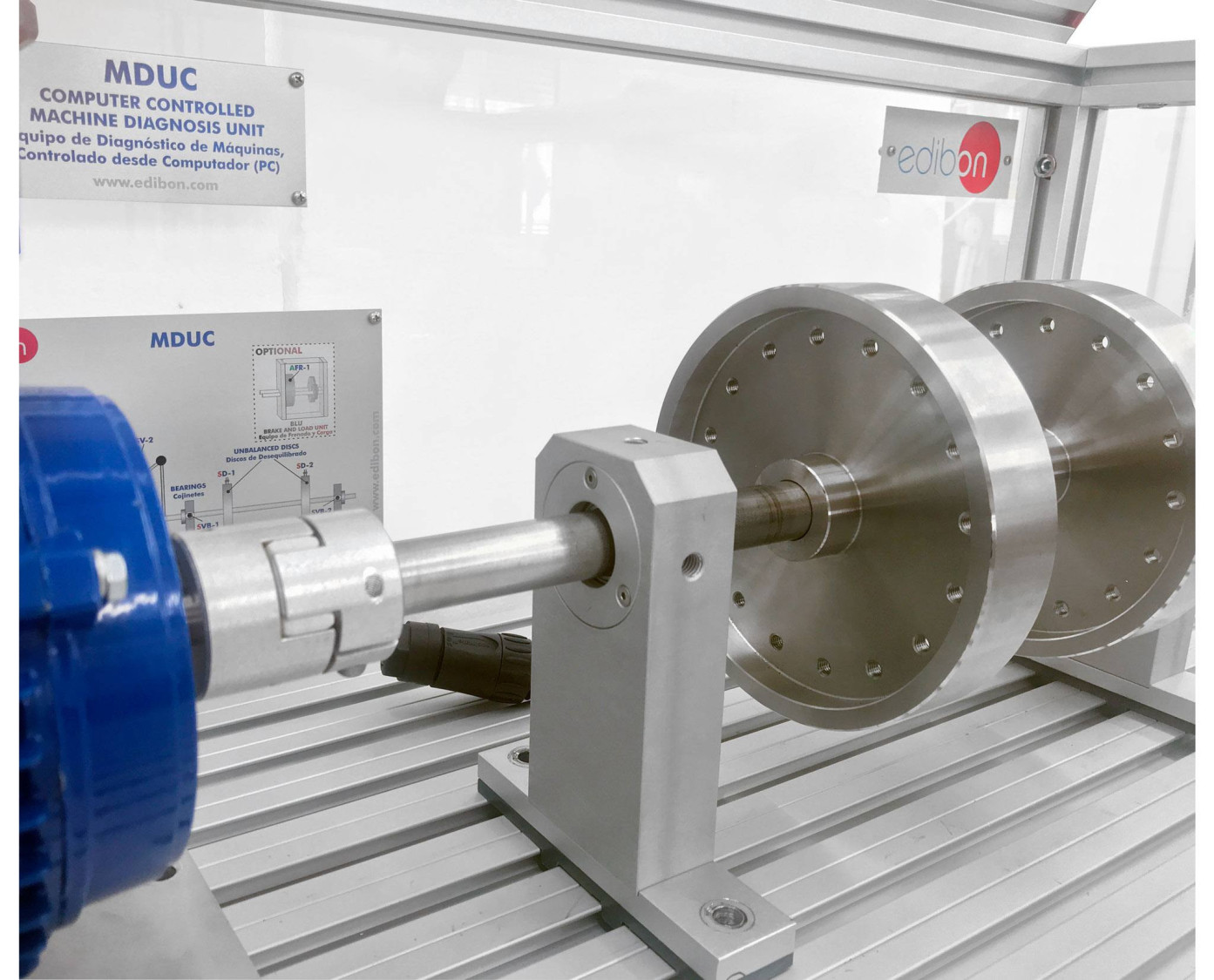

Unit details

COMPUTER CONTROLLED MACHINE DIAGNOSIS UNIT - MDUC

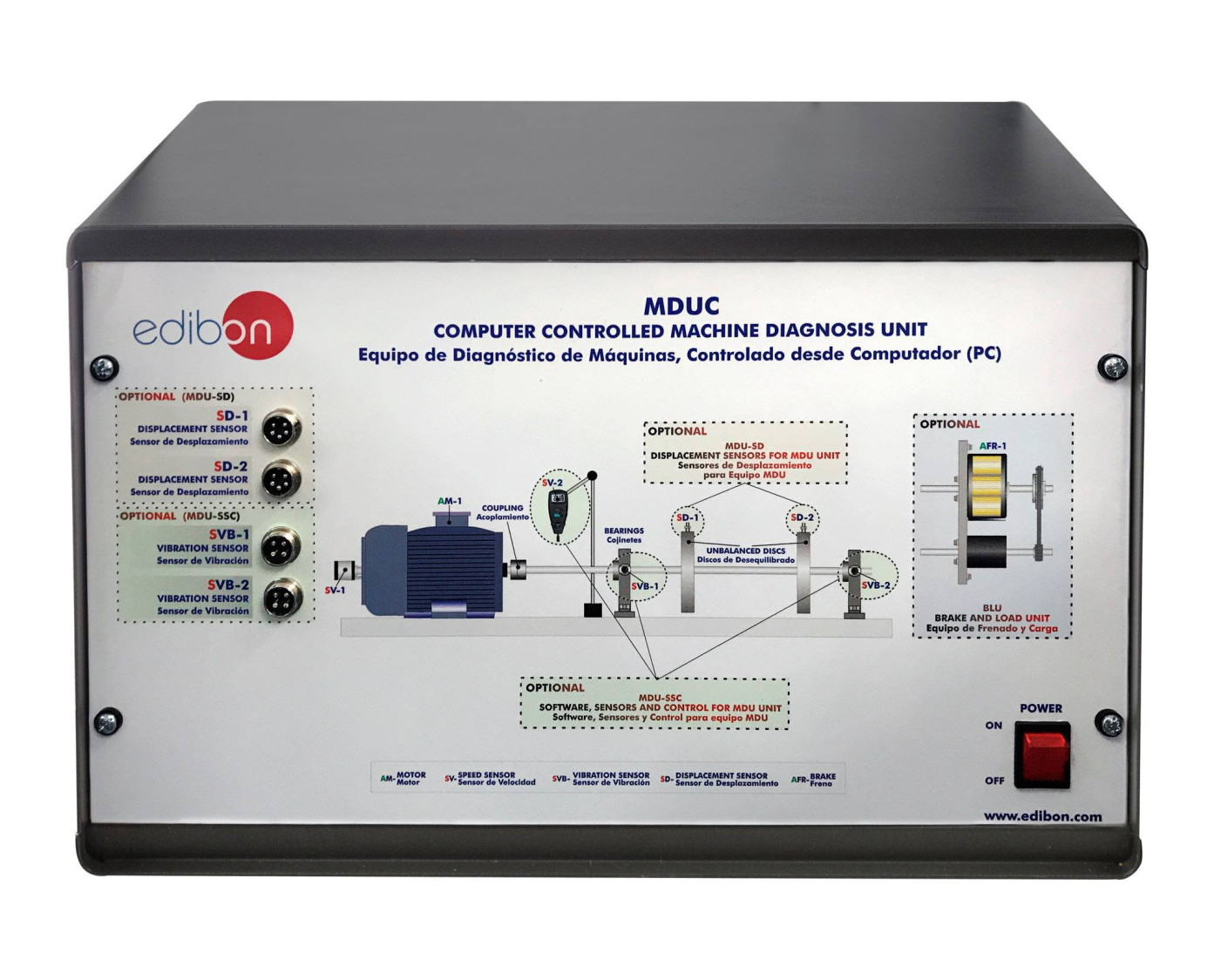

MDUC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED MACHINE DIAGNOSIS UNIT - MDUC

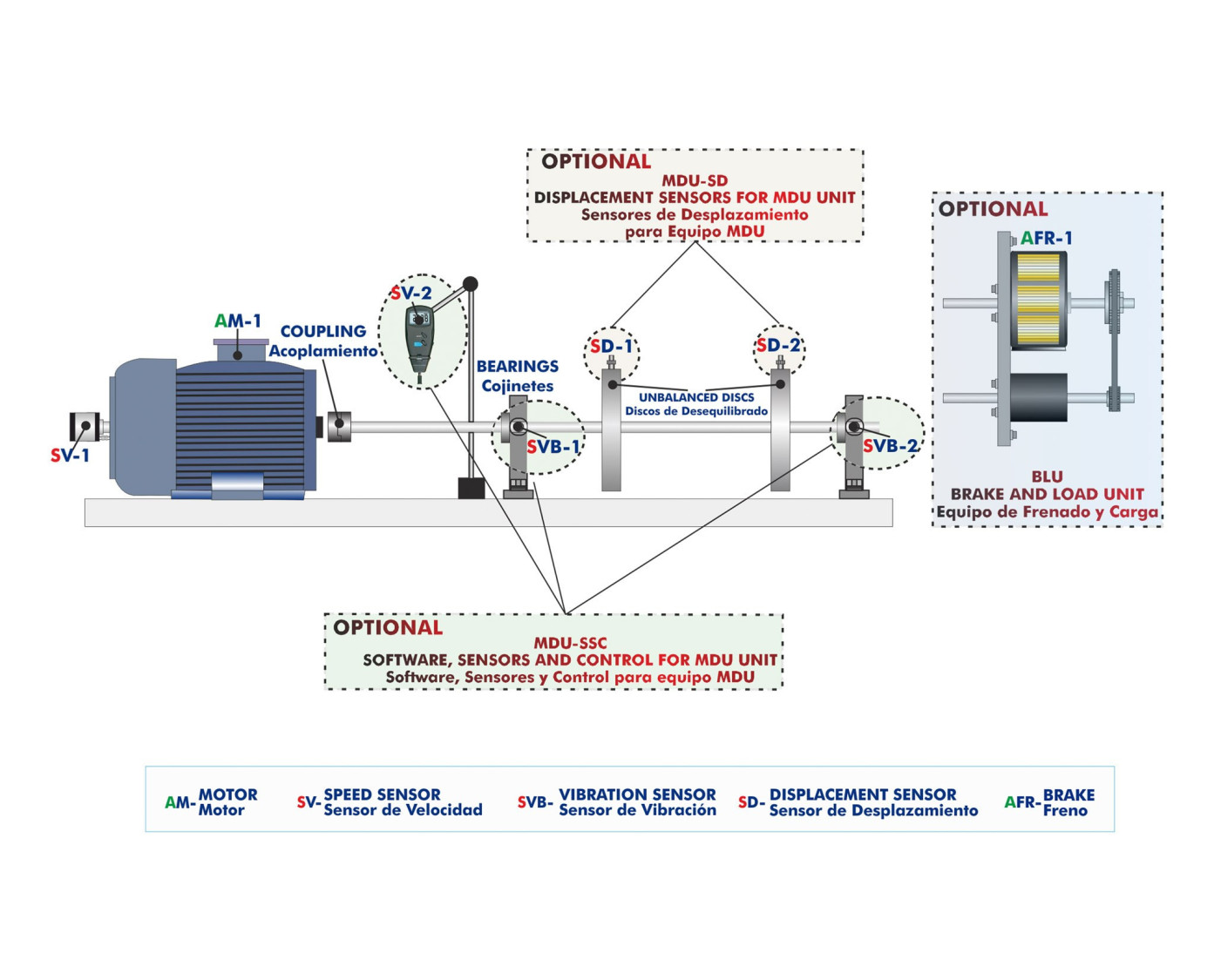

Process diagram and unit elements allocation

COMPUTER CONTROLLED MACHINE DIAGNOSIS UNIT - MDUC

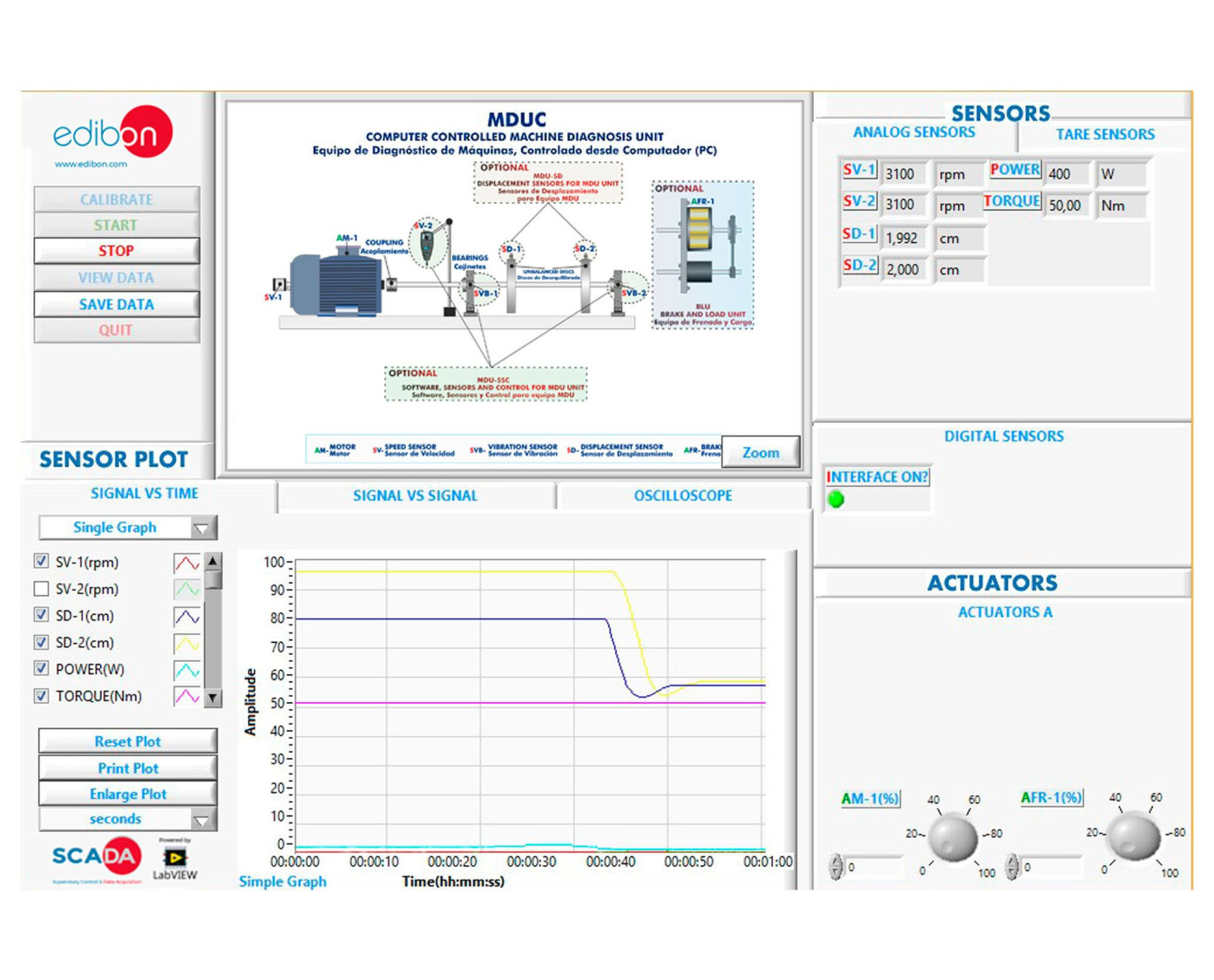

MDUC/SOF. MDUC Software. Main Screen

COMPUTER CONTROLLED MACHINE DIAGNOSIS UNIT - MDUC
COMPUTER CONTROLLED MACHINE DIAGNOSIS UNIT - MDUC
COMPUTER CONTROLLED MACHINE DIAGNOSIS UNIT - MDUC
COMPUTER CONTROLLED MACHINE DIAGNOSIS UNIT - MDUC
COMPUTER CONTROLLED MACHINE DIAGNOSIS UNIT - MDUC

SISTEMAS INOVADORES

The Computer Controlled Machine Diagnosis Unit, "MDUC", of EDIBON, allows you to perform vibration measurement practical exercises, measuring the displacement, velocity and acceleration of vibrations in the time-frequency range.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
FSS

Sistema de Simulação de Falhas
PLC

Controle de Processos Industriais por CLP
ELK

Kit de Desenvolvimento de Software EDIBON, Desenvolvido por NI LabVIEW ™
ECR

Sistema Modular Industrial EDIBON com NI CompactRIO
ESN

EDIBON SCADA-Net
ECL

Educação a Distância EDIBON

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais

Descrição Geral

The Computer Controlled Machine Diagnosis Unit, "MDUC", of EDIBON, allows you to perform vibration measurement practical exercises, measuring the displacement, velocity and acceleration of vibrations in the time-frequency range.

The Computer Controlled Machine Diagnosis Unit, "MDUC", includes the following elements:

  1. The MDU Base Unit, "MDU-UB".
  2. The Software, Sensors and Control for MDU Unit, "MDU-SSC".
  3. Displacement Sensors for MDU Unit, "MDU-SD".

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Learning about the effects of alignment on different types of couplings.
  2. Testing for gear defects according to their vibration behavior (MDU-SSDG required).
  3. Learning about the effect of the toothed gear, the lubrication used and the wheelbase and the backlash (MDU-SSDG required).
  4. Learning about the effect of the electrical windings on vibration behavior (MDU-SEV required).
  5. Learning about the effect of an asymmetric air gap on the vibration behavior and the electromagnetic and performance losses (MDU-SEV required).
  6. Checking the effects of roller bearing faults on outer and inner ring, or the roller bearing body on the vibration spectrum (MDUSRBF required).
  7. Understand the influence of the "spider" hardness on jaw couplings (MDU-SCO required).
  8. Compare the influence of defects in a flange coupling (MDUSCO required).
  9. Determine the detrimental effects of eccentricity on pin couplings (MDU-SCO required).
  10. Comparison between different types of couplings (MDU-SCO required).
  11. Check the influence of eccentricity in pulleys and speed on vibrational behavior (MDU-SBD required).
  12. Comparison between faultless and defective belts (MDU-SBD required).
  13. Understanding the Influence of Unbalance and Balance in an Elastic Rotor (MDU-SES required).
  14. Study the variation of the characteristic vibrational behavior (velocity, frequency, amplitude and phase of vibrations) due to a crack (MDU-SRS required).
  15. Study of the blade pitch frequency in a rotating system by magnetic excitation (MDU-SSVF required).
  16. Study the vibrations of a centrifugal pump in operation (MDUSSCP required).
  17. Measure the pitch frequency between moving shafts (MDU-SSCP required).
  18. Study and measure the vibrations generated by a centrifugal pump in operation (MDU-SSCP required).

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

  1. Assessment of the vibration state of a machine.
  2. Measuring the vibrations caused by unbalanced operation of rigid rotors in 1 and 2 planes.
  3. Study of the basic essentials of the vibration measurement in shafts and bearings.
  4. Study of the basic magnitudes and parameters.
  5. Use of measuring sensors and instruments.
  6. Understanding the influence of speed and shaft and recorder arrangements.
  7. Learning to balance rigid shafts in operation and alignment between motor and bearing.
  8. Understanding and interpreting the frequency spectra.
  9. Learning about the different vibration signals.
  10. Applying the FFT analysis correctly.
  11. Measuring the speed, oscillation travel, oscillation speed and acceleration.
  12. Learning about the effects of alignment on different types of couplings.
  13. Learning about the effects of speed on vibration behavior.

Other possibilities to be done with this unit:

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the MDUC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the MDUC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
