The Orifice Discharge Unit, "FME04", designed by EDIBON allows the study of the different concentration, discharge and velocity coefficients for thin and/or thick wall for different types: colloidal, Venturi or diaphragm.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
MSAC

Sistema Modular de Aquisição e Controle

LABORATÓRIOS

8TV
 Laboratório de Mecânica dos Fluidos para o Ensino Técnico e Vocacional
8HE
 Laboratório de Mecânica dos Fluidos para o Ensino Superior

NOTÍCIAS RELACIONADAS

Setting up at Slippery Rock University
Setting up at Slippery Rock University
We are very pleased that we have recently completed an installation in the department of Physics and Engineering at the Slippery Rock University.  It's always a pleasure to work on projects like this!
Ler mais
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Ler mais

Descrição Geral

The Orifice Discharge Unit, "FME04", designed by EDIBON allows the study of the different concentration, discharge and velocity coefficients for thin and/or thick wall for different types: colloidal, Venturi or diaphragm.

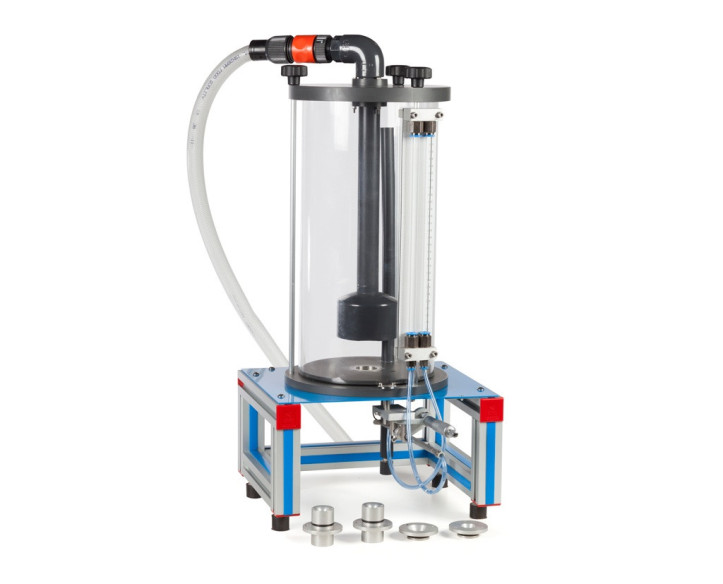

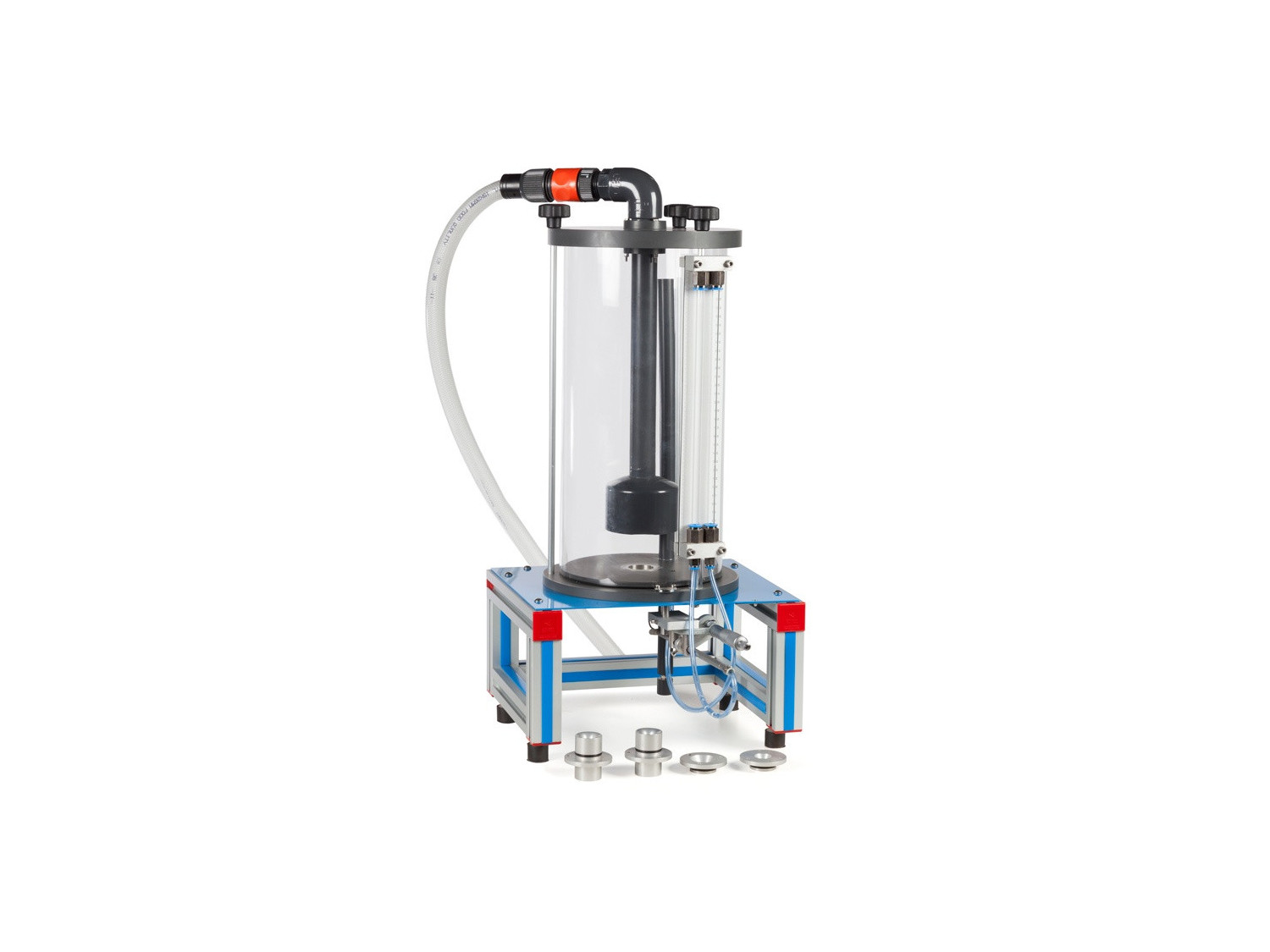

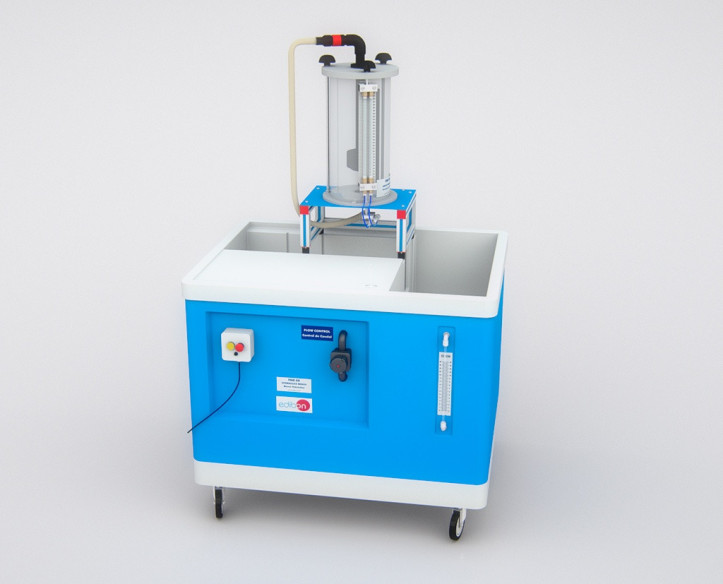

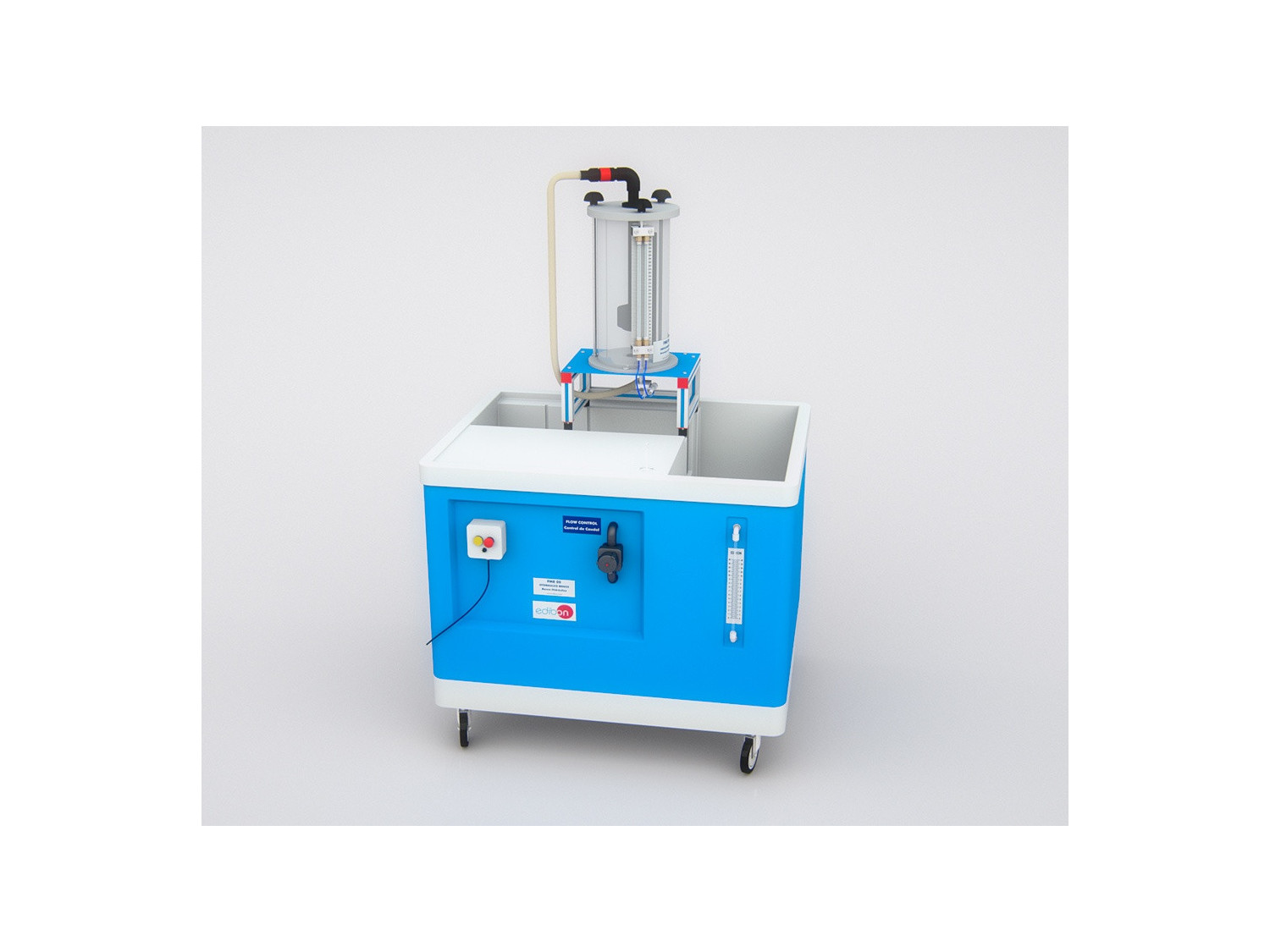

The unit consists of a transparent cylindrical tank that is fed from the top by the Hydraulics Bench (FME00) or the Basic Hydraulic Feed System (FME00/B). The water flows through an interchangeable mouthpiece (a set of five mouthpieces is supplied, representing orifices of different characteristics) located in the base center. The liquid flowing vein goes directly to the volumetric tank of the Hydraulics Bench or from the Basic Hydraulic Feed System.

A Pitot’s tube can be placed in any point of the flowing vein to determine its total height of load.

A transverse device, joined to the Pitot’s tube, allows to determine the diameter of the liquid flowing vein.

It´s possible to measure the height of the Pitot’s tube and the total height through the orifice, in a panel of two manometric tubes located beside the tank.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Determination of the discharge coefficient for the mouthpiece of thin wall, Venturi type.
  2. Determination of the velocity coefficient for the mouthpiece of thin wall, Venturi type.
  3. Determination of the contraction coefficient for the mouthpiece of thin wall, Venturi type.
  4. Determination of the discharge coefficient for the mouthpiece of thin wall, diaphragm type.
  5. Determination of the velocity coefficient for the mouthpiece of thin wall, diaphragm type.
  6. Determination of the contraction coefficient for the mouthpiece of thin wall, diaphragm type.
  7. Determination of the discharge coefficient for the mouthpiece of thin wall, colloidal type.
  8. Determination of the velocity coefficient for the mouthpiece of thin wall, colloidal type.
  9. Determination of the contraction coefficient for the mouthpiece of thin wall, colloidal type.
  10. Determination of the discharge coefficient for the mouthpiece of thick wall, cylindrical type.
  11. Determination of the velocity coefficient for the mouthpiece of thick wall, cylindrical type.
  12. Determination of the contraction coefficient for the mouthpiece of thick wall, cylindrical type.
  13. Determination of the discharge coefficient for the mouthpiece of thick wall, Venturi type.
  14. Determination of the velocity coefficient for the mouthpiece of thick wall, Ventury type.
  15. Determination of the contraction coefficient for the mouthpiece of thick wall, Ventury type.

ELEMENTOS NECESSÁRIOS
