The Metacentric Height Demostration of a "U" Shaped Floating Object, "FME11-B", designed by EDIBON, allows the study of the stability of a floating object by calculating its metacentric height starting from a U-shaped floating body.
Expansões
NOTÍCIAS RELACIONADAS
Descrição Geral
The Metacentric Height Demostration of a "U" Shaped Floating Object, "FME11-B", designed by EDIBON, allows the study of the stability of a floating object by calculating its metacentric height starting from a U-shaped floating body.

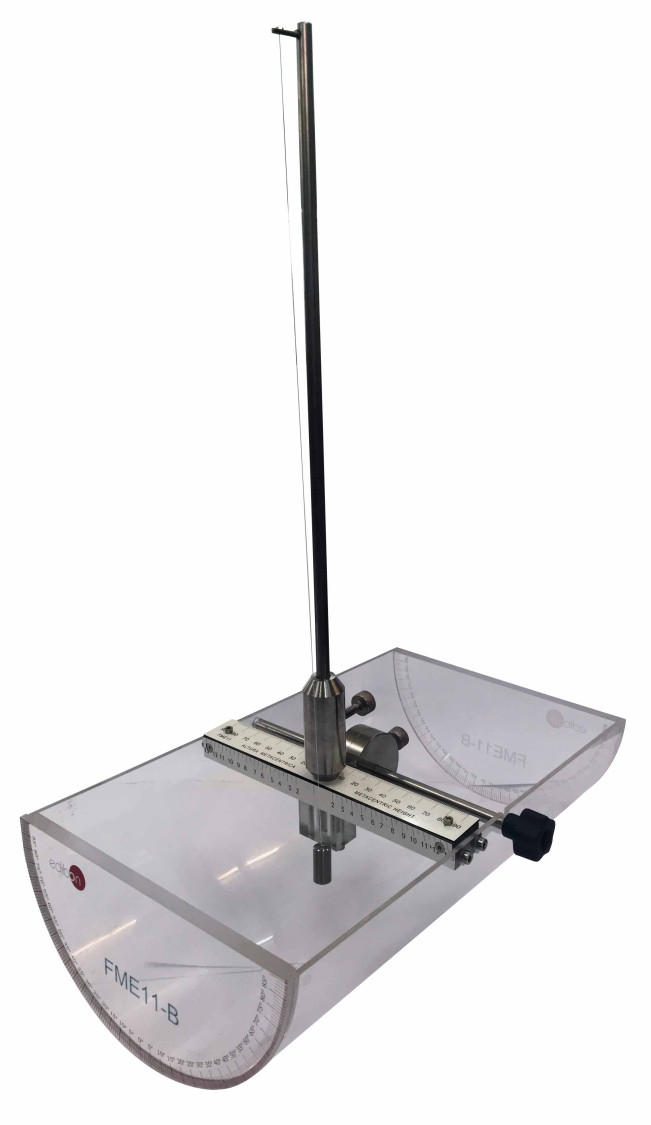

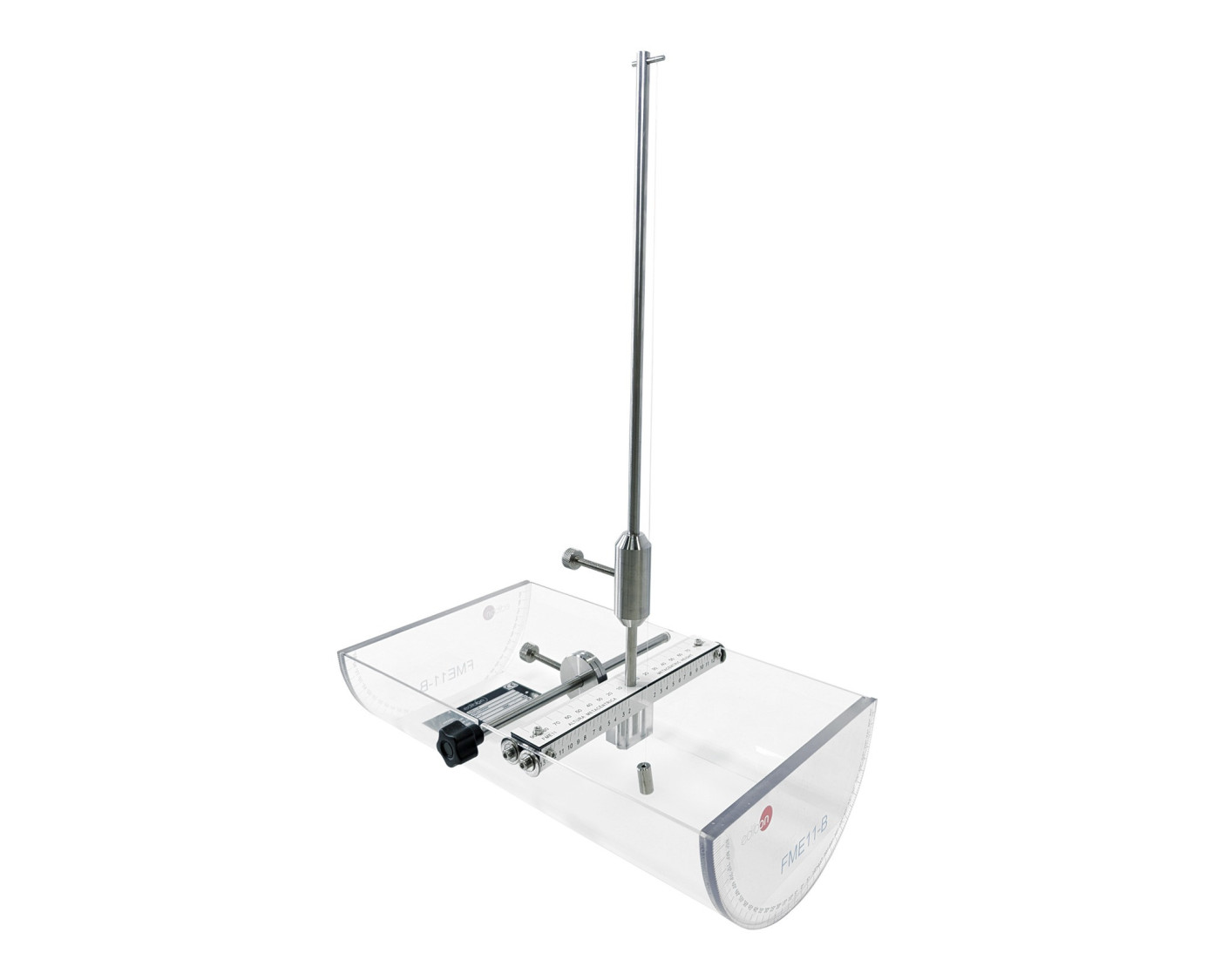

The unit consists of a floating methacrylate body with a vertical mast placed on it. An adjustable mobile mass has been added to alter the position of the center of gravity.
The base of the floating body is "U" shaped, simulating one of the different frame cross-sections of a boat.
A weight that can be horizontally and vertically displaced allows for modification of the floating base heel.
A plumb bob, attached to the upper part of the mast, is used to measure the angle of heel of the floating base with the aid of a graduated scale.
EXERCÍCIOS E PRÁTICAS GUIADAS
EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL
- Study of the stability of a floating object with "U" shaped base. Angular displacements.
- Study of the stability of a floating object with "U" shaped base. Different positions of the center of gravity.
- Determination of the metacentric height of a floating object with "U" shaped base.
EQUIPAMENTOS SIMILARES DISPONÍVEIS
8.1.3.- HIDROSTÁTICA
FME11
The Metacentric Height Demonstration Unit, "FME11", designed by EDIBON, allows the study of the stability of a floating object by calculating its metacentric height.The unit consists of a floating methacrylate prismatic base, on which a vertical...
8.1.3.- HIDROSTÁTICA
FME11-A
Demonstração de Altura Metacêntrica de um Corpo Flutuante em Forma de "V"
The Metacentric Height Demostration of a "V" Shaped Floating Object, "FME11-A", designed by EDIBON, allows the study of the stability of a floating object by calculating the metacentric height of a floating object starting from a V-shaped floating...
EQUIPAMENTOS COMPLEMENTARES
8.1.7.- MÁQUINAS HIDRÁULICAS: TURBINAS
LIFLUBA
Laboratório Integrado de Mecânica de Fluidos Básica
Hydraulics is the branch of science that deals with the mechanical properties of fluids, and Fluid Mechanics provides the foundation for hydraulics.With LIFLUBA (Basic Fluids Mechanics Integrated Laboratory), EDIBON tries to give answer to the...
8.1.3.- HIDROSTÁTICA
FME08
Pressão sobre superfícies
The Surface Pressure Unit, "FME08", designed by EDIBON, allows to study the center of pressures with a partially or totally submerged quadrant.This unit consists of a quadrant mounted on the arm of a balance that pivots around an axis.When the...
8.1.3.- HIDROSTÁTICA
FME11
Demonstração de Altura Metacêntrica
The Metacentric Height Demonstration Unit, "FME11", designed by EDIBON, allows the study of the stability of a floating object by calculating its metacentric height.The unit consists of a floating methacrylate prismatic base, on which a vertical...
8.1.3.- HIDROSTÁTICA

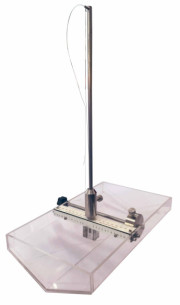

FME11-A
Demonstração de Altura Metacêntrica de um Corpo Flutuante em Forma de "V"
The Metacentric Height Demostration of a "V" Shaped Floating Object, "FME11-A", designed by EDIBON, allows the study of the stability of a floating object by calculating the metacentric height of a floating object starting from a V-shaped floating...
8.1.3.- HIDROSTÁTICA
FME33
Demonstração do Princípio de Pascal

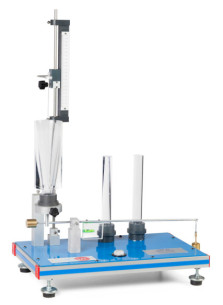

The Pascal's Principle Demonstration Unit, "FME33", designed by EDIBON, allows to demonstrate Pascal's principle, i.e. that the pressure in an incompressible fluid is independent of the column size section but depends only on its height (liquid...
8.1.3.- HIDROSTÁTICA
FME35
Propriedades dos Fluidos

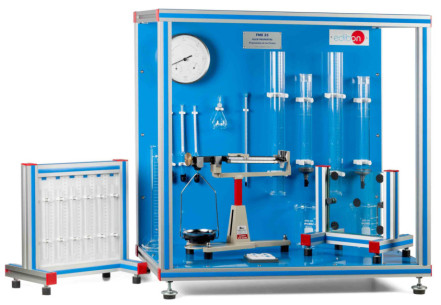

The Fluid Properties Unit, "FME35", designed by EDIBON, allows the study of the fluids fundamental properties that affect their behavior in practical applications.We can study capillarity, density and relative density (specific gravity), buoyancy...
8.1.7.- MÁQUINAS HIDRÁULICAS: TURBINAS
BDAS
Sistema de Aquisição de Dados e Sensores
BDAS is designed to monitor the measurements of each unit type "FME" from a computer (PC).This system can monitor any unit, checking the revolutions given by the water pump or the torque, differential pressures for Bernoulli theorems, pressure...
