N-EM-MCI Contator Inversor

6.2.2.4.- CONTROLE DE MÁQUINAS ELÉTRICAS

SISTEMAS INOVADORES

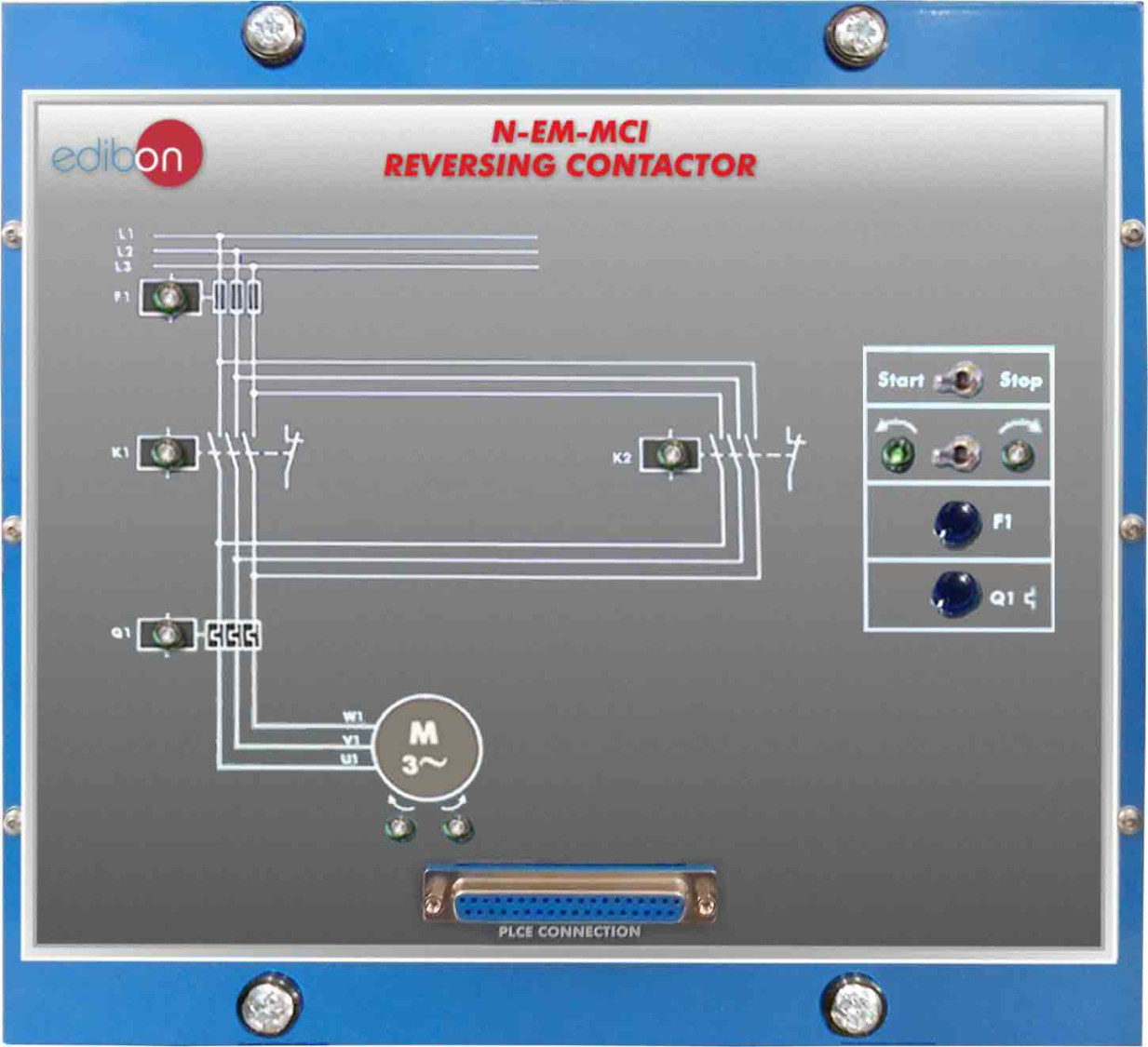

"N-EM-MCI" represents a three-phase motor with reversing contactors which emulates a three phase motor connection to change the turning direction of the motor through three phase contactors.

Ver descrição geral

Catálogo

Especificações de Concurso

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

Descrição Geral

The "N-EM" are a series of emulators that provide the students the required hardware to emulate the most common automatic systems.

The "N-EM" modules are designed to work with the "AE-PLC" units to obtain the fundamental knowledge of PLC programing, PLC management, etc.

"N-EM-MCI" represents a three-phase motor with reversing contactors which emulates a three phase motor connection to change the turning direction of the motor through three phase contactors. The system also allows to use the different switches to emulate faults in the three phase fuses and magnetothermics.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

All "N-EM" modules allow to perform the following practical exercises:

Temporization.
Counting.
Sequential counting.
All the practical exercises include the diagrams and the flow charts of the example programs used.
