EFAS Peralatan Aliran Air Tanah

13.1.- HIDROLOGI DAN HIDROGEOLOGI
GROUND WATER FLOW UNIT - EFAS

SISTEM INOVATIF

The Ground Water Flow Unit, "EFAS", has been designed by EDIBON to demonstrate the hydrological principles of groundwater flow and the applications of these to different engineering constructions.

Lihat uraian umum
Katalog Katalog
Spesifikasi Kontes
Meminta informasi

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

Laboratorium

13TV
 Laboratorium Lingkungan untuk Pendidikan Teknik dan Kejuruan
13HE
 Laboratorium Lingkungan untuk Pendidikan Tinggi

BERITA TERKAIT

CO₂ adsorption: a current necessity
CO₂ adsorption: a current necessity
In a world where climate change represents one of the greatest threats to our future, carbon dioxide (CO2) adsorption has become an urgent priority. The increasing concentration of CO2 in the atmosphere, primarily driven by human activities such as fossil fuel combustion and deforestation, has...
Baca lebih lanjut
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Penangkapan Udara Langsung: Teknologi Kunci dalam Perang Melawan Perubahan Iklim
Penangkapan Udara Langsung: Teknologi Kunci dalam Perang Melawan Perubahan Iklim
Direct Air Capture (DAC) adalah teknologi inovatif yang menghilangkan CO₂ langsung dari udara menggunakan reaksi kimia dengan pelarut cair atau penyerap padat. Meskipun menghadapi tantangan seperti biaya tinggi dan konsumsi energi, DAC menawarkan solusi potensial untuk mengurangi konsentrasi CO₂...
Baca lebih lanjut
Memahami dan Meningkatkan Sistem Pengolahan Air Minum
Memahami dan Meningkatkan Sistem Pengolahan Air Minum
Instalasi Pengolahan Air Limbah Sementara pabrik pengolahan air minum berfokus pada penyediaan air minum yang aman, instalasi pengolahan air limbah menangani pengolahan air bekas sebelum dilepaskan kembali ke lingkungan. Instalasi ini memainkan peran penting dalam melindungi sumber daya air dan...
Baca lebih lanjut

GAMBARAN UMUM

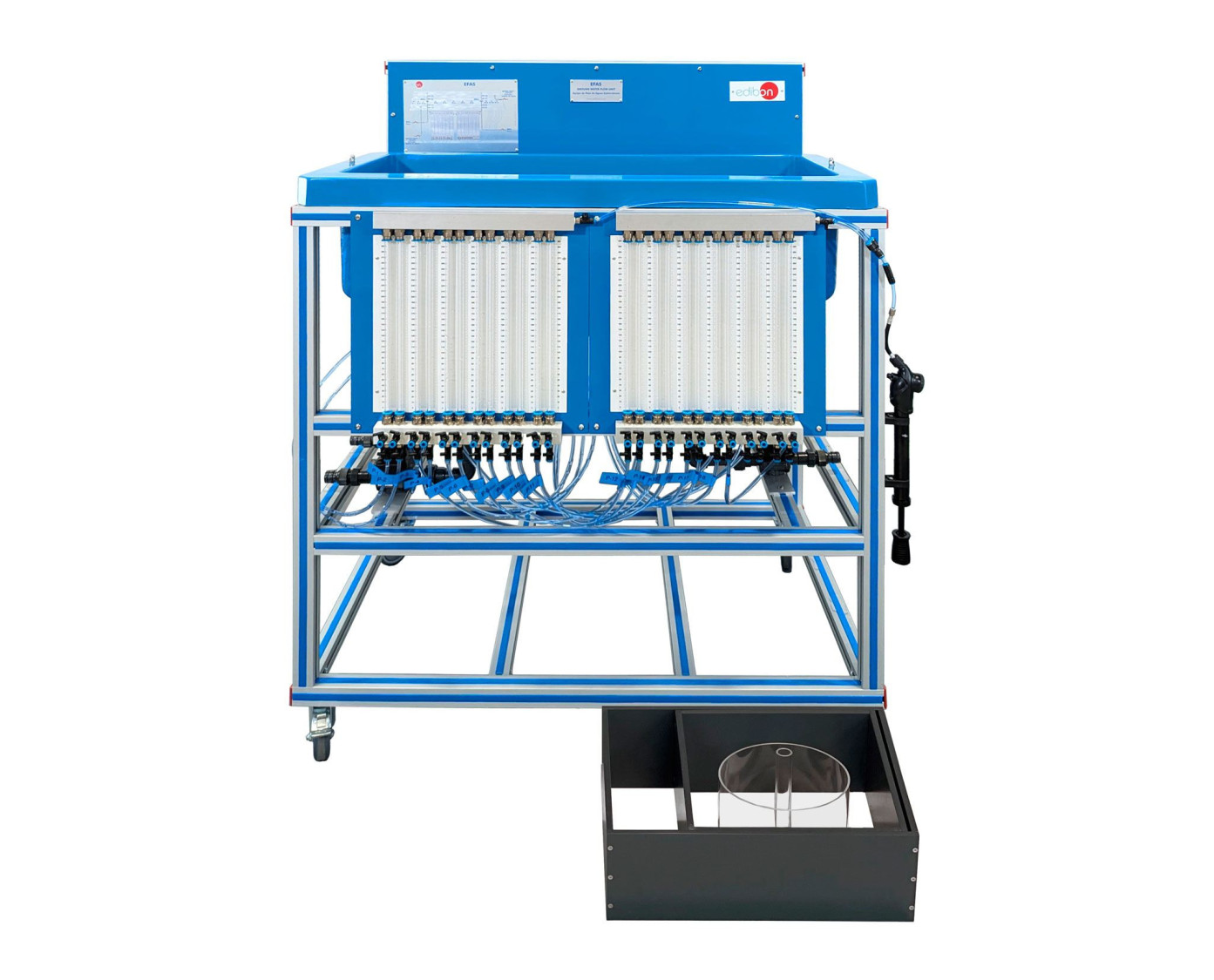

The Ground Water Flow Unit, "EFAS", designed by EDIBON, is composed of a test tank that will be filled with fine grave or sand to construct to develop different models. The entry of water into the tank is done through two inlets, each of them located at each end. The flow of each water inlet is controlled by a membrane valve, which is easily accessible for the user. Inlets end inside the tank in a diffuser shape to affect the least possible the created model.

In the base of the test tank there are two wells simmetrically located. The wells outlets, located at the bottom part of the tank, have a membrane valve, that allows the regulation of the outletflows. Well have a spillway in their upper partto avoid floods.

The unit includes nineteen tappings in the base of the test tank, configured in cross shape . Pressure of the nineteen tappings can be seen in two manometers panels. The tappings have a sediments picking system to avoid them to reach the measuring elements. Under each tapping there is a plug which has to be removed regularly to extract the sand accumulated in it.

This unit is supplied with three accessories that make it easy the construction of the different models object of study:

  1. Model for a lake construction.
  2. Model for an excavation construction.
  3. Model for a confined aquifer construction.

In addition to the demonstrations and exercises proposed (see "Exercises and Practical Possibilities" section), instructors andstudents may contrutfurther model situations for study.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Suction cone in an absorption well.
  2. Interaction of cones of depression by two adjoining wells.
  3. Study of the depression cone for a well in a confined aquifer.
  4. De-watering of an excavation model under freatic level.
  5. Draining of or lake model.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Demonstration of hydraulic gradients in ground water flow, including the effect of permeability.
  2. Investigation of hydraulic gradients for different models built on the test tank.
  3. Determination of the ground water level between inlet and outlet.
  4. Demonstration of the Darcy’s law.
  5. Study of the cone of depression for a well in a free aquifer.
  6. Study of the cone of depression cone for two wells.
  7. Experiment to obtain hydraulic gradients for a model with two wells. Compare it with the result of only one well by the superposition method.
  8. De-watering of an excavation model using two wells.
  9. Interaction of cones of depression by two adjoining wells.
  10. Draw-down curves for one well and two wells systems.
  11. Comparison of different profiles, combinations.
  12. Filling of the manometric tubes.
