9.8.- MESIN TERMAL

Mesin termal adalah sekumpulan elemen mekanis yang melakukan pekerjaan melalui proses siklik di mana energi melintasi dari fokus panas ke fokus dingin melalui fluida yang dapat dimampatkan.

Lihat Lebih Banyak

Pada mesin termal, perubahan massa jenis yang signifikan terjadi pada fluida kerja saat melewati mesin. Sebaliknya, perubahan ini dapat diabaikan pada mesin hidrolik.

Ada beberapa kriteria untuk klasifikasi mesin termal:

  • Menurut arah transfer energi: mesin motor atau pembangkit
  • Bergantung pada formasi: berputar atau alternatif.
  • Bergantung pada kontinuitas aliran: volumetrik atau aliran kontinu.
  • Bergantung pada tempat pembakaran: pembakaran luar atau pembakaran dalam.

Mesin pembangkit termal terpenting adalah:

  • Turbin : Ini adalah mesin berputar yang dilalui fluida secara terus menerus dan mentransmisikan energinya melalui poros. Tekanan fluida berkurang saat melewati bilah mesin, membuatnya berputar.
  • Mesin pembakaran dalam: seperti namanya, ini adalah jenis mesin yang memperoleh energi mekanik langsung dari hasil pembakaran bahan bakar di dalam sebuah ruang. Yang paling umum adalah mesin bolak-balik (siklus Otto), mesin diesel (siklus diesel) dan Stirling.
  • Mesin uap: ini adalah mesin pembakaran eksternal yang mengubah energi termal menjadi energi mekanik. Ini adalah mesin yang digunakan di pembangkit listrik.

Mesin termal digunakan untuk siklus daya. Mereka dapat digunakan untuk siklus di pembangkit listrik, seperti siklus Rankine untuk uap, atau untuk propulsi dengan siklus Brayton saat bekerja dengan gas.

Lihat Produk
MESIN TERMAL UNITS
Menampilkan 1 -9 dari 9 produk

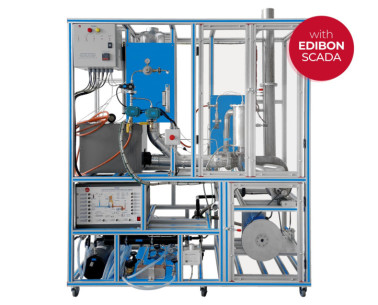

COMPUTER CONTROLLED TWO -SHAFT GAS TURBINE - TGDEC
  • TGDEC
Available
5.4.- ENERGI KONVENSIONAL
TGDEC

Computer Controlled Two -Shaft Gas Turbine

The main element of the Computer Controlled Two-Shaft Gas Turbine "TGDEC" is the High Pressure Turbine, which is also called Gas Generative Turbine. It consists of:Radial compressor, which is feeded by atmospheric air to compress it.Tubular...
COMPUTER CONTROLLED TWO-SHAFT GAS TURBINE/ JET ENGINE - TGDEPC
  • TGDEPC
Available
5.4.- ENERGI KONVENSIONAL
TGDEPC

Computer Controlled Two-Shaft Gas Turbine/ Jet Engine

The main element of the Computer Controlled Two-Shaft Gas Turbine/ Jet Engine, "TGDEPC", is the High Pressure Turbine, which is also called Gas Generative Turbine. It consists of:Radial compressor, which is feeded by atmospheric air to compress...
COMPUTER CONTROLLED AXIAL FLOW GAS TURBINE/ JET ENGINE - TGFAC
  • TGFAC
Available
9.9.- MESIN PEMBAKARAN INTERNAL
TGFAC

Computer Controlled Axial Flow Gas Turbine/ Jet Engine

The main element of the "TGFAC" unit is the gas turbine, which consists of:Axial compressor, supplied by atmospheric air that will be compressed afterwards.Annular combustion chamber, where fuel is added to the compressed air and that mixture is...
COMPUTER CONTROLLED SOLAR/HEAT SOURCE VAPOUR TURBINE - HTVC
  • HTVC
Available
5.3.10.- TURBIN STEAM DAN SIKLUS RANKINE ORGANIK
HTVC

Computer Controlled Solar/Heat Source Vapour Turbine

The Computer Controlled Solar/Heat Source Vapour Turbine, "HTVC", has been designed to provide an easily understood vapour power plant and to demonstrate, on a lab scale, the ability to produce shaft power from Solar Radiation.It is a bench-top...
COMPUTER CONTROLLED STIRLING MOTOR - TMSC
  • TMSC
Available
5.3.11.- SISTEM NON-KONVENSIONAL LAINNYA
TMSC

Unit Komputer Kontrol Motor Stirling.

The Computer Controlled Stirling Motor, "TMSC", is used to demonstrate the operation of a thermodynamic machine for the conversion of energy. It converts thermal energy into mechanical energy and operates as a motor (heat engine). Additionally it...

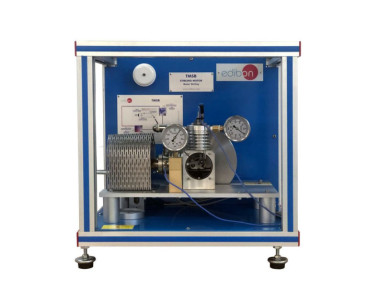

STIRLING MOTOR - TMSB
  • TMSB
Available
9.8.- MESIN TERMAL
TMSB

Unit Motor Stirling.

The Stirling Motor, "TMSB", is used to demonstrate the operation of a thermodynamic machine for the conversion of energy. It converts thermal energy into mechanical energy and operates as a motor (heat engine). Additionally it can operate an...
COMPUTER CONTROLLED 1.5 KW STEAM POWER PLANT - TPTVC/1.5kW
  • TPTVC/1.5kW
Available
5.3.10.- TURBIN STEAM DAN SIKLUS RANKINE ORGANIK
TPTVC/1.5kW

Computer Controlled 1.5 kW Steam Power Plant

The Computer Controlled 1.5kW Steam Power Plant, "TPTVC/1.5kW", represents a laboratory scale power plant, guaranteeing a great similarity with a real system. It offers many practical exercises to familiarize the student with the operation...
COMPUTER CONTROLLED STEAM POWER PLANT ADJUSTABLE UP TO 20 KW - TPTVC/20kW
  • TPTVC/20kW
Available
5.3.10.- TURBIN STEAM DAN SIKLUS RANKINE ORGANIK
TPTVC/20kW

Computer Controlled Steam Power Plant Adjustable up to 20 kW

The Computer Controlled Steam Power Plant Adjustable up to 20 kW, "TPTVC/20kW", represents a laboratory scale power plant, guaranteeing a great similarity with a real system. It offers many practical exercises to familiarize the student with the...
Meminta informasi
