RSES Simulator Hujan untuk Studi Erosi Tanah

13.1.- HIDROLOGI DAN HIDROGEOLOGI
RAINFALL SIMULATOR FOR SOIL EROSION STUDIES - RSES

SISTEM INOVATIF

The Rainfall Simulator for Soil Erosion Studies, "RSES", designed by EDIBON, allows to investigate and study the relationship between rainfall and erosion in different types of soils, to estimate soil loss and infiltration in storms of different intensities and to identify methods by which erosion can be prevented.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

BERITA TERKAIT

CO₂ adsorption: a current necessity
CO₂ adsorption: a current necessity
In a world where climate change represents one of the greatest threats to our future, carbon dioxide (CO2) adsorption has become an urgent priority. The increasing concentration of CO2 in the atmosphere, primarily driven by human activities such as fossil fuel combustion and deforestation, has...
Baca lebih lanjut
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Penangkapan Udara Langsung: Teknologi Kunci dalam Perang Melawan Perubahan Iklim
Penangkapan Udara Langsung: Teknologi Kunci dalam Perang Melawan Perubahan Iklim
Direct Air Capture (DAC) adalah teknologi inovatif yang menghilangkan CO₂ langsung dari udara menggunakan reaksi kimia dengan pelarut cair atau penyerap padat. Meskipun menghadapi tantangan seperti biaya tinggi dan konsumsi energi, DAC menawarkan solusi potensial untuk mengurangi konsentrasi CO₂...
Baca lebih lanjut
Memahami dan Meningkatkan Sistem Pengolahan Air Minum
Memahami dan Meningkatkan Sistem Pengolahan Air Minum
Instalasi Pengolahan Air Limbah Sementara pabrik pengolahan air minum berfokus pada penyediaan air minum yang aman, instalasi pengolahan air limbah menangani pengolahan air bekas sebelum dilepaskan kembali ke lingkungan. Instalasi ini memainkan peran penting dalam melindungi sumber daya air dan...
Baca lebih lanjut

GAMBARAN UMUM

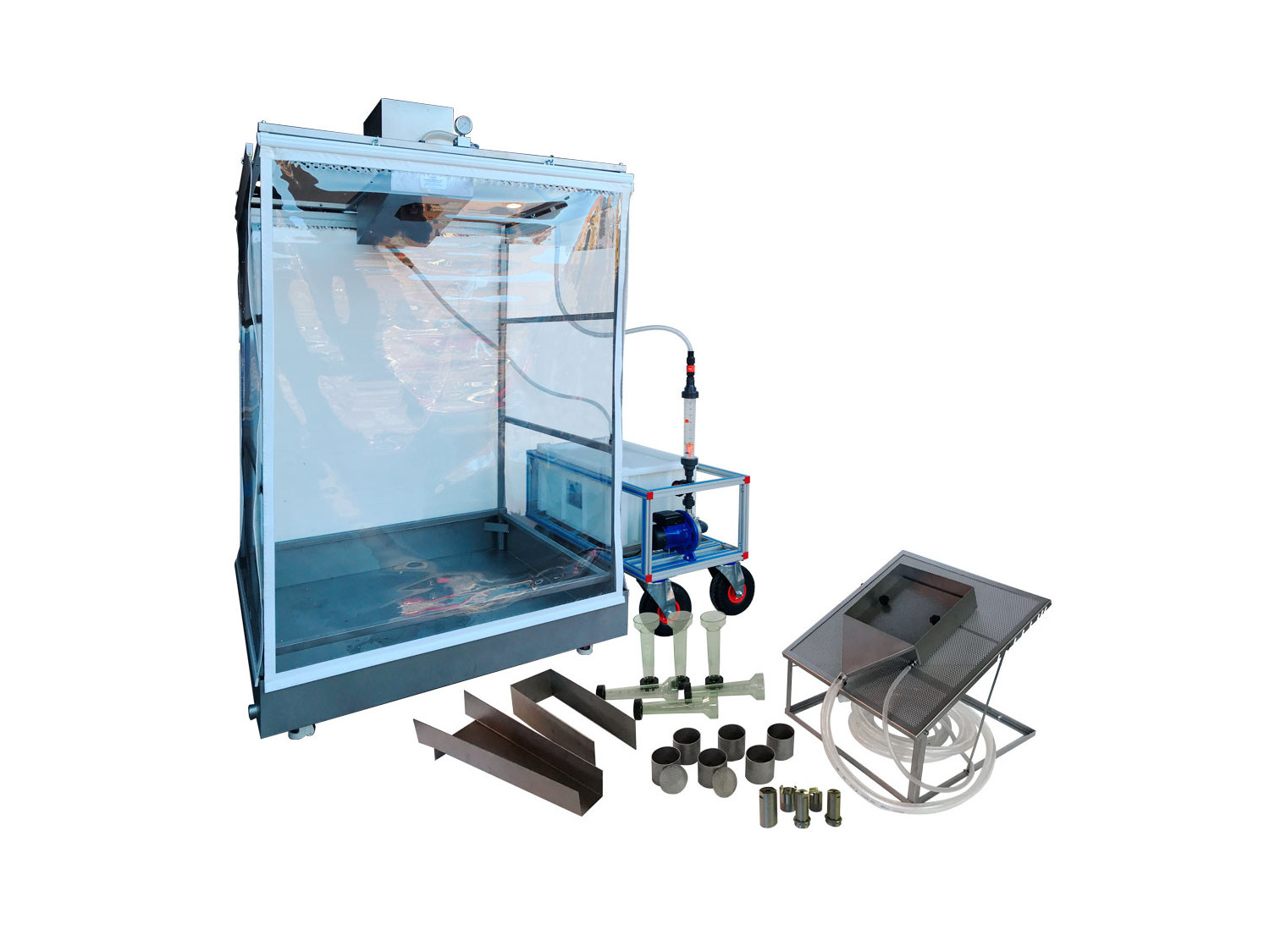

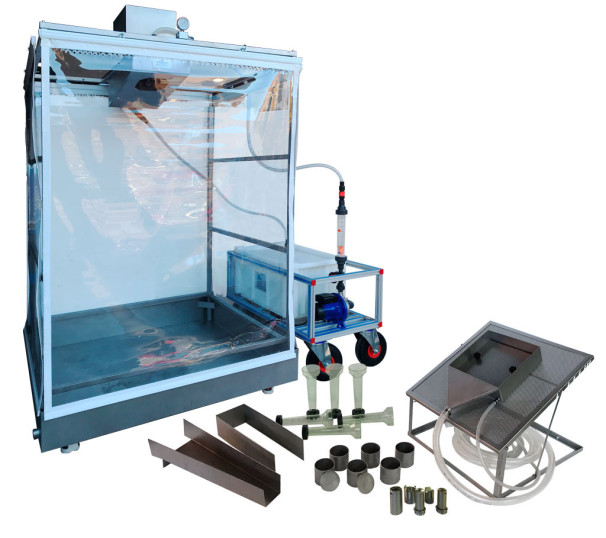

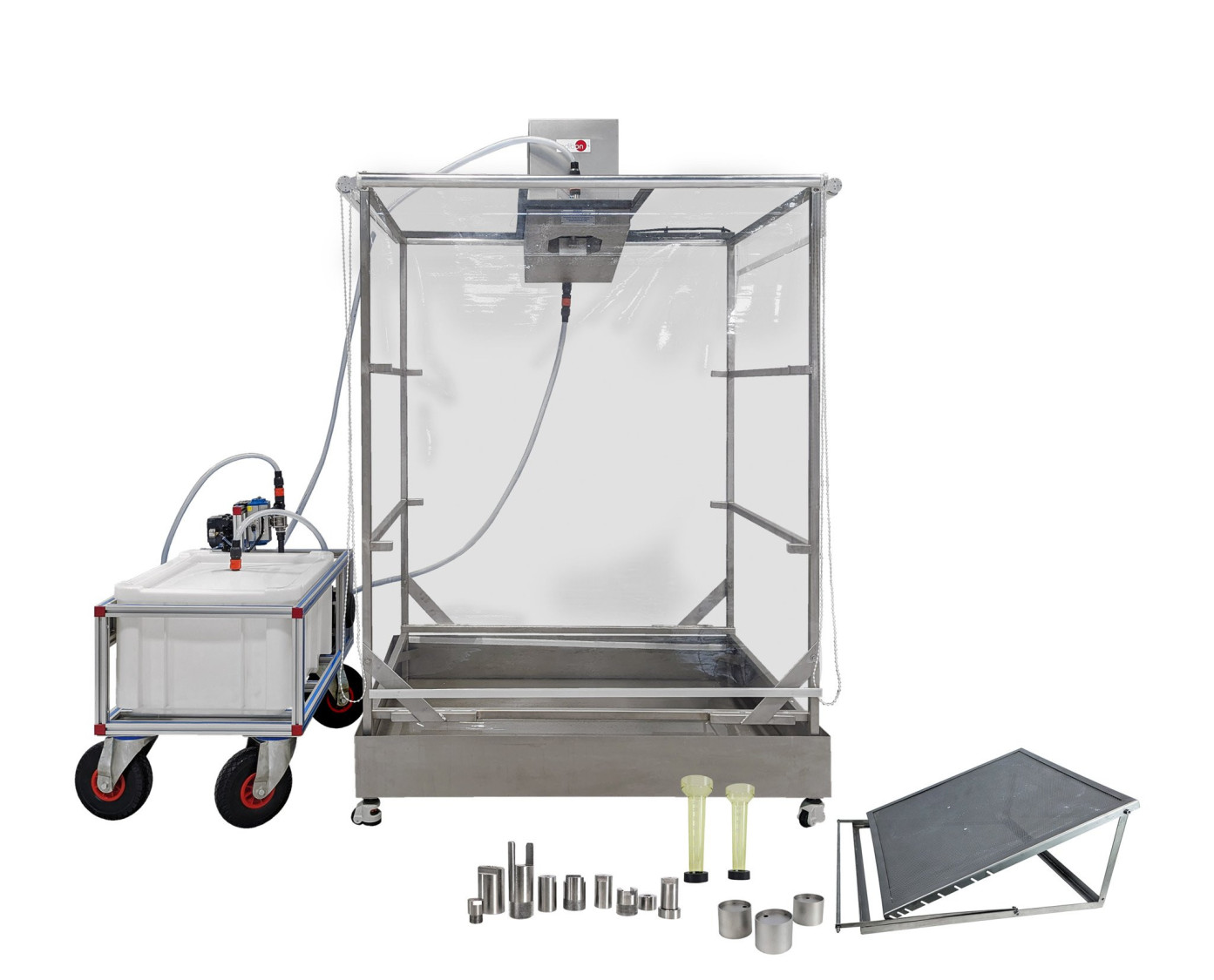

The Rainfall Simulator for Soil Erosion Studies, "RSES", designed by EDIBON, consists of a metal frame that can be placed directly on the ground for direct field studies or used with its various accessories for laboratory tests. The whole structure is covered with a transparent curtain to avoid splashing.

At the top is supported the rain spray device consisting of a spray nozzle and a horizontal rotating disk controlled by a variable speed motor allowing to obtain variations in the intensities of the induced precipitation. The water coming out of the nozzle hits the rotating disc, which is formed by two circular plates, with segmented openings allowing the adjustment of the opening for the water fall.

A water storage tank with level switch is included, from which water is pumped to the rain sprinkler by means of a pump and a regulating valve. The water is metered by means of a flow meter.

Depending on the opening of the rotating disc, a certain amount of incoming water is sprayed and the rest is recirculated back to the tank.

Different accessories such as rain gauges, different test plots, tilting stand, etc. are included.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Comparative analysis of different simulated rainstorms.
  2. Estimation of soil loss and infiltration in different soil types.
  3. Estimation of soil loss and infiltration under rainstorms of varying intensities.
  4. Estimation of soil loss and infiltration by varying the soil slope.
  5. Determination of the kinetic energy of rain at different intensities.
  6. Analysis of the relationship between erosion and the intensity of the simulated rainfall.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Investigate the nature of soil erosion potential in different soil types.
  2. Study methods by which soil erosion can be prevented.
