2.2.- KITS UNTUK SIRKUIT PERAKITAN

Fase pengembangan elektronik perangkat adalah sekumpulan tahapan yang dilakukan untuk mendapatkan produk yang memenuhi spesifikasi yang diperlukan.

Lihat Lebih Banyak

Tahapan paling khas dari setiap pengembangan perangkat elektronik adalah: menentukan spesifikasi peralatan, merancang sirkuit elektronik yang berbeda yang akan dibutuhkan perangkat (sirkuit catu daya, sirkuit kontrol, sirkuit daya, sirkuit pemfilter sinyal, sirkuit osilator, sirkuit isolasi antara sirkuit daya dan sirkuit sinyal, sirkuit pengkondisian sinyal analog, sirkuit amplifier, sirkuit coder atau decoder, dll.), menghitung karakteristik dari komponen setiap sirkuit, simulasi pengoperasian sirkuit elektronik peralatan, pengujian sirkuit yang berbeda satu per satu, mengembangkan prototipe produk dan, terakhir, membuat produk akhir.

Tahapan pengembangan pengujian dan pembuatan prototipe dari sirkuit elektronik adalah salah satu langkah kunci dalam desain atau desain ulang elektronik sirkuit.

Dulu, pengujian ini dilakukan dengan merakit dan menyolder komponen pada PCB kosong, tetapi berkat standarisasi komponen, bersamaan dengan munculnya prototipe papan tempat memotong roti atau papan protoboard sirkuit dapat dibuat tanpa penyolderan, yang sangat memudahkan konstruksi sirkuit yang akan diuji.

Lihat Produk
KITS UNTUK SIRKUIT PERAKITAN UNITS
Menampilkan 1 -18 dari 18 produk
DIRECT CURRENT (DC) CIRCUITS KIT - M1/KIT
Available
2.2.- KITS UNTUK SIRKUIT PERAKITAN
M1/KIT
Rangkaian Arus Searah (D.C.)
Aksesori dari M-KITS
With the Direct Current (DC) Circuits Kit, "M1/KIT", designed by EDIBON, you can begin to study the basic principles of direct current.

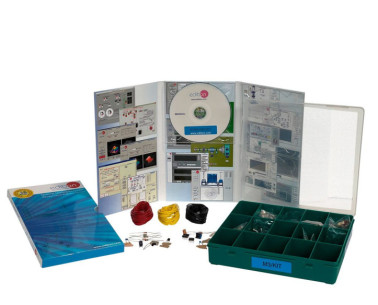

SEMICONDUCTORS I. KIT - M3/KIT
Available
2.2.- KITS UNTUK SIRKUIT PERAKITAN
M3/KIT
Semikonduktor I
Aksesori dari M-KITS
With Semiconductors I Kit, "M3/KIT", designed by EDIBON, the basic concepts of diodes can be studied, at the same time as the student will be asked to carry out a series of assemblies on the practice board to consolidate his knowledge of PN-type...
SEMICONDUCTORS II. KIT - M4/KIT
Available
2.2.- KITS UNTUK SIRKUIT PERAKITAN
M4/KIT
Semikonduktor II
Aksesori dari M-KITS
With Semiconductors II Kit, "M4/KIT", designed by EDIBON, semiconductors can be studied by extending the knowledge acquired in the basic module "M3/KIT".

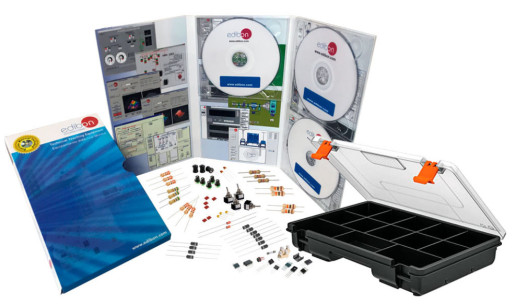

POWER SUPPLIES KIT - M5/KIT
Available
2.2.- KITS UNTUK SIRKUIT PERAKITAN
M5/KIT
Power Supplies Kit
Aksesori dari M-KITS
With the Power Supplies Kit "M5/KIT", designed by EDIBON, symmetrical voltage regulators, operation of fixed, symmetrical and switched-mode power supplies as well as rectification (conversion of an AC voltage to a DC voltage) can be studied.
OSCILLATORS KIT - M6/KIT
Available
2.2.- KITS UNTUK SIRKUIT PERAKITAN
M6/KIT
Osilator Kit
Aksesori dari M-KITS
With the Oscillators Kit, "M6/KIT", designed by EDIBON, the different oscillators can be studied: RC and LC network oscillators, Wein bridge, Colpitts, Hartley and the astable multivibrator.
OPERATIONAL AMPLIFIERS KIT - M7/KIT
Available
2.2.- KITS UNTUK SIRKUIT PERAKITAN
M7/KIT
Operasi Penguat
Aksesori dari M-KITS
With Operational Amplifiers Kit, "M7/KIT", designed by EDIBON, the different amplifiers can be studied: inverting, non-inverting, additive, differential and comparators.

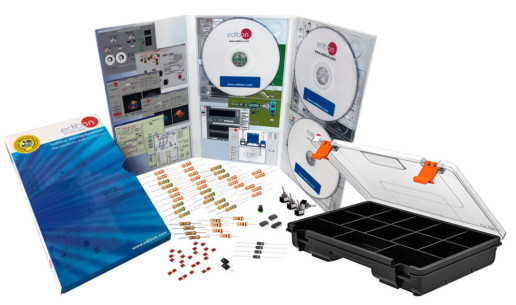

FILTERS KIT - M8/KIT
Available
2.2.- KITS UNTUK SIRKUIT PERAKITAN
M8/KIT
Filters Kit
Aksesori dari M-KITS
With Filters Kit, "M8/KIT", designed by EDIBON, the different types of filters can be studied: RC and LC, in "T" type configuration, active filters and also study associations of one and others in order to be able to practice with more complex...
POWER ELECTRONICS KIT - M9/KIT
Available
2.2.- KITS UNTUK SIRKUIT PERAKITAN
M9/KIT
Power Electronics Kit
Aksesori dari M-KITS
With Power Electronics Kit, "M9/KIT", designed by EDIBON, the operation of MOSFET transistors, thyristors, TRIACs, etc. can be studied.
DIGITAL SYSTEMS AND CONVERTERS KIT - M10/KIT
Available
2.2.- KITS UNTUK SIRKUIT PERAKITAN
M10/KIT
Sistem Digital & Konverter
Aksesori dari M-KITS
With Digital Systems and Converters Kit, "M10/KIT", designed by EDIBON, the behaviour of BCD/Binary counters, comparators and analogue integrators can be studied, as well as analogue/digital conversion and viceversa.

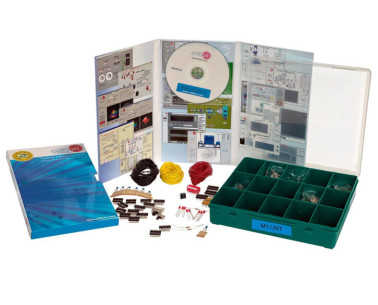

DIGITAL ELECTRONIC FUNDAMENTALS KIT - M11/KIT
Available
2.2.- KITS UNTUK SIRKUIT PERAKITAN
M11/KIT
Digital Electronic Fundamentals Kit
Aksesori dari M-KITS
With Digital Electronic Fundamentals Kit, "M11/KIT", designed by EDIBON, numbering systems, logic circuits, TTL gates, CMOS, Boolean algebra, etc. can be studied.

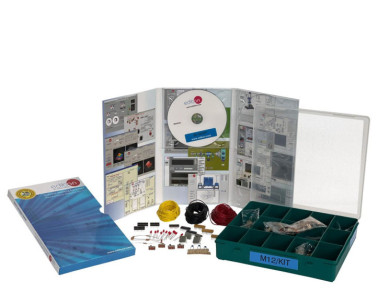

BASIC COMBINATIONAL CIRCUITS KIT - M12/KIT
Available
2.2.- KITS UNTUK SIRKUIT PERAKITAN
M12/KIT
Rangkaian Kombinasi Dasar
Aksesori dari M-KITS
With Basic Combinational Circuits Kit, "M12/KIT", designed by EDIBON, encoders, decoders, multiplexers, demultiplexers, digital comparators and arithmetic and logical operations can be studied.

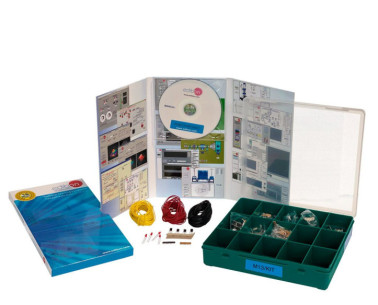

BASIC SEQUENTIAL CIRCUITS KIT - M13/KIT
Available
2.2.- KITS UNTUK SIRKUIT PERAKITAN
M13/KIT
Rangkaian Berurutan Dasar
Aksesori dari M-KITS
With Basic Sequential Circuits Kit, "M13/KIT", designed by EDIBON, all types of bistables, counters, flip-flops, synchronous sequential circuits and the operation of memories can be studied.

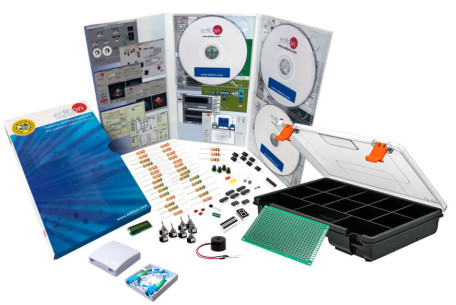

OPTOELECTRONICS KIT - M14/KIT
Available
2.2.- KITS UNTUK SIRKUIT PERAKITAN
M14/KIT
Optoelektronik
Aksesori dari M-KITS
With Optoelectronics Kit, "M14/KIT", designed by EDIBON, the main light emitters and liquid crystal displays (LCD), photoconductive cells, fibre optics, infrared, etc. can be studied.
ELECTRIC NETWORKS KIT - M16/KIT
Available
2.2.- KITS UNTUK SIRKUIT PERAKITAN
M16/KIT
Jaringan Listrik
Aksesori dari M-KITS
With the Electric Networks Kit, "M16/KIT", designed by EDIBON, it is possible to understand the principles of Ohm’s Law, Norton’s and Thévenin’s Theorem, Wheatstone bridge operation, superposition theorems or star/delta transformation and viceversa.

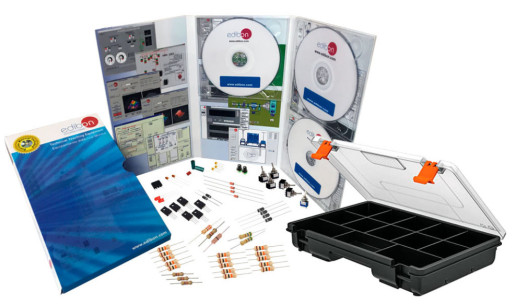

THREE-PHASE CIRCUITS KIT - M18/KIT
Available
2.2.- KITS UNTUK SIRKUIT PERAKITAN
M18/KIT
Three-phase Circuits Kit
Aksesori dari M-KITS
The Three-phase Circuits Kit, "M18/KIT", designed by EDIBON, is used to study the generation of three-phase systems, load balancing between phases, operation of three-phase rectifiers, etc.
