8.1.3.- HIDROSTATIS

Hydraulics is the branch of science that deals with the mechanical properties of fluids, and Fluid Mechanics provides the foundation for hydraulics.With LIFLUBA (Basic Fluids Mechanics Integrated Laboratory), EDIBON tries to give answer to the...

The Surface Pressure Unit, "FME08", designed by EDIBON, allows to study the center of pressures with a partially or totally submerged quadrant.This unit consists of a quadrant mounted on the arm of a balance that pivots around an axis.When the...

The Metacentric Height Demonstration Unit, "FME11", designed by EDIBON, allows the study of the stability of a floating object by calculating its metacentric height.The unit consists of a floating methacrylate prismatic base, on which a vertical...

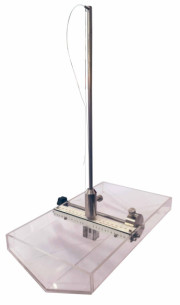

The Metacentric Height Demostration of a "V" Shaped Floating Object, "FME11-A", designed by EDIBON, allows the study of the stability of a floating object by calculating the metacentric height of a floating object starting from a V-shaped floating...

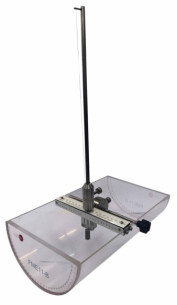

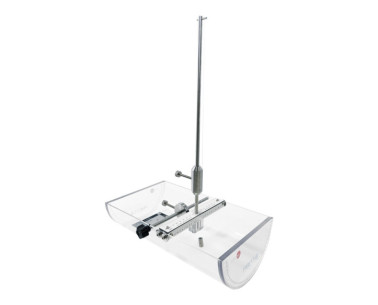

The Metacentric Height Demostration of a "U" Shaped Floating Object, "FME11-B", designed by EDIBON, allows the study of the stability of a floating object by calculating its metacentric height starting from a U-shaped floating body.The unit...

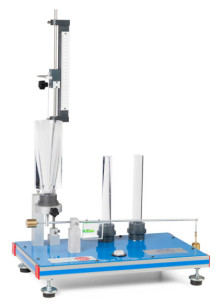

The Pascal's Principle Demonstration Unit, "FME33", designed by EDIBON, allows to demonstrate Pascal's principle, i.e. that the pressure in an incompressible fluid is independent of the column size section but depends only on its height (liquid...

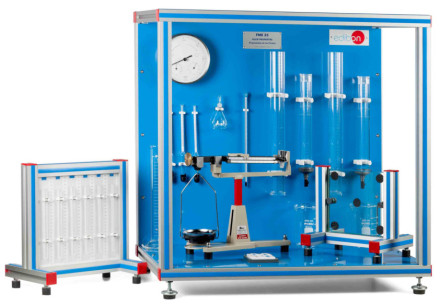

The Fluid Properties Unit, "FME35", designed by EDIBON, allows the study of the fluids fundamental properties that affect their behavior in practical applications.We can study capillarity, density and relative density (specific gravity), buoyancy...

BDAS is designed to monitor the measurements of each unit type "FME" from a computer (PC).This system can monitor any unit, checking the revolutions given by the water pump or the torque, differential pressures for Bernoulli theorems, pressure...
