KNX LIGHTING CONTROL TRAINING APPLICATION - AEL-KNX-LIC

SISTEM INOVATIF

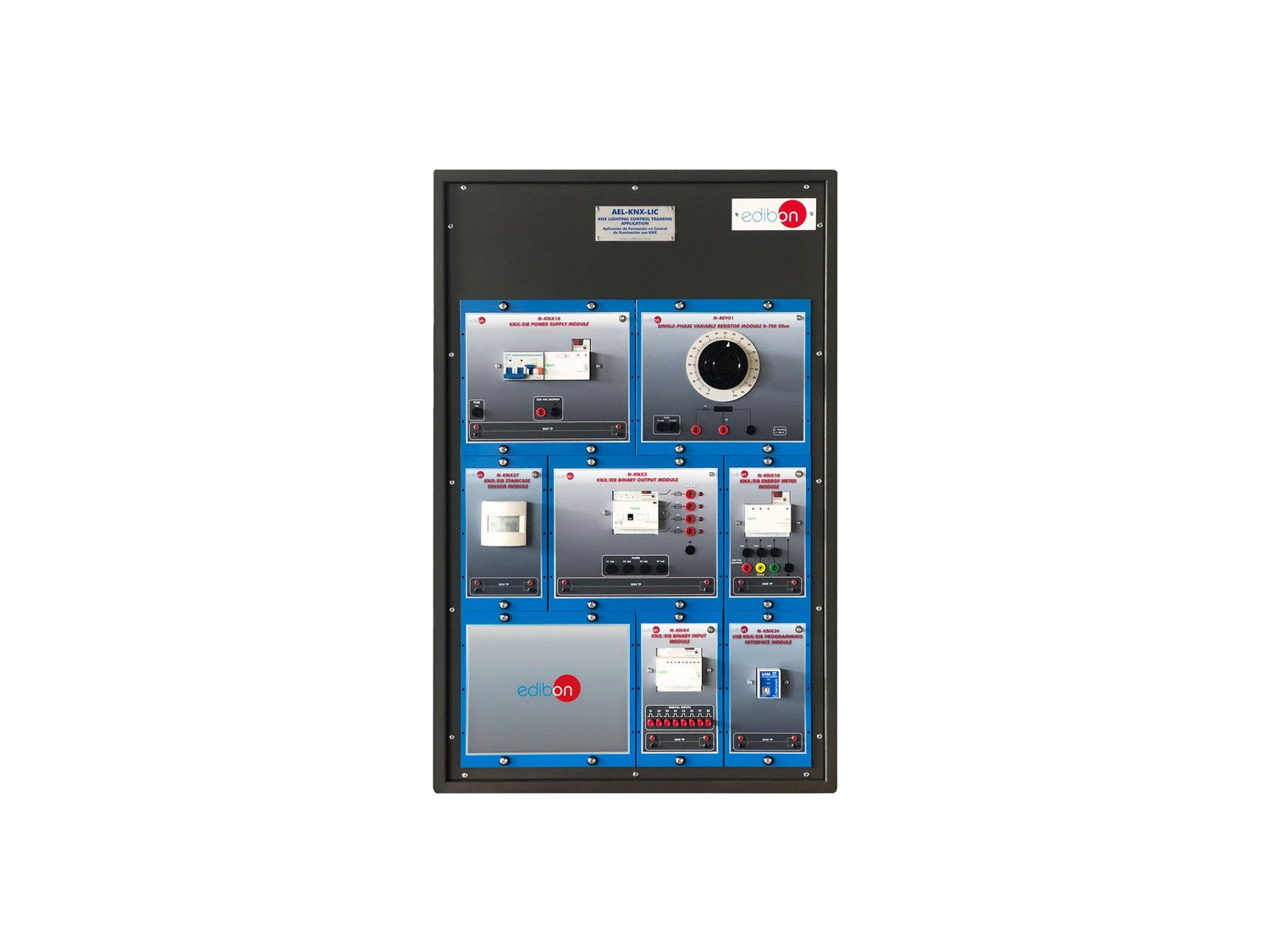

The AEL-KNX-LIC is an application designed to facilitate the study and understanding of KNX wiring practices specifically tailored for lighting control systems. This unit serves as a valuable tool for educational and professional purposes, providing hands-on experience and knowledge of the wiring, programming and commissioning techniques associated with KNX technology in the context of lighting control applications.

Lihat uraian umum

BERITA TERKAIT

What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
Baca lebih lanjut

GAMBARAN UMUM

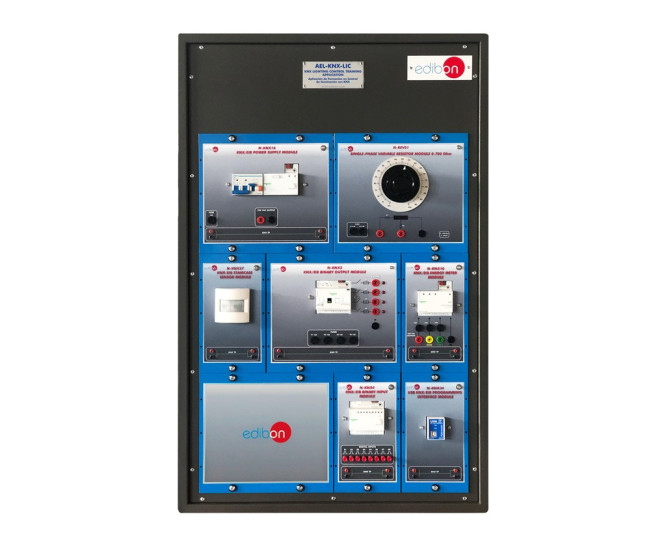

The AEL-KNX-LIC is an application designed to facilitate the study and understanding of KNX wiring practices specifically tailored for lighting control systems. This unit serves as a valuable tool for educational and professional purposes, providing hands-on experience and knowledge of the wiring, programming and commissioning techniques associated with KNX technology in the context of lighting control applications. Direct dimming via lighting sensors and push buttons, use of KNX/DALI gateways for the integration of this technology in KNX lighting projects.
