FME28 Turbin Perancis

8.1.7.- MESIN HIDROLIK: TURBIN
FRANCIS TURBINE - FME28

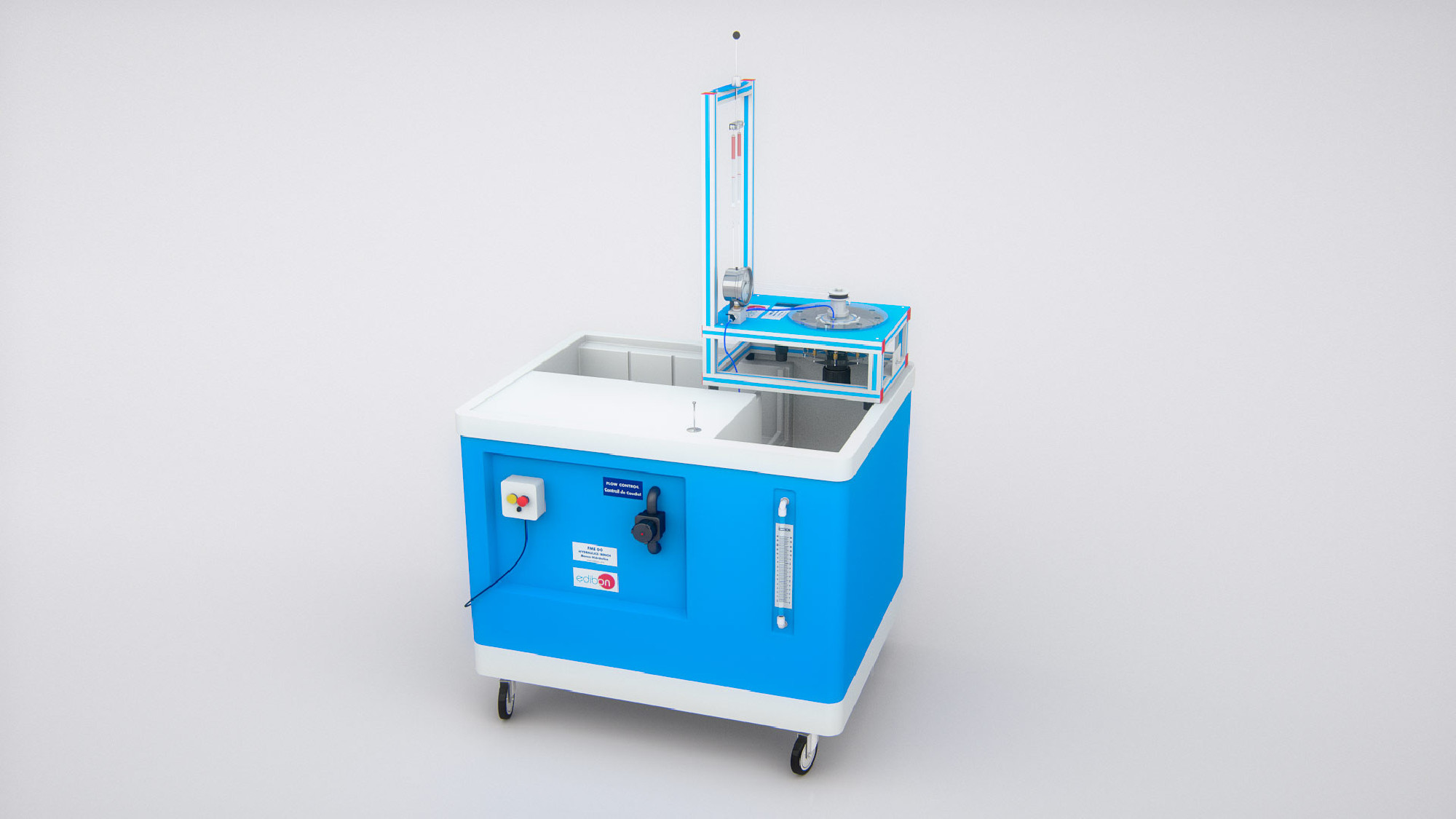

Complete FME28 Unit

FRANCIS TURBINE - FME28

FME28 Unit with service unit FME00

FRANCIS TURBINE - FME28
FRANCIS TURBINE - FME28

SISTEM INOVATIF

The Francis Turbine unit, "FME28", designed by EDIBON, consists on a miniature Francis turbine. The water inlet flow is controlled by a valve situated in the Hydraulics Bench (FME00) or Basic Hydraulic Feed System (FME00/B).

Lihat uraian umum
Katalog Katalog
Spesifikasi Kontes
Meminta informasi

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
MSAC

Sistem Pencacahan dan Pengendalian Modular

Laboratorium

8TV
 Laboratorium Mekanika Fluida untuk Pendidikan Teknik dan Kejuruan
8HE
 Laboratorium Mekanika Fluida untuk Perguruan Tinggi
11PTC
 Laboratorium Pusat Pelatihan Perminyakan

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Baca lebih lanjut

GAMBARAN UMUM

The Francis Turbine unit, "FME28", designed by EDIBON, consists on a miniature Francis turbine. The water inlet flow is controlled by a valve situated in the Hydraulics Bench (FME00) or Basic Hydraulic Feed System (FME00/B).

It includes a distributor with adjustable guide vanes that allow for control of the water angle of incidence in the turbine. To adjust the turbine distributor, the unit has a lever on the front of the same. It also has a braking system, connected to two dynamometers, that allows to vary the load supplied to the turbine.

The inlet pressure of the turbine is measured with a manometer situated at the turbine inlet. The feed or spiral chamber is provided with a damping cover and two tubes to avoid water overflow. Its name indicates that it is spiral-shaped and for this reason it is known as snail chamber. Thanks to its design, the water flows at a constant velocity without forming swirls. This way, there are no load losses. The turbine’s axis velocity is determined by a tachometer.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. To determine the operating characteristics of a Francis turbine at different velocities.
  2. Determination of the typical turbine curves (operating mechanical curves and operating hydraulic curves).
  3. Determination of the hydraulic operation curves.
  4. Obtaining dimensionless parameters of the turbine.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Turbine power output versus speed and flow rate at various heads.
  2. Effect of guide vane setting on turbine performance.

BARANG YANG DIBUTUHKAN

PERALATAN SIMILAR TERSEDIA

COMPUTER CONTROLLED FRANCIS TURBINE - TFC
  • TFC
Available
5.3.6.- ENERGI HIDROLIK
TFC
Turbin Francis, Dikendalikan dari Komputer (PC)
The Computer Controlled Francis Turbine, "TFC", designed by EDIBON, consists of a small-scale Francis turbine, with a valve that allows flow regulation and has a ring with adjustable guide vanes that allows control of the angle of incidence of the...
