FME27 Turbin Aliran Aksial

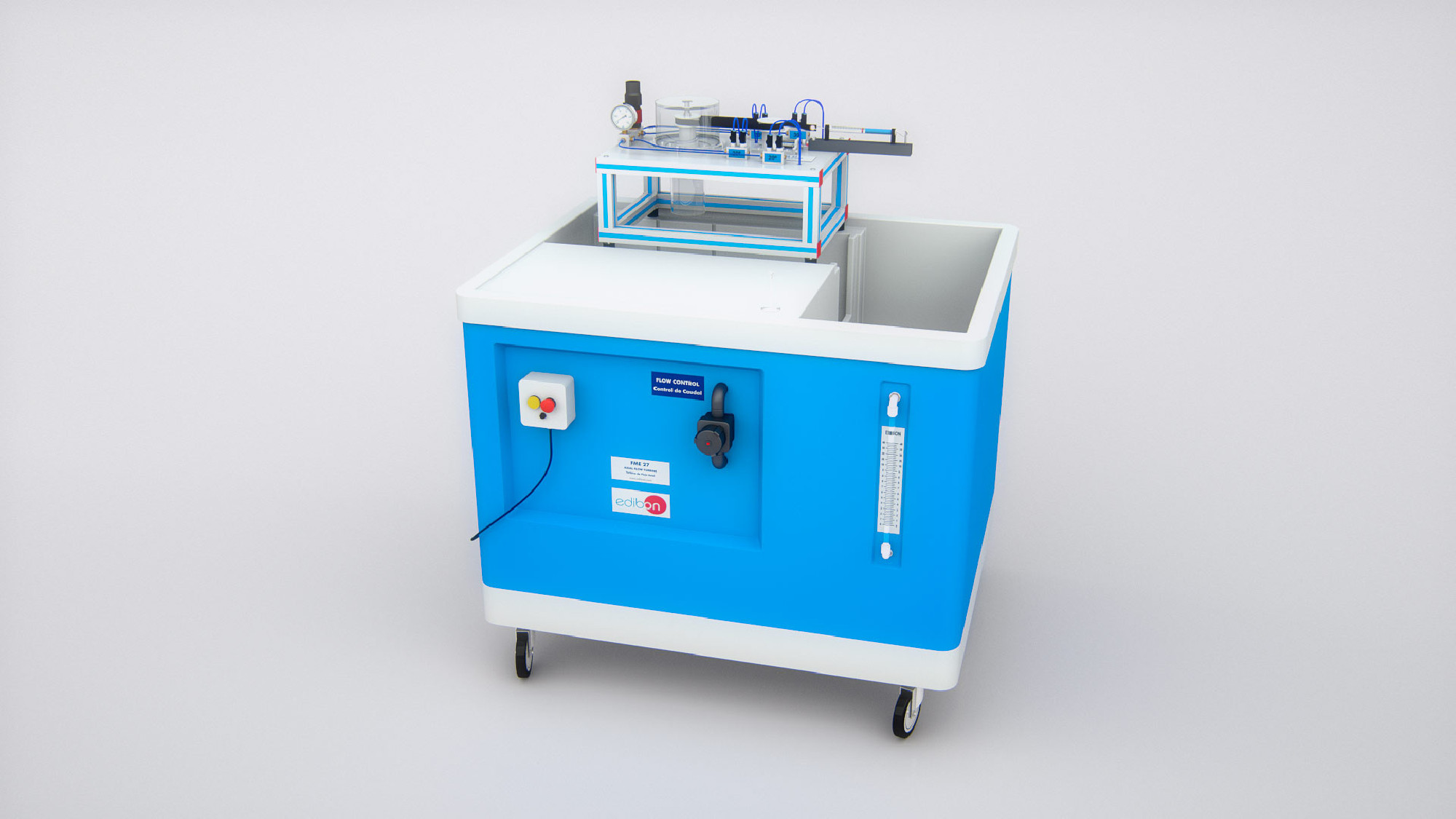

Complete FME27 Unit

FME27 Unit with service unit FME00

SISTEM INOVATIF

With the Axial Turbine, "FME27", designed by EDIBON, it is possible to study and to understand the axial flow turbines which, unlike the radial flow turbines, the working fluid is parallel to the axis of rotation.

Lihat uraian umum

Katalog

Spesifikasi Kontes

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

MSAC

Sistem Pencacahan dan Pengendalian Modular

Laboratorium

8TV

Laboratorium Mekanika Fluida untuk Pendidikan Teknik dan Kejuruan

8HE

Laboratorium Mekanika Fluida untuk Perguruan Tinggi

11PTC

Laboratorium Pusat Pelatihan Perminyakan

BERITA TERKAIT

GAMBARAN UMUM

This unit consists of an axial turbine in miniature with eight inclined nozzles at 20° and 30° degrees with respect to the perpendicular direction at the rotating axis.

The pallets of the turbine runner are clearly visible through the transparent tank.

A band brake connected to one load cell varying the load given to the turbine by means of a connection device.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

Flow calculation.
Determination of the discharge coefficient of the nozzle.
Determination of the curve N (Q,n), Pm (Q, n) and h (Q, n), (20° nozzle).
Determination of the curve N (Q,n), Pm (Q, n) and h (Q, n), (30° nozzle).
Adimensional analysis.

BARANG YANG DIBUTUHKAN

PERALATAN SIMILAR TERSEDIA

COMPUTER CONTROLLED AXIAL FLOW TURBINE - TFAC

TFAC

Available

5.3.6.- ENERGI HIDROLIK

TFAC

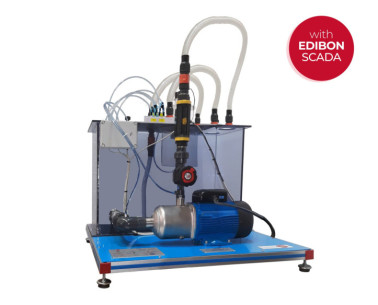

Computer Controlled Axial Flow Turbine
