WIT-PHS Praktik Pengkabelan Sistem Fotovoltaik
SISTEM INOVATIF

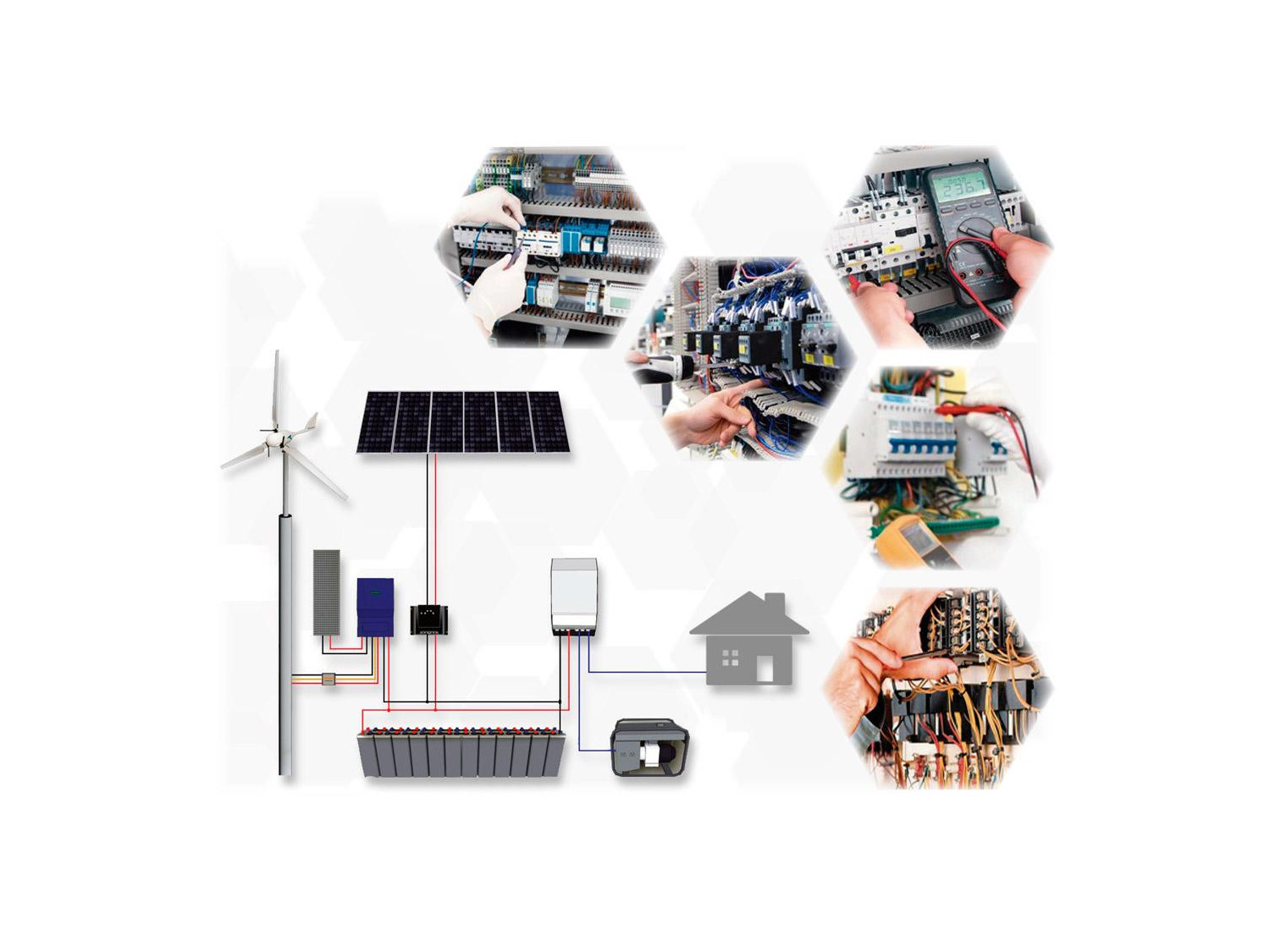

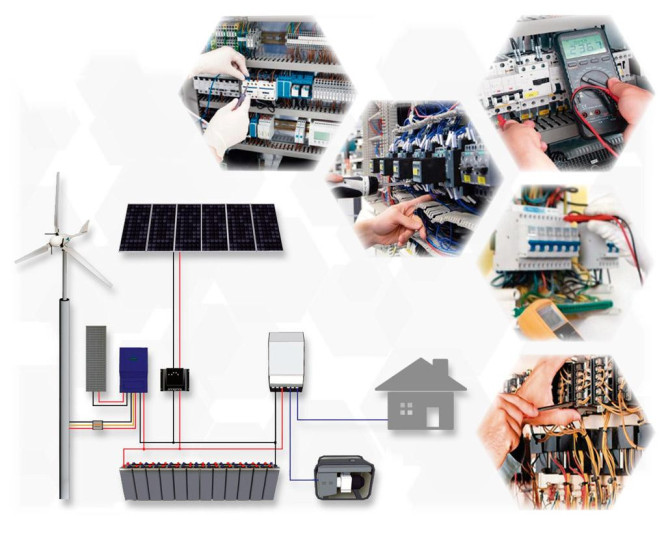

The Wiring Installation Training for Photovoltaic Systems, "WIT-PHS", has been designed by EDIBON for the training at professional practical level in the field of the installations, wiring and commissioning of photovoltaic solar energy systems.
BERITA TERKAIT
GAMBARAN UMUM
The Wiring Installation Training for Photovoltaic Systems, "WIT-PHS", has been designed by EDIBON for the training at professional practical level in the field of the installations, wiring and commissioning of photovoltaic solar energy systems.
This training system provides the future professionals with knowledge and essential skills on the assembly, installation, wiring and commissioning of a photovoltaic solar installation focused on residential and commercial applications. This system offers different kits to provide experience in the installation of stand-alone and connected to grid photovoltaic systems.
To acquire a complete knowledge, the system includes a specific manual in which is explained, at theoretical-practical level, the aspects concerning to the installation procedures, wiring and commissioning of these installations.
LATIHAN DAN PRAKTEK PEDOMAN
LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN
- Testing of open-circuit photovoltaic panel and measurement ofthe output voltage.
- Testing of short-circuit photovoltaic panel and measurement ofthe current.
- Wiring of the photovoltaic panel to the voltage regulator.
- Wiring of the battery to the voltage regulator.
- Wiring of the voltage regulator to the current inverter.
- Wiring of lighting loads.
- Wiring of DC photovoltaic stand-alone installation.
- Wiring of AC photovoltaic stand-alone installation.
- Wiring of AC photovoltaic on-grid installation.
- Installations and wiring in series of two photovoltaic panels.
- Installations and wiring in parallel of two photovoltaic panels.
- Checking and study of feeding from the battery.
- Electric loads influence in the electrical parameters of thesystem.
- Influence of photovoltaic panel inclination angle.
- Study of the influence of solar radiation in energy production.
LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT
- Several other exercises can be done and designed by the user.
