PRESSURE TEST MODULE - BS3

SISTEM INOVATIF

Pressure Test Module, "BS3", has been designed by EDIBON to teach the use and applications of this kind of sensors measurement systems. It shows the different pressure measurement techniques.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
EMSK

Kit Pengembangan Simulasi Sirkuit EDIBON, Didukung oleh NI LabVIEW™

Laboratorium

2TV
 Laboratorium Elektronika Pendidikan Teknik dan Kejuruan
2HE
 Laboratorium Elektronika untuk Perguruan Tinggi
11PTC
 Laboratorium Pusat Pelatihan Perminyakan

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Baca lebih lanjut

GAMBARAN UMUM

Pressure Test Module, "BS3", has been designed by EDIBON to teach the use and applications of this kind of sensors measurement systems. It shows the different pressure measurement techniques.

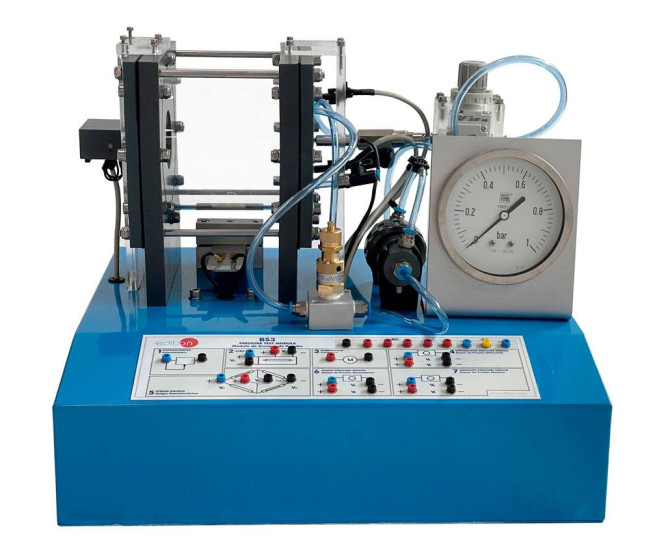

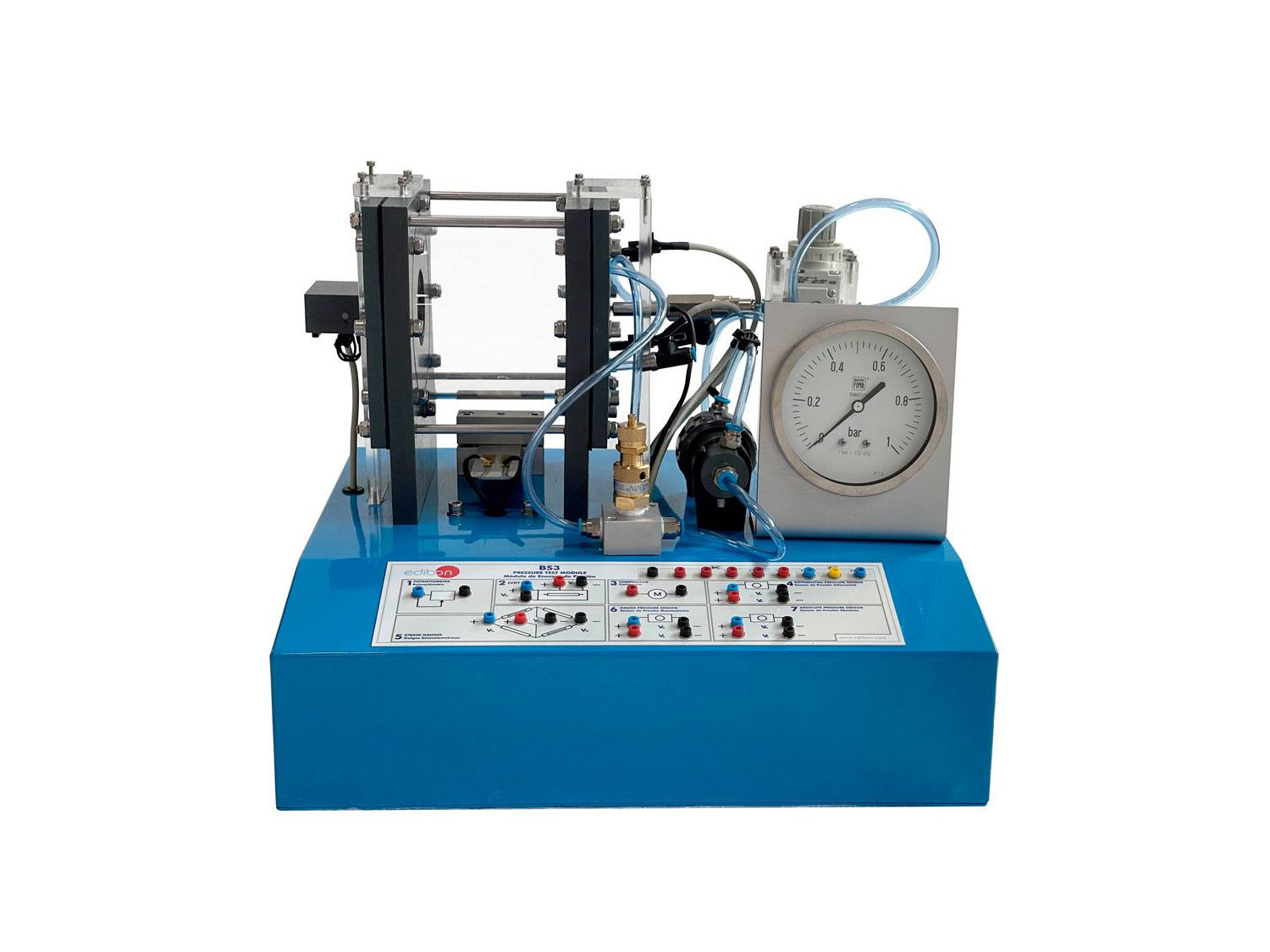

On the left upper side of the module there is a pressure chamber with several sensors adjusted to measure the pressure changes inside the chamber. Next to the pressure chamber on the left side there is a relay activates a compressor that gives the system pressure.

There are a compressor and a manometer connected next to the regulating valve with which the pressure chamber maximum pressure can be adjusted.

On both sides of the pressure chamber there are two diaphragms where displacement sensors are connected and some strain gauges that detect the diaphragm distortion as the pressure rises.

Included elements:

  • Linear positioning sensor (potentiometer).
  • LVDT sensor.
  • Differential pressure sensor with hole board system.
  • Strain gauges.
  • Manometric pressure sensor.
  • Absolute pressure sensor.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Use of linear positioning sensor (potentiometer) to detect the displacement produced by a diaphragm expansion caused by the air pressure.
  2. Use of a LVDT as an element to measure the diaphragm distortion that is consequence of the pressure inside the pressure chamber.
  3. Differential pressure sensor with hole-board system. Use of a differential pressure sensor of the semiconductor type to measure the pressure fall in a hole-board system.
  4. Use of Strain gauges to measure the distortion produced by the deformation generated in a beam.
  5. Measure the pressure in the chamber, using two different types of sensors (manometric and absolute pressure sensor).

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Use of Strain gauges to measure the distortion produced by the deformation generated in a beam.
  2. Strain gauges for measuring deformations: their resistance changes as the diaphragm expands due to the pressure coming from the pressure chamber.
