AEL-SERIN/CA-1KW Aplikasi Servo Motor Industri AC 1 Kw
SISTEM INOVATIF
The 1 kW AC Industrial Servomotor Application, "AEL-SERIN/CA-1KW", has been designed to study the working principle and control of industrial servomotors.
BERITA TERKAIT
GAMBARAN UMUM
The 1 kW AC Industrial Servomotor Application, "AEL-SERIN/CA-1KW", has been designed to study the working principle and control of industrial servomotors.
The "AEL-SERIN/CA-1KW" allows the user to acquire knowlegde and experience in the control of the mechanical parameters of a servomotor.For this purpose, the application includes a servomotor along with its control module and two digital meters to monitor speed and torque values throughout the whole process.
In addition, once this knowledge has been acquired the user will be able, if desired, to carry out manual tests for rotating electrical machines with the goal of setting different operating conditions to obtain its characteristic curves and parameters.
In order to carry out advanced electrodynamic tests for rotating electrical machines, it is recommended to acquire the Control and Data Acquisition System Software for Electrical Machines, "EM-SCADA". This advanced software allows monitoring waveforms for voltage, current, torque and speed for the in-depth study of the electrical machines to be tested.
LATIHAN DAN PRAKTEK PEDOMAN
LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN
- Wiring and starting up the AC servomotor.
- Start/Stop operations of the servomotor.
- Speed control operation.
- Torque control operation.
- Warnings through alarm.
LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT
Additional practical possibilities with the additional recommended elements:
- Real time torque monitoring (EM-SCADA is required).
- Real time speed monitoring (EM-SCADA is required).
- Real time monitoring of current and voltage RMS values (EM-SCADA is required).
- Real time monitoring of current and voltage waveforms (EM-SCADA is required).
- Advanced electrodynamic study of the machine (EM-SCADA is required).
- Automatic braking test and monitoring of the results (EM-SCADA is required).
- Obtaining the characteristic curves of the machine (torquespeed, torque-current, etc) (EM-SCADA is required).
- Saving and comparison of results (EM-SCADA is required).
- Start-up of the electrical machine coupled to the servomotor (AEL-DCEMA and/or AEL-ACEM is required (at least one)).
- Introducing the braking torque (AEL-DCEMA and/or AEL-ACEM is required (at least one)).
- Monitoring of the electrical and mechanical parameters of the rotating machine under different operating conditions (AEL-DCEMA and/or AEL-ACEM is required (at least one)).
- Electrodynamic study of the machine (AEL-DCEMA and/or AEL-ACEM is required (at least one)).
- Obtaining the characteristic curves of the machine by means of manually controlled braking tests (torque-speed, torquecurrent, etc.) (AEL-DCEMA and/or AEL-ACEM is required (at least one)).
PERALATAN SIMILAR TERSEDIA
6.1.2.2.- ELEKTRONIK TENAGA DAN ELEKTRONIK INDUSTRI
SERIN/CC
The Computer Controlled Advanced Industrial Servosystem Unit (for DC Motors), "SERIN/CC", allows different practices related to servomotors to be carried out. The unit has different modules to develop different experiments. The modules included in...
6.1.2.2.- ELEKTRONIK TENAGA DAN ELEKTRONIK INDUSTRI
SERIN/CA

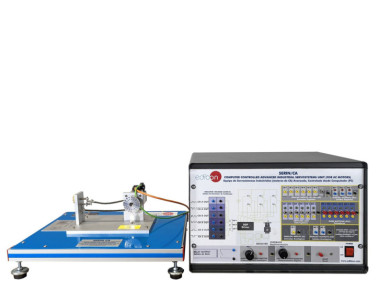

Unit Pelatihan Industri Lanjut dengan Komputer Kontrol Sistem Servo (motor AC)
The "SERIN/CA" trainer consists on a Control Interface Box connected to a three-phase motor and to a computer (computer not included). The control interface has a resolver for three-phase motors that controls the speed, position and currentof the...
6.1.2.2.- ELEKTRONIK TENAGA DAN ELEKTRONIK INDUSTRI
SERIN/CCB

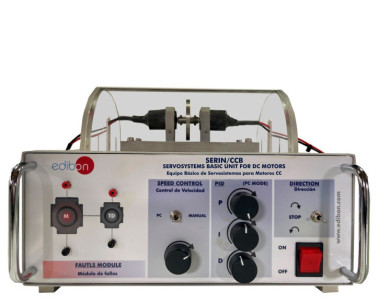

Unit Pelatihan Sistem Servo Dasar (motor DC)
