LUMINOSITY CONTROL MODULE - RYC-I

ИННОВАЦИОННЫЕ СИСТЕМЫ

The PID Control and Regulation of Light Intensity Unit, "RYC-I", designed by EDIBON, allows analyzing light intensity control in a closed environment.

Посмотреть общее описание

Расширения

ICAI

Программное Обеспечение для Интерактивного Компьютерного Обучения
EMAK

Комплект Matlab EDIBON

ЛАБОРАТОРИИ

6TV
 Лаборатория мехатроники и автоматизации технического и профессионального образования
6HE
 Лаборатория мехатроники и автоматизации высшего образования
2TV
 Лаборатория электроники для технического и профессионального образования
2HE
 Электронная лаборатория высшего образования
11PTC
 Лаборатория нефтяного учебного центра

НОВОСТИ ПО ТЕМЕ

The future of Process Control: Innovation, training, and the industry 4.0 revolution
The future of Process Control: Innovation, training, and the industry 4.0 revolution
Automation and process control have been fundamental pillars in the evolution of both industry and scientific research. With the advent of Industry 4.0, the integration of new technologies has driven an unprecedented transformation in the way industrial and research systems operate, optimize...
Читать дальше
What is Process Control, and Why is It Essential in Modern Industry?
What is Process Control, and Why is It Essential in Modern Industry?
Today, automation and efficiency are key factors in industrial and scientific development. Process control plays a crucial role in this context by enabling the monitoring, regulation, and optimization of industrial systems and processes, ensuring they operate efficiently, safely, and consistently.
Читать дальше
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Читать дальше
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Читать дальше
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
On October 19th, the Course on Instrumentation, Regulation and Control in Laboratories, taught by our engineers in these facilities, using EDIBON units, was completed and aimed at learning the control of the conditions of a laboratory process. The attendants, (12 laboratory technicians and...
Читать дальше

ОБЩЕЕ ОПИСАНИЕ

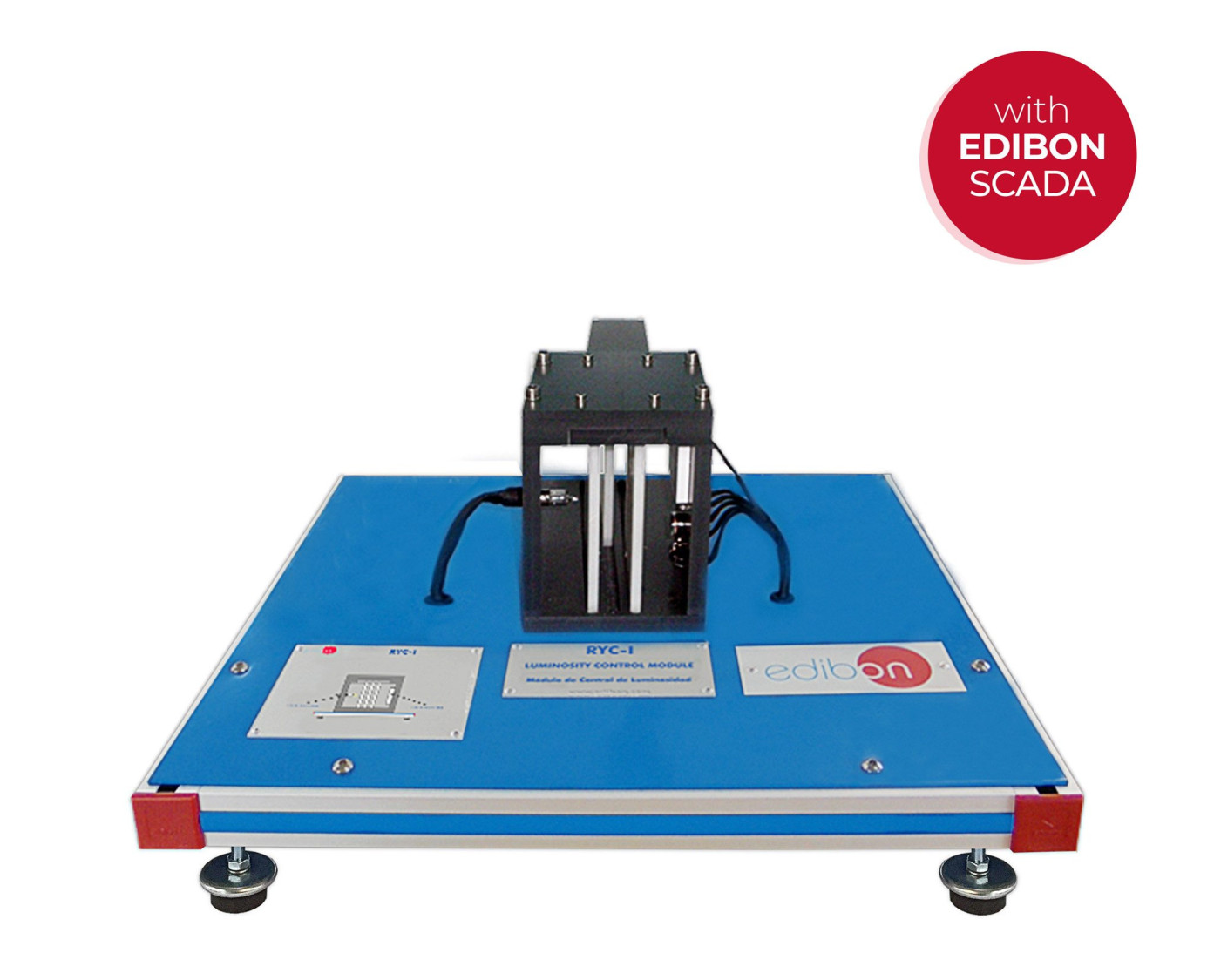

The PID Control and Regulation of Light Intensity Unit, "RYC-I", designed by EDIBON, allows analyzing light intensity control in a closed environment. It includes a variable light source and several optical sensors, such as photodiodes or phototransistors. It allows studying the response of different sensors to changes in illumination, as well as the regulation of light intensity using PID control.
