TEMPERATURE CONTROL MODULE - RYC-TE

ИННОВАЦИОННЫЕ СИСТЕМЫ

The PID Temperature Control and Regulation Unit, "RYC-TE", designed by EDI­BON, enables the practical study of automatic control systems through the regulation of water temperature in a tank.

Посмотреть общее описание

Расширения

ICAI

Программное Обеспечение для Интерактивного Компьютерного Обучения
EMAK

Комплект Matlab EDIBON

ЛАБОРАТОРИИ

6TV
 Лаборатория мехатроники и автоматизации технического и профессионального образования
6HE
 Лаборатория мехатроники и автоматизации высшего образования
2TV
 Лаборатория электроники для технического и профессионального образования
2HE
 Электронная лаборатория высшего образования
11PTC
 Лаборатория нефтяного учебного центра

НОВОСТИ ПО ТЕМЕ

The future of Process Control: Innovation, training, and the industry 4.0 revolution
The future of Process Control: Innovation, training, and the industry 4.0 revolution
Automation and process control have been fundamental pillars in the evolution of both industry and scientific research. With the advent of Industry 4.0, the integration of new technologies has driven an unprecedented transformation in the way industrial and research systems operate, optimize...
Читать дальше
What is Process Control, and Why is It Essential in Modern Industry?
What is Process Control, and Why is It Essential in Modern Industry?
Today, automation and efficiency are key factors in industrial and scientific development. Process control plays a crucial role in this context by enabling the monitoring, regulation, and optimization of industrial systems and processes, ensuring they operate efficiently, safely, and consistently.
Читать дальше
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Читать дальше
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Читать дальше
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
On October 19th, the Course on Instrumentation, Regulation and Control in Laboratories, taught by our engineers in these facilities, using EDIBON units, was completed and aimed at learning the control of the conditions of a laboratory process. The attendants, (12 laboratory technicians and...
Читать дальше

ОБЩЕЕ ОПИСАНИЕ

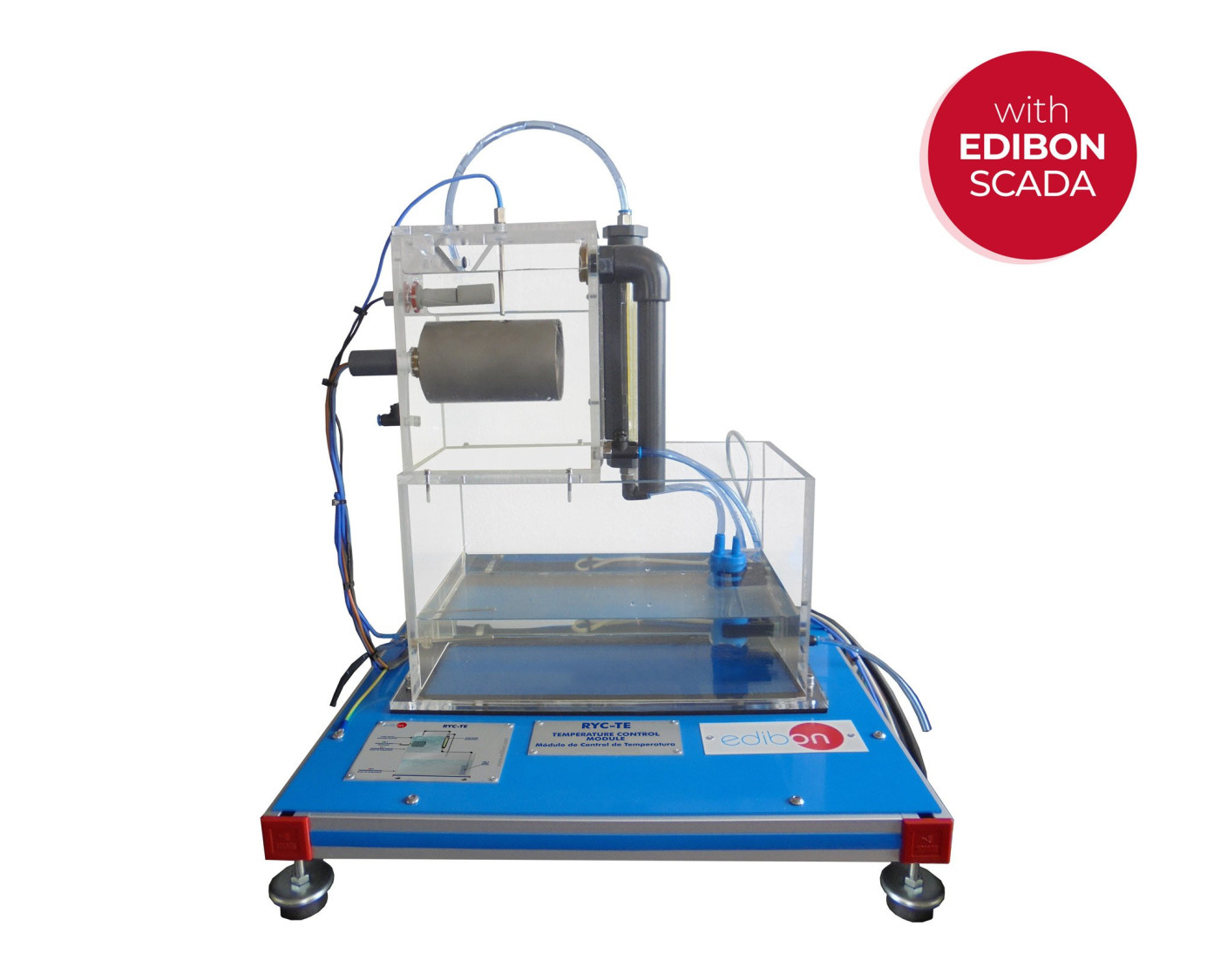

The PID Temperature Control and Regulation Unit, "RYC-TE", designed by EDI­BON, enables the practical study of automatic control systems through the regulation of water temperature in a tank.

This unit allows students and technicians to understand and apply PID control theory in a real environment. It consists of a base with sensors and actuators, such as a temperature sensor, a flowmeter, a water pump, and a heating ele­ment, as well as an interface box that integrates the power supply, signal condi­tioning, and the necessary connections to the control system.

The unit also allows manual disturbances by adjusting the power of the heating element.

It is used in conjunction with the base unit "RYC" to control the temperature of the tank water by regulating the flow rate of the water circuit.

УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ

РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

  1. Characterization of the temperature in a tank.
  2. Control of the temperature of a tank using a PID controller.

БОЛЬШЕ ПРАКТИЧЕСКИХ УПРАЖНЕНИЙ ДЛЯ РАБОТЫ С УСТРОЙСТВОМ

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  4. This unit can be used for doing applied research.
  5. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  6. Control of the RYC-TE unit process through the control interface box without the computer.
  7. Visualization of all the sensors values used in the RYC-TE unit process.
  8. Several other exercises can be done and designed by the user.
